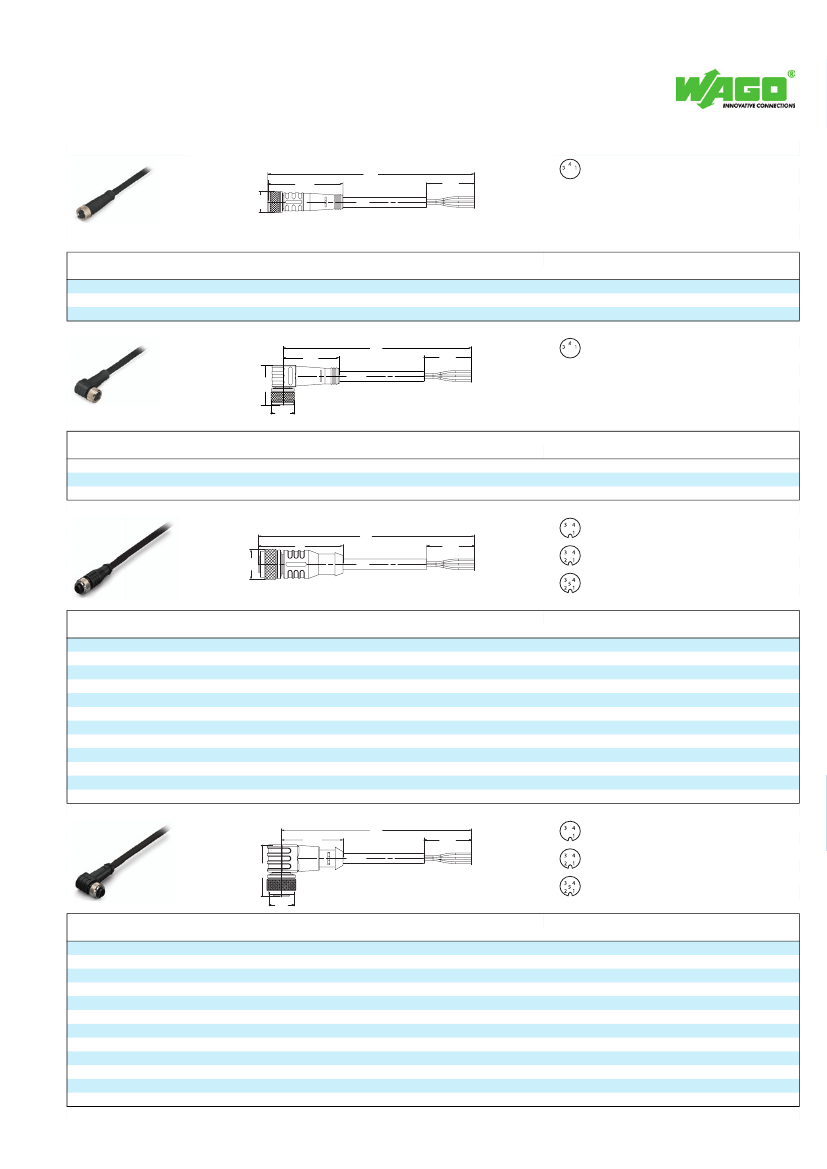

WAGO-I/O-SYSTEM 756
Sensor/actuator cables, with one end of cable fitted
M8 Socket
M8 Socket
L*)
34,7
ø 9,6
20±2
3-pole
9
Pin 1 - 4: 0.25 mm²
1 brown (+)
3 blue (-)
4 black (S)
529
(mm)
M8 Sensor/actuator cables, with one end of cable fitted
3-pole,
M8 socket, straight, one free cable end, 1.5 m
M8 socket, straight, one free cable end, 5.0 m
M8 socket, straight, one free cable end, 10 m
M8 Socket
L*)
23,5
20±2
Cable Ø
4.1 mm ± 0.2
4.1 mm ± 0.2
4.1 mm ± 0.2
3-pole
Item No.
756-5101/030-015
756-5101/030-050
756-5101/030-100
Pack. Unit
10
10
10
M8 Socket
Pin 1 - 4: 0.25 mm²
1 brown (+)
3 blue (-)
4 black (S)
16,5
(mm)
ø 9,6
M8 Sensor/actuator cables, with one end of cable fitted
3-pole,
M8 socket, right angle, one free cable end, 1.5 m
M8 socket, right angle, one free cable end, 5.0 m
M8 socket, right angle, one free cable end, 10 m
M12 Socket
L*)
42
ø15
20±2
Cable Ø
4.1 mm ± 0.2
4.1 mm ± 0.2
4.1 mm ± 0.2
3-pole
Item No.
756-5102/030-015
756-5102/030-050
756-5102/030-100
Pack. Unit
10
10
10
M12 Socket
Pin 1 - 5: 0.34 mm²
1
2
3
4
5
brown (+)
white (Ö)
blue (-)
black (S)
gray
4-pole
5-pole
(mm)
M12 Sensor/actuator cables, with one end of cable fitted
3-pole,
M12 socket, straight, one free cable end, 1.5 m
M12 socket, straight, one free cable end, 5.0 m
M12 socket, straight, one free cable end, 10 m
M12 socket, straight, one free cable end, 1.5 m
M12 socket, straight, one free cable end, 5.0 m
M12 socket, straight, one free cable end, 10 m
M12 socket, straight, one free cable end, 1.5 m
M12 socket, straight, one free cable end, 5.0 m
M12 socket, straight, one free cable end, 10 m
M12 socket, straight, one free cable end, 1.5 m
M12 socket, straight, one free cable end, 5.0 m
M12 socket, straight, one free cable end, 10 m
M12 Socket
L*)
31,5
20±2
Cable Ø
4.3 mm ± 0.2
4.3 mm ± 0.2
4.3 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
3-pole
Item No.
756-5301/030-015
756-5301/030-050
756-5301/030-100
756-5301/040-015
756-5301/040-050
756-5301/040-100
756-5301/050-015
756-5301/050-050
756-5301/050-100
756-5301/060-015
756-5301/060-050
756-5301/060-100
Pack. Unit
10
10
10
10
10
10
10
10
10
10
10
10
4-pole,
5-pole,
5-pole, shielded
M12 Socket
Pin 1 - 5: 0.34 mm²
1
2
3
4
5
brown (+)
white (Ö)
blue (-)
black (S)
gray
9
4-pole
26,5
(mm)
ø15
5-pole
M12 Sensor/actuator cables, with one end of cable fitted
3-pole,
M12 socket, right angle, one free cable end, 1.5 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10 m
M12 socket, right angle, one free cable end, 1.5 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10 m
M12 socket, right angle, one free cable end, 1.5 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10 m
M12 socket, right angle, one free cable end, 1.5 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10 m
Cable Ø
4.3 mm ± 0.2
4.3 mm ± 0.2
4.3 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
Item No.
756-5302/030-015
756-5302/030-050
756-5302/030-100
756-5302/040-015
756-5302/040-050
756-5302/040-100
756-5302/050-015
756-5302/050-050
756-5302/050-100
756-5302/060-015
756-5302/060-050
756-5302/060-100
Pack. Unit
10
10
10
10
10
10
10
10
10
10
10
10
4-pole,
5-pole,
5-pole, shielded
* Cable length
Custom cable lengths upon request
