MDS-223PIN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MDS-223PIN

MDS-223PIN: DescriptionSurface Mount Double-Balance Mixer, 10 KHz - 500 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size120KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

MDS-223PIN Overview

Surface Mount Double-Balance Mixer, 10 KHz - 500 MHz

MDS-223PIN Parametric

Parameter Name	Attribute value
Maker	MACOM
package instruction	MODULE,6LEAD,.5
Reach Compliance Code	compli
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	9 dB
Maximum input power (CW)	26 dBm
Number of terminals	6
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,6LEAD,.5
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

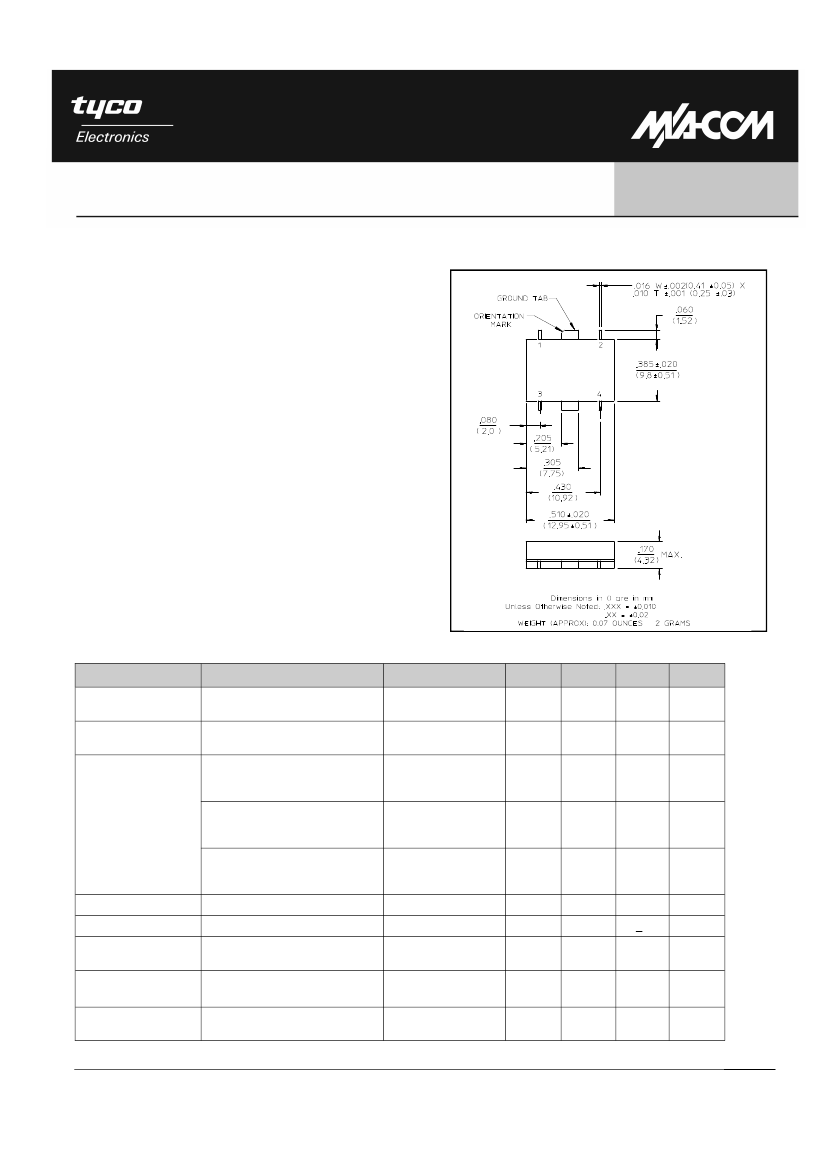

Surface Mount Double-Balanced Mixer,

10 - 500 MHz

Features

Fully Hermetic Package

Low Cost

Conversion Loss: 7 dB Typical Midband

Impedance: 50 Ohms Nominal

Maximum Input Power: 400 mW Max, Derated to

85°C @ 3.2 mW/°C

•

X Port Current: 50 mA Max.

•

MIL-STD-883 Screening Available

•

MDS-223

SF-1

Description

Transformers convert the LO and RF paths to

balanced lines connecting to a medium barrier,

Schottky diode ring quad. These transformers help

provide excellent isolation between ports.

Conversion loss is low. The direct connection of the

IF port to the diode quad allows these mixers to be

used as phase detectors and bi-phase modulators.

Electrical Specifications

: T

= -55°C to +85°C

Parameter

Frequency Range

Conversion Loss

Isolation

LO to RF

Test Conditions

RF, LO Ports

IF Port

Frequency

10 - 500

DC - 500

5 - 150 MHz

150 - 500 MHz

5 - 150 MHz

150 - 500 MHz

5 - 150 MHz

150 - 500 MHz

5 - 150 MHz

150 - 500 MHz

—

100 - 350 MHz

350 - 500 MHz

Units

MHz

—

dBm

—

Min

—

Typ

—

+2.5

—

Max

—

7.0

9.0

—

LO to IF

RF to IF

DC Polarity

DC Offset

RF Input

SSB Noise Figure

Typical Two-Tone IM

Ratio

Negative

—

1 dB Compression

1 dB Desensitization

Within 1 dB of Conversion Loss

Max

with a –10 dBm input, each input,

25 MHz and 35 MHz IF

1. All specifications apply when operated at +7 dBm available LO power with 50 ohm source and load impedance.

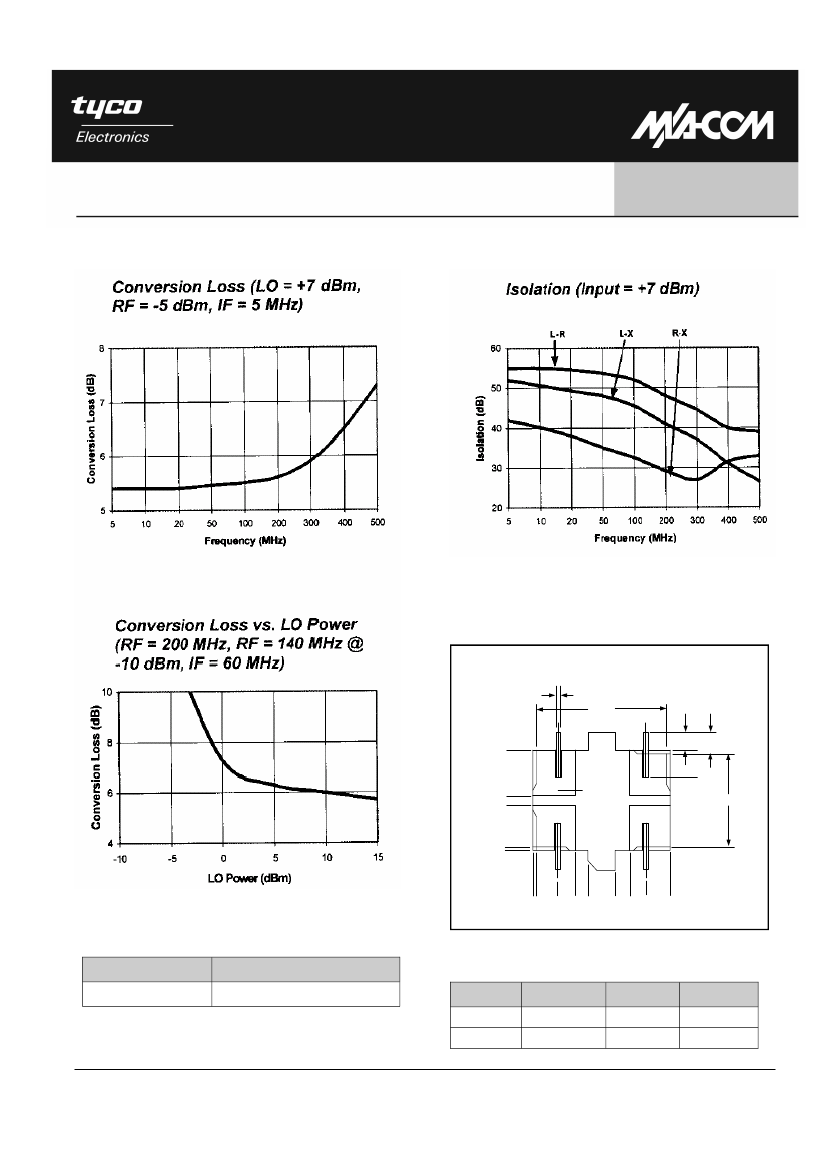

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.
