MBB51TK-11J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MBB51TK-11J

MBB51TK-11J: DescriptionULTRA HIGH BRIGHTNESS BLUE LED LAMP; CategoryLED optoelectronic/LED photoelectric; File Size121KB，2 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric View All

MBB51TK-11J Overview

ULTRA HIGH BRIGHTNESS BLUE LED LAMP

MBB51TK-11J Parametric

Parameter Name	Attribute value
Maker	Micro Electronics
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknow
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	TRANSPARENT CLEAR
Nominal luminous intensity	4200.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.7 mm
method of packing	BULK
shape	ROUND
size	4.98 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	70 deg
Base Number Matches	1

Preview

Download Datasheet

View All

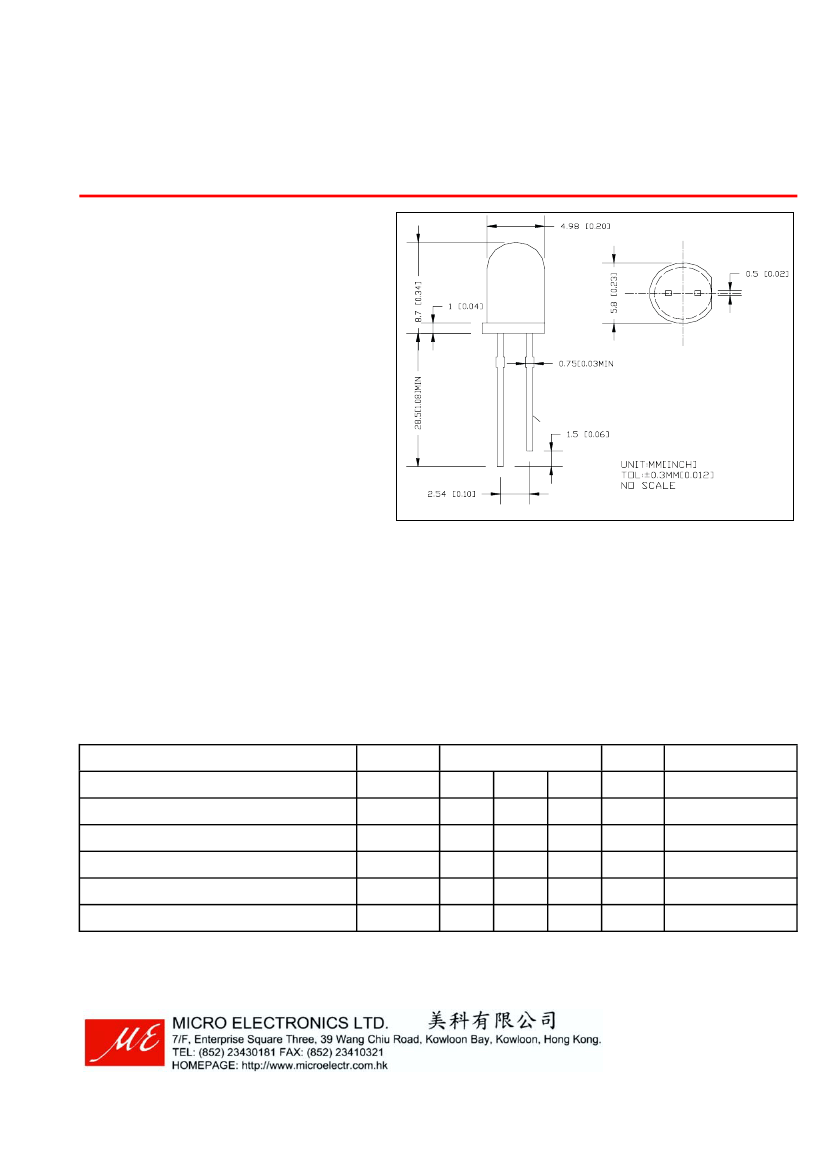

MICRO

ELECTRO NICS

MBB51TK-11J

ULTRA HIGH

BRIGHTNESS

BLUE LED LAMP

DESCRIPTION

MBB51TK-11J is an ultra high

brightness InGaN/GaN blue LED lamp

encapsulated in a 5mm diameter clear

transparent lens .

Cathode

ABSOLUTE MAXIMUM RATINGS

Power Dissipation @ Ta=25°C

Continuous Forward Current

Reverse Voltage

Operating Temperature Range

Storage Temperature Range

Lead Soldering Temperature (1/16" from body)

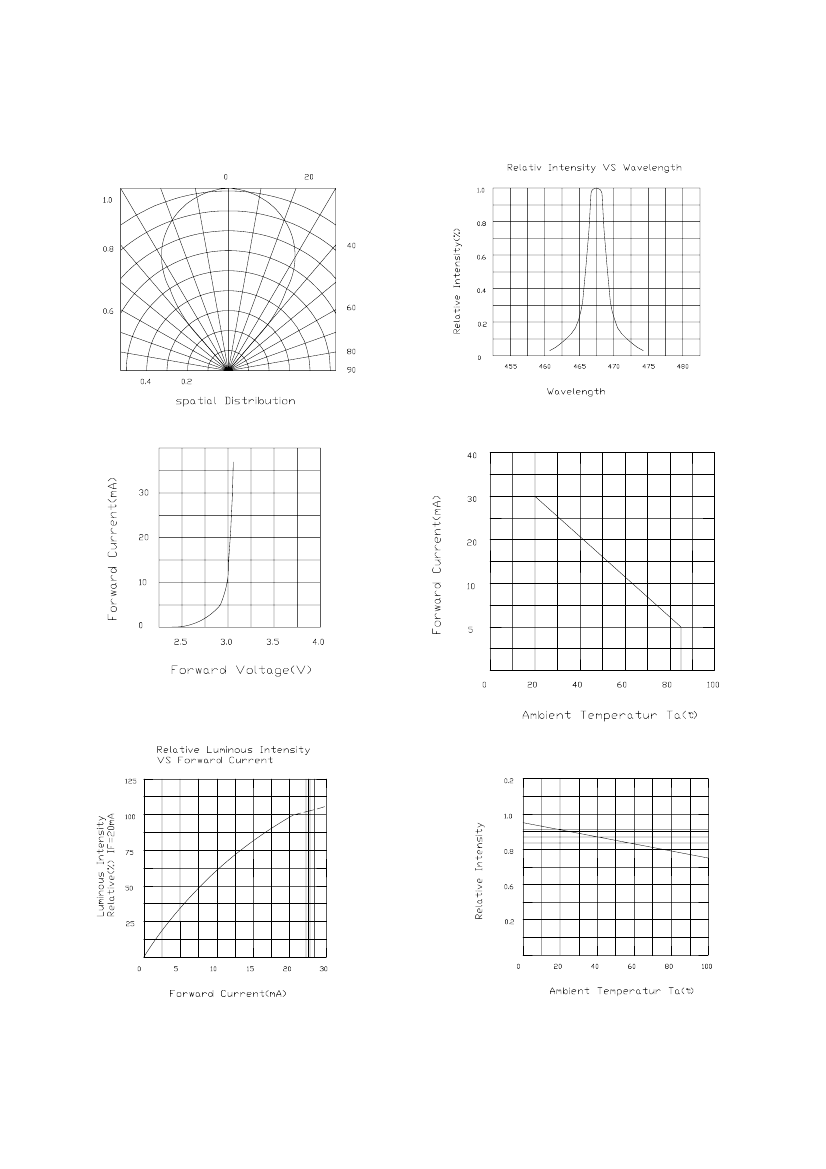

ELECTRO-OPTICAL CHARACTERISTICS

PARAMETER

Forward Voltage

Reverse Breakdown Voltage

Viewing Angle

Luminous Intensity

Dominant Wavelength

Spectral Line Half Width

SYMBOL

BVR

2θ 1/2

λ½

Δλ

3500

465

4200

470

(Ta=25°C)

MIN

TYP

3.2

MAX

3.5

UNIT

degree

mcd

125mW

30mA

-20 to +80°C

-30 to +100°C

260°C for 5 sec.

CONDITIONS

IF=20mA

IR=100µA

IF=20mA

CAUTION

Static eletricity and surge damages the LED ,It is recommended to use a wrist band or anti-eletrostatic

glove when handling the LED . All devices,equipment and machinery must be properly grounded.

REV:0

12/4/2006

page:1 of 2
