TMP47C222N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP47C222N

TMP47C222N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，68 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C222N Overview

CMOS 4-BIT MICROCONTROLLER

TMP47C222N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
Other features	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ
Address bus width
bit size	4
CPU series	TLCS-470
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	38 mm
Number of I/O lines	19
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.2/5.5 V
Certification status	Not Qualified
RAM (bytes)	96
rom(word)	2048
ROM programmability	MROM
Maximum seat height	4.5 mm
speed	8 MHz
Maximum slew rate	4 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

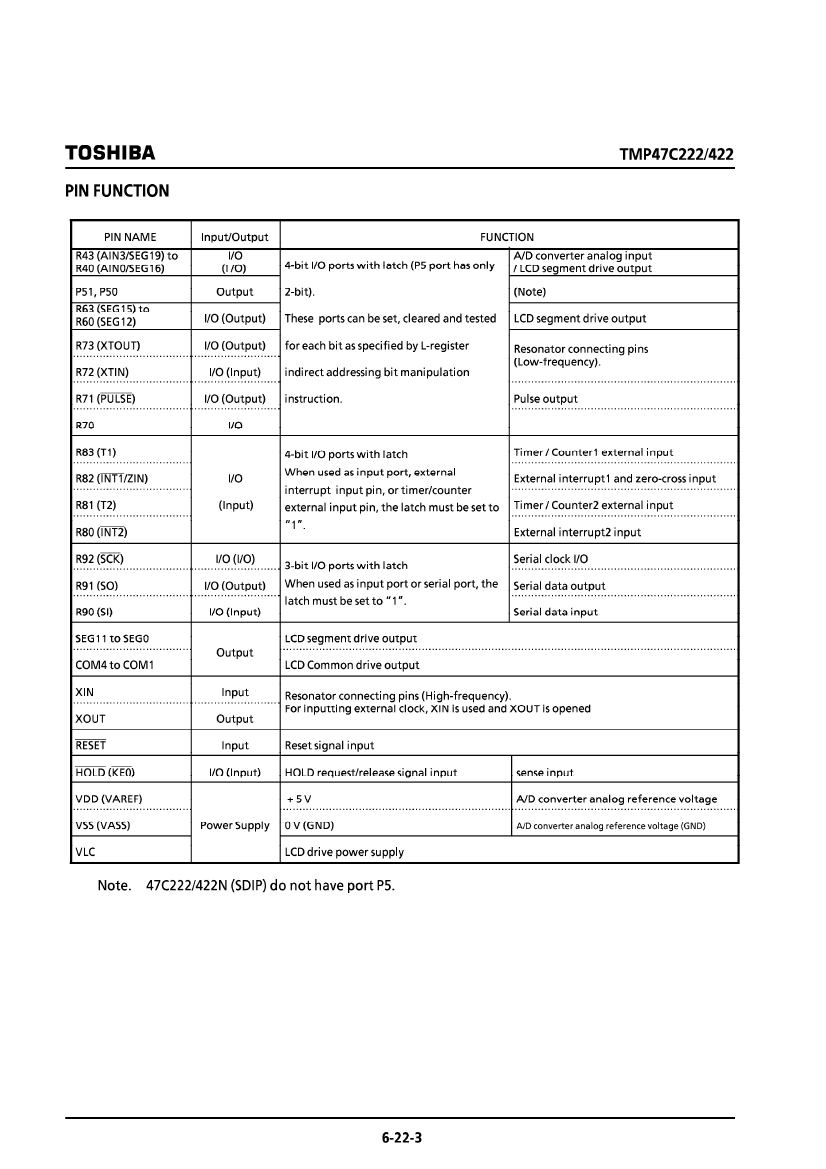

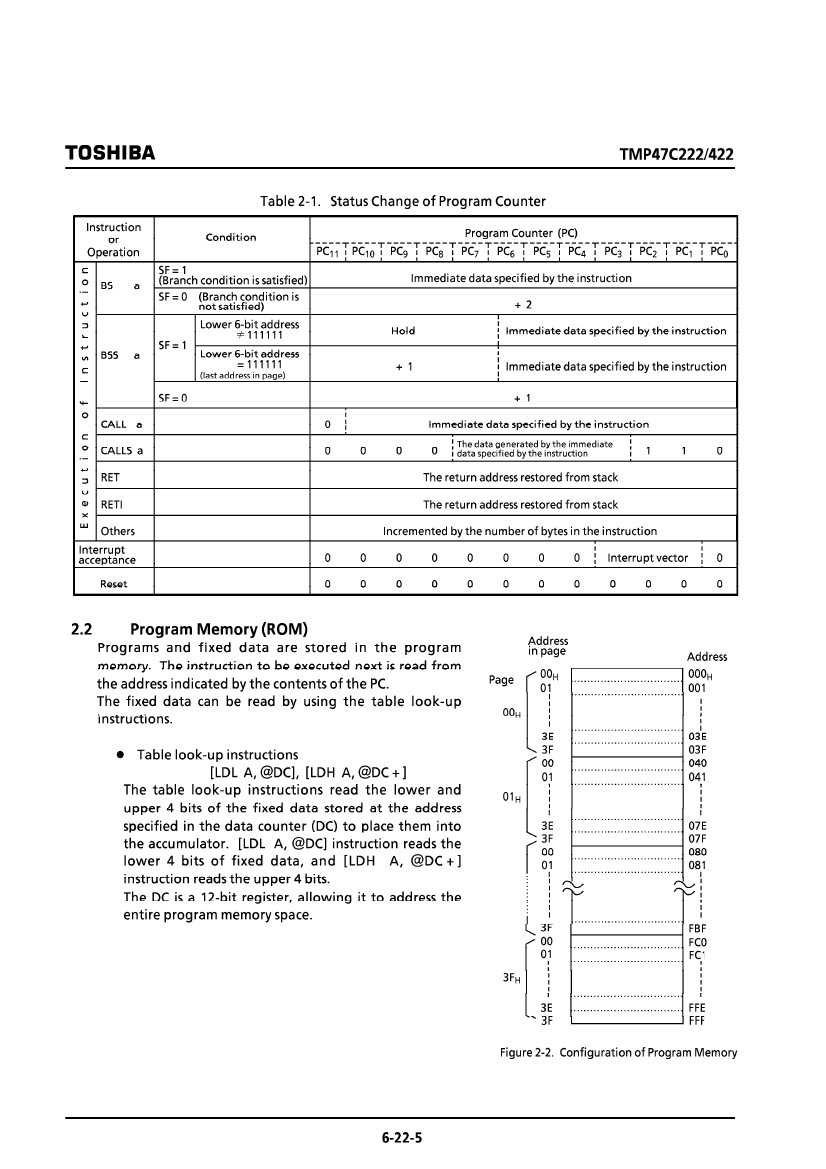

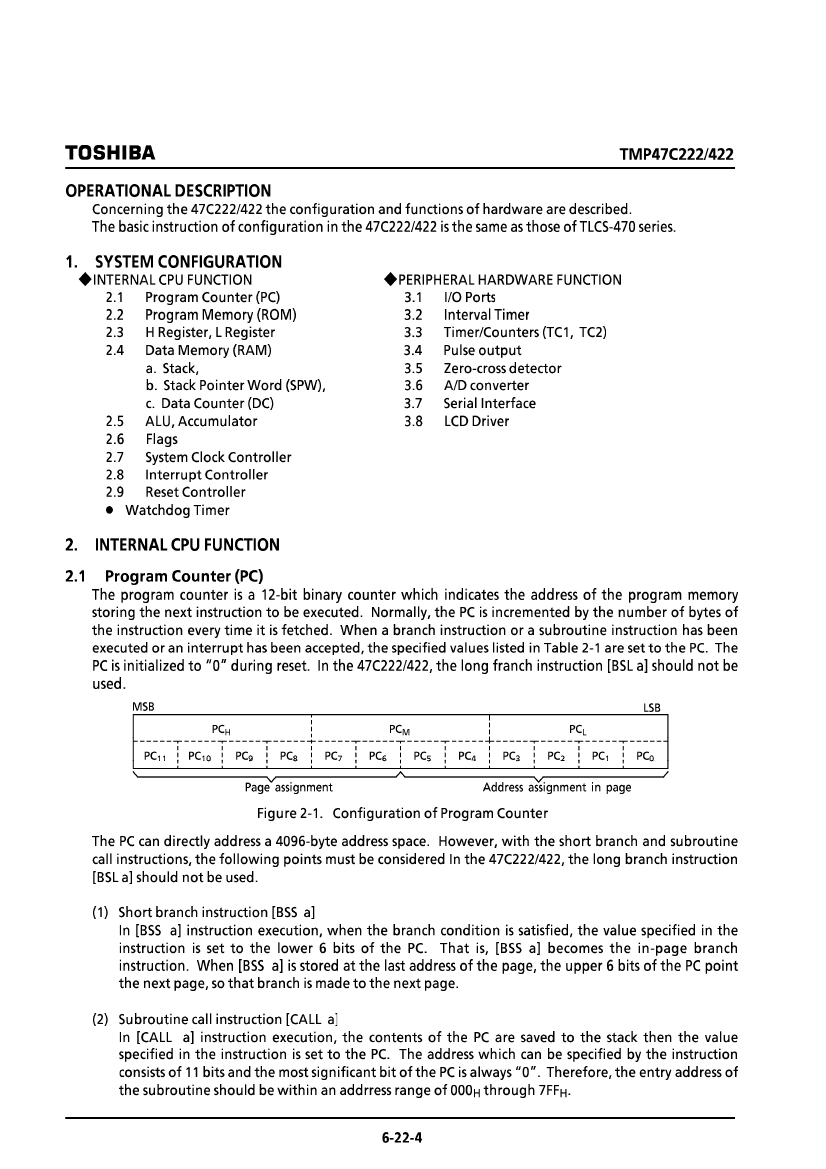

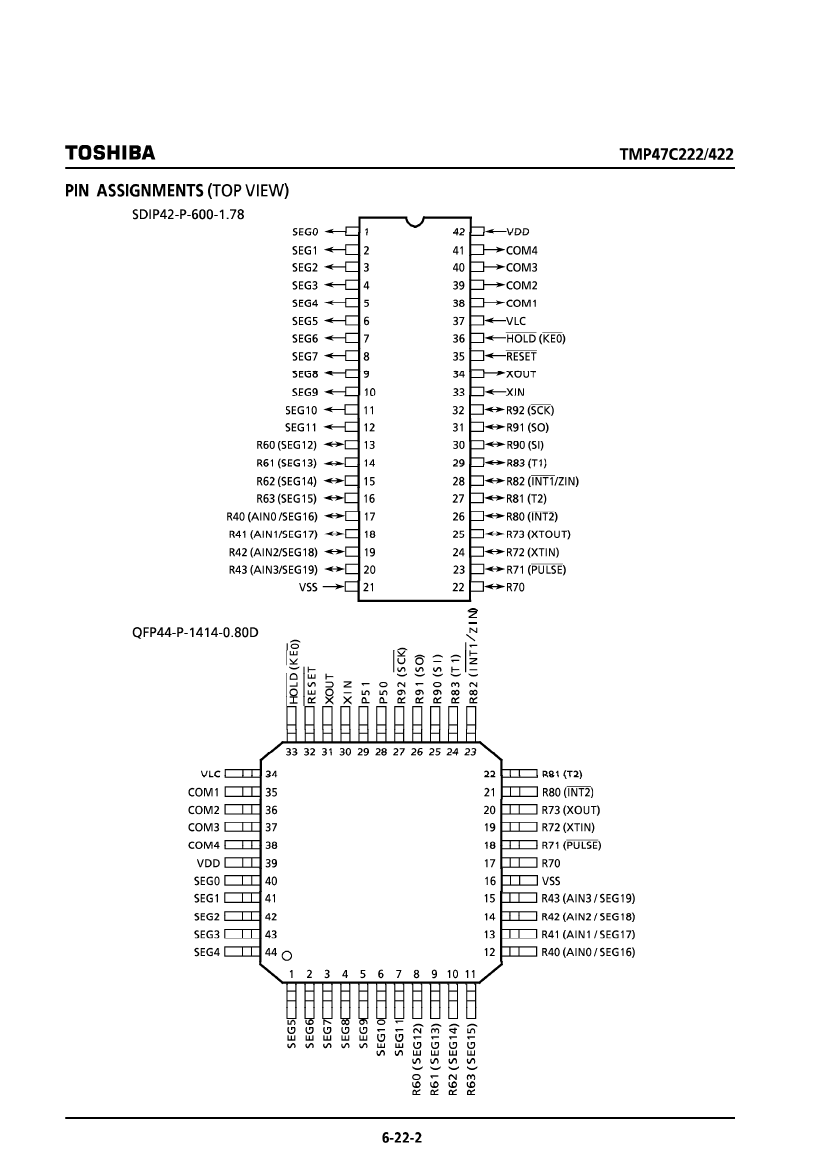

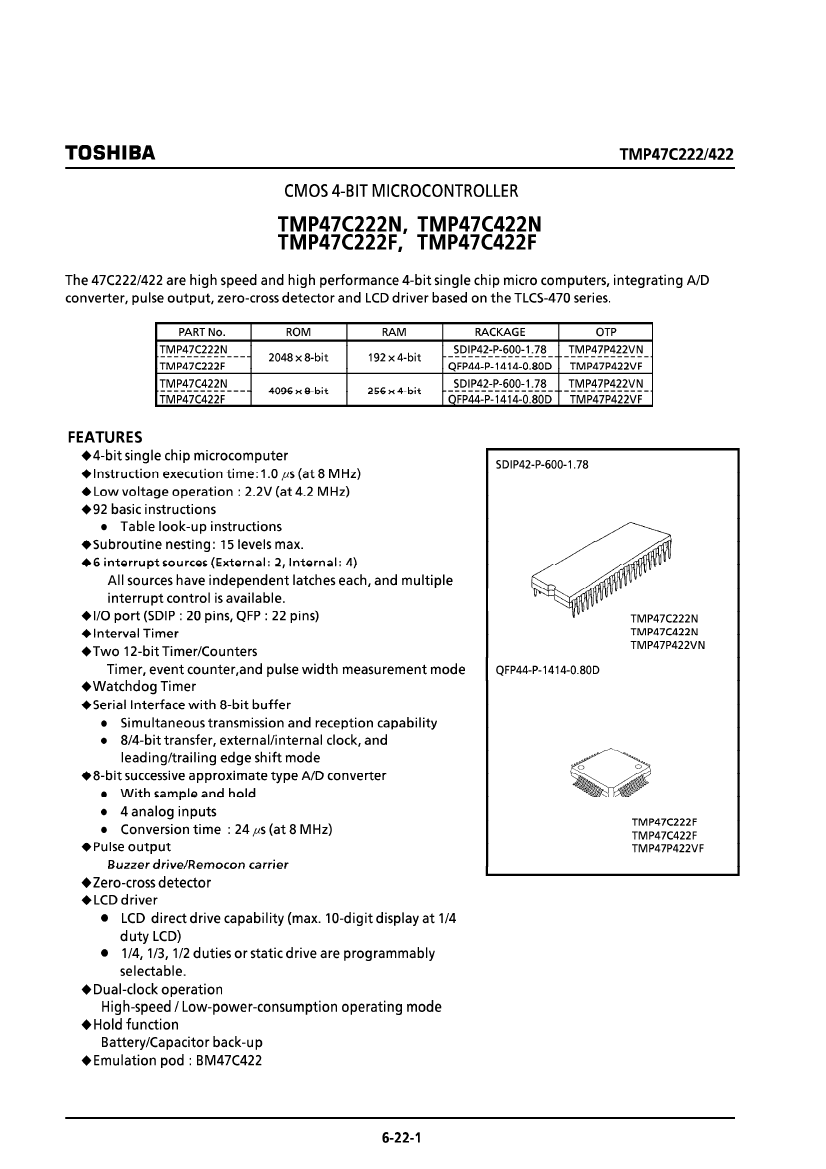

Preview

Download Datasheet

View All

TMP47C222N Related Products

	TMP47C222N	TMP47C222	TMP47C222F	TMP47C422N	TMP47C422F
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Parts packaging code	DIP	-	QFP	DIP	QFP
package instruction	SDIP, SDIP42,.6	-	QFP, QFP44,.7SQ,32	SDIP, SDIP42,.6	QFP, QFP44,.7SQ,32
Contacts	42	-	44	42	44
Reach Compliance Code	unknow	-	unknow	unknow	unknow
Has ADC	YES	-	YES	YES	YES
Other features	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	-	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ
bit size	4	-	4	4	4
CPU series	TLCS-470	-	TLCS-470	TLCS-470	TLCS-470
maximum clock frequency	8 MHz	-	8 MHz	8 MHz	8 MHz
DAC channel	NO	-	NO	NO	NO
DMA channel	NO	-	NO	NO	NO
JESD-30 code	R-PDIP-T42	-	S-PQFP-G44	R-PDIP-T42	S-PQFP-G44
JESD-609 code	e0	-	e0	e0	e0
length	38 mm	-	14 mm	38 mm	14 mm
Number of I/O lines	19	-	19	19	19
Number of terminals	42	-	44	42	44
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-	-30 °C	-30 °C	-30 °C
PWM channel	NO	-	NO	NO	NO
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	-	QFP	SDIP	QFP
Encapsulate equivalent code	SDIP42,.6	-	QFP44,.7SQ,32	SDIP42,.6	QFP44,.7SQ,32
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE, SHRINK PITCH	-	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2.2/5.5 V	-	2.2/5.5 V	2.2/5.5 V	2.2/5.5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	96	-	96	128	128
rom(word)	2048	-	2048	4096	4096
ROM programmability	MROM	-	MROM	MROM	MROM
Maximum seat height	4.5 mm	-	3.05 mm	4.5 mm	3.05 mm
speed	8 MHz	-	8 MHz	8 MHz	8 MHz
Maximum slew rate	4 mA	-	4 mA	4 mA	4 mA
Maximum supply voltage	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	-	2.7 V	2.7 V	2.7 V
Nominal supply voltage	5 V	-	5 V	5 V	5 V
surface mount	NO	-	YES	NO	YES
technology	CMOS	-	CMOS	CMOS	CMOS
Temperature level	OTHER	-	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	-	0.8 mm	1.778 mm	0.8 mm
Terminal location	DUAL	-	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	-	14 mm	15.24 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	-	1	1	1
