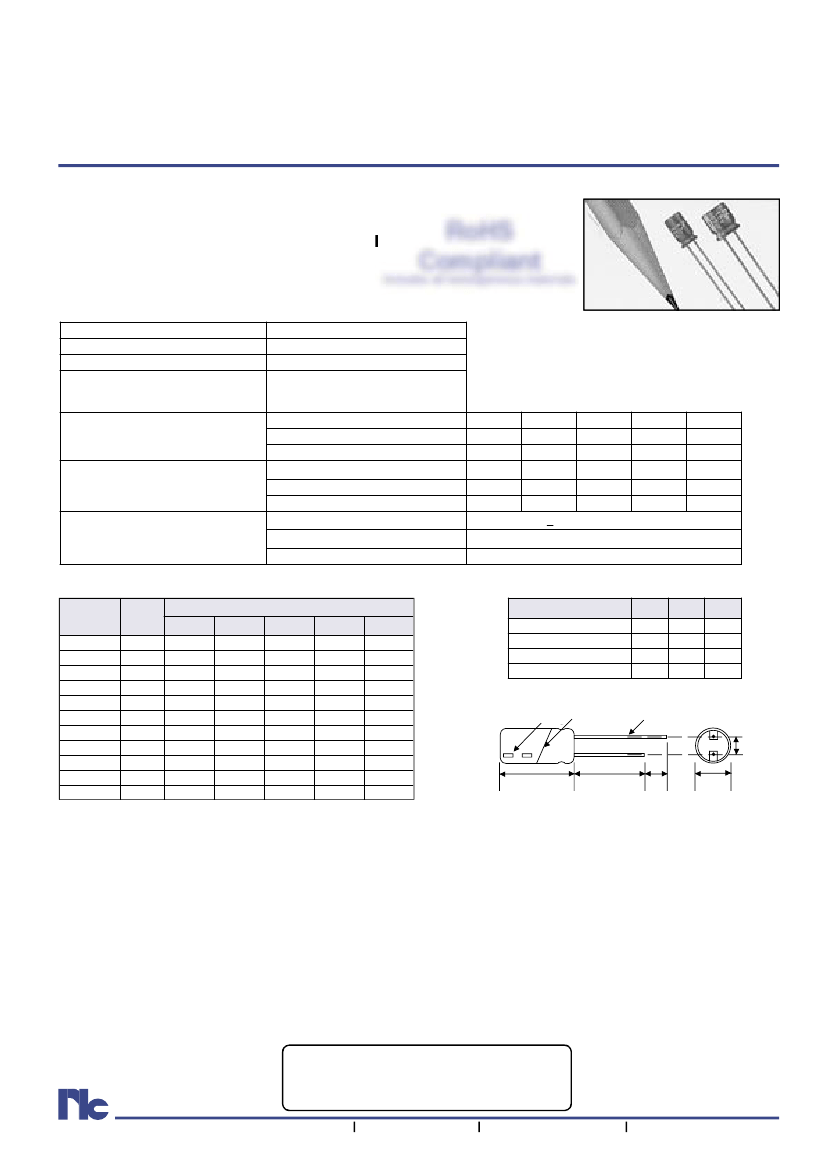

NRE-SX470M6.34X7F: DescriptionMiniature Aluminum Electrolytic Capacitors; File Size108KB，2 Pages; ManufacturerNIC; Websitehttps://www.niccomp.com

Download Datasheet View All

NRE-SX470M6.34X7F Overview

Miniature Aluminum Electrolytic Capacitors

Preview

Download Datasheet

View All

Miniature Aluminum Electrolytic Capacitors

LOW IMPEDANCE, SUBMINIATURE, RADIAL LEADS,

POLARIZED ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

• VERY LOW IMPEDANCE AT HIGH FREQUENCY

• LOW PROFILE 7mm HEIGHT

includes all homogeneous materials

• WIDE TEMPERATURE, -55

O

C~ +105

O

C

*See Part Number System for Details

NRE-SX Series

RoHS

Compliant

CHARACTERISTICS

Rated Voltage Range

Rated Capacitance Range

Operating Temperature Range

Max. Leakage Current

After 1 minute At 20°C

Surge Voltage & Max. Tan

δ

6.3 ~ 35Vdc

0.47 ~ 330

µF

-55~+105°C

0.01CV or 3

µ

A,

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

Tan

δ

@ 120Hz/20°C

W.V. (Vdc)

Z-40°C/Z+20°C

Z-55°C/Z+20°C

Capacitance Change

Tan

δ

Leakage Current

6.3

8

0.24

6.3

3

5

10

13

0.20

10

2

4

16

20

0.16

16

2

4

25

32

0.14

25

2

3

35

44

0.12

35

2

3

Low Temperature Stability

(Impedance Ratio @ 120Hz)

Load Life Test

105°C 1,000 Hours

Within +25% of initial measured value

Less than 200% of specified value

Less than specified value

STANDARD PRODUCT AND CASE SIZE TABLE Dφ x L (mm)

½½½ ½

µ

½½

½½½

½½

½½½

½½½½

½½½

½½½½½½½ ½½½½½½½

½½½

½

½½½

½

½½½½½

½½

½

½½½

½ ½½

½

½½½½½

½

½½

½

½½½

½

½½½½½

½

½½½½½

½

½½

½

½½½

½½½½½

½

½½

½½½

½½½½½

½½

½½½

½½½½½

½

LEAD SPACING AND DIAMETER (mm)

Case Dia. (D

∅)

Leads Dia. (d

∅)

Lead Spacing (F)

Dim.

α

Dim.

β

4

0.45

1.5

0.5

1.0

5

0.45

2.0

0.5

1.0

6.3

0.45

2.5

0.5

1.0

Polarity Marking

Insulation Sleeve

dφ ± 0.05

F ± 0.5

L +

β

max.

15mm Min.

4mm

Min.

Dφ ±

α

®

Please review the notes on correct use, safety and precautions found on

pages T10

&

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your specific application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
