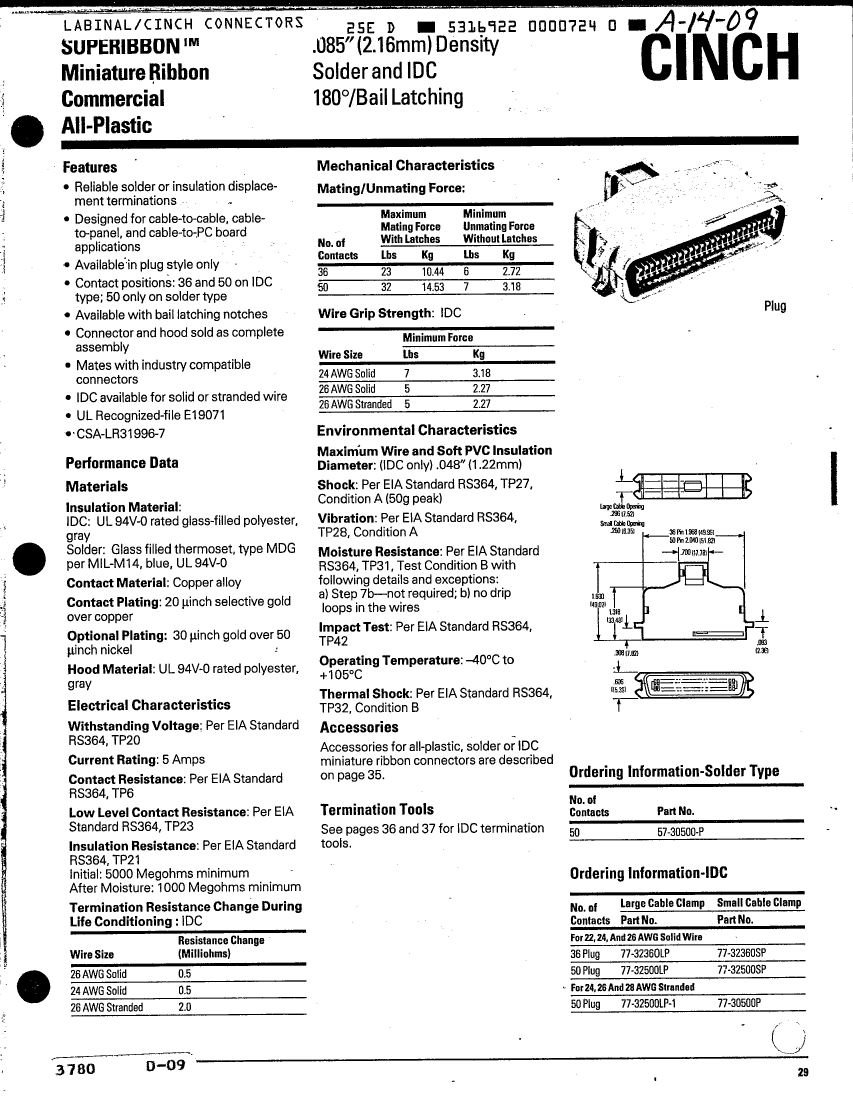

D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle
| Parameter Name | Attribute value |
| Maker | Bel Fuse |
| Reach Compliance Code | compliant |
| Other features | LARGE CABLE CLAMP |
| body width | 0.606 inch |
| subject depth | 1.622 inch |
| Body/casing type | RECEPTACLE |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | AU ON CU |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | DUAL PRONG |
| maximum insertion force | 2.8356 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 77 |
| Plug contact pitch | 0.085 inch |
| Installation type | CABLE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Plating thickness | 20u inch |
| Rated current (signal) | 5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell material | THERMOPLASTIC |
| Termination type | IDC |
| Total number of contacts | 36 |
| Maximum wire diameter | 22 AWG |
| Minimum wire diameter | 26 AWG |
| Evacuation force-minimum value | .7506 N |
| Base Number Matches | 1 |
| 77-32360LP | 57-30500-P | 77-32360SP | |
|---|---|---|---|
| Description | D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle | D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Lug Terminal, Receptacle | D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle |
| Maker | Bel Fuse | Bel Fuse | Bel Fuse |
| Reach Compliance Code | compliant | compliant | compliant |
| body width | 0.606 inch | 0.606 inch | 0.606 inch |
| subject depth | 1.622 inch | 1.622 inch | 1.622 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Contactor design | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN |
| Contact to complete cooperation | AU ON CU | AU ON CU | AU ON CU |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | DUAL PRONG | DUAL PRONG | DUAL PRONG |
| maximum insertion force | 2.8356 N | 2.8356 N | 2.8356 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | GRAY | BLUE | GRAY |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED THERMOPLASTIC | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 77 | 77 | 77 |
| Plug contact pitch | 0.085 inch | 0.085 inch | 0.085 inch |
| Installation type | CABLE | PANEL | CABLE |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Plating thickness | 20u inch | 20u inch | 20u inch |
| Rated current (signal) | 5 A | 5 A | 5 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Termination type | IDC | SOLDER LUG | IDC |
| Total number of contacts | 36 | 50 | 36 |
| Evacuation force-minimum value | .7506 N | .6116 N | .7506 N |
| Base Number Matches | 1 | 1 | 1 |
| Other features | LARGE CABLE CLAMP | - | SMALL CABLE CLAMP |
| Maximum wire diameter | 22 AWG | - | 22 AWG |
| Minimum wire diameter | 26 AWG | - | 26 AWG |
