RoHS
Compliant
High Power Linear Amplifier
5.7 - 5.9 GHz
Features
•
Ideal for 802.11a MESH and Access Point, 5.8
GHz WiMax, and other Linear Applications
•
Linear Pout: 20 dBm (802.11a Signal, 3% EVM)
•
IP1dB: +28 dBm Typical
•
Small Signal Gain: 23 dB Typical
•
EVM: 3% at 20 dBm Linear (OFDM) P
OUT
•
Lead-Free 4 mm 16 lead PQFN Package
•
100% Matte Tin Plating over Copper
•
Halogen-Free “Green” Mold Compound
•
RoHS* Compliant and 260°C Reflow Compatible
MAAP-007899
V3P
Block Diagram
Description
M/A-COM’s MAAP-007899 RF power amplifier is a
three stage GaAs MMIC designed specifically for
5.7-5.9 GHz WiMax 802.16 and 802.11a
applications.
The power amplifier maintains high linearity under
OFDM modulation. The MAAP-007899 is fabricated
using a high reliability GaAs HBT process to realize
low current and high power functionality. The
process features full passivation for increased
performance and reliability.

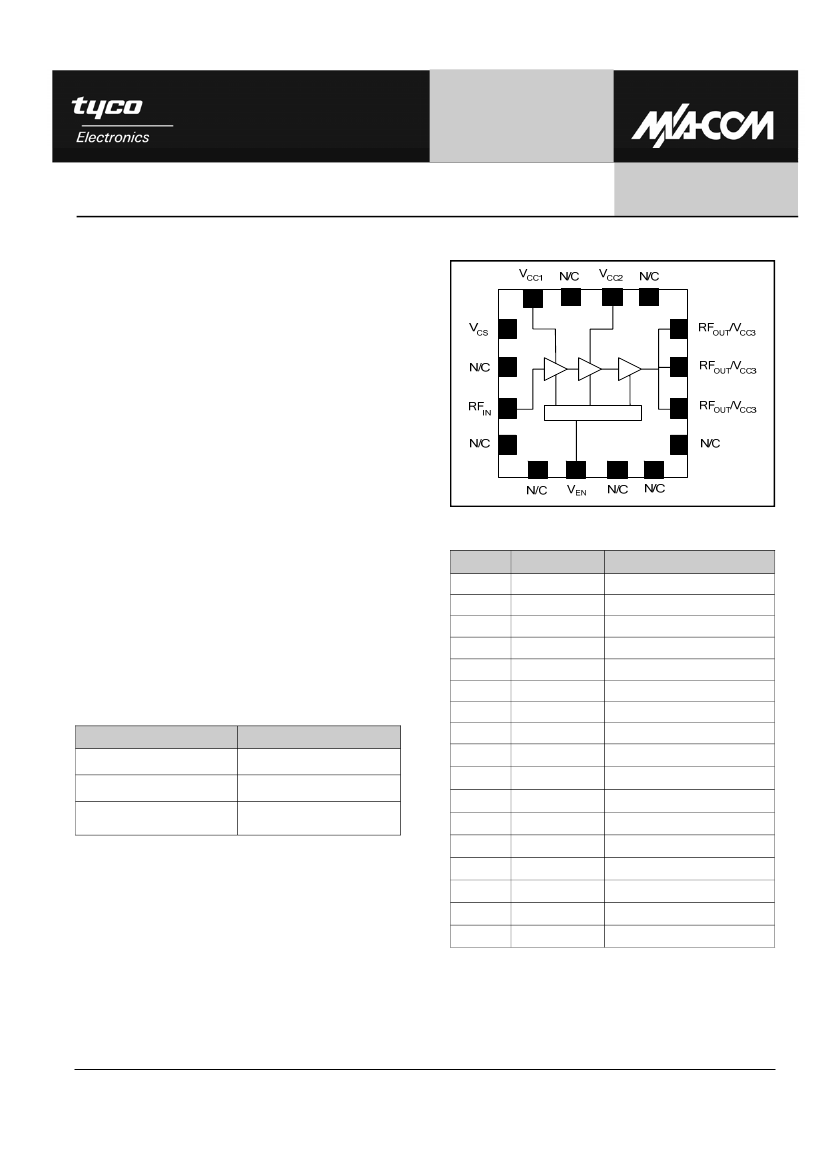

Pin Configuration
Pin
1
2
3
4
5
6
Pin Name
V
CS
N/C
RF
IN
N/C
N/C
V
EN
N/C
N/C
N/C
RF
OUT
/V
CC3
RF
OUT
/V
CC3
RF
OUT
/V
CC3
N/C
V
CC2
N/C
V
CC1
Paddle
2
Description
Bias Supply Voltage
No Connection
RF Input
No Connect
No Connect
Power Enable
No Connection
No Connection
No Connection
RF Output, 3rd Stage Supply
RF Output, 3rd Stage Supply
RF Output, 3rd Stage Supply
No Connection
2nd Stage Supply
No Connection
1st Stage Supply
RF & DC Ground
Ordering Information
Part Number
MAAP-007899-TR1000
MAAP-007899-TR3000
MAAP-007899-001SMB
1
7
Package
1000 piece reel
3000 piece reel
8
9
10
11
Sample Test Board
5.7 - 5.9 GHz
12
13
14
15
16
17
1. Reference Application Note M513 for reel size information.
2. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
This PRELIMINARY Data Sheet contains information regarding a product M/A-COM is considering for development. Performance
is based on simulated results or target specifications. Commitment to produce in volume is not guaranteed.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
High Power Linear Amplifier
5.7 - 5.9 GHz
Electrical Specifications: T
A
= +25 °C, V
CC
= 5.0 V, Z
0
= 50
Ω
Parameter
Frequency
Gain
Gain Flatness
Input Return Loss
Output Return Loss
Output P1dB
EVM
3
Device / Supply Voltage
Enable Voltage
Active Supply Current
3. Includes system EVM of 0.8%.
V
EN
I
EN
(for I
CQ
= 350 mA)
P
OUT
= 20 dBm
5.8 GHz
5.7 to 5.9 GHz
5.8 GHz
5.8 GHz
5.8 GHz
P
OUT
= 20 dBm, 5.8 GHz
OFDM, QAM-64, 54 Mbps
MAAP-007899
V3P
Test Conditions
Units
GHz
dB
dB
dB
dB
dBm
%
V
V
mA
mA
Min.
5.7
—
—
—
—
—
—
—
—
—
—
Typ.
—
23
±0.25
13
9
28
3
5
5
9
475
Max.
5.9
—
—
—
—
—
—
—
—
—
—
Absolute Maximum Ratings
4,5
Parameter
Input Power
Operating Supply Voltage
Operating Control Voltage
Operating Temperature
Channel Temperature
Storage Temperature
Handling Procedures
Please observe the following precautions to avoid
damage:
Absolute Maximum
+ 5 dBm
+6.0 Volts
+5.5 Volts
-40 °C to +85 °C
+150 °C
-40 °C to +150 °C
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
Lead-Free

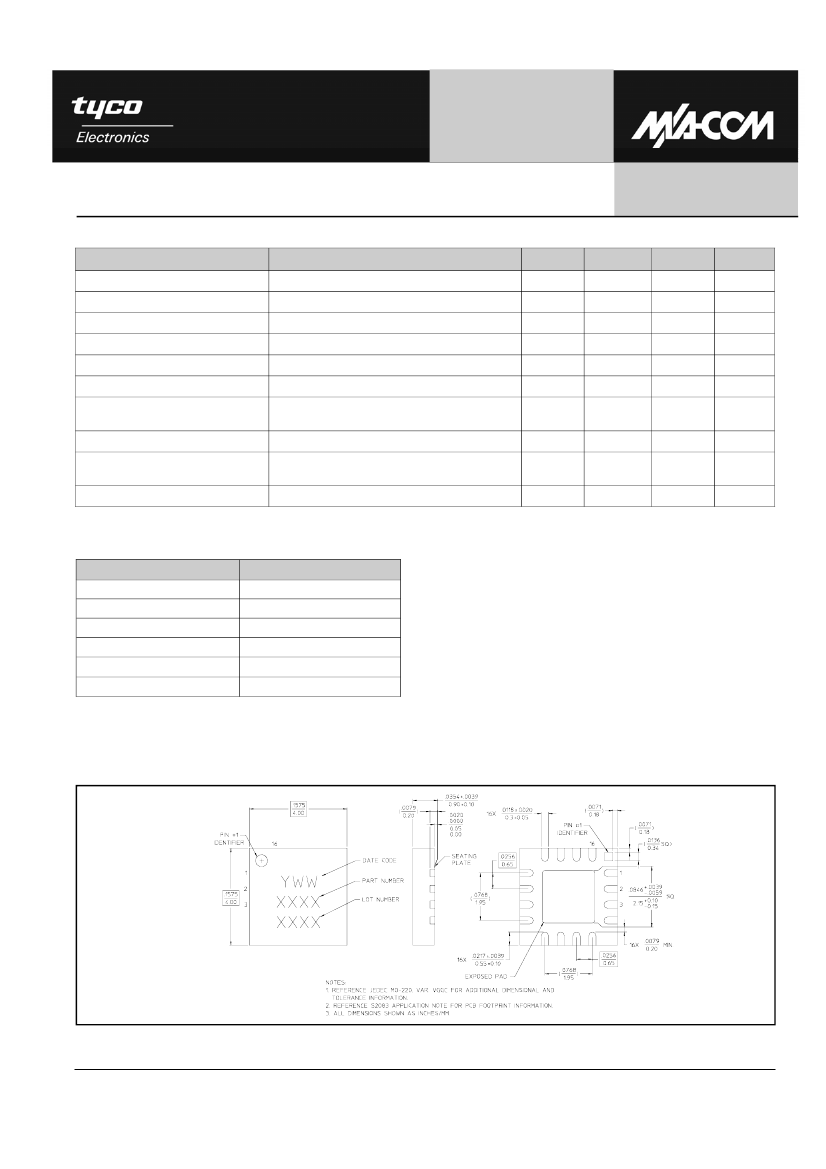

4 mm 16-Lead PQFN
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
High Power Linear Amplifier
5.7 - 5.9 GHz

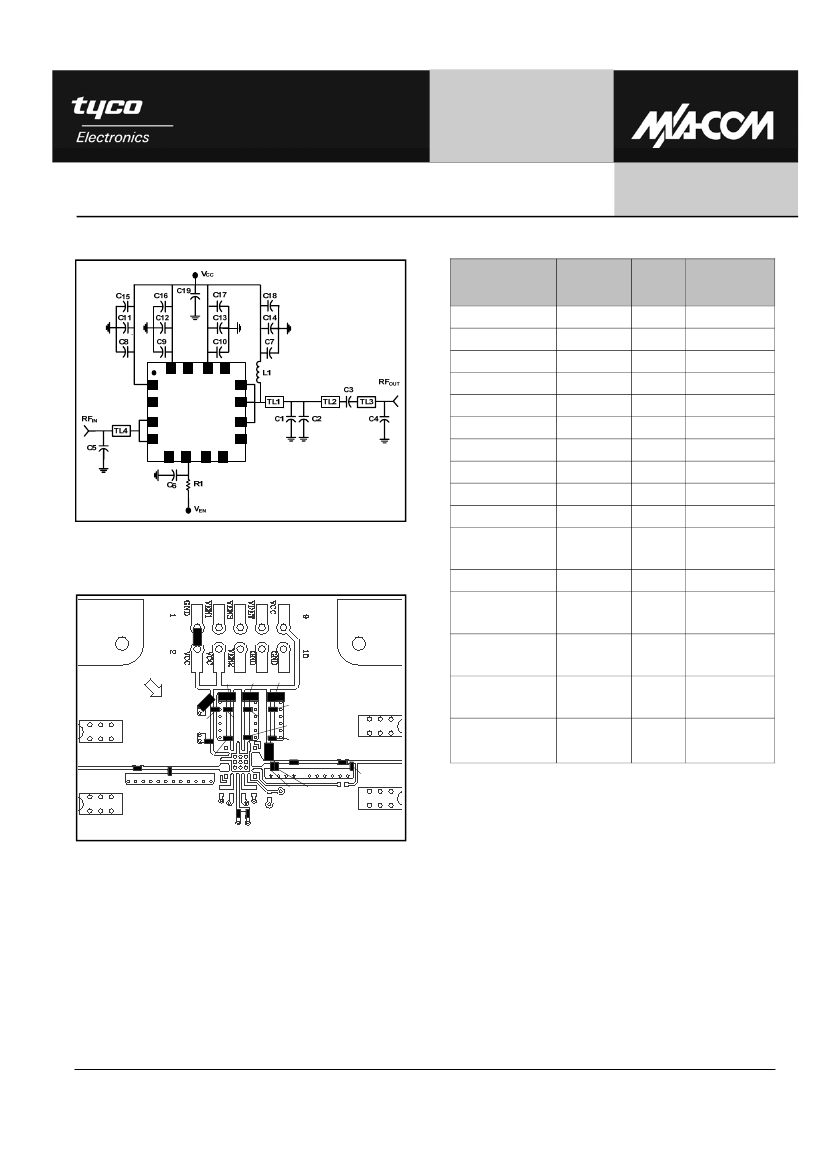

Application Schematic
External Parts List
9
Component
C1
C2
C3
C4, C5
C6
C7
C8, C9, C10
C11, C12, C13, C14
C15, C16, C17, C18
C19
L1
MAAP-007899
V3P
Value
0.5 pF
0.1 pF
3.0 pF
0.2 pF
100 pF
10 pF
5 pF
0.1 µF
10
3.3 µF
10 µF
2.55 nH
220 Ohm
10
1.43 mm (L)
0.38 mm (W)
1.31 mm (L)
0.38 mm (W)
6.1 mm (L)
0.38 mm (W)
5.9 mm (L)
0.38 mm (W)
Case
Size
0402
0402
0402
0402
0402
0402
0402
0402
0805
1206
0906
3L
0402
-
Manufacturer
Murata
Murata
Murata
Murata
Murata
Murata
Murata
Murata
AVX
AVX
Coilcraft
KOA
-
Sample Board
6,7,8
R1
TL1
C19
TL2
C16
C15
C14
C11
C8
Jumper
-
-
C17
C18
TL3
-
-
C12 C13
C10
C7
L1
TL4
Jumper
-
-
C5
C9
C3
C4
C1 C2
9. TL1, TL4 (L) defined from package edge to component edge
TL2, TL3 (L) defined from component edge to component edge.
10. For Ven = 5V
RF
IN
R1
C6
RF
OUT
6. PCB Material FR406 - 50 Ohm Line = 0.37 mm (W)
7. Ven voltage supplied through DC Connector silkscreen VEN2.
8. Turn on sequence:
Supply 5 V to VCC
Supply 5 V to VEN2
3
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
High Power Linear Amplifier
5.7 - 5.9 GHz

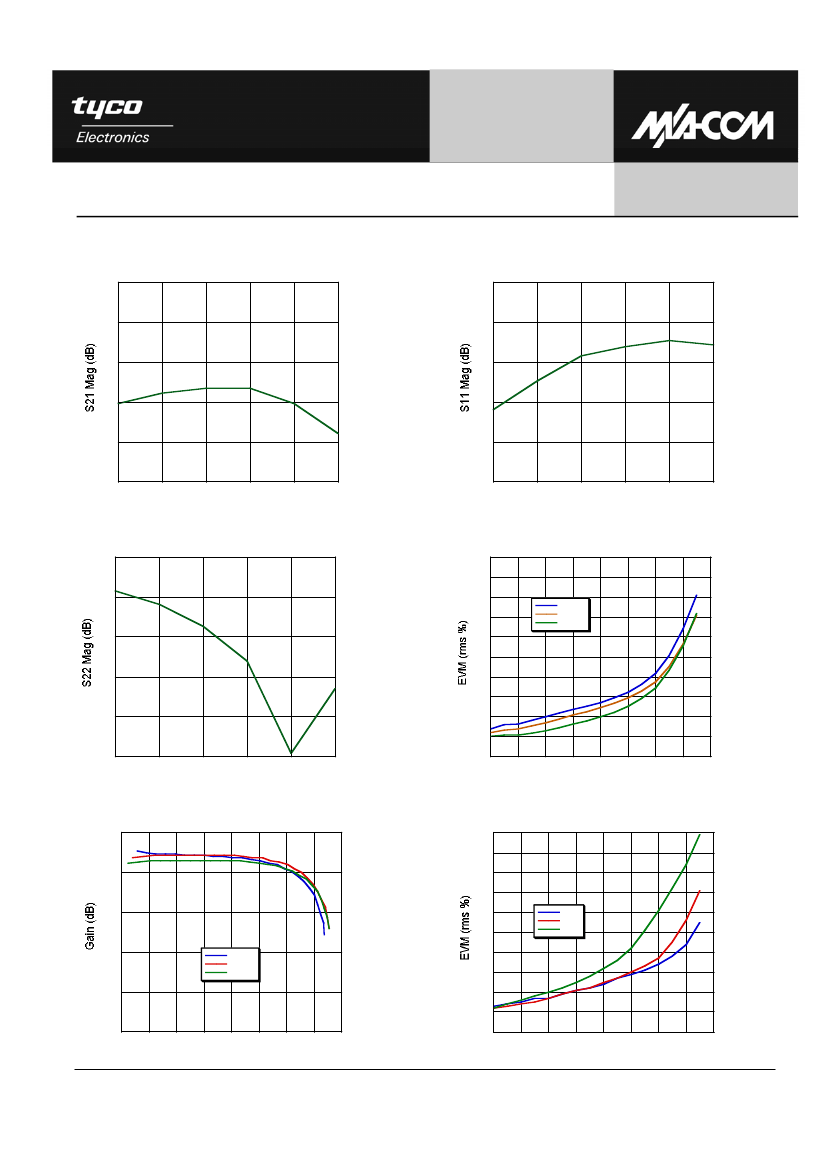

Typical Performance Curves: V
CC
= 5 V, V
EN
= 5 V, +25°C
Gain
25
MAAP-007899
V3P
S11
-10
24
-12
23
-14
22
-16
21
-18
20
5.50
5.60
5.70
5.80
5.90
6.00
-20
5.50
5.60
5.70
5.80
5.90
6.00
Frequency (GHz)
Frequency (GHz)
S22
0
EVM
10
9
-5
8
7
5.7 Ghz
5.8 GHz
5.9 GHz
-10
6
5
-15
4
3
-20
2
1
-25
5.50
0
5.60
5.70
5.80
5.90
6.00
10
12
14
16
18
20
22
24
26
Frequency (GHz)
Channel Power (dBm)
P1dB
24
EVM vs. Temperature @ 5.8 GHz
10
9
21
8
7
18
6
5
-20 C
25 C
85 C
15
5.7 GHz
5.8 GHz
5.9 GHz
4
3
2
1
12
9
11
14
17
19
22
25
27
30
33
0
10
12
14
16
18
20
22
24
26
4
Output Power (dBm)
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
Output Power (dBm)
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
