82S09/BXA datasheet, PDF - EEWORLD Datasheet

82S09/BXA: DescriptionStandard SRAM, 64X9, 80ns, TTL, CDIP28; Categorystorage storage; File Size137KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

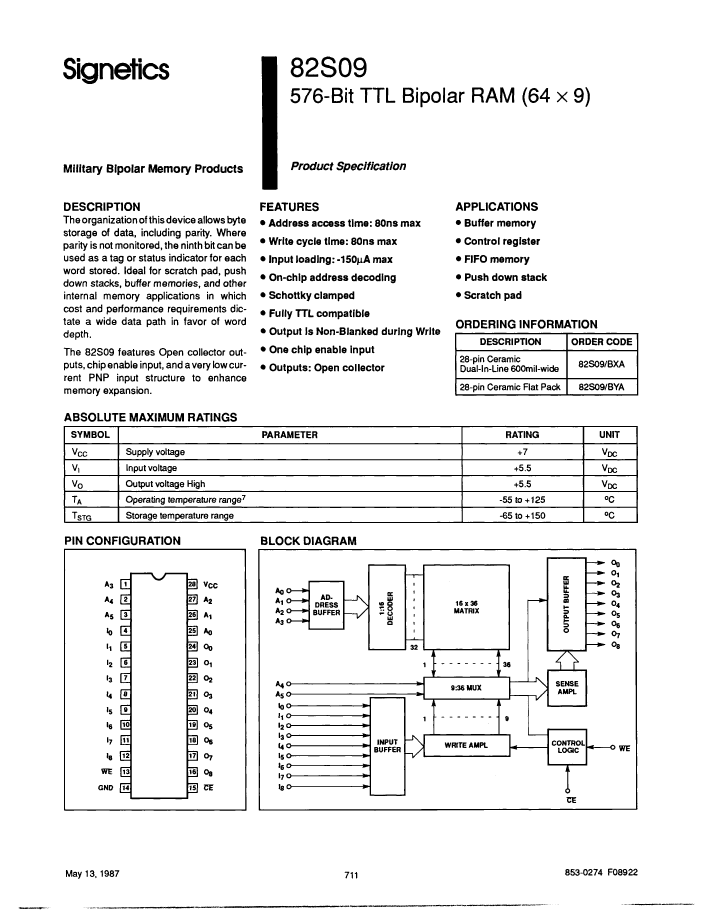

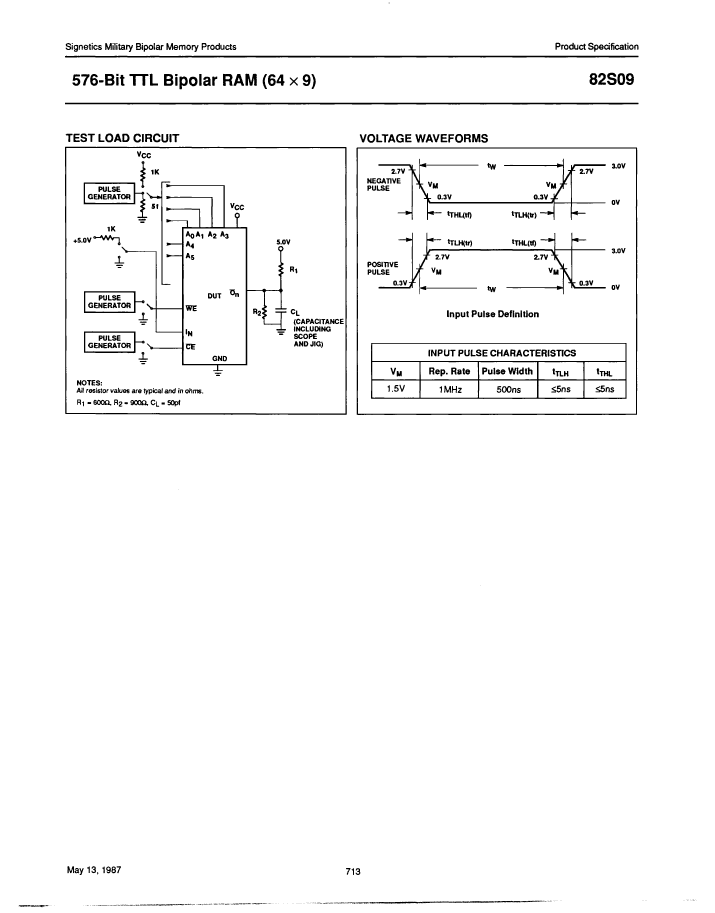

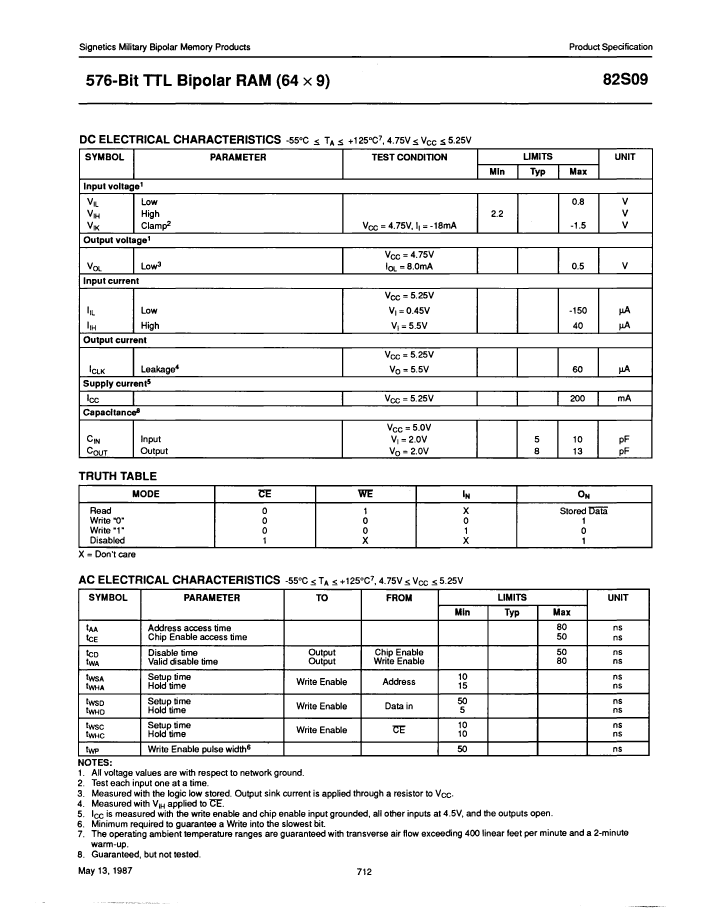

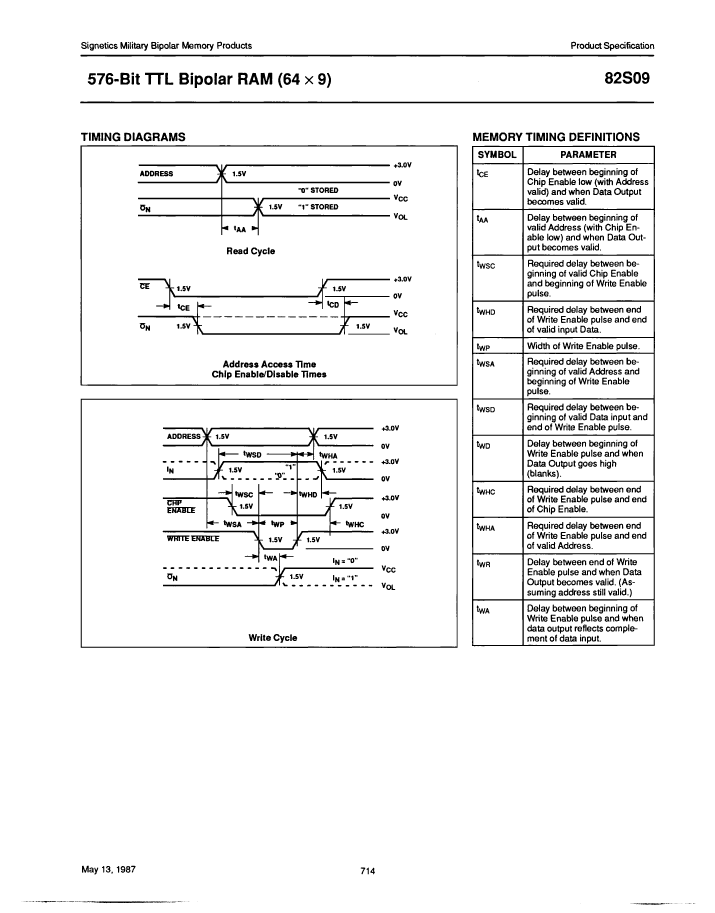

82S09/BXA Overview

Standard SRAM, 64X9, 80ns, TTL, CDIP28

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	80 ns
JESD-30 code	R-CDIP-T28
memory density	576 bit
Memory IC Type	STANDARD SRAM
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	28
word count	64 words
character code	64
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64X9
Output characteristics	OPEN-COLLECTOR
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	82S09/BXA	82S09/BYA
Description	Standard SRAM, 64X9, 80ns, TTL, CDIP28	Standard SRAM, 64X9, 80ns, TTL, CDFP28
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum access time	80 ns	80 ns
JESD-30 code	R-CDIP-T28	R-CDFP-F28
memory density	576 bit	576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	9	9
Number of functions	1	1
Number of ports	1	1
Number of terminals	28	28
word count	64 words	64 words
character code	64	64
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	64X9	64X9
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR
Exportable	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL
Base Number Matches	1	1
