3-1393481-9

Description
V23529R1105C215=SUB D STIFTLEI
CategoryThe connector    The connector
File Size194KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3-1393481-9 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1393481-9 - - View Buy Now

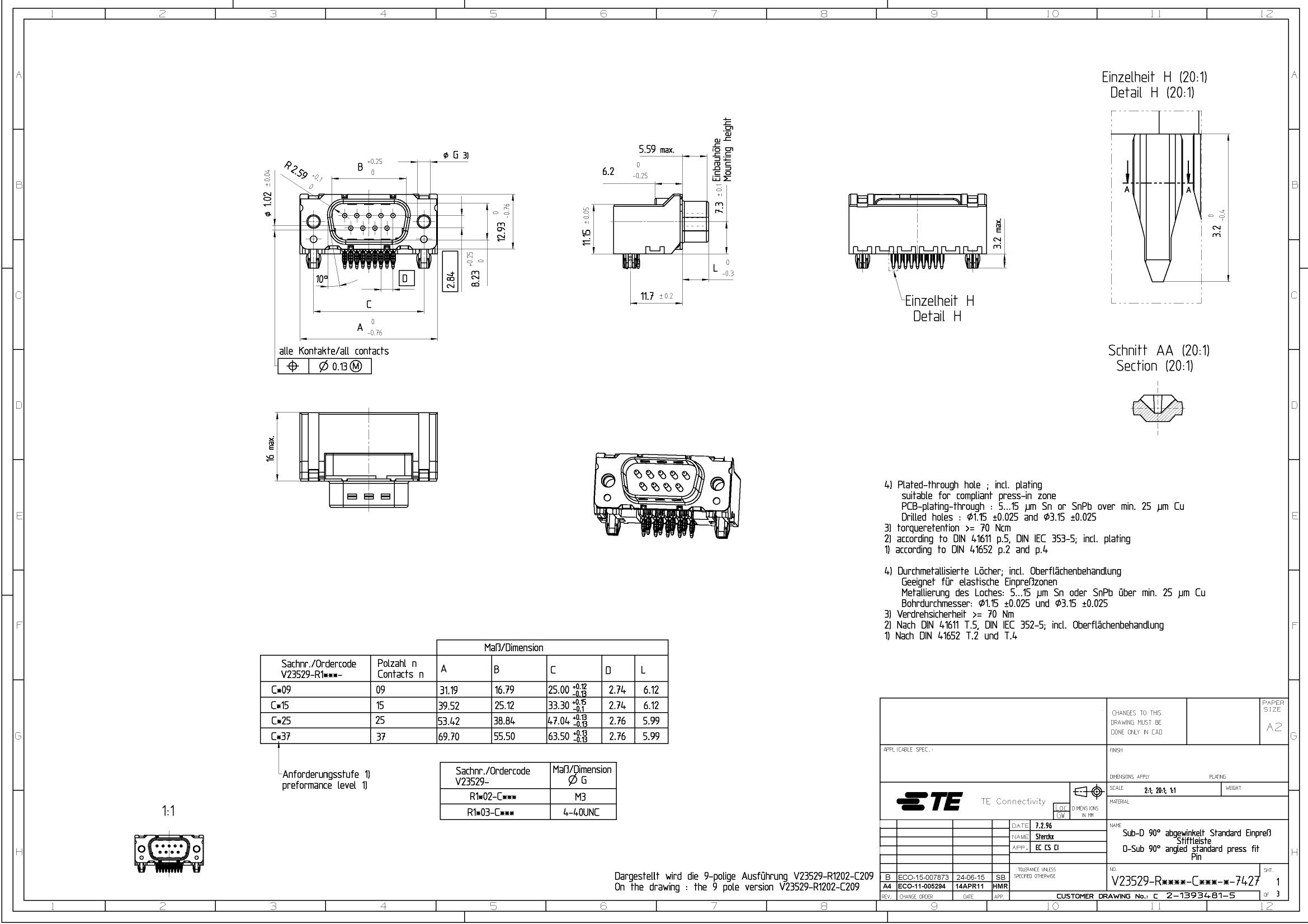

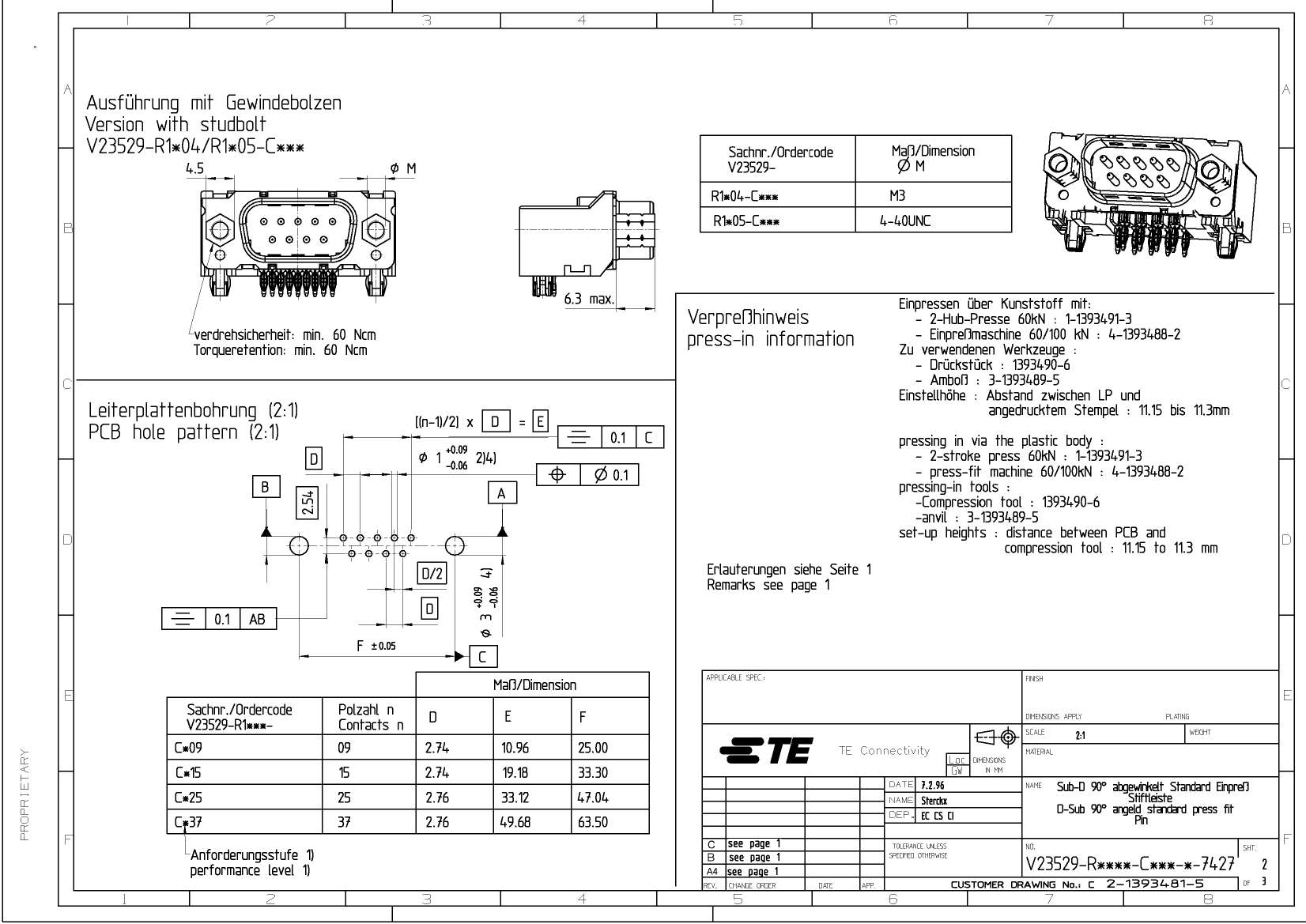

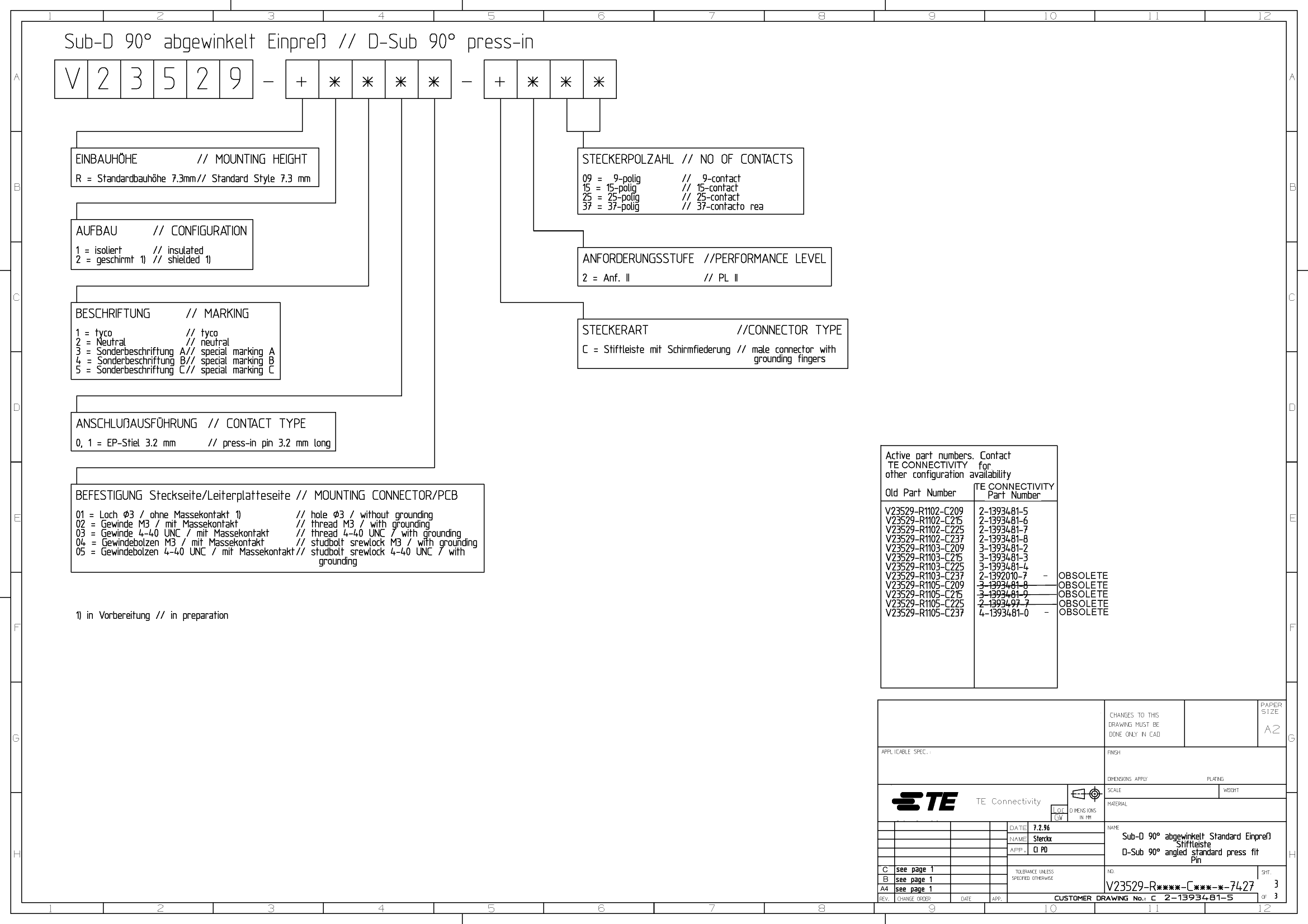

3-1393481-9 Overview

V23529R1105C215=SUB D STIFTLEI

3-1393481-9 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time20 weeks 5 days
Other featuresAMPLIMITE
body width0.509 inch
subject depth0.63 inch
body length1.556 inch
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force3.2804 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYETHYLENE PBT-POLYESTER/POLYPHENYLENE SULFIDE
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.108 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1#4-40
Installation option 2SCREWLOCKS
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.54 mm
Rated current (signal)2.8 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size2/A
Terminal length0.126 inch
Terminal pitch2.7432 mm
Termination typePRESS FIT
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1
C
ECO-17-002586
10OCT2017
D.G

3-1393481-9 Related Products

3-1393481-9 3-1393481-8 M80-4T13205F1-10-322-10-302
Description V23529R1105C215=SUB D STIFTLEI V23529R1105C209=SUB D EP 90 AB Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug
Reach Compliance Code compliant compliant compliant
Body/casing type PLUG PLUG PLUG
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD OVER NICKEL NOT SPECIFIED AU
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier GOLD
Contact point gender MALE MALE FEMALE
Contact material COPPER ALLOY NOT SPECIFIED BERYLLIUM COPPER
insulator material POLYETHYLENE PBT-POLYESTER/POLYPHENYLENE SULFIDE POLYETHYLENE PBT-POLYESTER/POLYPHENYLENE SULFIDE GLASS FILLED POLYPHENYLENE SULFIDE
Mixed contacts NO NO YES
Installation type BOARD AND PANEL BOARD AND PANEL BOARD
Termination type PRESS FIT PRESS FIT SOLDER
Brand Name AMP AMP -
Is it Rohs certified? conform to conform to -
Maker TE Connectivity TE Connectivity -
ECCN code EAR99 - EAR99
Factory Lead Time 20 weeks 5 days 22 weeks 5 days -
Other features AMPLIMITE AMPLIMITE -
body width 0.509 inch - 0.219 inch
subject depth 0.63 inch - 0.205 inch
body length 1.556 inch - 4.803 inch
Contact resistance 25 mΩ - 25 mΩ
Contact style RND PIN-SKT - RND PIN-SKT
DIN compliance NO NO -
empty shell NO NO -
Filter function NO NO -
IEC compliance NO NO -
Insulation resistance 5000000000 Ω - 100000000 Ω
Insulator color BLACK - BLACK
JESD-609 code e3 e3 -
MIL compliance NO NO -
Installation option 1 #4-40 - LOCKING
Installation option 2 SCREWLOCKS - JACKSCREW
Installation method RIGHT ANGLE - STRAIGHT
Maximum operating temperature 125 °C - 125 °C
Minimum operating temperature -55 °C - -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE -
Rated current (signal) 2.8 A - 3 A
Guideline UL - UL
reliability COMMERCIAL - COMMERCIAL
Shell surface TIN TIN -
Shell material STEEL STEEL -
Housing size 2/A 1/E -
Terminal length 0.126 inch - 0.118 inch
Total number of contacts 15 9 -
UL Flammability Code 94V-0 94V-0 -
Base Number Matches 1 1 -
