32K241-200L5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 32K241-200L5

32K241-200L5: DescriptionRF SMA Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size38KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

32K241-200L5 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Jack, ROHS COMPLIANT

32K241-200L5 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
subject depth	0.583 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.17 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

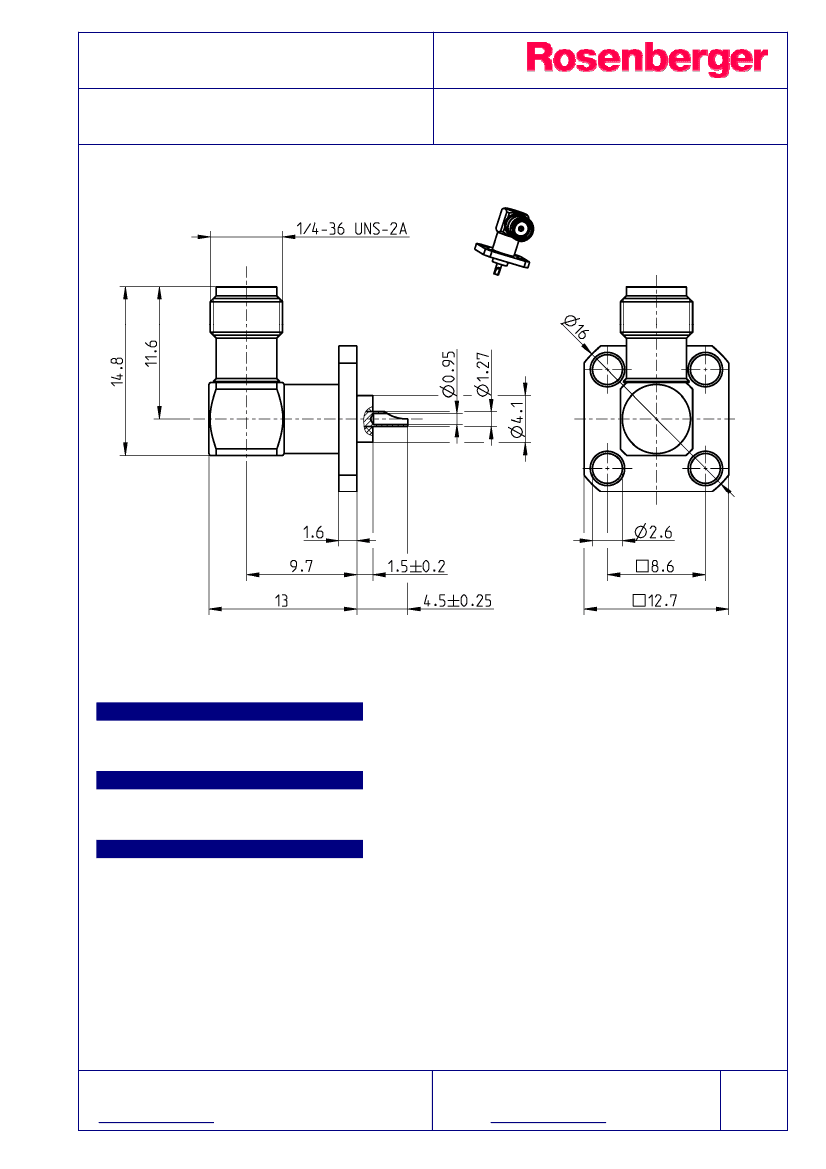

TECHNICAL DATA SHEET

SMA

RIGHT ANGLE JACK

SOLDER END

32K241-200L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310

Documents

Panel piercing

B 55a

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Body

Material

Beryllium copper

Brass

PTFE

Brass

Plating

AuroDur, gold plated

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
