843002AG: DescriptionClock Generator, 226.67MHz, PDSO20, 6.50 X 4.40 MM, 0.92 MM HEIGHT, MO-153, TSSOP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，17 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

843002AG Overview

Clock Generator, 226.67MHz, PDSO20, 6.50 X 4.40 MM, 0.92 MM HEIGHT, MO-153, TSSOP-20

843002AG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	6.50 X 4.40 MM, 0.92 MM HEIGHT, MO-153, TSSOP-20
Contacts	20
Reach Compliance Code	not_compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	6.5 mm
Humidity sensitivity level	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Maximum output clock frequency	226.67 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	225
power supply	3.3 V
Master clock/crystal nominal frequency	28.33 MHz
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum slew rate	135 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	4.4 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

DATA SHEET

ICS843002

Integrated

ICS843002

FEMTOCLOCKS™ CRYSTAL-TO-3.3V LVPECL

Circuit

EMTO

LOCKS

™ C

RYSTAL

Systems, Inc.

FREQUENCY SYNTHESIZER

3.3V LVPECL F

REQUENCY

YNTHESIZER

ENERAL

ESCRIPTION

The ICS843002 is a 2 output LVPECL synthesizer

optimized to generate Fibre Channel reference

HiPerClockS™

clock frequencies and is a member of the

HiPerClocks

family of high performance clock

solutions from ICS. Using a 26.5625MHz, 18pF

parallel resonant crystal, the following frequencies can be

generated based on the 2 frequency select pins (F_SEL[1:0]):

212.5MHz, 187.5MHz, 159.375MHz, 106.25MHz, and

53.125MHz. The ICS843002 uses ICS’ 3

generation low

phase noise VCO technology and can achieve 1ps or lower

typical rms phase jitter, easily meeting Fibre Channel jitter

requirements. The ICS843002 is packaged in a small 20-pin

TSSOP package.

EATURES

• Two 3.3V LVPECL outputs

• Selectable crystal oscillator interface

or LVCMOS/LVTTL single-ended input

• Supports the following output frequencies: 212.5MHz,

187.5MHz, 159.375MHz, 106.25MHz and 53.125MHz

• VCO range: 560MHz - 680MHz

• RMS phase jitter (637kHz - 10MHz): 0.72ps (typical)

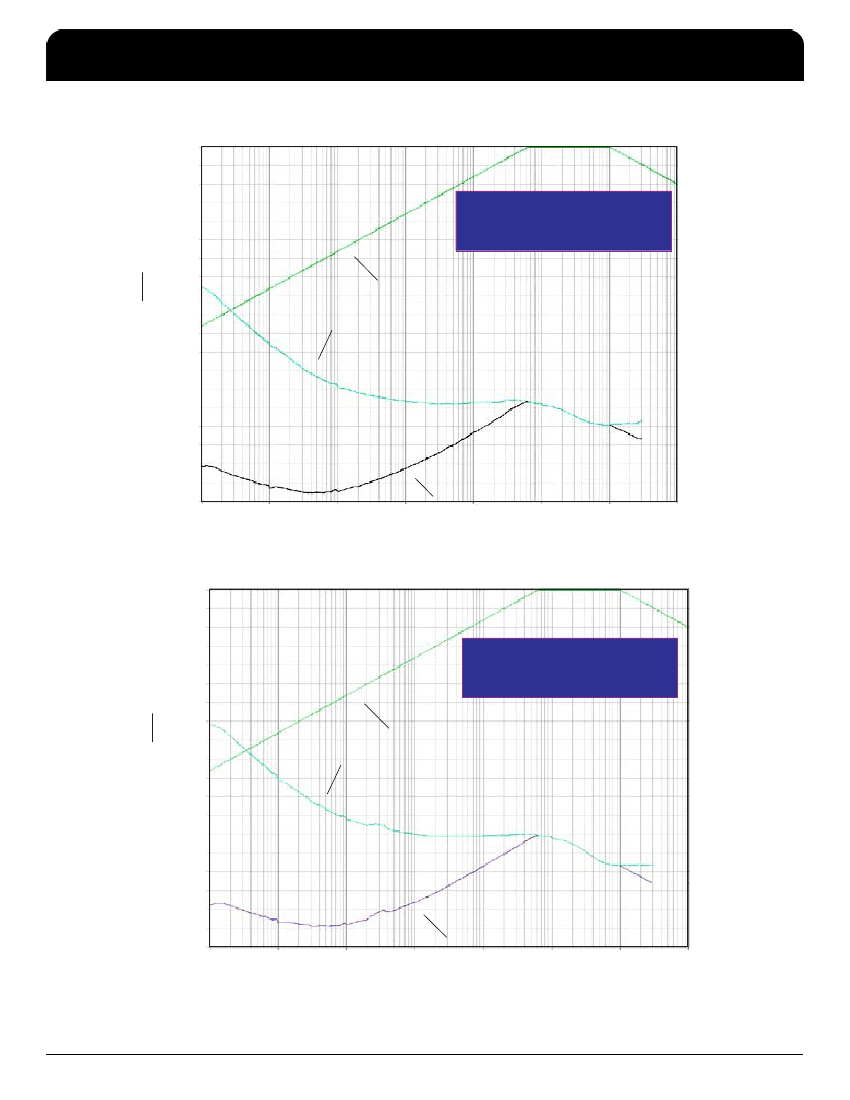

• Typical phase noise at 212.5MHz

Phase noise:

Offset

Noise Power

100Hz ............... -87.7 dBc/Hz

1KHz .............. -111.6 dBc/Hz

10KHz .............. -124.3 dBc/Hz

100KHz .............. -124.3 dBc/Hz

• Full 3.3V supply mode

• Lead-Free package RoHS compliant

• -30°C to 85°C ambient operating temperature

ICS

REQUENCY

ELECT

UNCTION

ABLE

Inputs

Input

Frequency

(MHz)

26.5625

23.4375

F_SEL1 F_SEL0

M Divider

Value

N Divider

Value

M/N

Divider Value

Output

Frequency

(MHz)

212.5

159.375

106.25

53.125

187.5

SSIGNMENT

CCO

nQ0

nPLL_SEL

CCA

F_SEL0

CCO

nQ1

nXTAL_SEL

TEST_CLK

XTAL_IN

XTAL_OUT

F_SEL1

ICS843002

20-Lead TSSOP

6.5mm x 4.4mm x 0.92mm

package body

G Package

Top View

LOCK

IAGRAM

F_SEL[1:0]

Pulldown

nPLL_SEL

Pulldown

F_SEL[1:0]

nQ0

TEST_CLK

Pulldown

26.5625MHz

XTAL_IN

OSC

XTAL_OUT

nXTAL_SEL

Pulldown

Phase

Detector

VCO

637.5MHz

(w/26.5625MHz

Reference)

÷3

÷4

÷6

÷12

nQ1

M = 24 (fixed)

Pulldown

843002AG

www.icst.com/products/hiperclocks.html

REV. B MAY 6, 2005

IDT™ / ICS™

FEMTOCLOCKS™ CRYSTAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER

ICS843002
