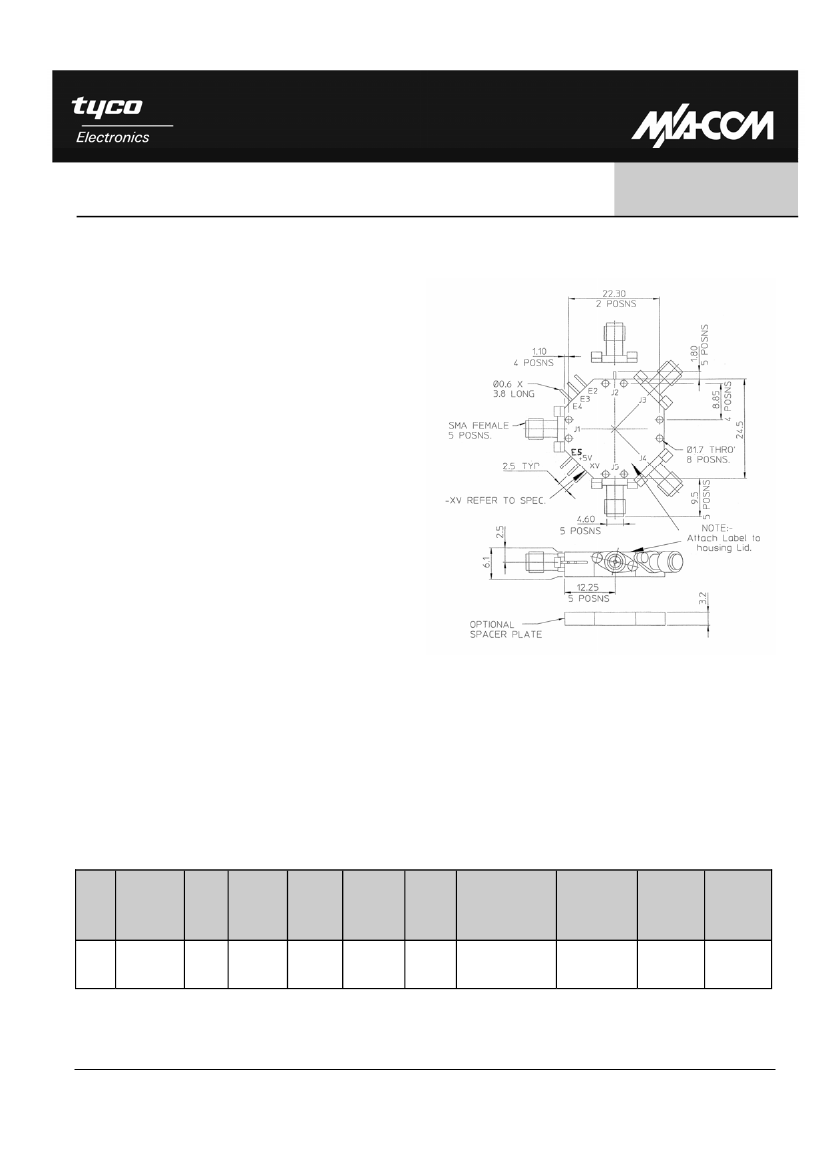

SP4T Non-Reflective Miniature Switch
TTL Compatible Driver, 0.5 ~ 18.0 GHz
Features
•
Broad-Band Frequency Coverage
•
Miniature Outline
•
Field Removable Connectors
•
Hermetically Sealed Housing
•
High Isolation
•
TTL Compatible
•
Fast Switching
Description
MASWML0024
V2
The MASWML0024 is a broadband (0.5 – 18GHz)
SP4T Non-reflective switch. It features Low
Insertion loss and High Isolation.
Each output arm is controlled independently,
maximising design-in flexibility. This is provided by
the built-in, high-speed, TTL compatible driver.
The field replaceable connectors allow direct
integration into microstrip applications.
This proven harsh environment design is suitable
for Airborne, Naval & Ground base applications.
Mechanical
5 SMA female RF connections: Field Replaceable
DC connections and TTL controls are supplied
through solder pins.
This device is hermetically sealed, with a
silver-plate finish to Def. Stan. 03-09.
Dimensions in ‘mm’
Specification at +25 °C
(Applies over the frequency range @ +25 °C, output and input load impedance of 50 ohms. Unless otherwise
stated limits & conditions are indicated values.)
Type
Frequency
(GHz)
I/Loss
Max.
(dB)
Isolation
Min. (dB)
R/Loss
Min.
(dB)
S. Speed
Max. (ns)
I/P
Power
Max.
(mW)
100
Logic
Power
Supply
V
Each Channel
‘0’ = Low Loss
‘1’ = Isolation
+5
-5
mA
120
50
-20 ~ +85
-50 ~ +85
Operating
Temp.
°C
Storage
Temp
°C
SP4T
0.5 ~ 17.0
17.0 ~ 18.0
3.6
4.0
50
8.52
30
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
