5-828581-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-828581-0

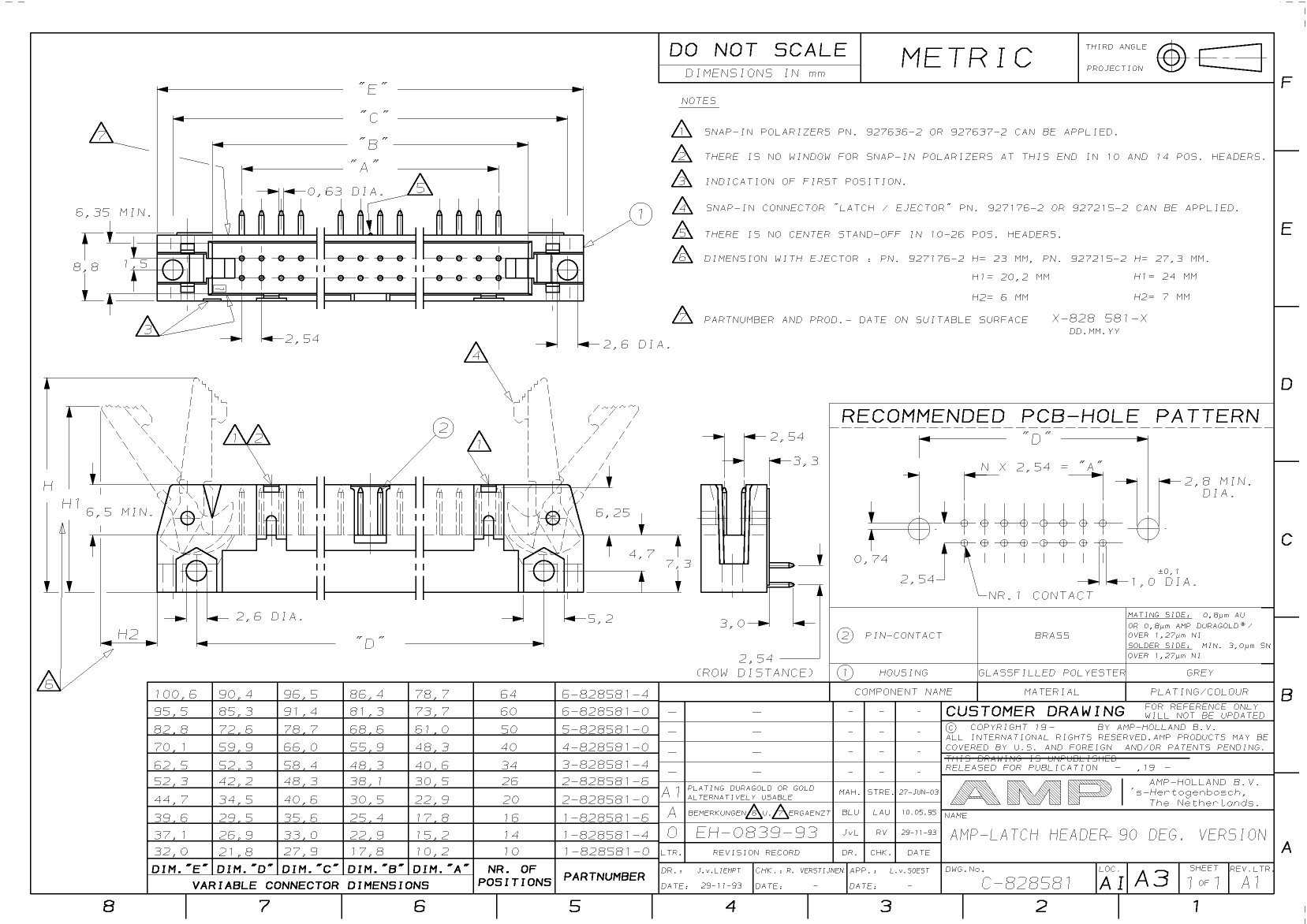

5-828581-0: Description50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-828581-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-828581-0	-	-	View	Buy Now

5-828581-0 Overview

50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

5-828581-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1425893347
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
YTEOL	0
Other features	STANDARD: DIN 41651, POLARIZED
Board mount options	HOLE .099-.111
body width	0.346 inch
subject depth	0.543 inch
body length	3.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	31u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

5-828581-0 Related Products

	5-828581-0	2-828581-0	2-828581-6	4-828581-0	3-828581-4	1-828581-0	1-828581-4	1-828581-6	6-828581-0	6-828581-4
Description	50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	40 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	60 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	64 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	STANDARD: DIN 41651, POLARIZED	AMP-LATCH	AMP-LATCH
Board mount options	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
body width	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch
subject depth	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch
body length	3.26 inch	1.76 inch	2.059 inch	2.76 inch	2.461 inch	1.26 inch	1.461 inch	1.559 inch	3.76 inch	3.961 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	NOT SPECIFIED	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	20	26	40	34	10	14	16	60	64
Objectid	1425893347	-	-	1425893345	1425893343	-	-	1425893337	1425893349	1425893351
polarization key	CTR W/GUIDE SLOTS	CTR W/GUIDE SLOTS	CTR W/GUIDE SLOTS	CTR W/GUIDE SLOTS	CTR W/GUIDE SLOTS	-	-	CTR W/GUIDE SLOTS	CTR W/GUIDE SLOTS	CTR W/GUIDE SLOTS
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-	-
Contact completed and terminated	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)
JESD-609 code	-	e3	e3	e3	e3	e3	e3	e3	-	e3
reliability	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
