54106 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 54106

Preview

54106: DescriptionRing Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size1009KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/; Environmental Compliance

Download Datasheet Parametric View All

54106 Overview

Ring Terminal, ROHS COMPLIANT

54106 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

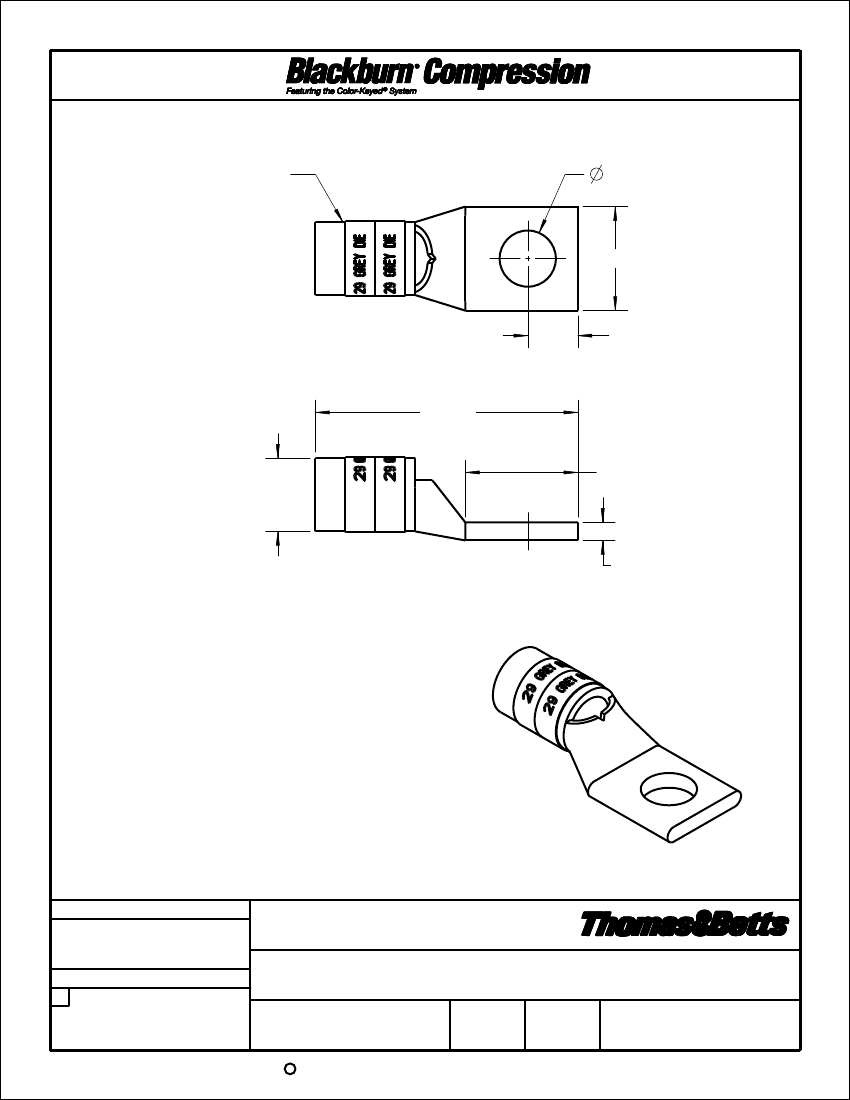

CATALOG NO. 54106

STANDARD

BARREL

.281

.520

.250

en

e

or

G

ur

at

ra

t

.562

.090

www.tnb.com

1.312

.365

WIRE SIZE:

#4 AWG

MATERIAL: HIGH CONDUCTIVITY COPPER

FINISH: TIN PLATED

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR

REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ]

ARE IN METRIC UNITS.

REVISIONS

** SEE ERN ( **** )

FOR APPROVAL SIGNATURES

& RELEASE DATE.

PROJECT NO: ****

ORIGINAL PROJECT NO / ( ERN NO )

/( )

C

on

f

DESCRIPTION:

ig

1 HOLE LUG

SHEET NO:

1 OF 1

REV. NO:

DRAWING NO:

ed

0

54106

WSD-001948

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.
