54QHSC10CSBAF datasheet, PDF - EEWORLD Datasheet

54QHSC10CSBAF: DescriptionNAND Gate, CMOS, CDIP14; Categorylogic logic; File Size4MB，100 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric View All

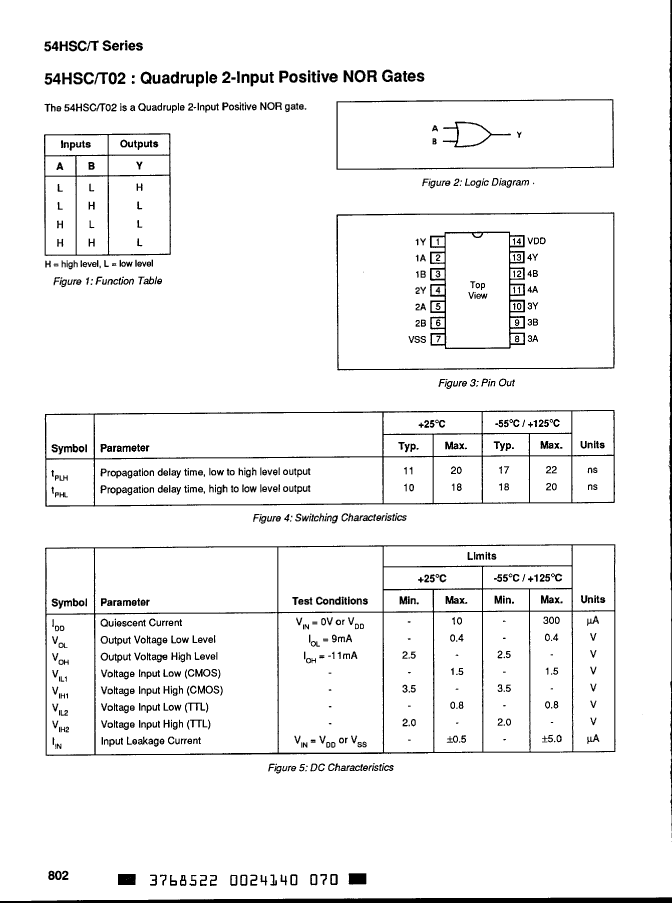

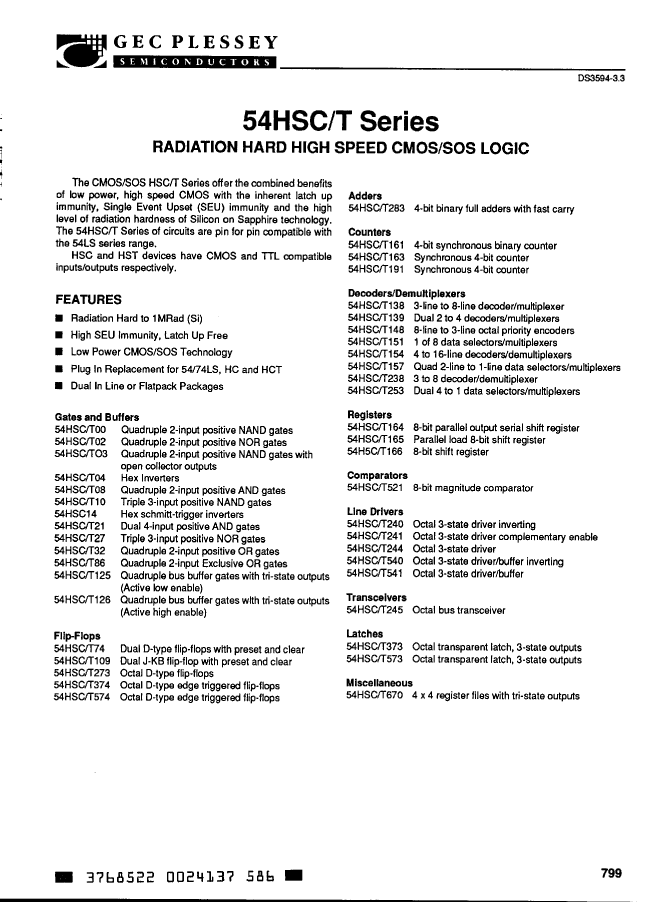

54QHSC10CSBAF Overview

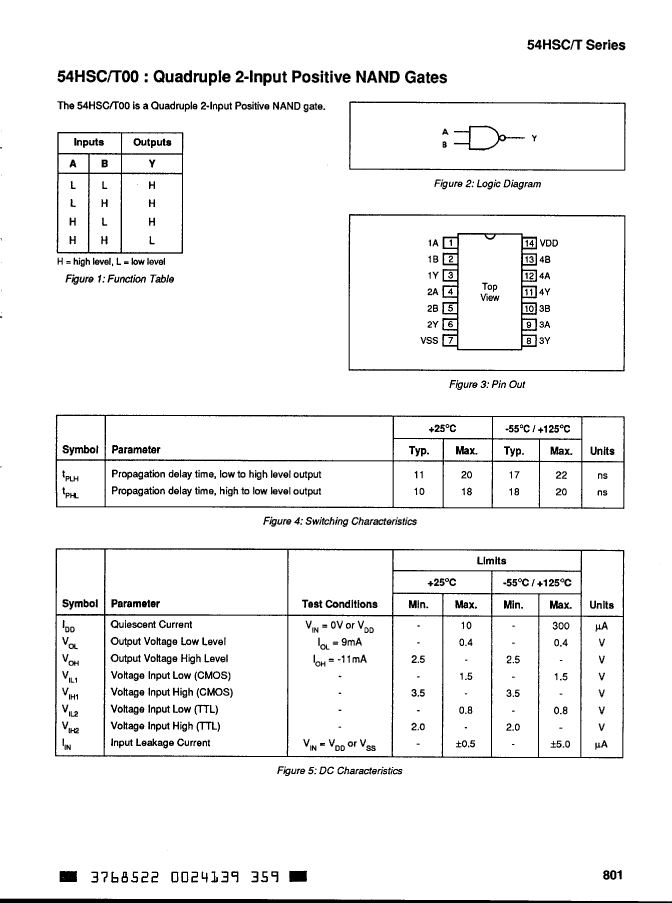

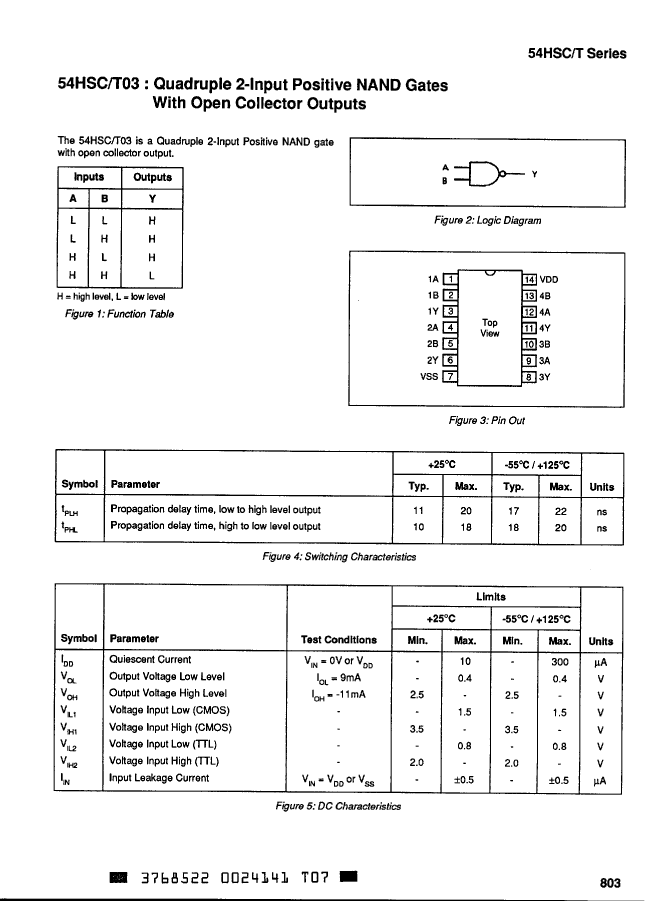

NAND Gate, CMOS, CDIP14

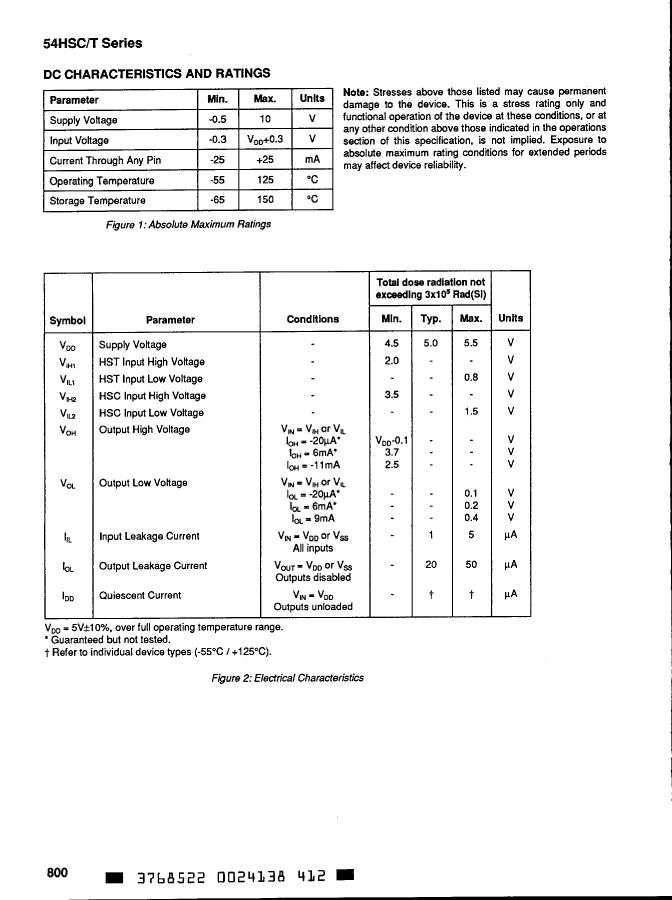

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.009 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	25 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
Base Number Matches	1
