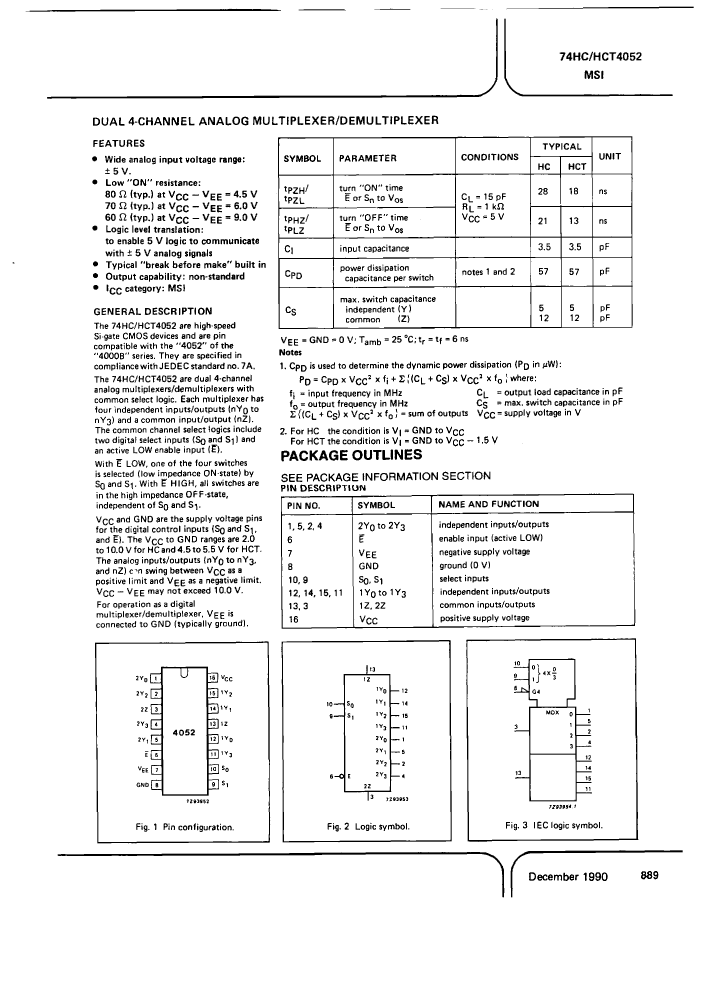

74HC4052NB Overview

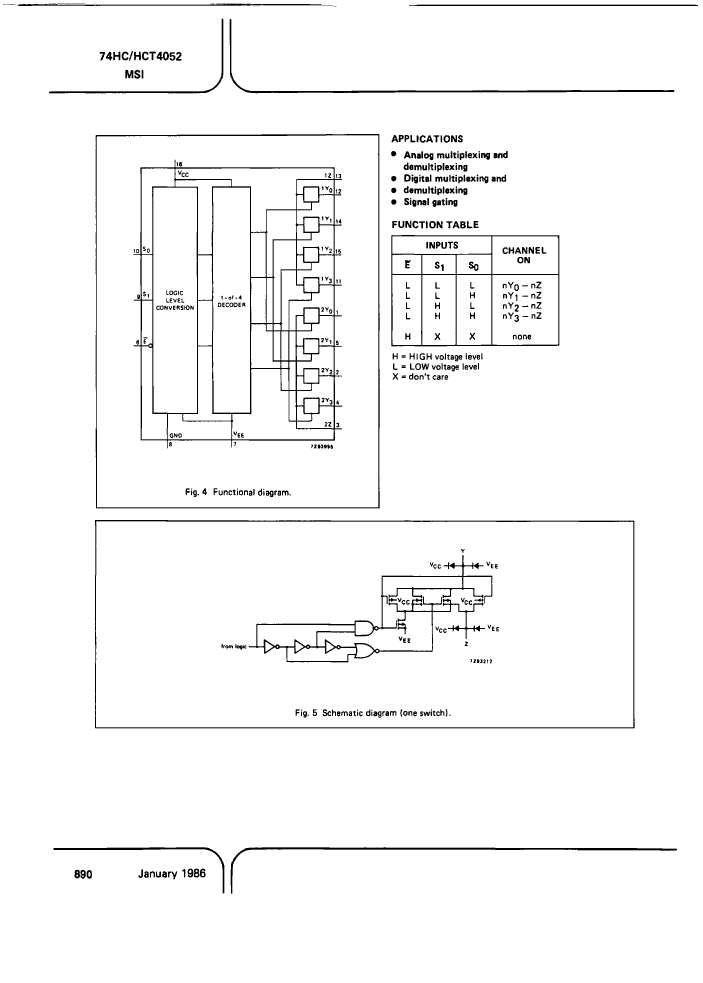

IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDIP16, Multiplexer or Switch

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T16
length	19.025 mm
Nominal Negative Supply Voltage (Vsup)
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB

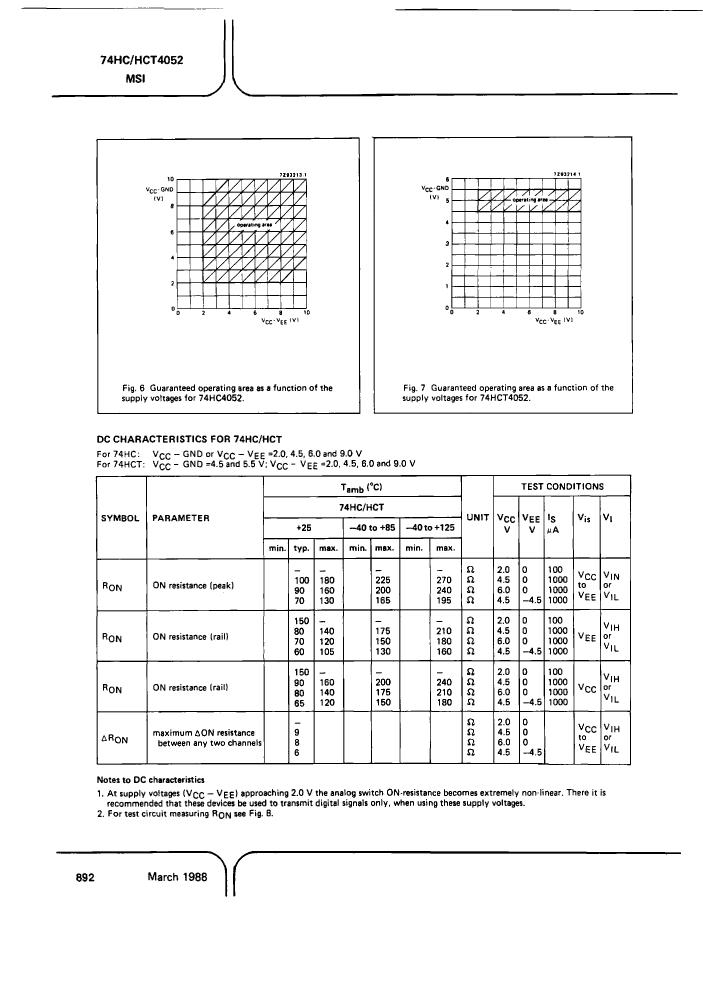

On-state resistance matching specifications	8 Ω
Maximum on-state resistance (Ron)	160 Ω

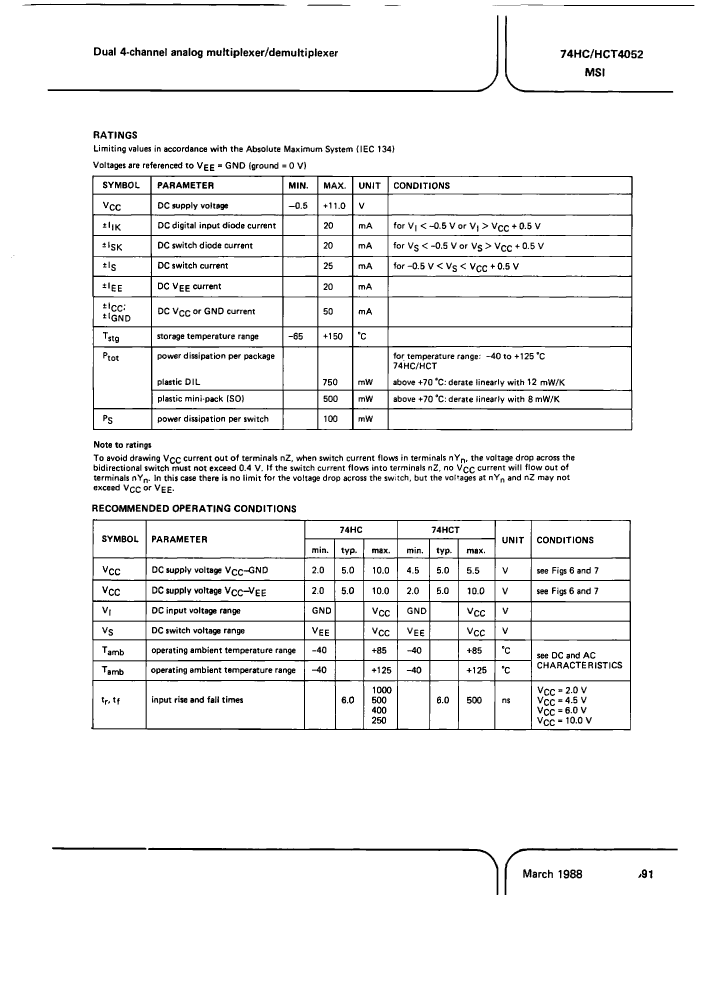

Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply current (Isup)	0.32 mA
Nominal supply voltage (Vsup)	6 V
surface mount	NO

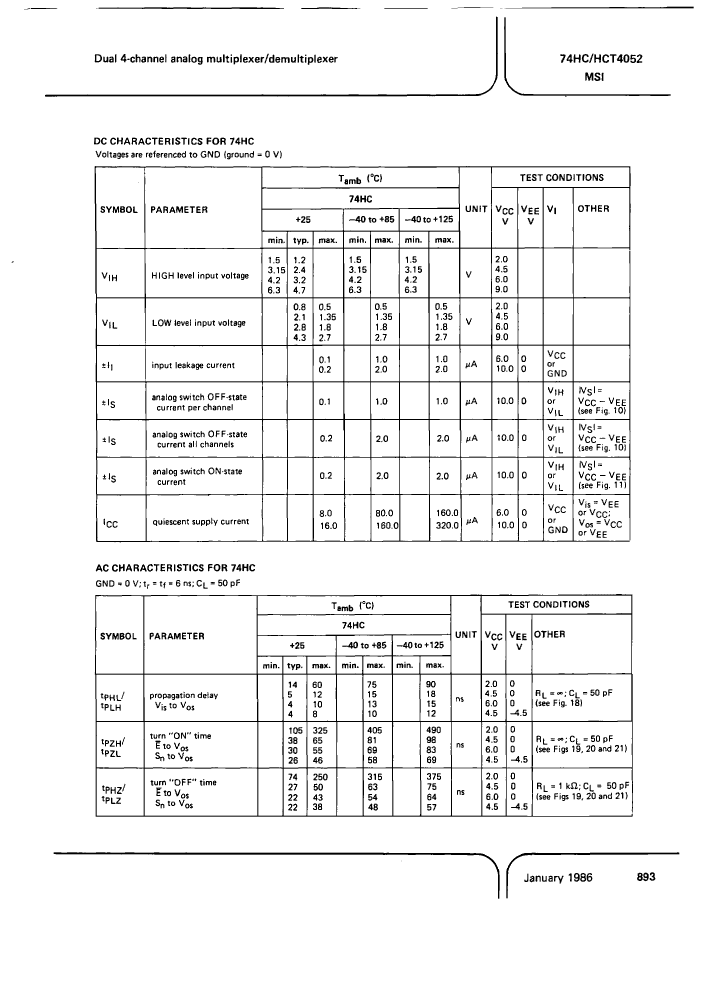

Maximum disconnect time	43 ns
Maximum connection time	55 ns
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	74HC4052NB	74HCT4052NB
Description	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDIP16, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDIP16, Multiplexer or Switch
Maker	NXP	NXP
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T16	R-PDIP-T16
length	19.025 mm	19.025 mm
Number of channels	4	4
Number of functions	1	1
Number of terminals	16	16
Nominal off-state isolation	50 dB	50 dB
On-state resistance matching specifications	8 Ω	9 Ω
Maximum on-state resistance (Ron)	160 Ω	180 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	4.2 mm
Maximum supply current (Isup)	0.32 mA	0.32 mA
Nominal supply voltage (Vsup)	6 V	5 V
surface mount	NO	NO
Maximum disconnect time	43 ns	50 ns
Maximum connection time	55 ns	70 ns
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
