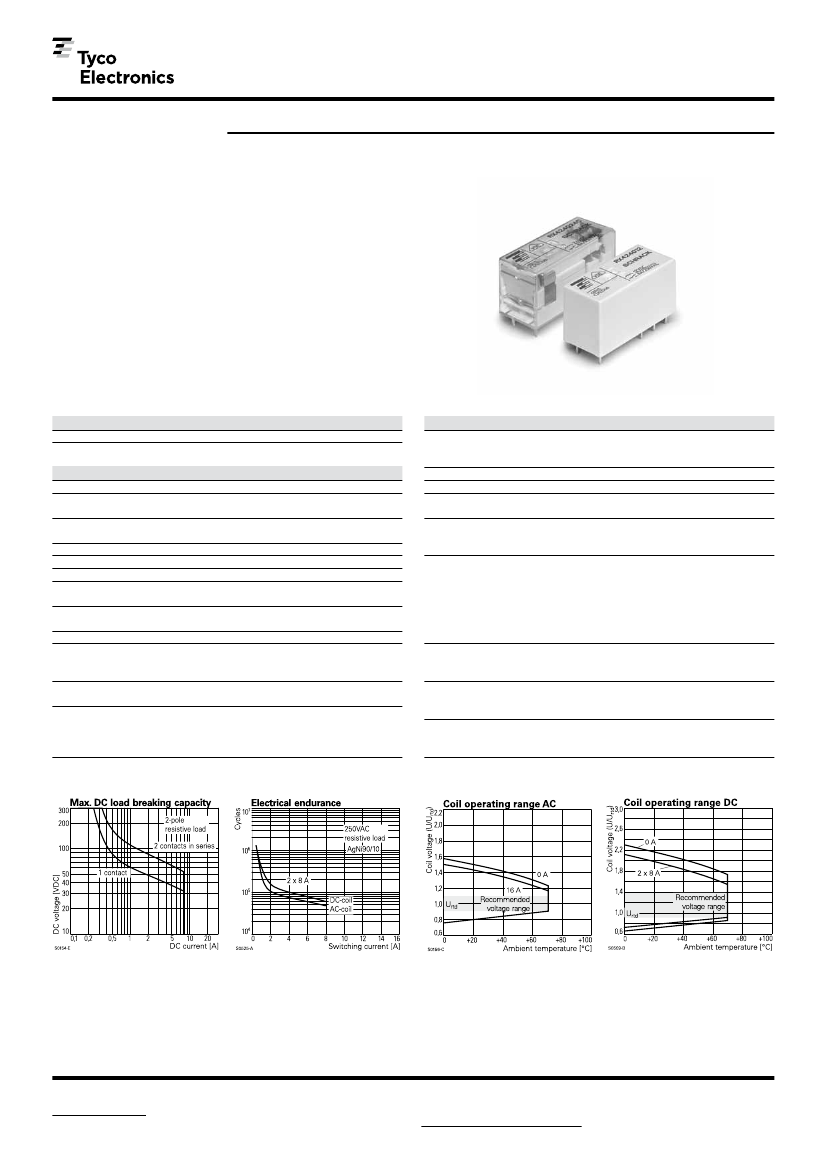

General Purpose Relays
PCB Relays
Power PCB Relay RX2
n
n
n
n
n
Schrack
2 pole 8A, 2 form C (CO) contacts
DC or AC coil
Reinforced insulation
Height 15.7mm
Transparent cover optional
Typical applications
Domestic appliances, heating control, emergency lighting, automatic doors
S0271-A
VZ
Approvals
VDE REG.-Nr. A651, cULus E214025
Technical data of approved types on request
Coil Data
Contact arrangement
2 form C (CO)
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
8A
Limiting making current, max 4 s, duty factor 10% 15A
Breaking capacity max.
2000VA
Contact material
AgNi 90/10
Frequency of operation, with/without load
360/36000h
-1
Operate/release time max., DC coil
8/6ms
Bounce time max., DC coil, form A/form B
4/10ms
Contact ratings
Type
Contact
IEC 61810
RX424
A/C (NO/CO)
RX424
B (NC)
UL 508
RX424
A/B (NO/NC)
Mechanical endurance
DC coil
AC coil
Load
8A, 250VAC resistive, 70°C
8A, 250VAC resistive, 70°C
8A, 250VAC, general purpose 70°C
>5x10
6
operations
>1x10
6
operations
Cycles
40x10
3
60x10
3
40x10
3
Contact Data
Coil voltage range
DC coil
AC coil
Operative range, IEC 61810
Coil insulation system according UL1446
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.5
006
6
4.2
012
12
8.4
024
24
16.8
048
48
33.6
060
60
42.0
110
110
77.0
Coil versions, AC coil
Coil
Rated
Operate
code
voltage
voltage
VAC
VAC
524
24
18.0
615
115
86.3
730
230
172.5
Release
voltage
VDC
0.5
0.6
1.2
2.4
4.8
6.0
11.0
5 to 110VDC
24 to 230VAC
2
class F
Coil
resistance
Ω±10%
50
68
274
1095
4380
6845
23010
Rated coil
power
mW
500
529
526
526
526
526
526
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Release
voltage
VAC
3.6
17.3
34.5
Coil
resistance
Ω±15%
1)
350
1)
8100
32500
Rated coil
power
VA
0.76
0.76
0.74
1) Coil resistance ±10%.
All figures are given for coil without pre-energization, at ambient temperature +23°C, 50Hz.
Other coil voltages on request.
09-2010, Rev. 0910
www.tycoelectronics.com
© 2010 Tyco Electronics Ltd.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.tycoelectronics.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Power PCB Relay RX2
(Continued)
Insulation Data
PCB layout / terminal assignment
Bottom view on solder pins
Schrack
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Clearance/creepage
between contact and coil
between adjacent contacts
Material group of insulation parts
Tracking index of relay base
1000V
rms
4000V
rms
2500V
rms
≥ 8/8mm
≥ 3/4mm
IIIa
PTI250V
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.tycoelectronics.com/customersupport/rohssupportcenter
Ambient temperature
-40 to 70°C
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional),
form A/form B, 10 to 150Hz
20/4g
Shock resistance (destructive)
100g
Terminal type
standard version (white cover)
PCB-THT, plug-in
transparent version
PCB-THT
Mounting distance
standard version (white cover)
≥ 2.5mm
transparent version
≥ 5mm
Weight
14g
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging/unit
tube/20 pcs., box/500 pcs.
Other Data
S0418-CA
*) With the recommended PCB hole sizes a grid
pattern from 2.5mm to 2.54mm can be used.
2 form C (CO) contacts
S0163-BJ
Dimensions
Accessories
For standard version (white cover),
details see datasheet
Accessories Industrial Power Relay RT
NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
S0272-BA
Product code structure
Type
RX
Power PCB Relay RX2
Version
4
8A, pinning 5mm, flux proof
Contact configuration
2
2 form C (CO) contacts
Contact material
4
AgNi 90/10
Coil
Coil code: please refer to coil versions table
Cover
Blank
Standard cover (white)
C
Transparent cover (clear)
Typical product code
RX
4
2
4
012
RX424005
8A
2 form C (CO)
AgNi 90/10
5VDC
RX424006
pinning 5mm
contacts
6VDC
RX424012
flux proof
12VDC
RX424012C
RX424024
24VDC
RX424024C
RX424730
230VAC
RX424730C
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request
Product code
Version
Contacts
Contact material
Coil
Cover
White
Part number
5-1415525-1
5-1415524-1
2-1415504-1
5-1415504-1
3-1415504-1
6-1415504-1
4-1415504-1
7-1415504-1
Transparent
White
Transparent
Transparent
2
09-2010, Rev. 0910
www.tycoelectronics.com
© 2010 Tyco Electronics Ltd.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.tycoelectronics.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
