15KPA70C

Description
Diode TVS Single Bi-Dir 70V 15KW 2-Pin Case P600 T/R
CategoryDiscrete semiconductor    diode
File Size175KB,3 Pages
ManufacturerNew Jersey Semiconductor
Websitehttp://www.njsemi.com
Download Datasheet Parametric View All

15KPA70C Online Shopping

Suppliers Part Number Price MOQ In stock
15KPA70C - - View Buy Now

15KPA70C Overview

Diode TVS Single Bi-Dir 70V 15KW 2-Pin Case P600 T/R

15KPA70C Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Base Number Matches1
One.
20 STERN AVE.
SPRINGFIELD, NEW JERSEY 07081
U.S.A.
TELEPHONE: (973) 376-2922
(212)227-6005
FAX: (973) 376-8960

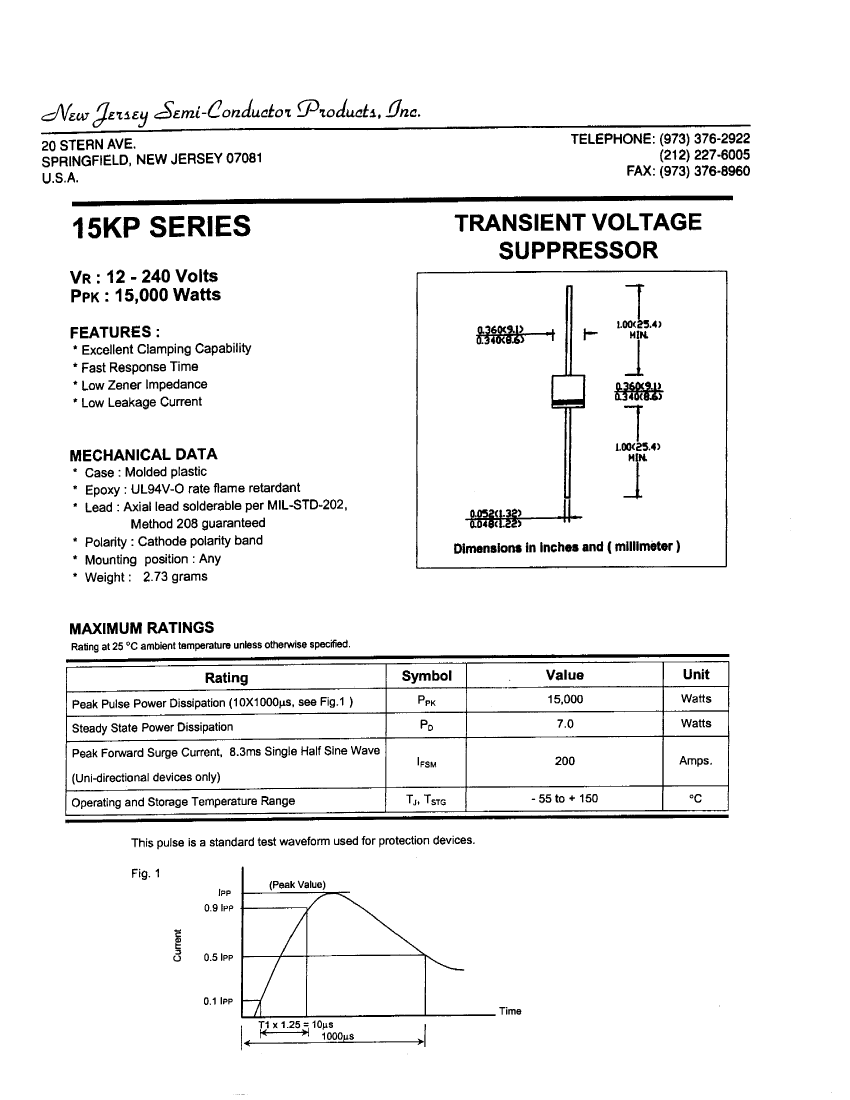

15KP SERIES
VR: 12-240 Volts
PPK: 15,000 Watts
FEATURES:
* Excellent Clamping Capability
* Fast Response Time
* Low Zener Impedance
* Low Leakage Current
TRANSIENT VOLTAGE
SUPPRESSOR
iftQffP—a
40<8.i>~
1.00(23.4)
.00(23.4
MIN.
136(K<
540ft
MECHANICAL DATA
* Case : Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Cathode polarity band
* Mounting position : Any
* Weight: 2.73 grams
1.00<25.4>
HN.
Dimensions in inches and (millimeter)
MAXIMUM RATINGS
Rating at 25 °C ambient temperature unless otherwise specified.
Rating
Peak Pulse Power Dissipation (10X1000u.s, see Fig.1 )
Steady State Power Dissipation
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Symbol
PPK
PD
IFSM
Value
15,000
7.0
200
Unit
Watts
Watts
Amps.
(Uni-directional devices only)
Operating and Storage Temperature Range
Tj, T
STG
-5510 + 150
°C
This pulse is a standard test waveform used for protection devices.
Fig. 1
0.5 IPP
0.1 IPP
. Time
T1x 1.25== 10ns
IQOQjiS
