CRO3580A-LF
9939 Via Pasar • San Diego, CA 92126
TEL (858) 621-2700 FAX (858) 621-2722

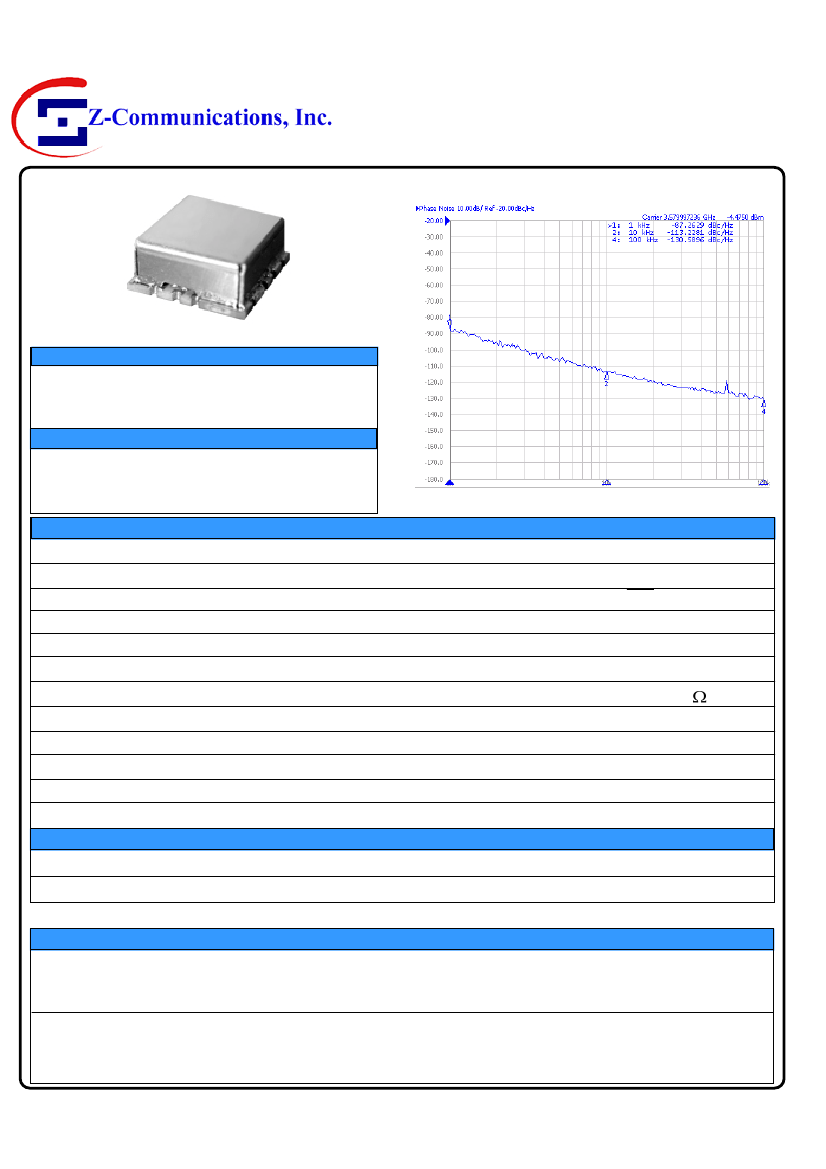

VOLTAGE CONTROLLED OSCILLATOR
Rev A1
PHASE NOISE (1 Hz BW, typical)
FEATURES
• Frequency Range: 3575 - 3585 MHz
• Tuning Voltage: 0.5-4.5 Vdc
• MINI-16 - Style Package
APPLICATIONS
• Point to Point Radio
• Fixed Wireless Equipment
• Satellite Communications
PERFORMANCE SPECIFICATIONS
Oscillation Frequency Range
Phase Noise @ 10 kHz offset (1 Hz BW, typ.)
Harmonic Suppression (2nd, typ.)
Tuning Voltage
Tuning Sensitivity (avg.)
Power Output
Load Impedance
Input Capacitance (max.)
Pushing
Pulling (14 dB Return Loss, Any Phase)
£(f) (dBc/Hz)
OFFSET (Hz)
VALUE
3575
-
3585
-112
-20
0.5-4.5
8
3±2
50
50
<1
<1
-40 to 85
MINI-16
5
17
APPLICATION NOTES
Vdc
mA
pF
MHz/V
MHz
°C
UNITS
MHz
dBc/Hz
dBc
Vdc
MHz/V
dBm
Operating Temperature Range
Package Style
POWER SUPPLY REQUIREMENTS
Supply Voltage (Vcc, nom.)
Supply Current (Icc, typ.)
All specifications are typical unless otherwise noted and subject to change without notice.
•
AN-100/1 : Mounting and Grounding of VCOs
•
AN-102 : Proper Output Loading of VCOs
•
AN-107 : How to Solder Z-COMM VCOs
NOTES:
© Z-Communications, Inc.
Page 1
All rights reserved
LOW COST - HIGH PERFORMANCE
VOLTAGE CONTROLLED OSCILLATOR

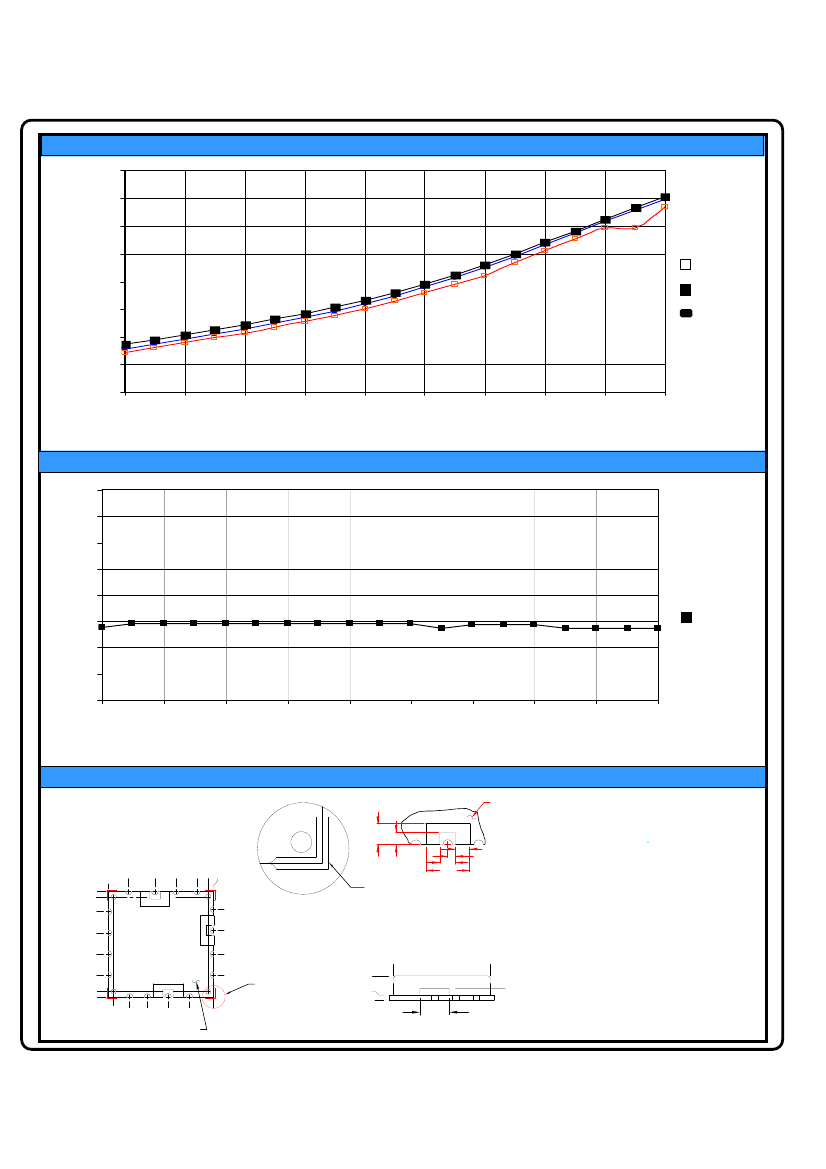

TUNING CURVE, typ.
3595
3590
CRO3580A-LF
PAGE 2
FREQUENCY (MHz)
3585
3580
85
3575
25
3570
3565
3560
3555
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
-40
°c
°c
°c
TUNING VOLTAGE (Vdc)
POWER CURVE, typ.
POWER OUTPUT (dBm)
8
7
6
5
4
3
2
1
0
3564
25
°c
3565
3567
3569
3572
3575
3578
3582
3586
3590
FREQUENCY (MHz)
PHYSICAL DIMENSIONS
TYPICAL OF ALL PADS
SEE NOTE 3
MINI-16
415-0061 REV. D
(DRAWING NOT TO SCALE)
.070
.037
.031
.026
0.220
0.115
0.320
0.420
0.475
0.000
0.500
.052
.114
0.500
0.475
P2
DETAIL A
0.415
0.405
P1=VT
P2=RF OUT
P3=Vcc
TABS RANGE:
SEE NOTE 5.
(4 PLACES)
0.305
P3
0.315
-.005
.465
0.205
0.215
BOTTOM VIEW
0.105
0.025
0.000
0.025
0.085
0.185
P1
NOTES:
1.
THE INSIDE RADIUS OF ALL 16 HALF HOLES
AT THE PERIMETER OF THE BOARD ARE
PLATED TO PROVIDE A SURFACE FOR THE
ATTACHMENT OF THE VCO TO A PCB,
IN 13 LOCATIONS, WITH 3 PADS BEING
USED FOR ELECTROMECHANICAL INTERFACE.
16 SOLDER LOCATIONS REQUIRED.
2. THE SURFACE OF THE SHIELD IS TIN PLATED
AND MAY BE SOLDERED TO. THE SHIELD'S
BASE METAL IS COLD ROLLED STEEL.
3. THE GROUND PLANE IS GROUND AND ATTACHES
TO A GROUND TRACK ON THE UPPER SIDE OF
THE BOARD AS WELL AS THE SHIELD BY PTH.
4. UNLESS OTHERWISE NOTED ALL DIMENSIONS
ARE IN INCHES.
5. UNLESS OTHERWISE NOTED ALL TOLERANCES
ARE AS FOLLOWS:
TOLERANCES
.XXX= ± .010
0.115
SEE DETAIL 'A'
.220
.034
0.000
.070 TYP
.150
TYP
0.285
GROUND PLANE SOLDER PLATED
0.385
0.500
© Z-Communications, Inc.
Page 2
Printed in the U.S.A.
