74F32 Quad 2-Input OR Gate
April 1988
Revised August 2000
74F32
Quad 2-Input OR Gate
General Description
This device contains four independent gates, each of which
performs the logic OR function.
Ordering Code:
Order Number
74F32SC
74F32SJ
74F32MTC
74F32PC
Package Number
M14A
M14D
MTC14
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
IEEE/IEC
Connection Diagram
Unit Loading/Fan Out
Pin Names
A
n
, B
n
O
n
Description
Inputs
Outputs
U.L.
HIGH/LOW
1.0/1.0
50/33.3
Input I
IH
/I
IL
Output I
OH
/I
OL
20
µ
A/
−
0.6 mA
−
1 mA/20 mA
© 2000 Fairchild Semiconductor Corporation
DS009463
www.fairchildsemi.com
74F32
Absolute Maximum Ratings
(Note 1)
Storage Temperature
Ambient Temperature under Bias
Junction Temperature under Bias
V
CC
Pin Potential to Ground Pin
Input Voltage (Note 2)
Input Current (Note 2)
Voltage Applied to Output
in HIGH State (with V
CC
=
0V)
Standard Output
3-STATE Output
Current Applied to Output
in LOW State (Max)
ESD Last Passing Voltage (Min)
twice the rated I
OL
(mA)
4000V
−
65
°
C to
+
150
°
C
−
55
°
C to
+
125
°
C
−
55
°
C to
+
150
°
C
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
30 mA to
+
5.0 mA
Recommended Operating
Conditions
Free Air Ambient Temperature
Supply Voltage
0
°
C to
+
70
°
C
+
4.5V to
+
5.5V
−
0.5V to V
CC
−
0.5V to
+
5.5V
Note 1:
Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.
Note 2:
Either voltage limit or current limit is sufficient to protect inputs.
DC Electrical Characteristics
Symbol
V
IH
V
IL
V
CD
V
OH
V
OL
I
IH
I
BVI
I
CEX
V
ID
I
OD
I
IL
I
OS
I
CCH
I
CCL
Parameter
Input HIGH Voltage
Input LOW Voltage
Input Clamp Diode Voltage
Output HIGH
Voltage
Output LOW
Voltage
Input HIGH
Current
Input HIGH Current
Breakdown Test
Output HIGH
Leakage Current
Input Leakage
Test
Output Leakage
Circuit Current
Input LOW Current
Output Short-Circuit Current
Power Supply Current
Power Supply Current
−60
6.1
10.3
4.75
3.75
−0.6
−150
9.2
15.5
10% V
CC
5% V
CC
10% V
CC
2.5
2.7
0.5
5.0
7.0
50
V
µA
µA
µA
V
µA
mA
mA
mA
mA
Min
Max
Max
Max
0.0
0.0
Max
Max
Max
Max
Min
2.0
0.8
−1.2
Typ
Max
Units
V
V
V
V
Min
Min
V
CC
Conditions
Recognized as a HIGH Signal
Recognized as a LOW Signal
I
IN
= −18
mA
I
OH
= −1
mA
I
OH
= −1
mA
I
OL
=
20 mA
V
IN
=
2.7V
V
IN
=
7.0V
V
OUT
=
V
CC
I
ID
=
1.9
µA
All Other Pins Grounded
V
IOD
=
150 mV
All Other Pins Grounded
V
IN
=
0.5V
V
OUT
=
0V
V
O
=
HIGH
V
O
=
LOW
AC Electrical Characteristics
T
A
= +25°C
Symbol
Parameter
Min
t
PLH
t
PHL
Propagation Delay
A
n
, B
n
to O
n
3.0
3.0
V
CC
= +5.0V
C
L
=
50 pF
Typ
4.2
4.0
Max
5.6
5.3
T
A
= −55°C
to
+125°C
V
CC
= +5.0V
C
L
=
50 pF
Min
3.0
2.5
Max
7.5
7.5
T
A
=
0°C to
+70°C
V
CC
= +5.0V
C
L
=
50 pF
Min
3.0
3.0
Max
6.6
6.3
ns
Units
www.fairchildsemi.com
2
74F32
Physical Dimensions
inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
3
www.fairchildsemi.com
74F32
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

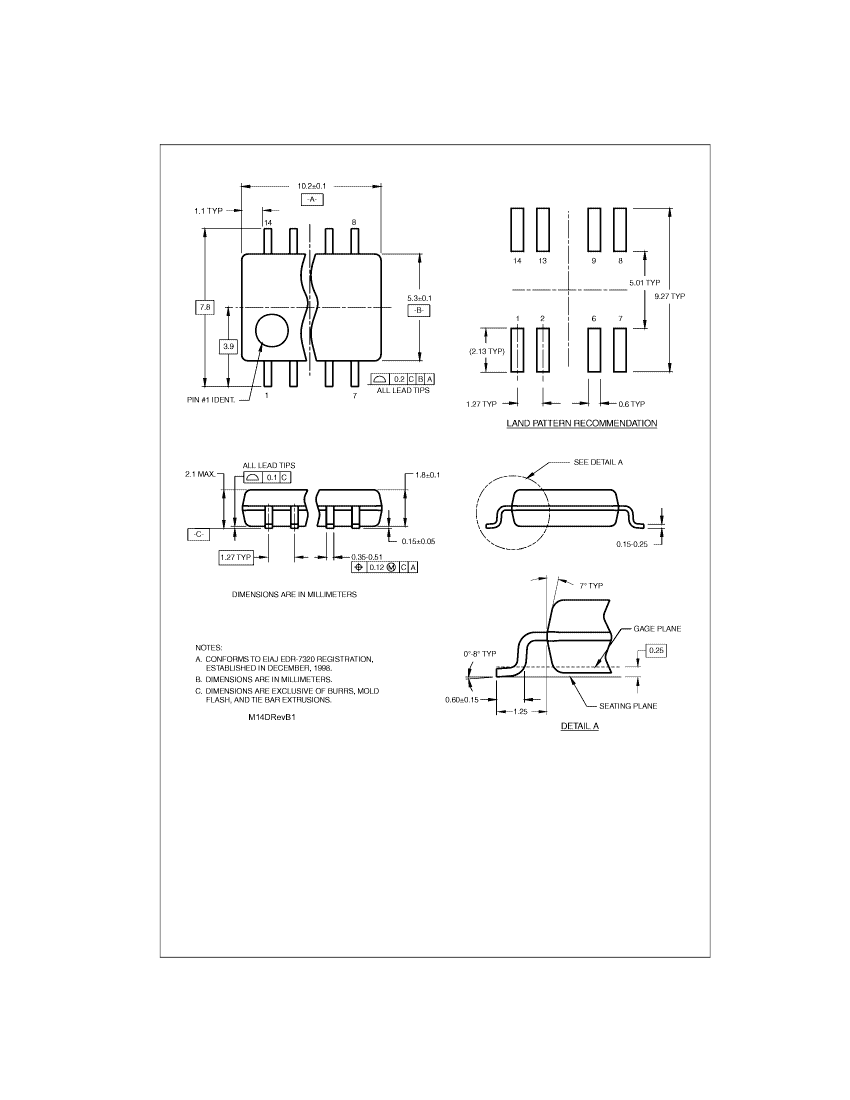

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
www.fairchildsemi.com
4
74F32
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

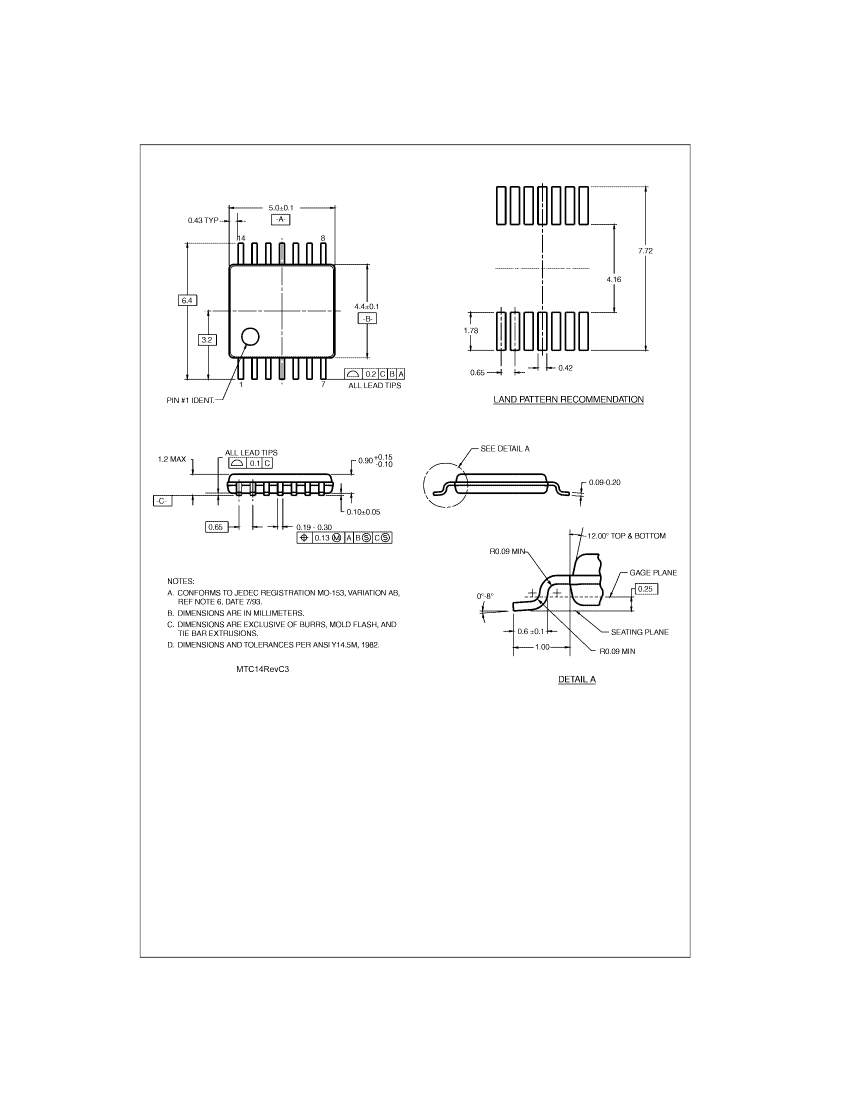

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Package Number MTC14
5
www.fairchildsemi.com
