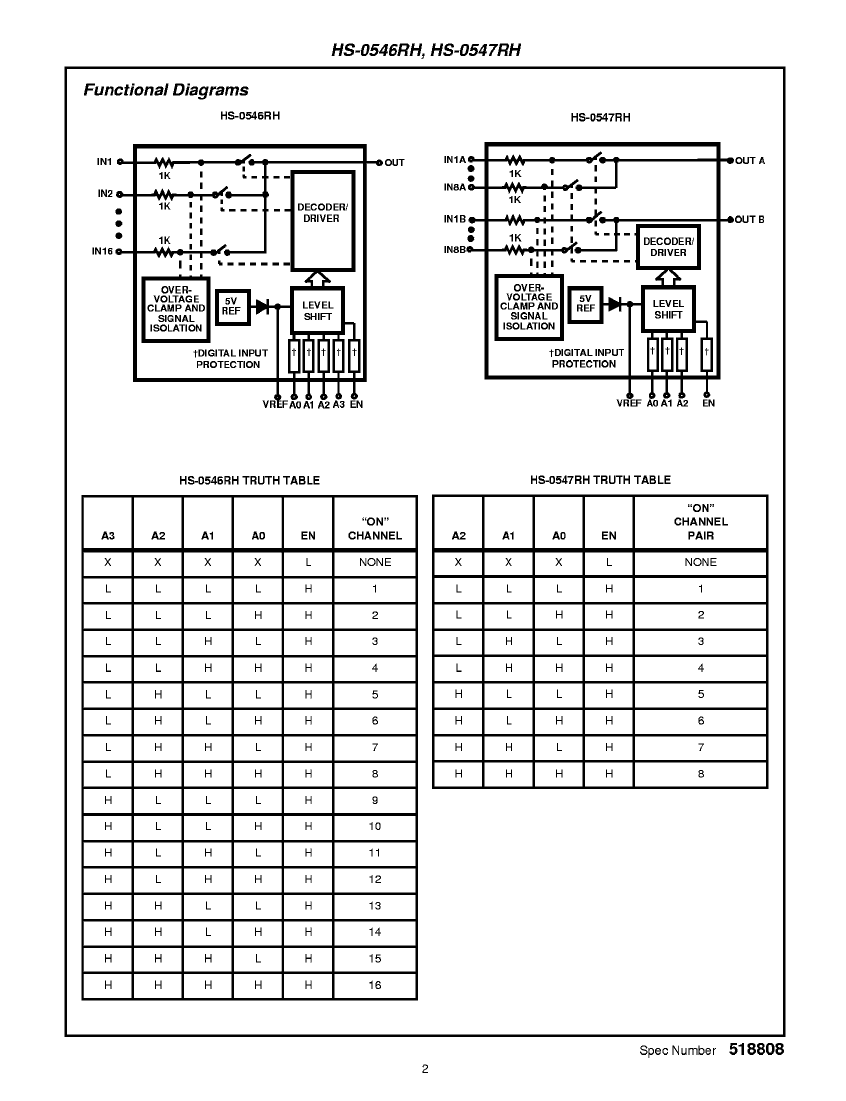

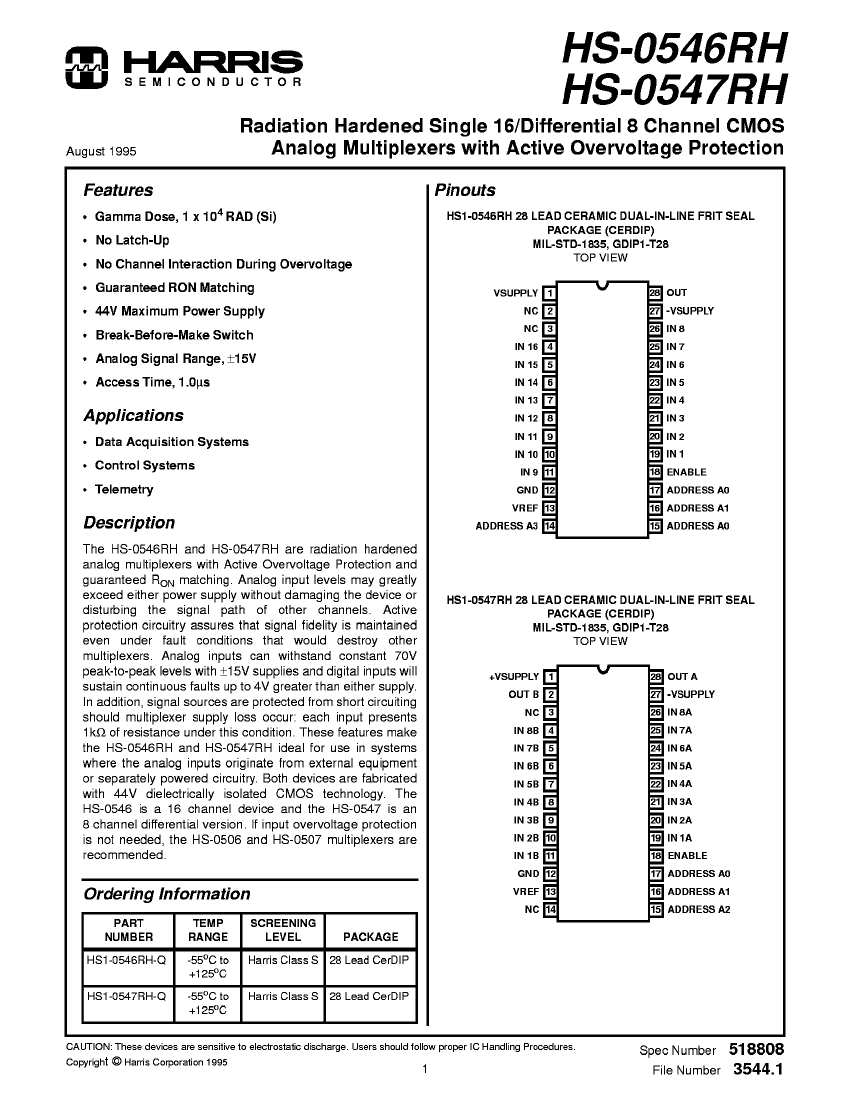

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28

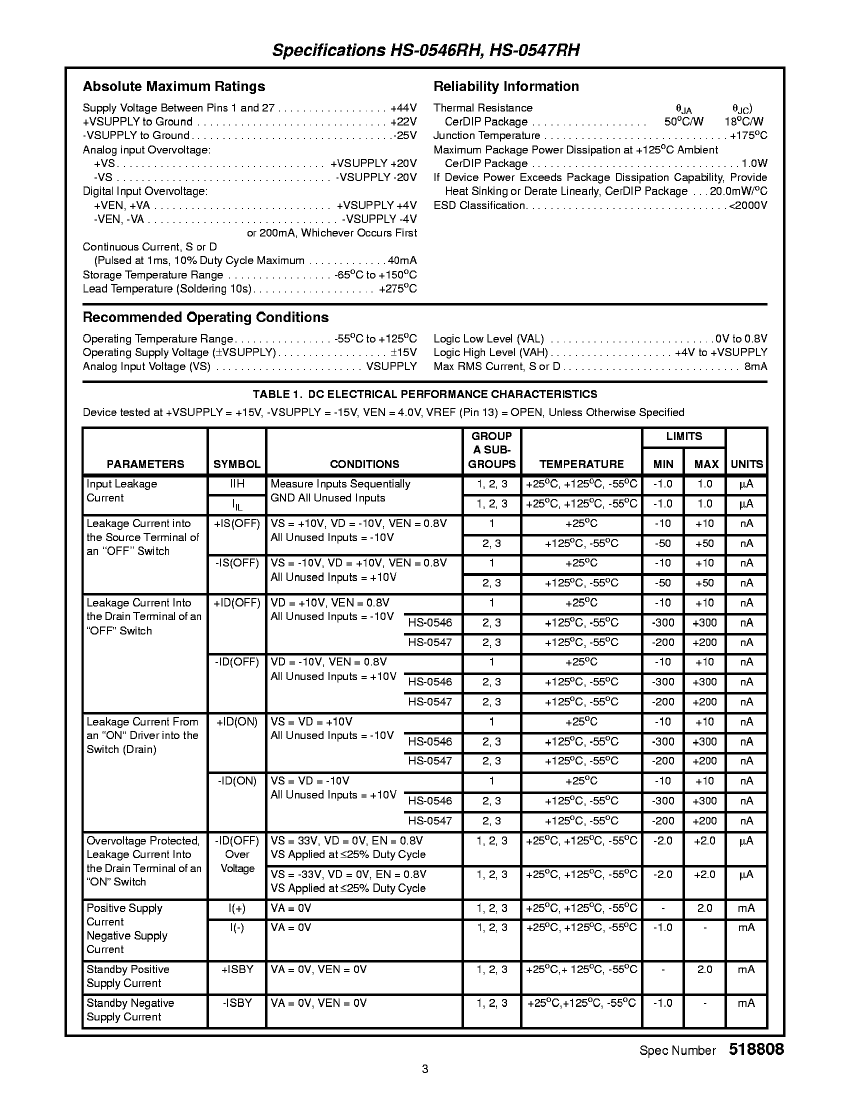

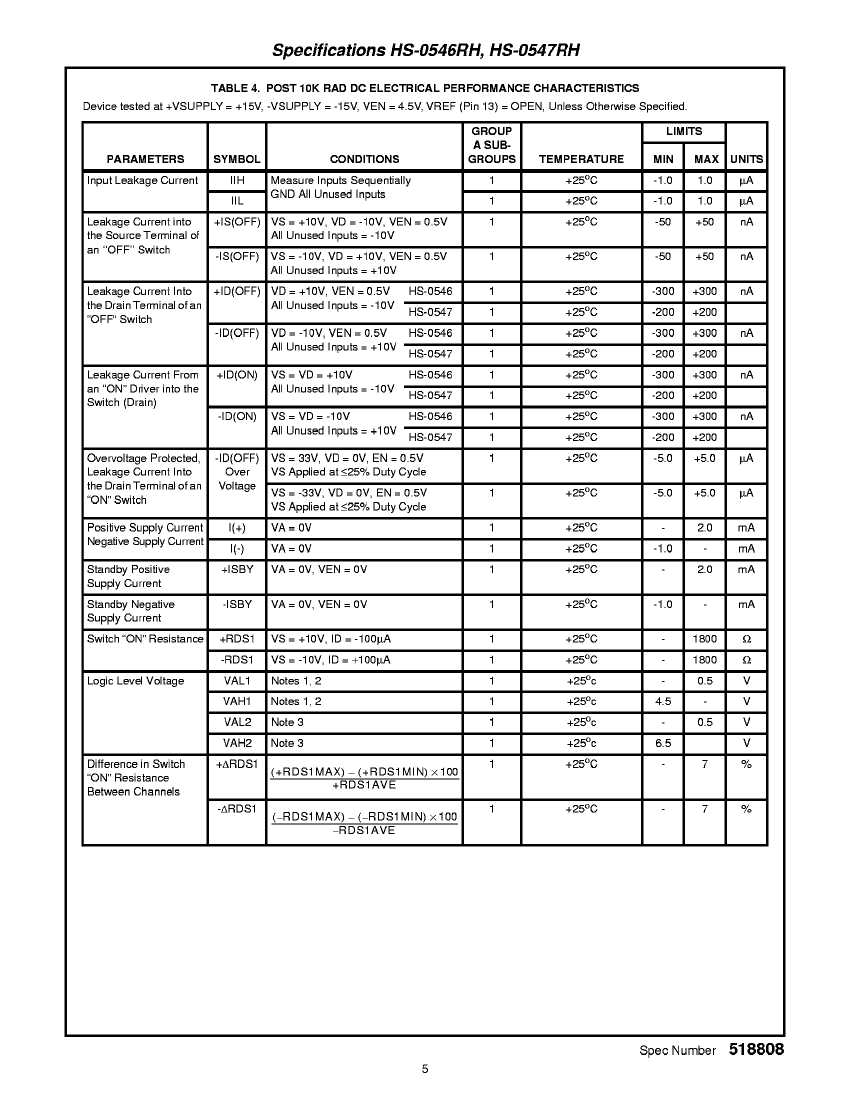

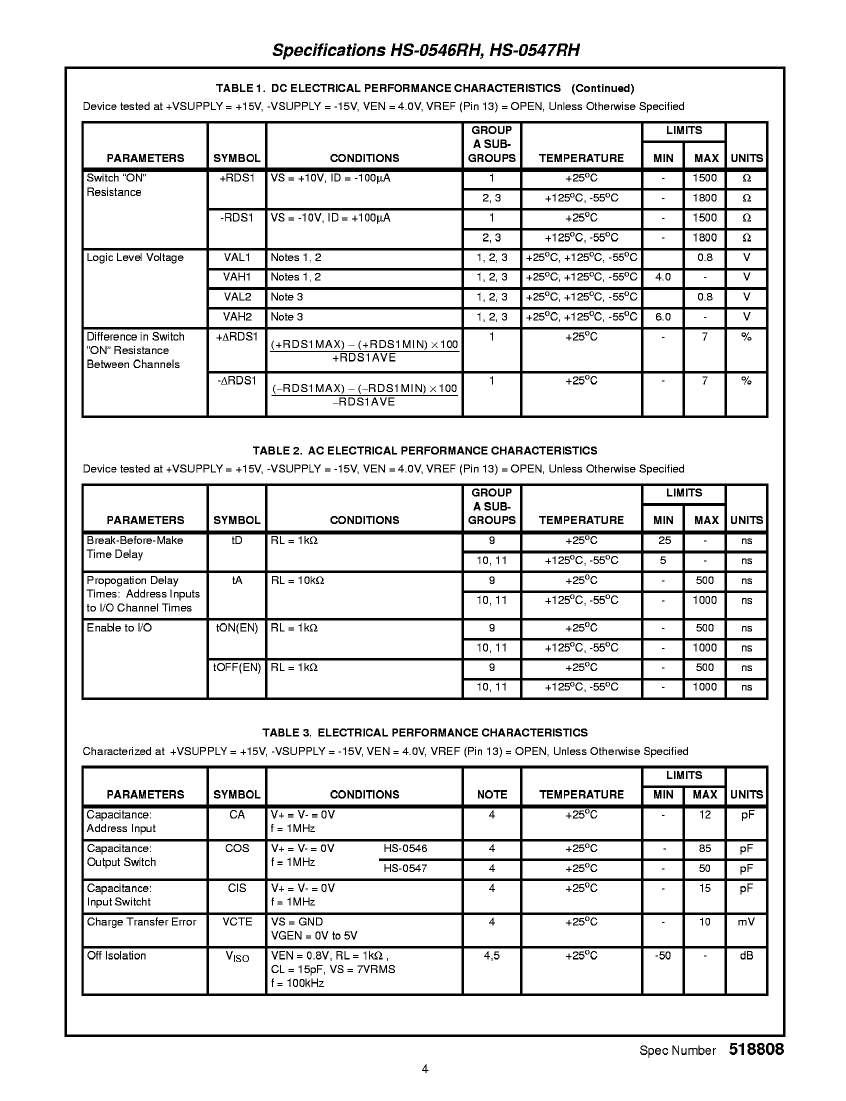

| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | , |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-GDIP-T28 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 16 |
| Number of functions | 1 |
| Number of terminals | 28 |
| Maximum on-state resistance (Ron) | 1800 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum supply current (Isup) | 3 mA |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| total dose | 10k Rad(Si) V |
| Base Number Matches | 1 |
| 5962D9569301VXA | HS1-0546RH-Q | HS1-0547RH-Q | 5962D9569302VXA | |
|---|---|---|---|---|
| Description | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28 | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28 | Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28 | Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28 |
| Maker | Harris | Harris | Harris | Harris |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | DIFFERENTIAL MULTIPLEXER | DIFFERENTIAL MULTIPLEXER |
| JESD-30 code | R-GDIP-T28 | R-GDIP-T28 | R-GDIP-T28 | R-GDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| Number of channels | 16 | 16 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 |
| Maximum on-state resistance (Ron) | 1800 Ω | 1800 Ω | 1800 Ω | 1800 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply current (Isup) | 3 mA | 3 mA | 3 mA | 3 mA |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN LEAD |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
