HD6437042F33: Description32-BIT, MROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112; CategoryThe embedded processor and controller Microcontrollers and processors; File Size312KB，29 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HD6437042F33 Overview

32-BIT, MROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112

HD6437042F33 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	QFP
package instruction	20 X 20 MM, QFP-112
Contacts	112
Reach Compliance Code	compliant
Has ADC	YES
Address bus width	22
bit size	32
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	YES
External data bus width	16
JESD-30 code	S-PQFP-G112
JESD-609 code	e0
length	20 mm
Number of I/O lines	82
Number of terminals	112
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3.05 mm
speed	28 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	20 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

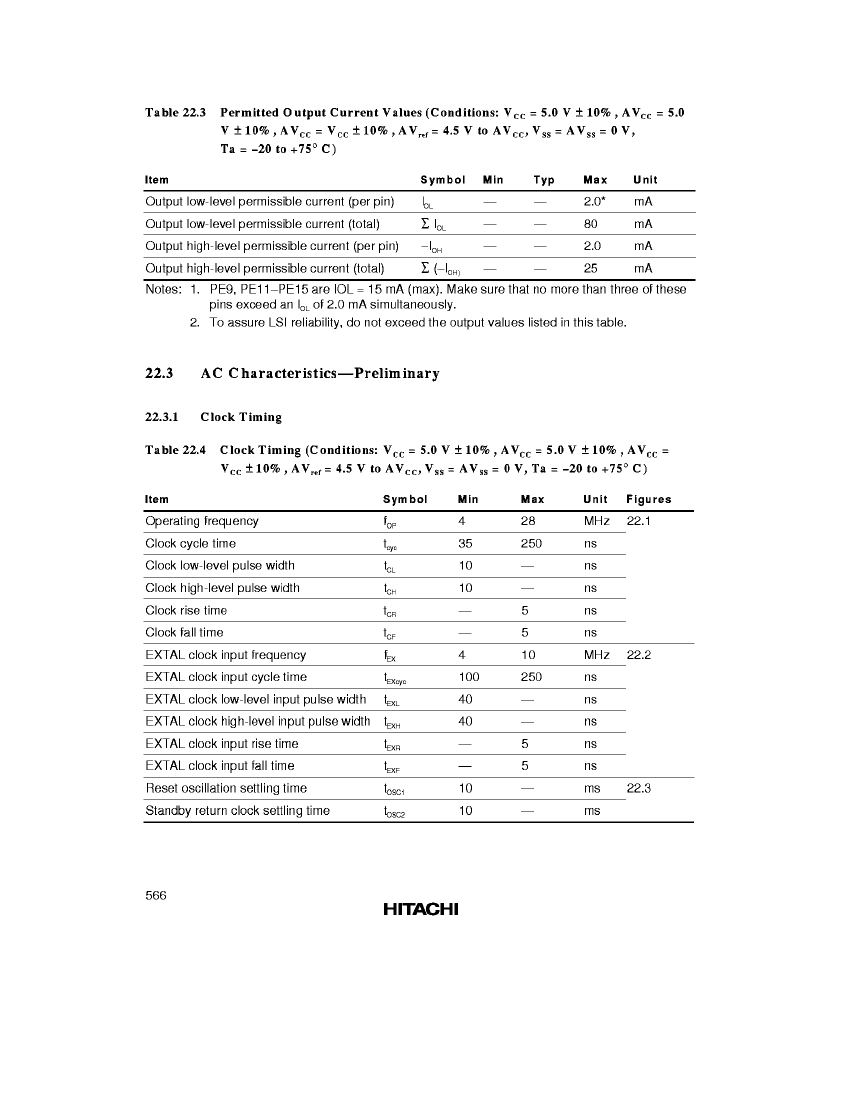

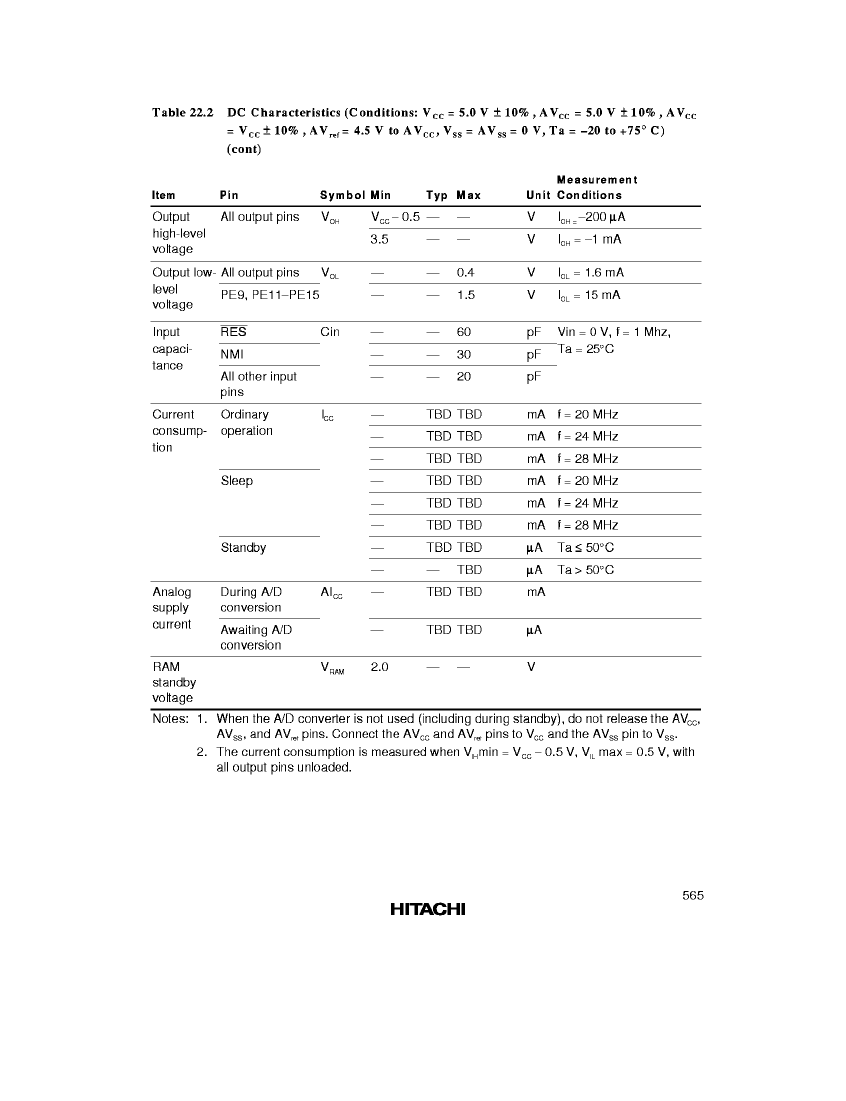

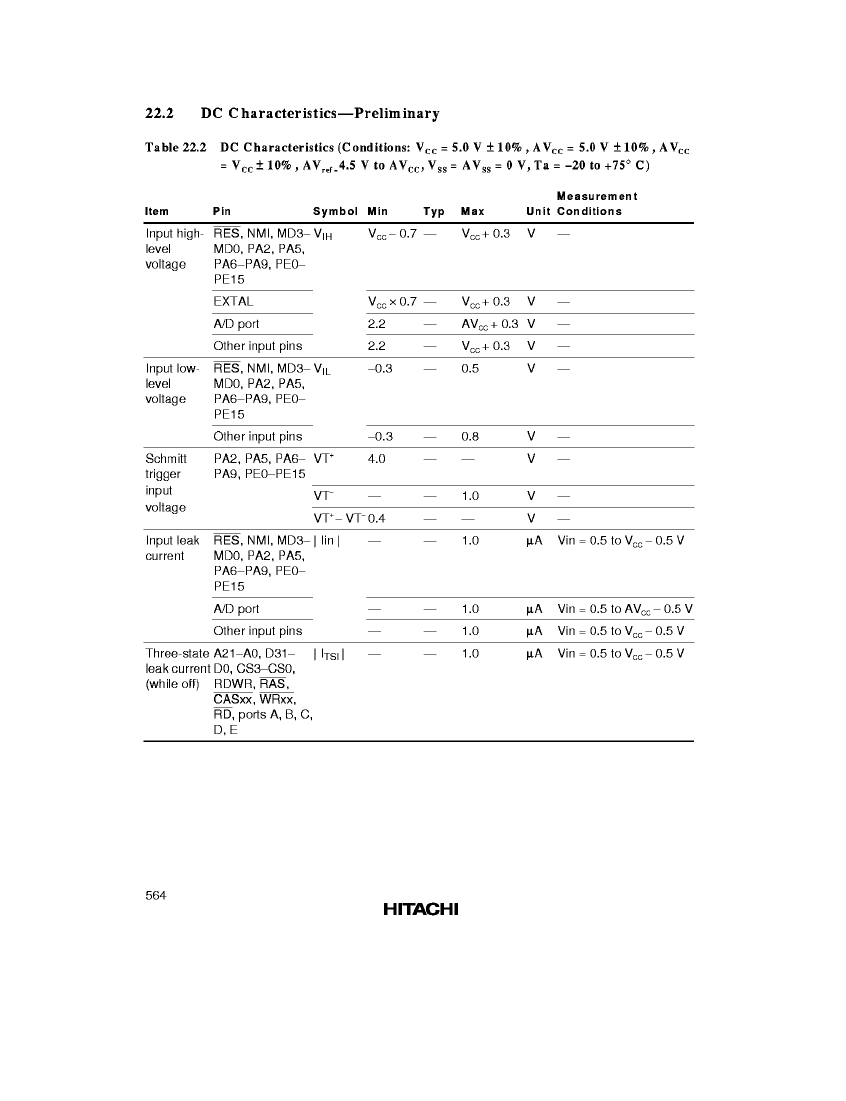

Preview

Download Datasheet

View All

HD6437042F33 Related Products

	HD6437042F33	HD6477043F33	HD6437040F28	HD6437043F33	HD6437041F33	HD6437041VF16	HD6477042F33	HD6437040F33	HD6437040VF16	HD6437041F28
Description	32-BIT, MROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112	32-BIT, OTPROM, MICROCONTROLLER, PQFP144, 20 X 20 MM, QFP-144	32-BIT, MROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112	32-BIT, MROM, MICROCONTROLLER, PQFP144, 20 X 20 MM, QFP-144	32-BIT, MROM, MICROCONTROLLER, PQFP144, 20 X 20 MM, QFP-144	32-BIT, MROM, MICROCONTROLLER, PQFP144, 20 X 20 MM, QFP-144	32-BIT, OTPROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112	32-BIT, MROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112	32-BIT, MROM, MICROCONTROLLER, PQFP112, 20 X 20 MM, QFP-112	32-BIT, MROM, MICROCONTROLLER, PQFP144, 20 X 20 MM, QFP-144
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	conform to	conform to	incompatible
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	20 X 20 MM, QFP-112	20 X 20 MM, QFP-144	QFP,	QFP,	QFP,	20 X 20 MM, QFP-144	20 X 20 MM, QFP-112	20 X 20 MM, QFP-112	20 X 20 MM, QFP-112	QFP,
Contacts	112	144	112	144	144	144	112	112	112	144
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant	compliant	compliant	compliant	unknown
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Address bus width	22	22	22	22	22	22	22	22	22	22
bit size	32	32	32	32	32	32	32	32	32	32
maximum clock frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
External data bus width	16	32	16	32	32	32	16	16	16	32
JESD-30 code	S-PQFP-G112	S-PQFP-G144	S-PQFP-G112	S-PQFP-G144	S-PQFP-G144	S-PQFP-G144	S-PQFP-G112	S-PQFP-G112	S-PQFP-G112	S-PQFP-G144
JESD-609 code	e0	e0	e0	e0	e0	e6	e0	e4	e6	e0
Number of I/O lines	82	106	82	106	106	106	82	82	82	106
Number of terminals	112	144	112	144	144	144	112	112	112	144
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	OTPROM	MROM	MROM	MROM	MROM	OTPROM	MROM	MROM	MROM
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	3.3 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	3.3 V	4.5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Bismuth (Sn/Bi)	Tin/Lead (Sn/Pb)	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin/Bismuth (Sn/Bi)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	20	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
speed	28 MHz	28 MHz	28 MHz	28 MHz	-	28 MHz	28 MHz	28 MHz	28 MHz	-
Nominal supply voltage	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	-
