1N773 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N773

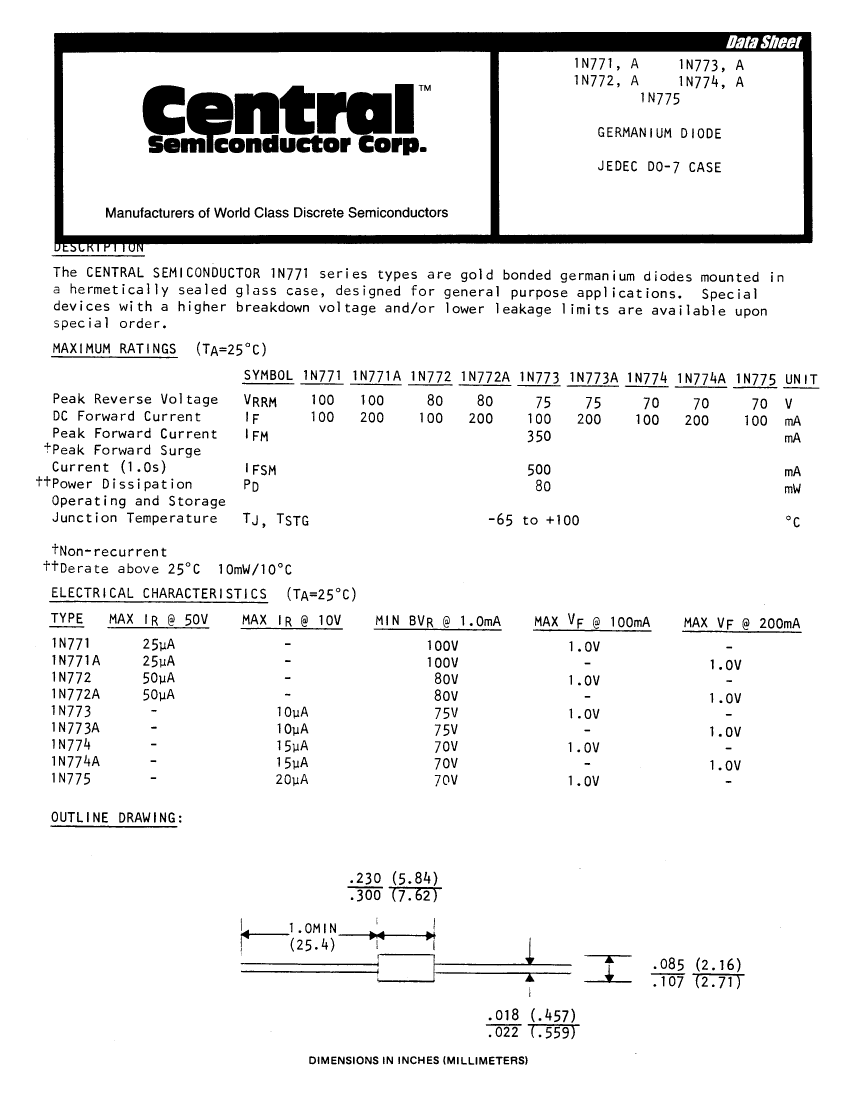

1N773: DescriptionRectifier Diode, 1 Element, 0.1A, 80V V(RRM), Germanium, DO-7; CategoryDiscrete semiconductor diode; File Size61KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

1N773 Overview

Rectifier Diode, 1 Element, 0.1A, 80V V(RRM), Germanium, DO-7

1N773 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	O-LALF-W2
Reach Compliance Code	_compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	GERMANIUM
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-7
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.45 A
Number of components	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-65 °C
Maximum output current	0.1 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.08 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

1N773 Related Products

	1N773	1N772A	1N772	1N773A	1N774
Description	Rectifier Diode, 1 Element, 0.1A, 80V V(RRM), Germanium, DO-7	Rectifier Diode, 1 Element, 0.1A, 70V V(RRM), Germanium, DO-7	Rectifier Diode, 1 Element, 0.2A, 100V V(RRM), Germanium, DO-7,	Rectifier Diode, 1 Element, 0.2A, 70V V(RRM), Germanium, DO-7	Rectifier Diode, 1 Element, 0.2A, 80V V(RRM), Germanium, DO-7
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	GERMANIUM	GERMANIUM	GERMANIUM	GERMANIUM	GERMANIUM
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JEDEC-95 code	DO-7	DO-7	DO-7	DO-7	DO-7
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	0.45 A	0.5 A	0.45 A	0.5 A	0.45 A
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.1 A	0.1 A	0.2 A	0.2 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.08 W	0.08 W	0.08 W	0.08 W	0.08 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	80 V	70 V	100 V	70 V	80 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	-
