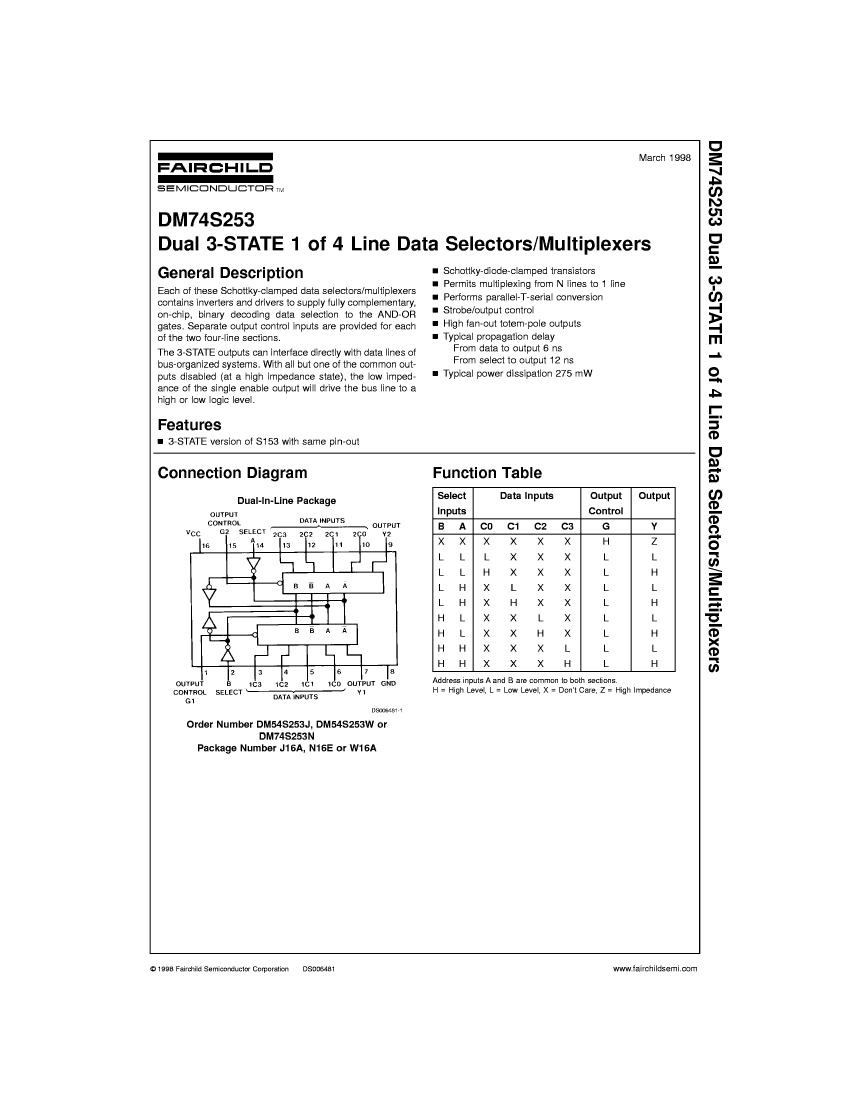

Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16,

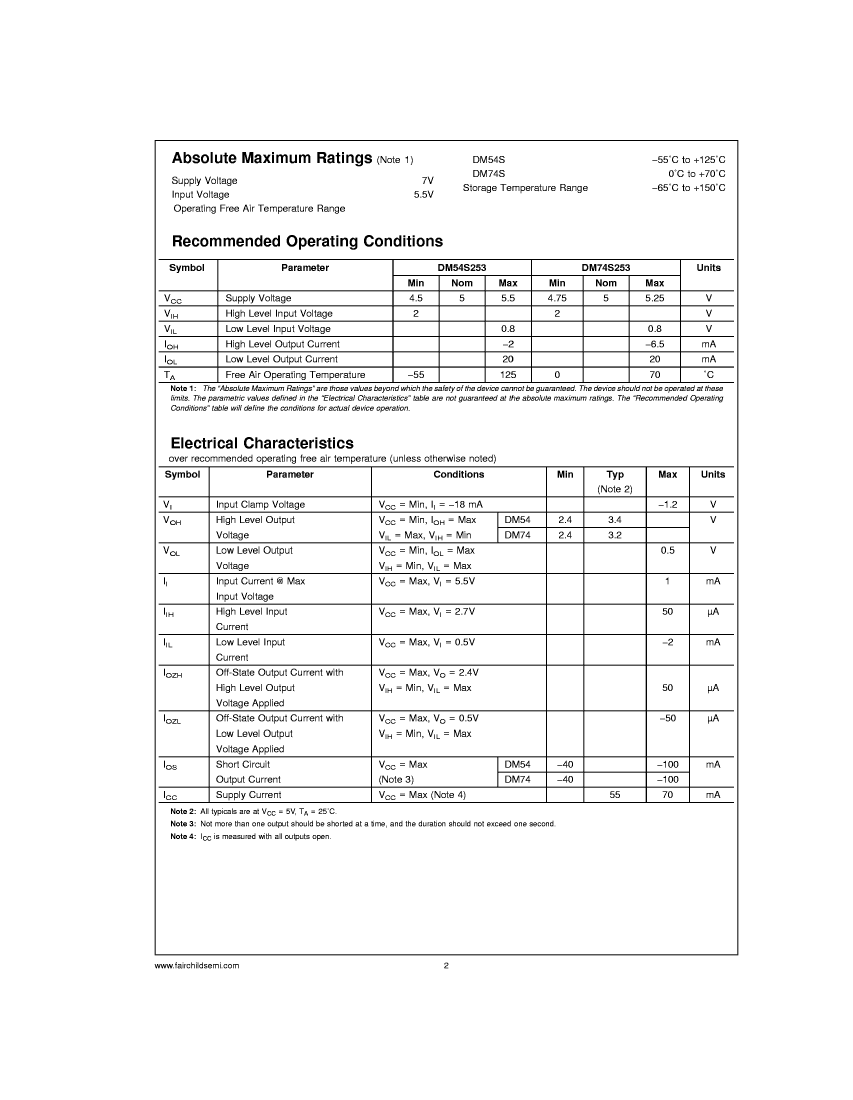

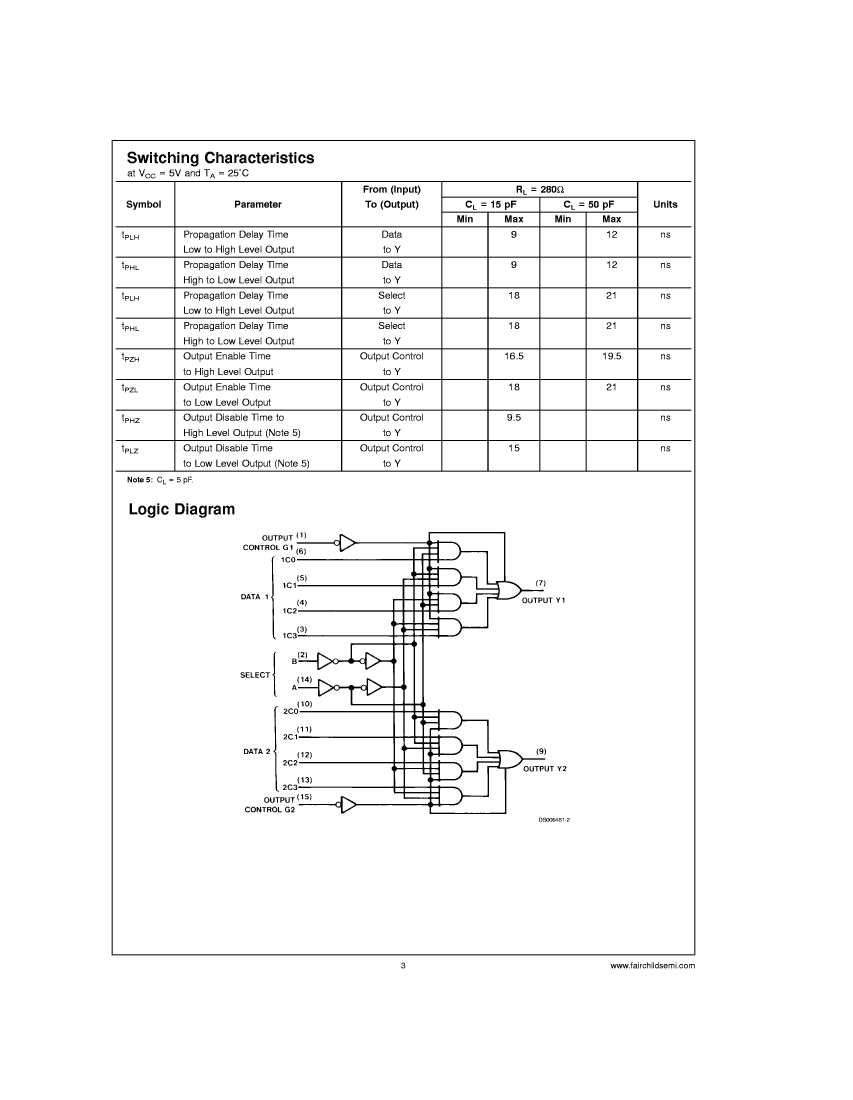

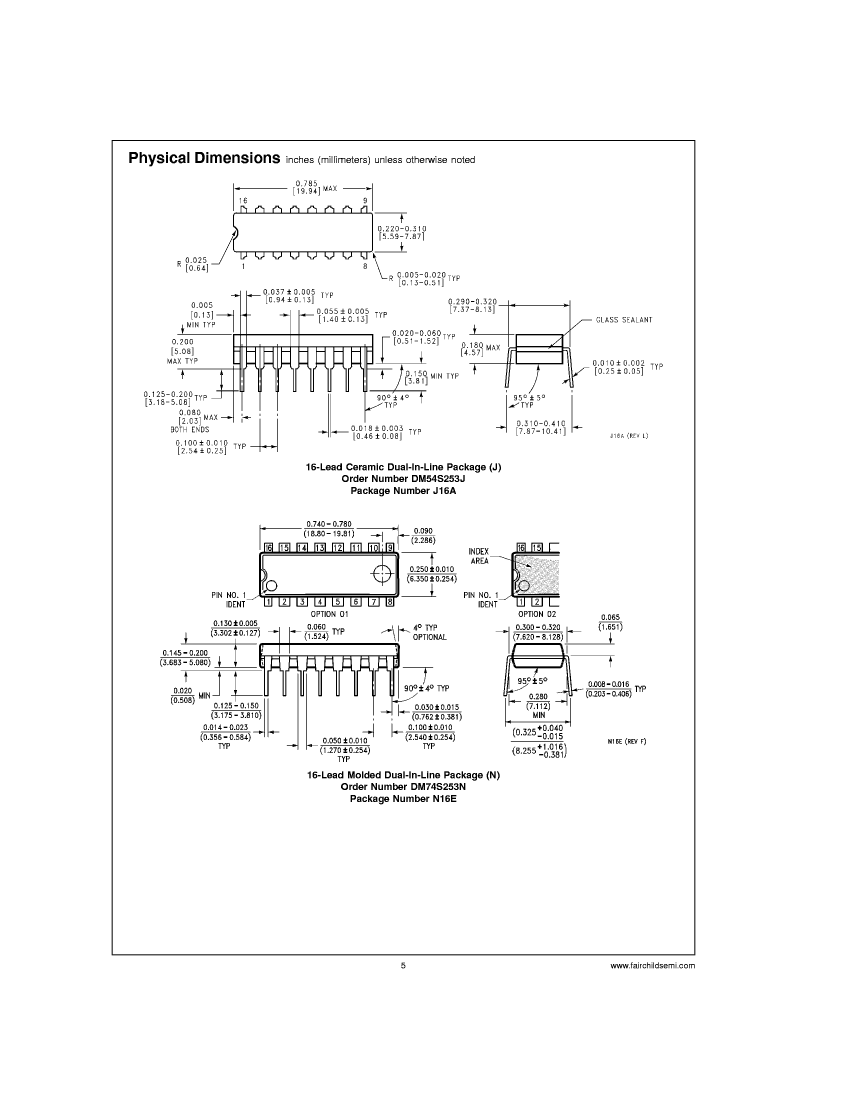

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | compliant |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 2 |
| Number of entries | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| 74S253PCQM | 74S253DCQR | 74S253FCQM | 74S253FCQR | |
|---|---|---|---|---|
| Description | Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16, | Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16, | Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16, | Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | DFP, FL16,.3 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| JESD-30 code | R-PDIP-T16 | R-XDIP-T16 | R-XDFP-F16 | R-XDFP-F16 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 2 | 2 | 2 | 2 |
| Number of entries | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | CERAMIC | CERAMIC | CERAMIC |
| encapsulated code | DIP | DIP | DFP | DFP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | FL16,.3 | FL16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | FLAT |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 |
