74F765-1N datasheet, PDF - EEWORLD Datasheet

74F765-1N: DescriptionIC 256K X 1, DRAM CONTROLLER, PDIP48, Memory Controller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size744KB，29 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

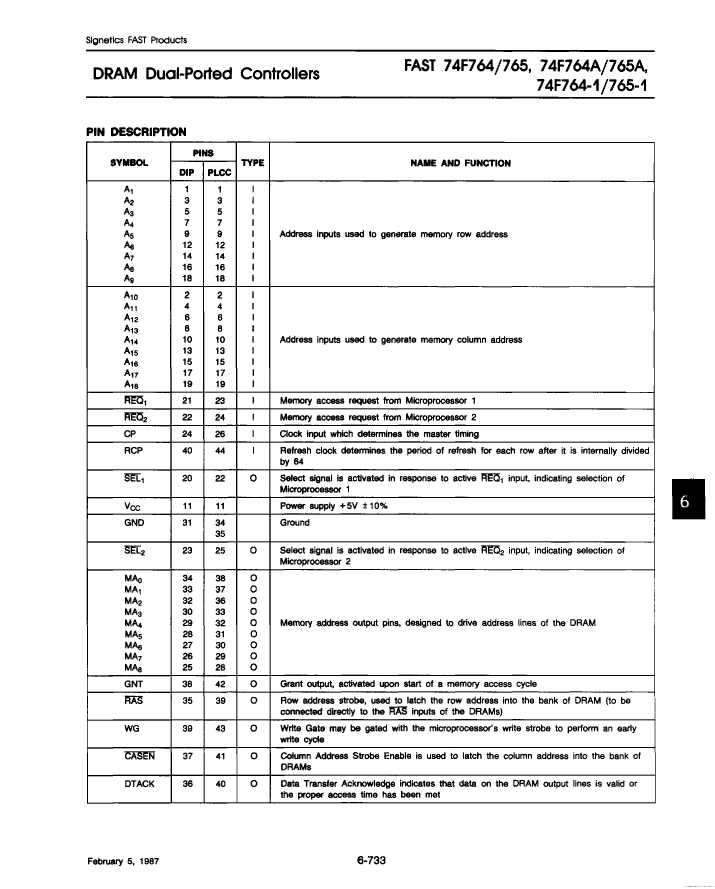

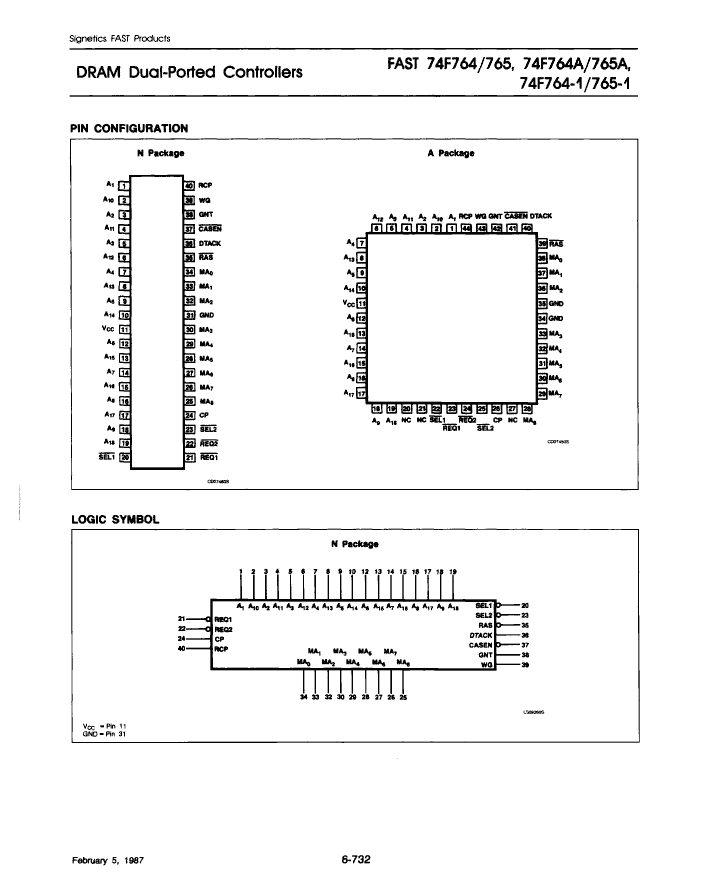

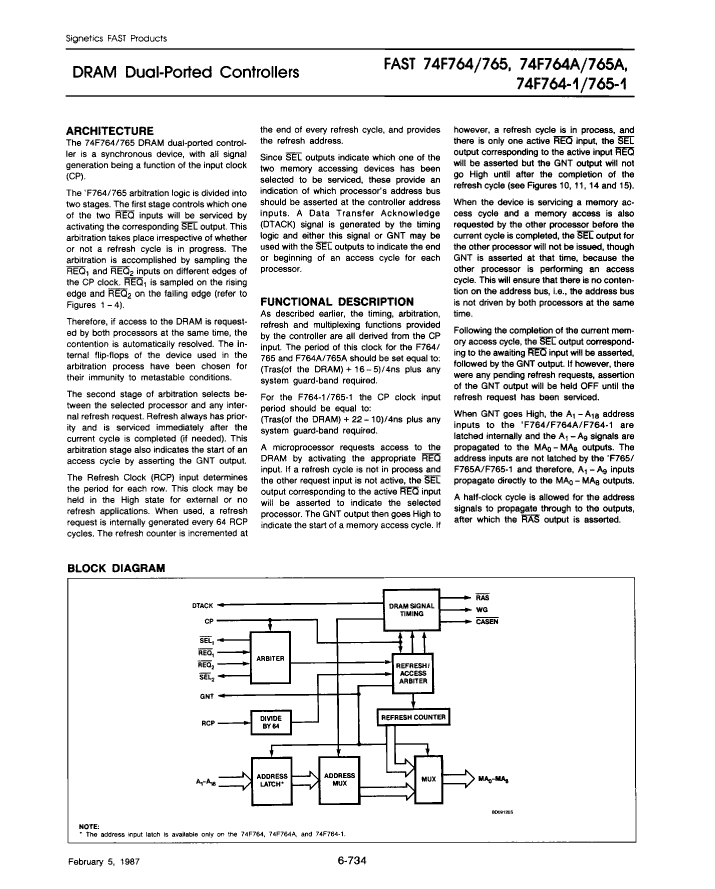

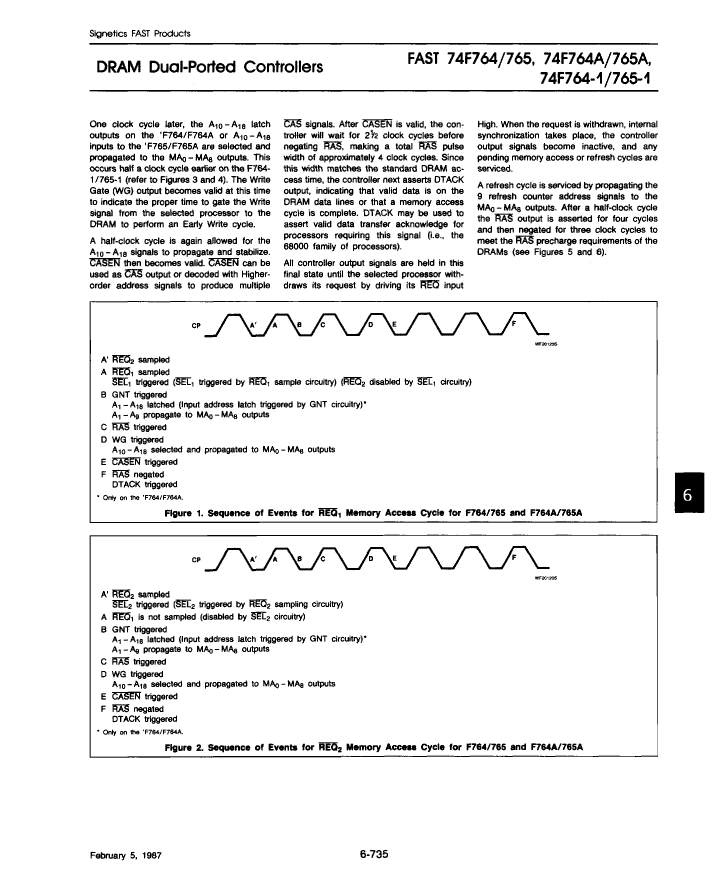

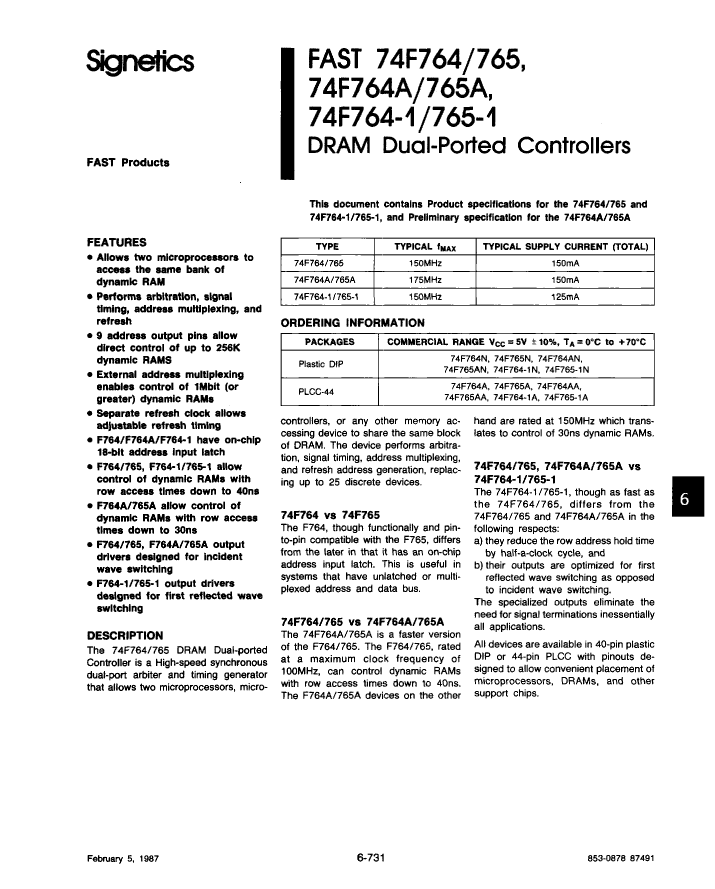

74F765-1N Overview

IC 256K X 1, DRAM CONTROLLER, PDIP48, Memory Controller

Parameter Name	Attribute value
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Address bus width	18
boundary scan	NO
Bus compatibility	68020; 68000; 8086; Z-80
External data bus width
JESD-30 code	R-PDIP-T48
low power mode	NO
memory organization	256K X 1
Number of blocks	1
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	170 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MEMORY CONTROLLER, DRAM
Base Number Matches	1
