7RS102-16A: DescriptionRISC Microprocessor, 32-Bit, 16MHz, 3.900 X 3.200 INCH, PLUG IN MODULE; CategoryThe embedded processor and controller Microcontrollers and processors; File Size172KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

7RS102-16A Overview

RISC Microprocessor, 32-Bit, 16MHz, 3.900 X 3.200 INCH, PLUG IN MODULE

7RS102-16A Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	MODULE
package instruction	,
Reach Compliance Code	unknown
Address bus width	32
bit size	32
boundary scan	NO
maximum clock frequency	16 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	R-XXMA-X
JESD-609 code	e0
low power mode	NO
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
speed	16 MHz
surface mount	NO
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

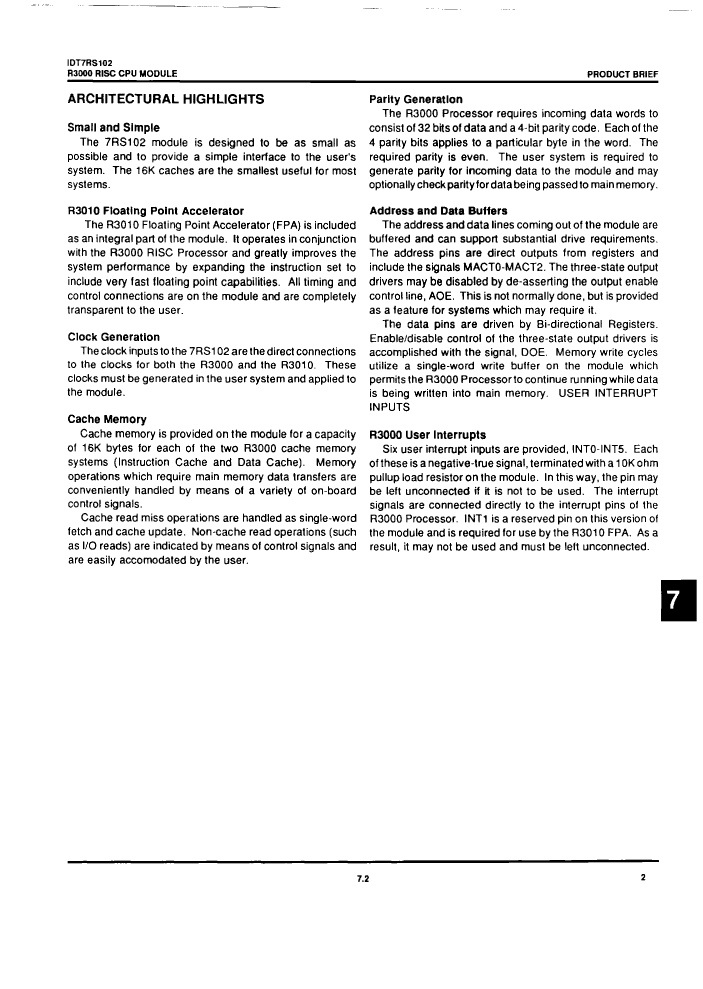

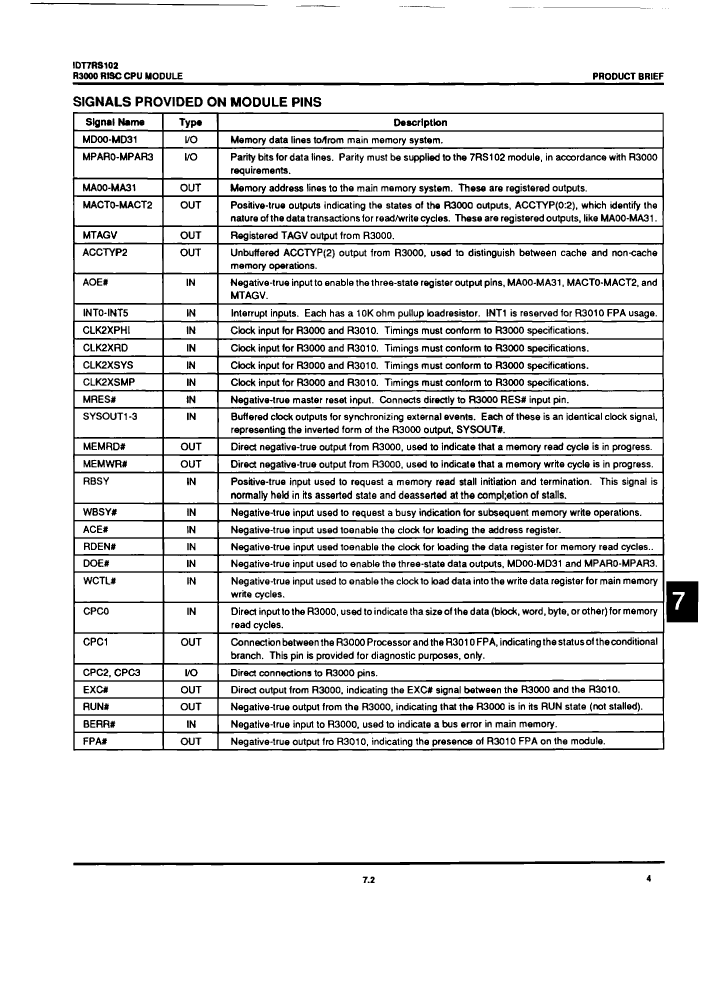

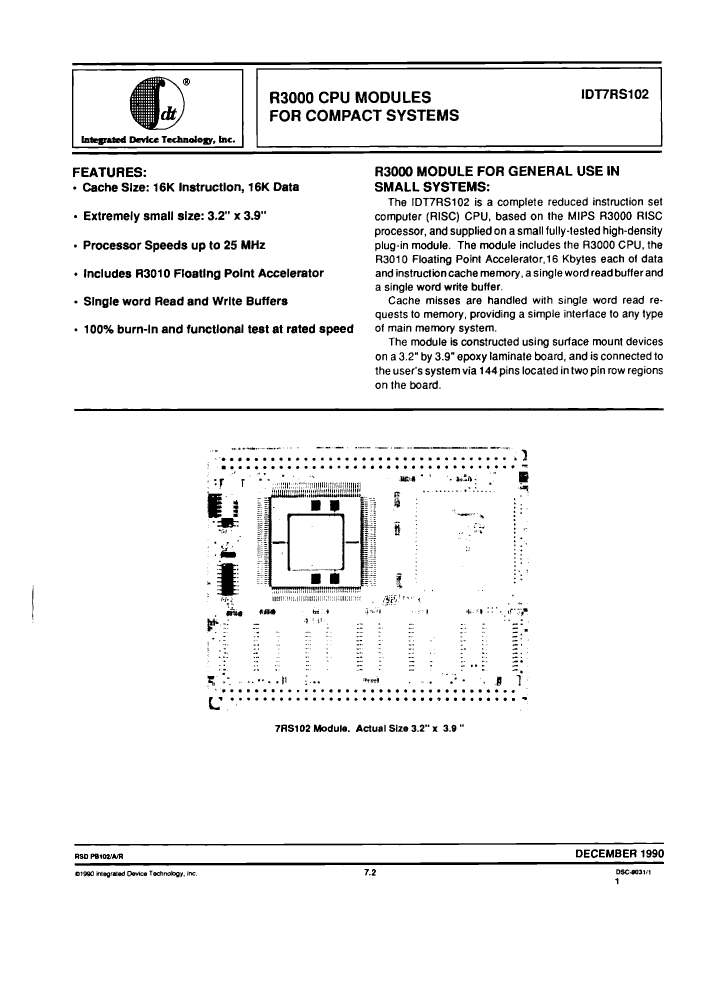

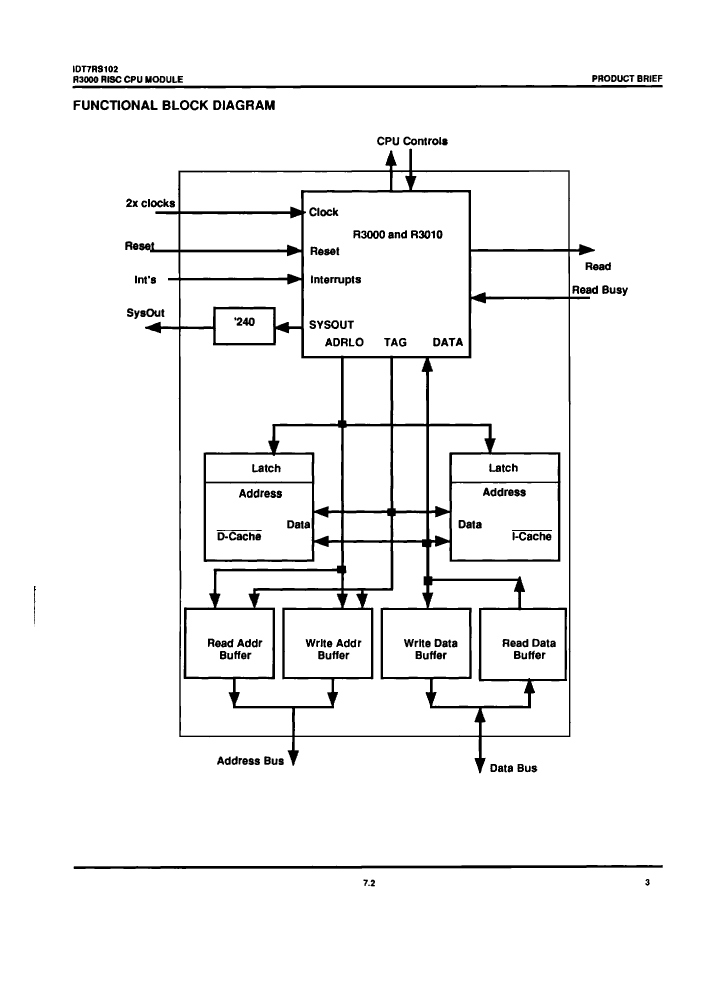

Preview

Download Datasheet

View All

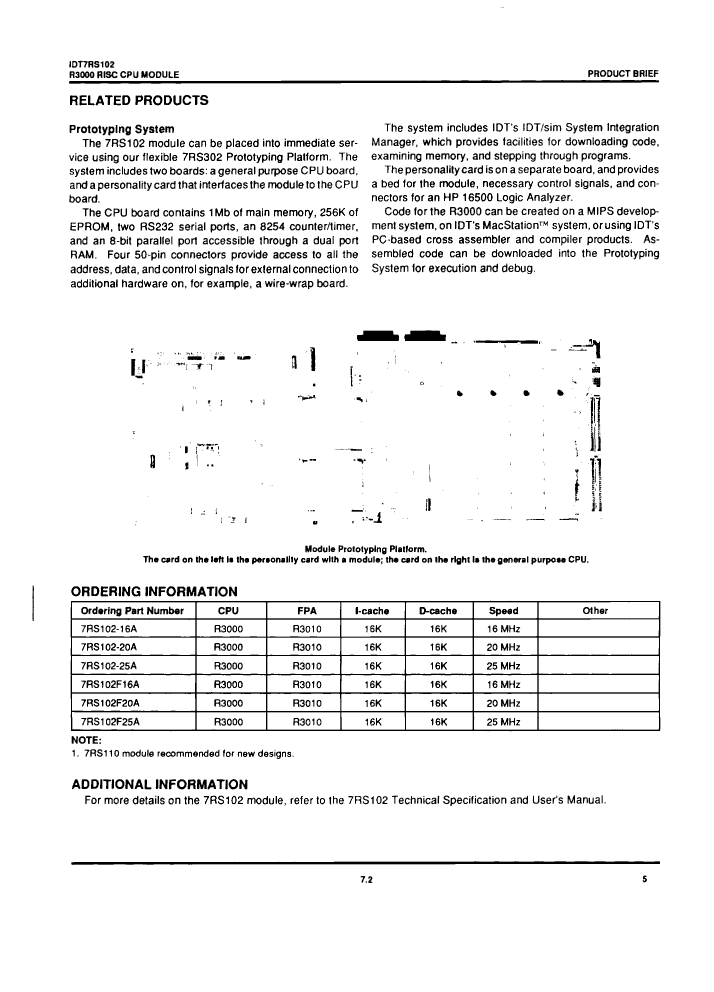

7RS102-16A Related Products

	7RS102-16A	7RS102-20A	7RS102F20A	7RS102F25A	7RS102F16A	7RS102-25A
Description	RISC Microprocessor, 32-Bit, 16MHz, 3.900 X 3.200 INCH, PLUG IN MODULE	RISC Microprocessor, 32-Bit, 20MHz, 3.900 X 3.200 INCH, PLUG IN MODULE	RISC Microprocessor, 32-Bit, 20MHz, 3.900 X 3.200 INCH, PLUG IN MODULE	RISC Microprocessor, 32-Bit, 25MHz, 3.900 X 3.200 INCH, PLUG IN MODULE	RISC Microprocessor, 32-Bit, 16MHz, 3.900 X 3.200 INCH, PLUG IN MODULE	RISC Microprocessor, 32-Bit, 25MHz, 3.900 X 3.200 INCH, PLUG IN MODULE
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	32	32	32	32	32	32
bit size	32	32	32	32	32	32
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	20 MHz	20 MHz	25 MHz	16 MHz	25 MHz
External data bus width	32	32	32	32	32	32
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	YES	YES	YES	YES	YES	YES
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
JESD-609 code	e0	e0	e0	e0	e0	e0
low power mode	NO	NO	NO	NO	NO	NO
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	16 MHz	20 MHz	20 MHz	25 MHz	16 MHz	25 MHz
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Base Number Matches	1	1	1	1	1	-
