MMSZ5221B-MMSZ5259B
Technical Data
Data Sheet N0205, Rev. B
MMSZ5221B-MMSZ5259B
ZENER DIODES
Features
Planar Die Construction
500mW Power Dissipation
2.4V- 39V Standoff Voltage
5% Nominal Zener Voltage
Designed for Surface Mount Application
Plastic Material-UL Recognition Flammability
Classification 94V-O
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon
request
SOD-123

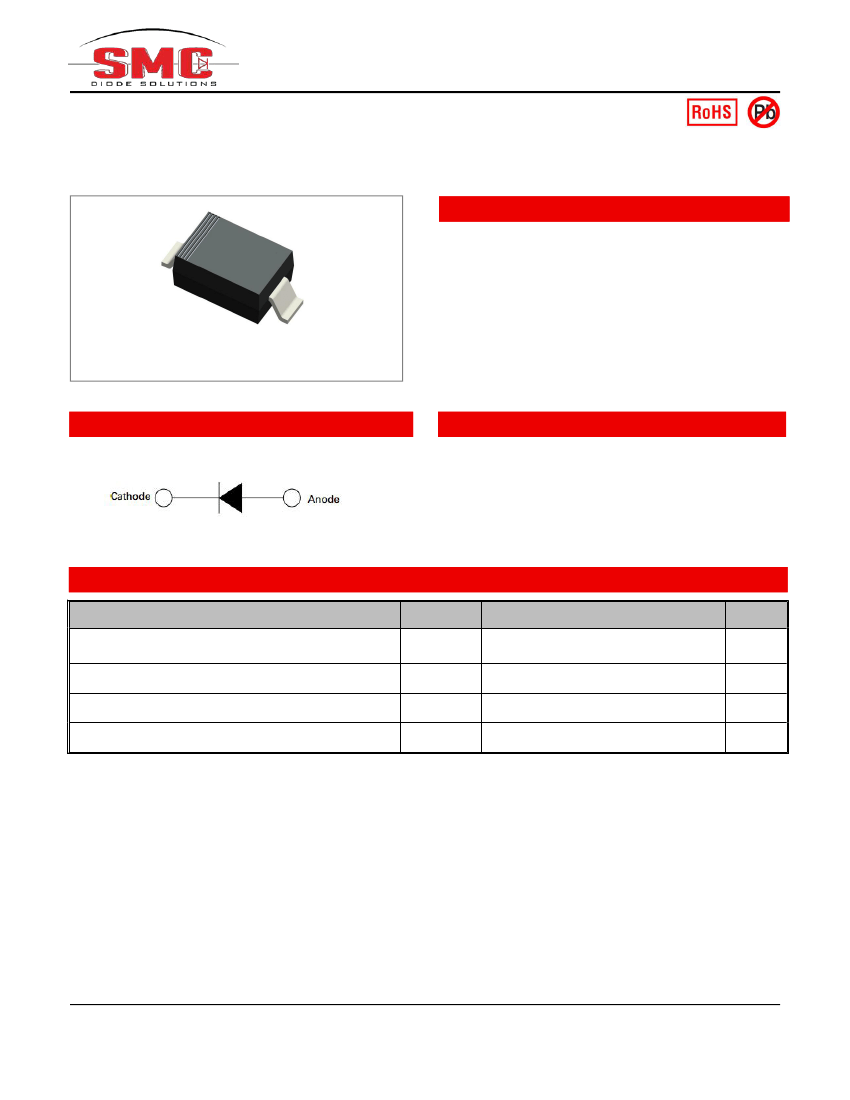

Circuit Diagram
Mechanical Data
Case: SOD-123, Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-202,
Method 208
Polarity: Cathode Band
Weight: 0.01 grams(approx)
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Power Dissipation
(Note 1)
Forward Voltage (Note 2) @ I
F
= 10mA
Typical Thermal resistance junction to Ambient Air
Operating Junction and Storage
Temperature Range
Symbol
P
D
V
F
R
θJA
T
J
,T
STG
Value
500
0.9
357
-55 to 150
Units
mW
V
°C/W
°C
Notes: 1. Device mounted on ceramic PCB; 7.6 mm x 9.4 mm x 0.87 mm with pad areas 25 mm
2
.
2. Tested with pulses, Tp≤1.0ms.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MMSZ5221B-MMSZ5259B
Technical Data
Data Sheet N0205, Rev. B

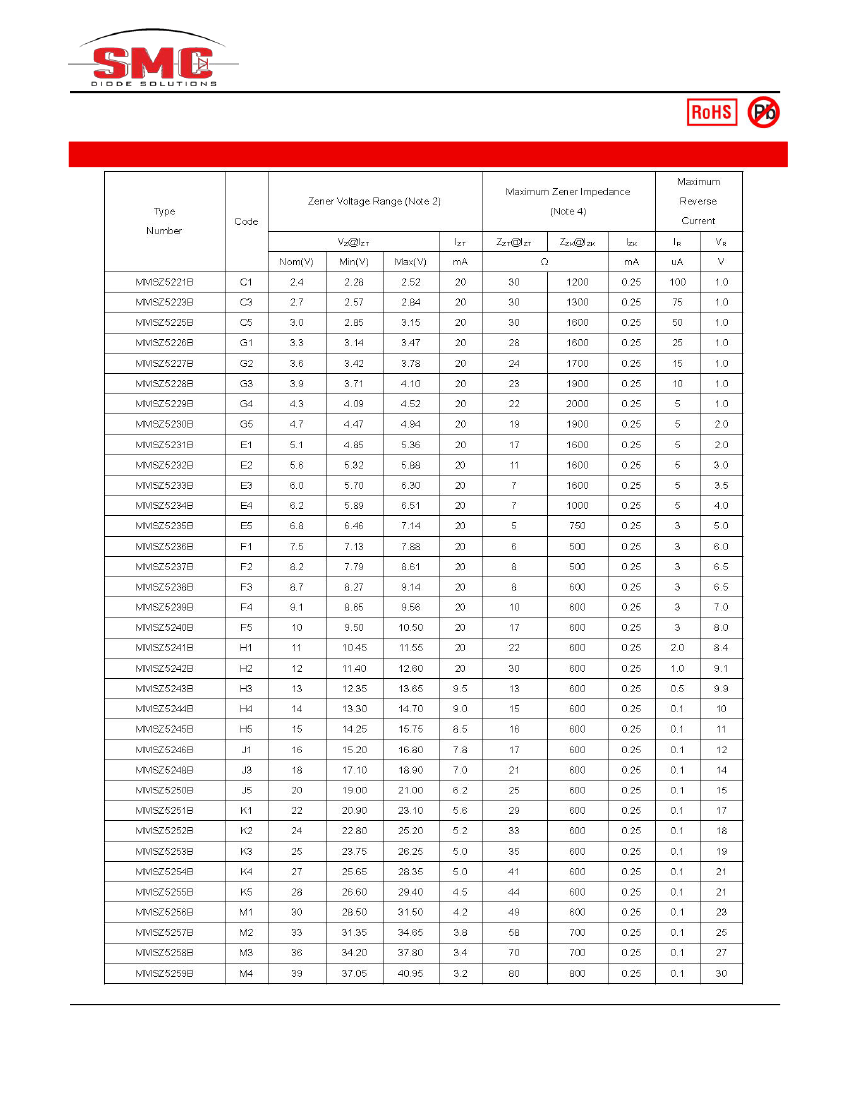

Electrical Characteristics
@T
A
=25°C unless otherwise specified
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MMSZ5221B-MMSZ5259B
Technical Data
Data Sheet N0205, Rev. B

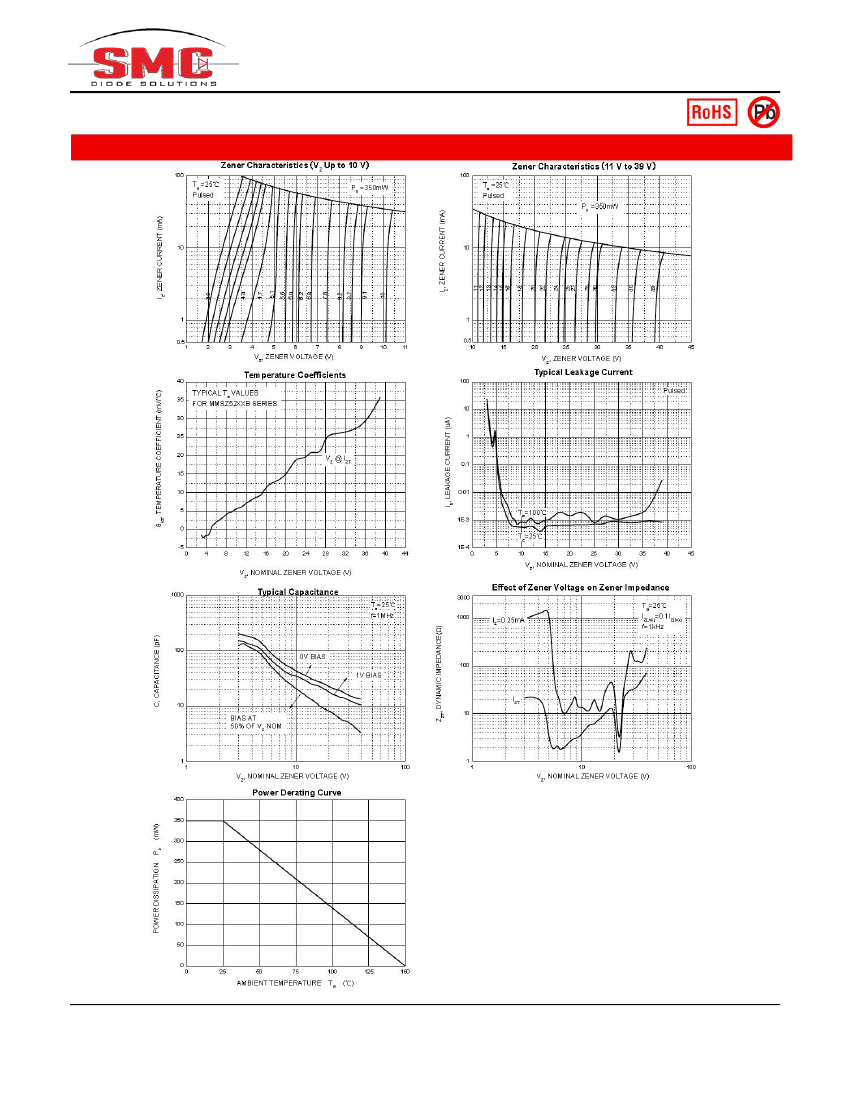

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MMSZ5221B-MMSZ5259B
Technical Data
Data Sheet N0205, Rev. B

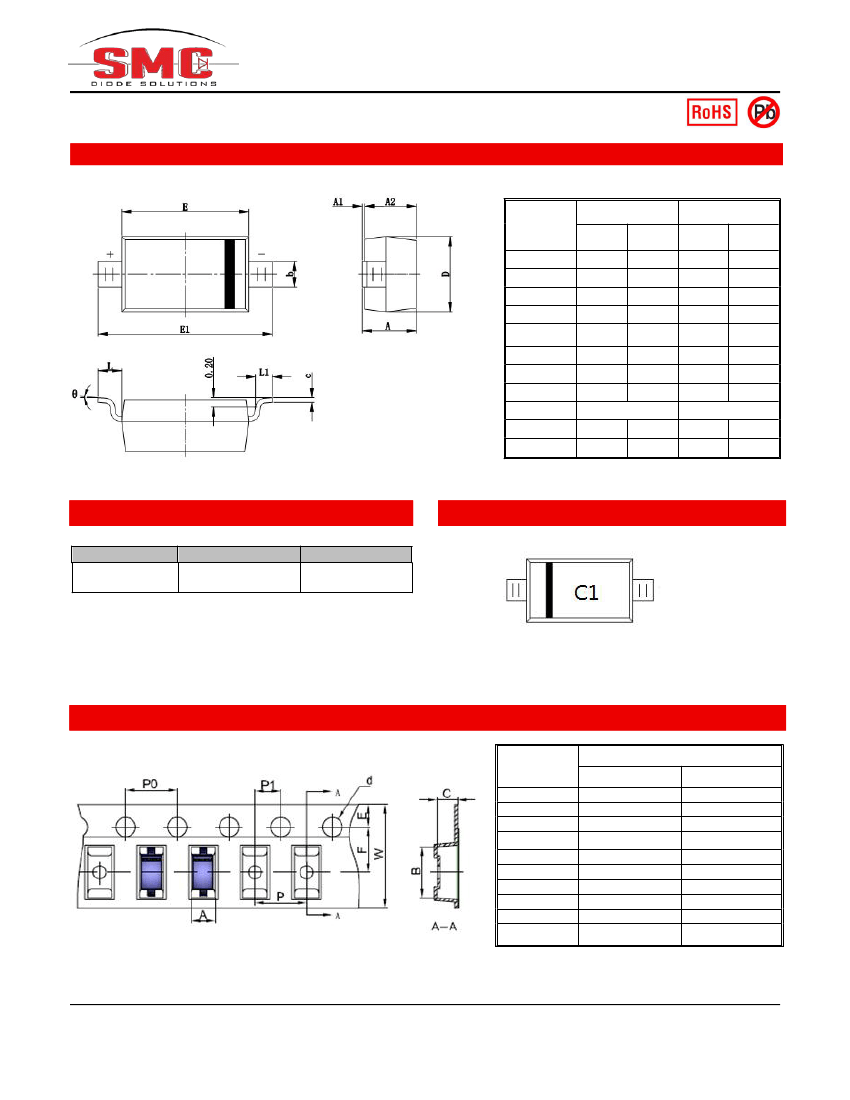

Mechanical Dimensions SOD-123
Millimeters
MIN.
1.050
0.000
1.050
0.450
0.080
MAX.
1.250
0.100
1.150
0.650
0.150
Inches
MIN.
0.041
1
0.000
0.041
0.018
0.003
MAX.
0.049
0.004
0.045
0.026
0.006
SYMBOL
A
A1
A2
b
c
D
E
E1
L
L1
θ
1.500
1.700
2.600
2.800
3.550
3.850
0.500 REF.
0.250
0.450
0°
8°
0.059
0.067
0.102
0.110
0.140
0.152
0.020 REF.
0.010
0.018
0°
8°
Note: If date code is before 2016 year, please contact with factory about marking.
Ordering Information
Device
MMSZ5221B-
MMSZ5259B
Package
SOD-123
(Pb-Free)
Shipping
3000pcs / reel
Marking Diagram
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
C1
= Marking code
Carrier Tape Specification SOD-123
SYMBOL
A
B
C
d
E
F
P
P0
P1
W
Millimeters
Min.
Max.
1.80
3.89
1.52
1.45
1.65
3.40
3.90
3.90
1.90
7.90
1.90
3.99
1.62
1.65
1.85
3.60
4.10
4.10
2.10
8.30
