5962-8872502XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8872502XA

5962-8872502XA: DescriptionStandard SRAM, 256KX1, 45ns, CMOS, CQCC28, CERAMIC, LCC-28; Categorystorage storage; File Size58KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

5962-8872502XA Overview

Standard SRAM, 256KX1, 45ns, CMOS, CQCC28, CERAMIC, LCC-28

5962-8872502XA Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	CERAMIC, LCC-28
Reach Compliance Code	unknown
Maximum access time	45 ns
JESD-30 code	R-CQCC-N28
JESD-609 code	e0
length	13.97 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	28
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	256KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.048 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

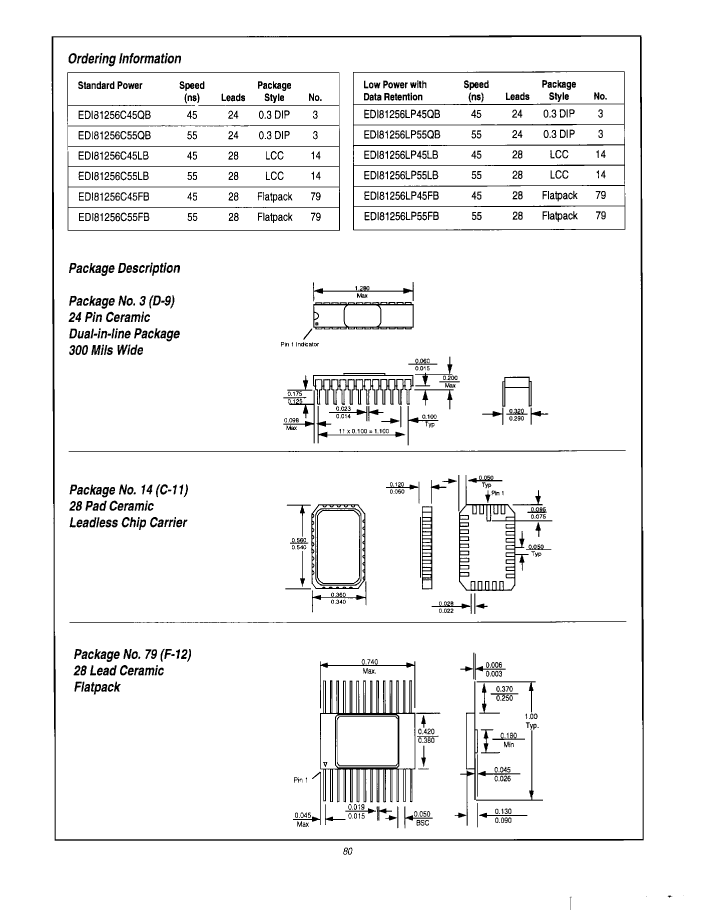

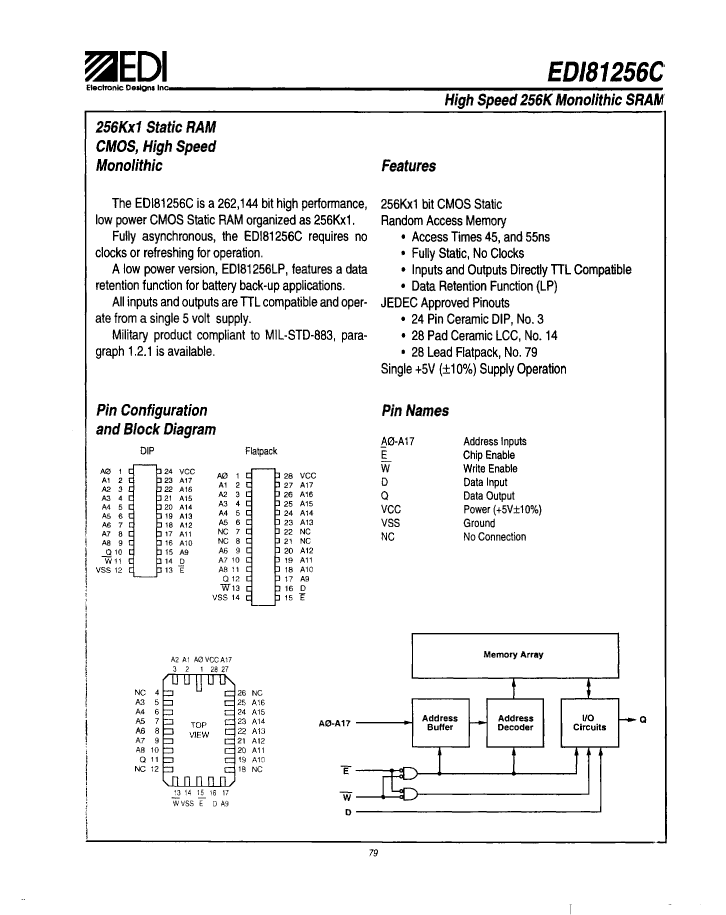

Preview

Download Datasheet

View All

5962-8872502XA Related Products

	5962-8872502XA	5962-8854402YA	5962-8854402XA	5962-8872502LA	5962-8872503XA	5962-8854403YA	5962-8872503LA	5962-8854402LA	5962-8854403XA	5962-8854403LA
Description	Standard SRAM, 256KX1, 45ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 256KX1, 45ns, CMOS, CDFP28, CERAMIC, DFP-28	Standard SRAM, 256KX1, 45ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 256KX1, 45ns, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24	Standard SRAM, 256KX1, 55ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 256KX1, 55ns, CMOS, CDFP28, CERAMIC, DFP-28	Standard SRAM, 256KX1, 55ns, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24	Standard SRAM, 256KX1, 45ns, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24	Standard SRAM, 256KX1, 55ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 256KX1, 55ns, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24
package instruction	CERAMIC, LCC-28	CERAMIC, DFP-28	CERAMIC, LCC-28	0.300 INCH, CERAMIC, DIP-24	CERAMIC, LCC-28	CERAMIC, DFP-28	0.300 INCH, CERAMIC, DIP-24	0.300 INCH, CERAMIC, DIP-24	CERAMIC, LCC-28	0.300 INCH, CERAMIC, DIP-24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Maximum access time	45 ns	45 ns	45 ns	45 ns	55 ns	55 ns	55 ns	45 ns	55 ns	55 ns
JESD-30 code	R-CQCC-N28	R-CDFP-F28	R-CQCC-N28	R-CDIP-T24	R-CQCC-N28	R-CDFP-F28	R-CDIP-T24	R-CDIP-T24	R-CQCC-N28	R-CDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	24	28	28	24	24	28	24
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DFP	QCCN	DIP	QCCN	DFP	DIP	DIP	QCCN	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.048 mm	3.302 mm	3.048 mm	5.08 mm	3.048 mm	3.302 mm	5.08 mm	5.08 mm	3.048 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL
width	8.89 mm	10.16 mm	8.89 mm	7.62 mm	8.89 mm	10.16 mm	7.62 mm	7.62 mm	8.89 mm	7.62 mm
Maker	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	-	-	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
Base Number Matches	1	1	1	1	1	1	1	1	1	-
