5962-9759702QXX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-9759702QXX

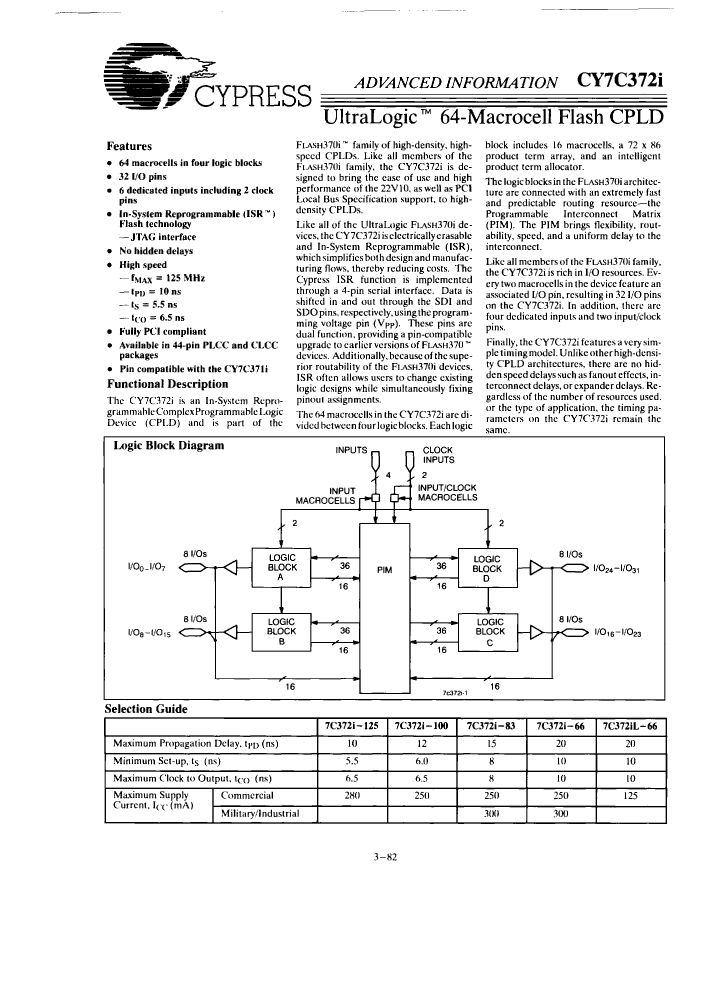

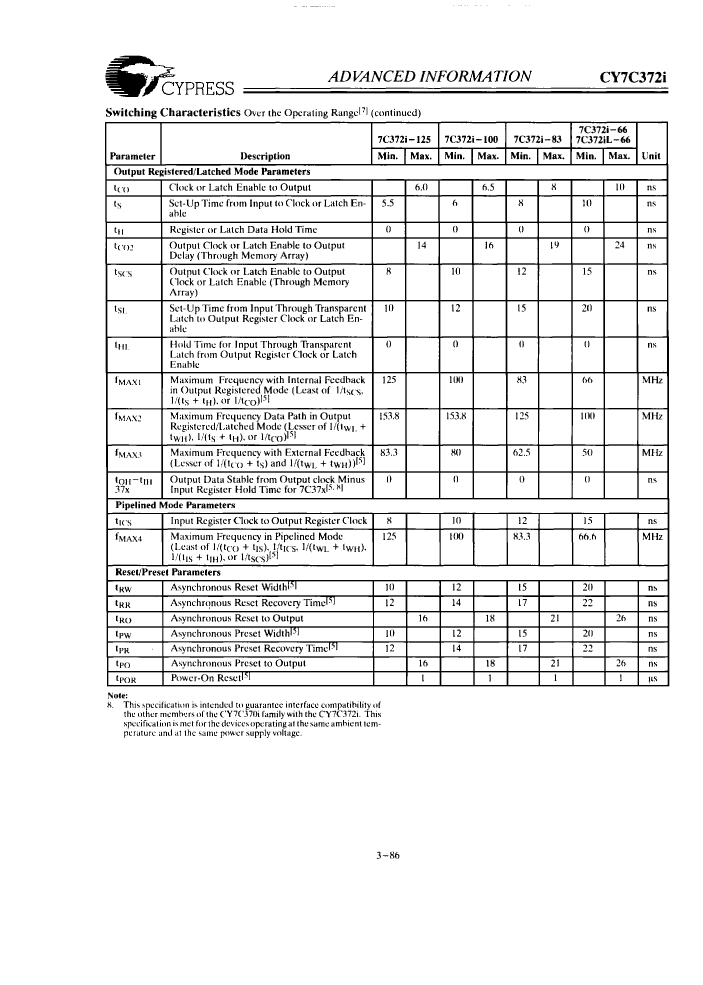

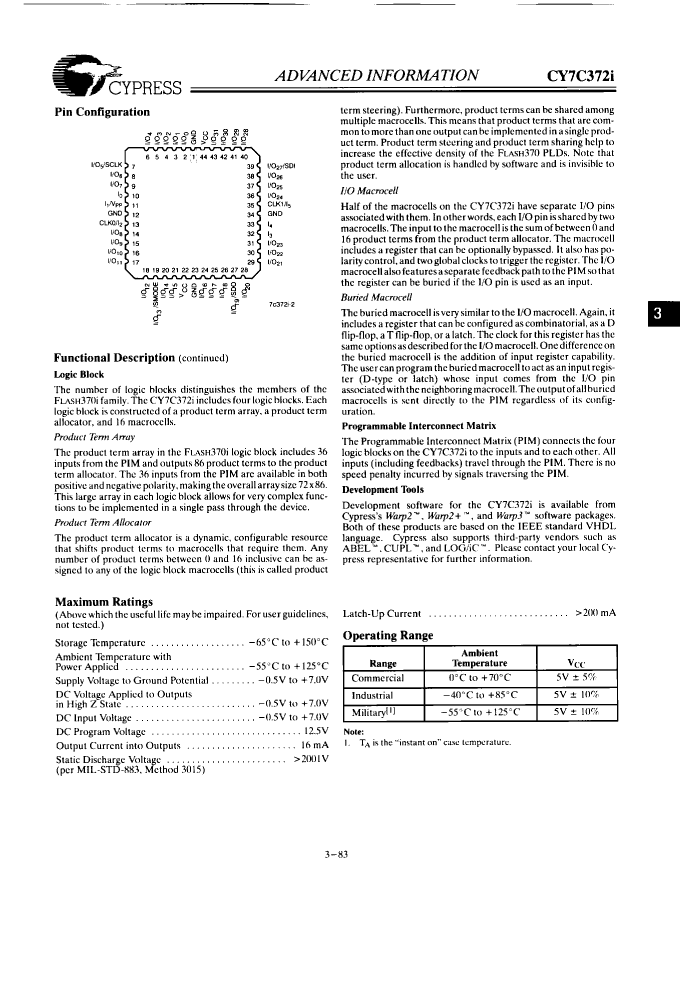

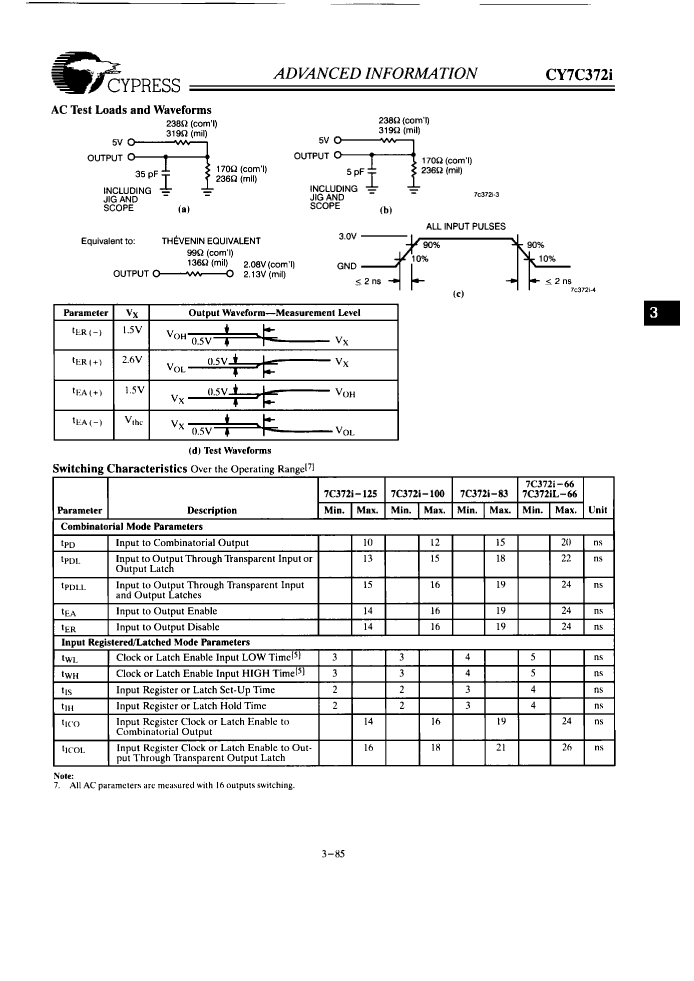

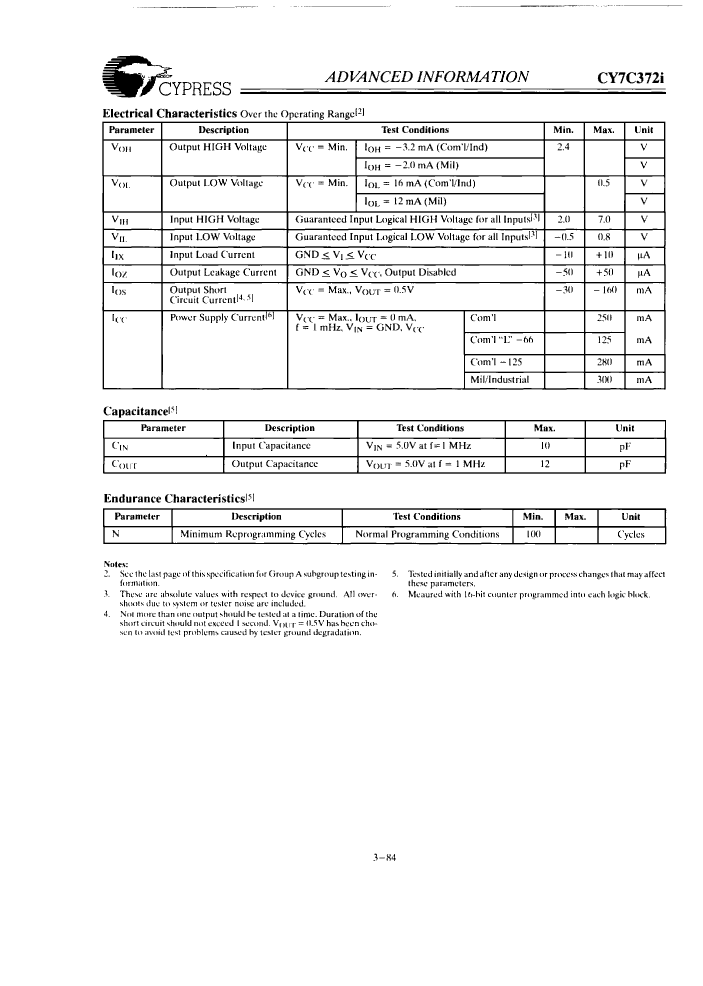

Preview

5962-9759702QXX: DescriptionFlash PLD, CMOS, CQCC44, CERAMIC, LCC-44; CategoryProgrammable logic devices Programmable logic; File Size253KB，9 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-9759702QXX Overview

Flash PLD, CMOS, CQCC44, CERAMIC, LCC-44

5962-9759702QXX Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
JESD-30 code	S-CQCC-J44
Dedicated input times	3
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	3 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	FLASH PLD
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9759702QXX Related Products

	5962-9759702QXX	5962-9759701QXX	CY7C372IL-66JCR	CY7C372I-66JIR	CY7C372I-83JCR	CY7C372I-66JCR	CY7C372I-83JIR	CY7C372I-100JCR	CY7C372I-125JCR
Description	Flash PLD, CMOS, CQCC44, CERAMIC, LCC-44	Flash PLD, CMOS, CQCC44, CERAMIC, LCC-44	Flash PLD, 24ns, CMOS, PQCC44, PLASTIC, LCC-44	Flash PLD, 24ns, CMOS, PQCC44, PLASTIC, LCC-44	Flash PLD, 19ns, CMOS, PQCC44, PLASTIC, LCC-44	Flash PLD, 24ns, CMOS, PQCC44, PLASTIC, LCC-44	Flash PLD, 19ns, CMOS, PQCC44, PLASTIC, LCC-44	Flash PLD, 16ns, CMOS, PQCC44, PLASTIC, LCC-44	Flash PLD, 15ns, CMOS, PQCC44, PLASTIC, LCC-44
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	LCC	LCC	LCC	LCC	LCC	LCC	LCC	LCC	LCC
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	44	44	44	44	44	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-CQCC-J44	S-CQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
Dedicated input times	3	3	4	4	4	4	4	4	4
Number of I/O lines	32	32	32	32	32	32	32	32	32
Number of terminals	44	44	44	44	44	44	44	44	44
Maximum operating temperature	125 °C	125 °C	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C
organize	3 DEDICATED INPUTS, 32 I/O	3 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O	4 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.25 V	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage	4.5 V	4.5 V	4.75 V	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Other features	-	-	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK
maximum clock frequency	-	-	50 MHz	50 MHz	62.5 MHz	50 MHz	62.5 MHz	80 MHz	83.3 MHz
length	-	-	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm
propagation delay	-	-	24 ns	24 ns	19 ns	24 ns	19 ns	16 ns	15 ns
Maximum seat height	-	-	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Terminal pitch	-	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
width	-	-	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm	16.6116 mm
