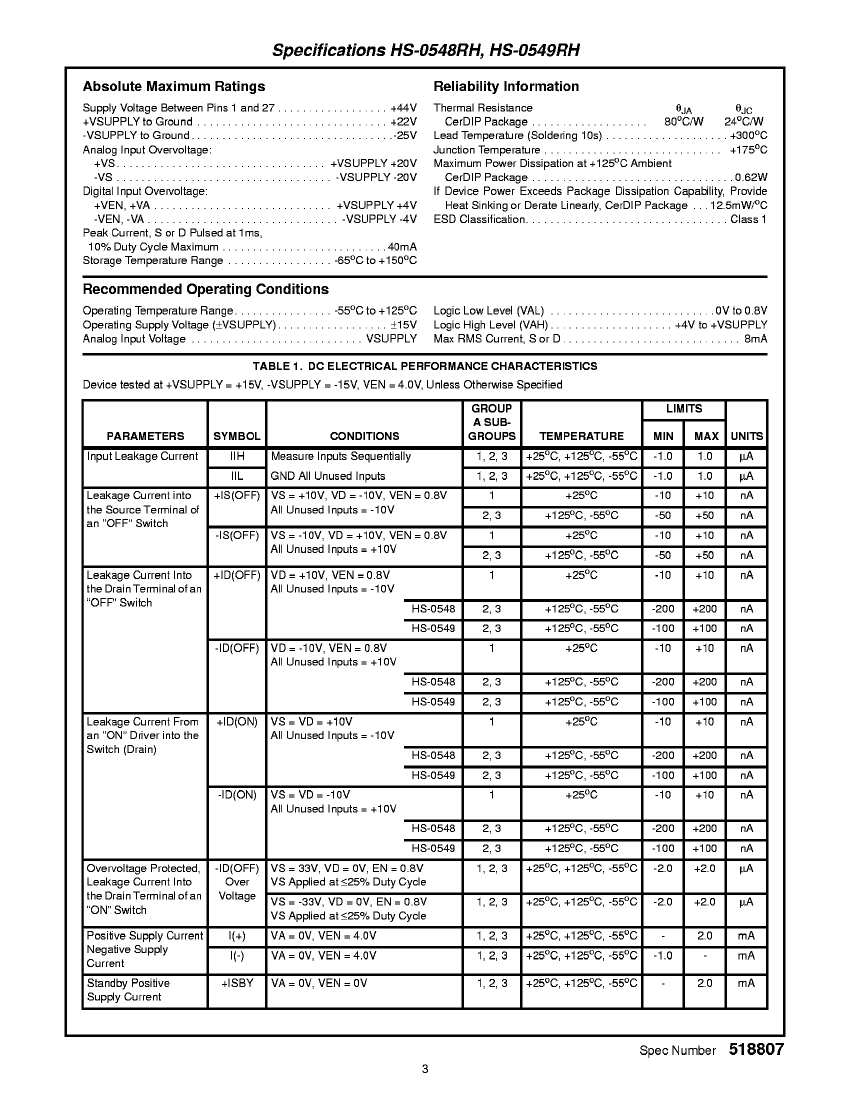

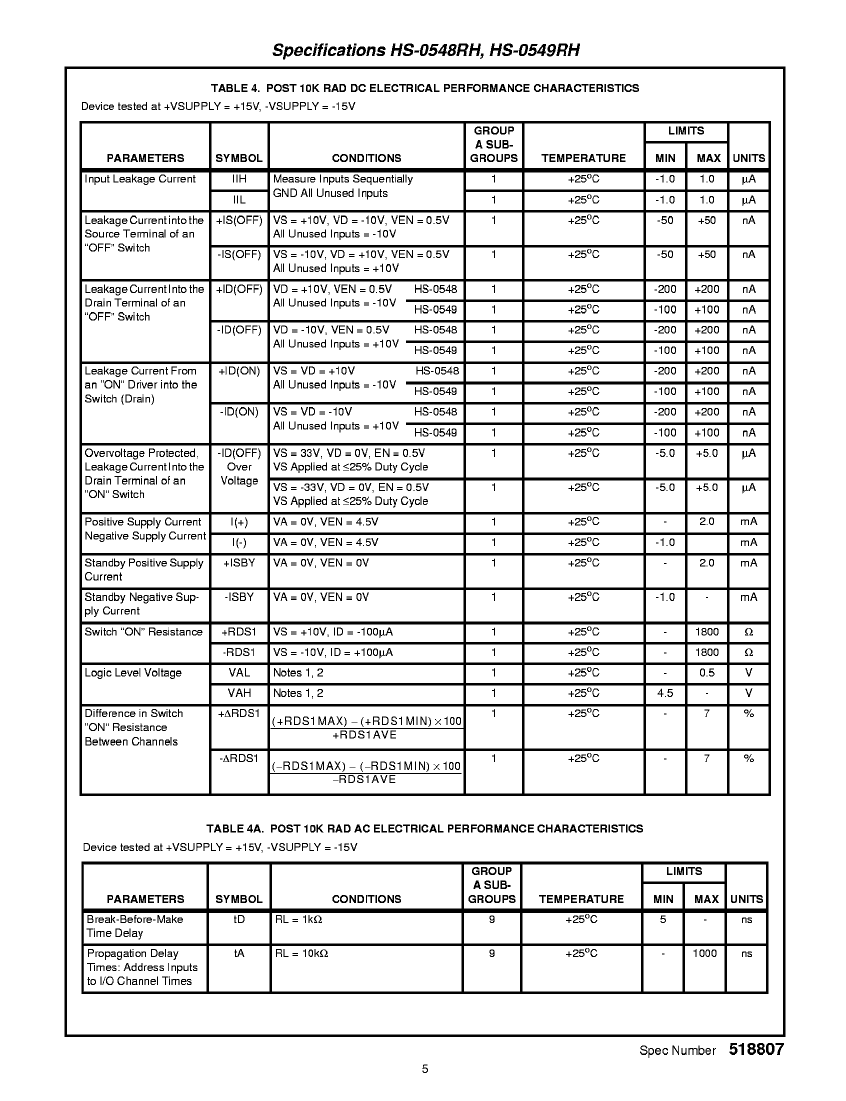

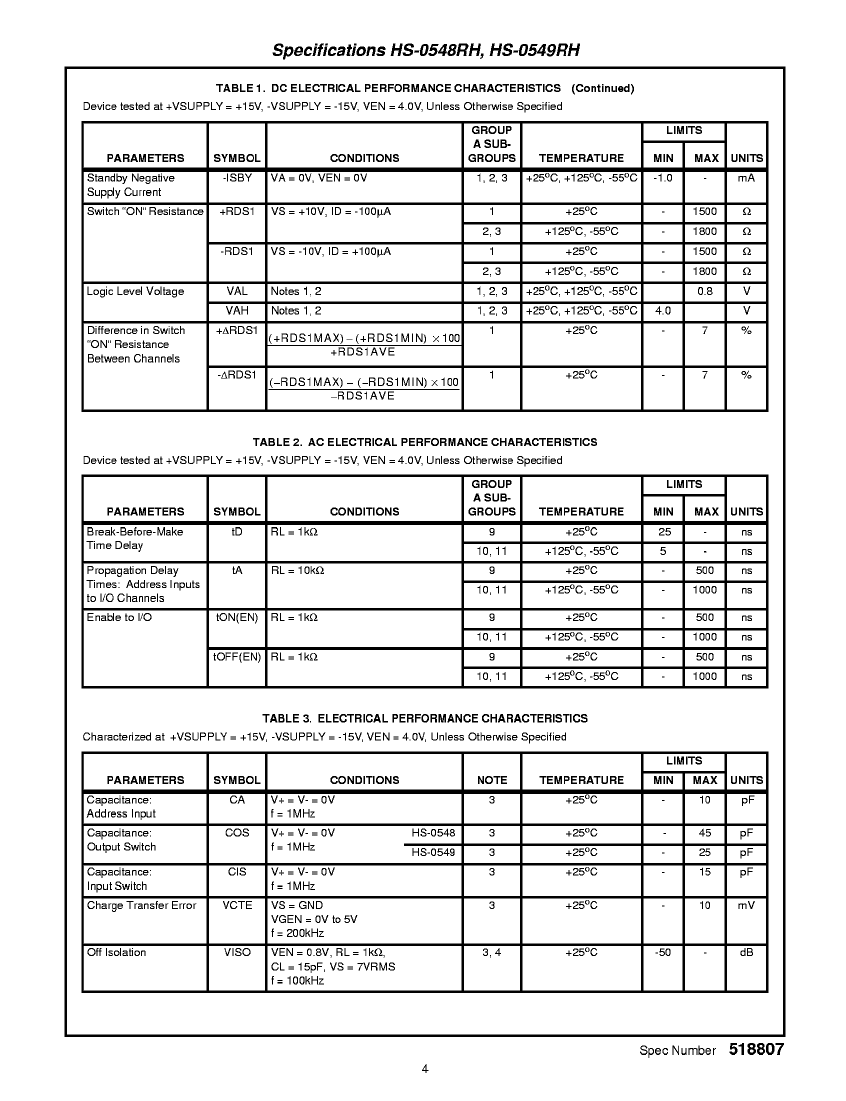

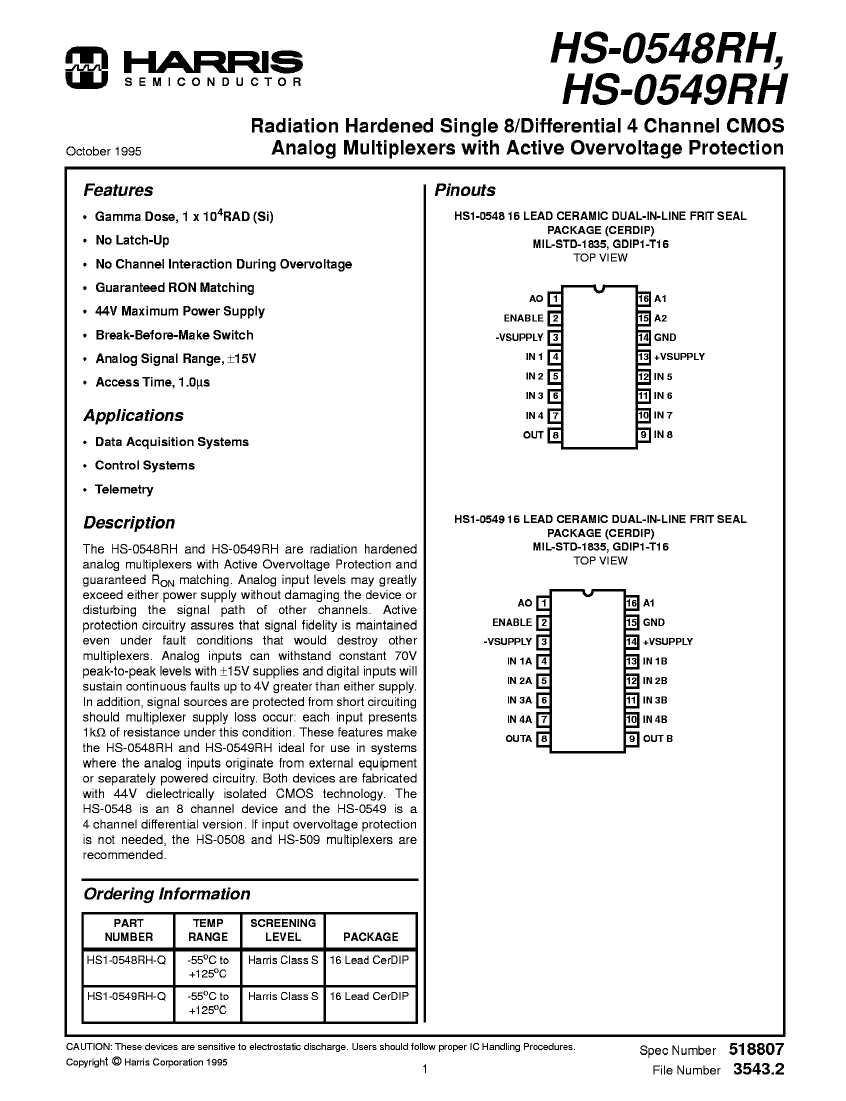

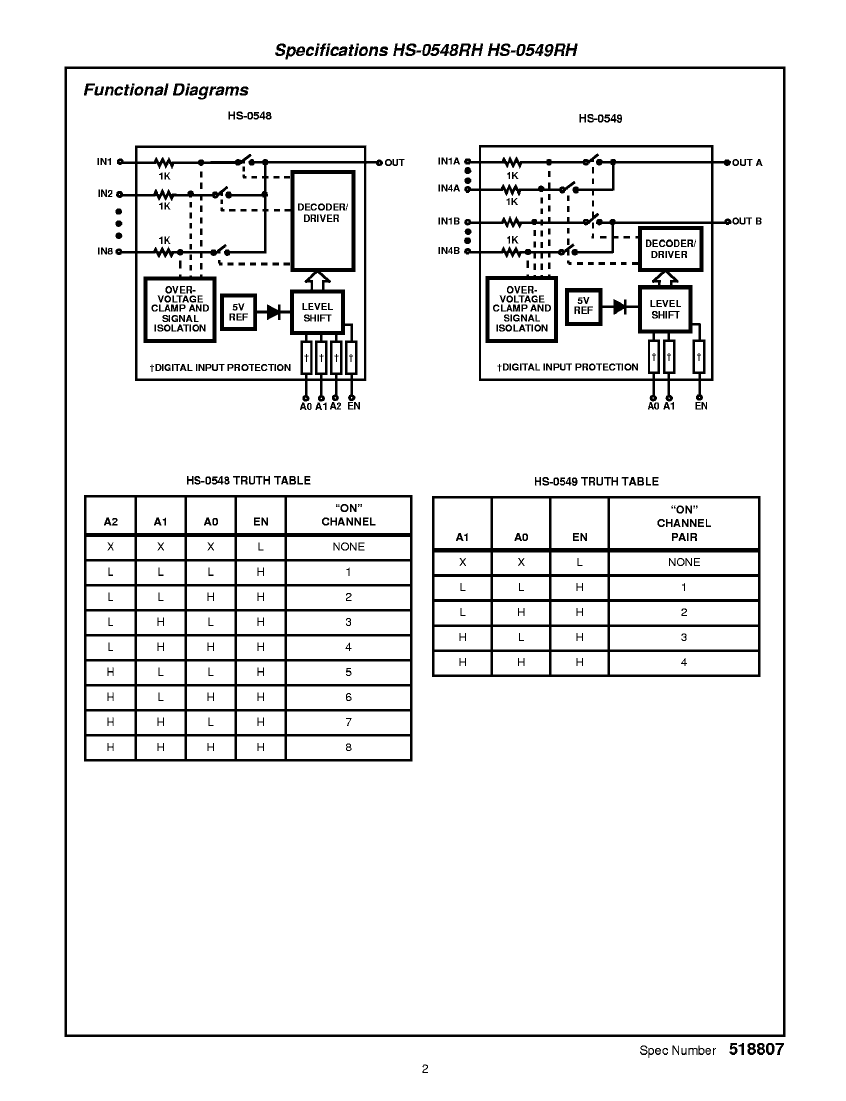

Preview

5962D9569401VEA: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size300KB，12 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962D9569401VEA Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16

5962D9569401VEA Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	3 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	10k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962D9569401VEA Related Products

	5962D9569401VEA	HS1-0548RH-Q	HS1-0549RH-Q	5962D9569402VEA
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16
Maker	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	8	8	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum on-state resistance (Ron)	1800 Ω	1800 Ω	1800 Ω	1800 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	3 mA	3 mA	3 mA	3 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
