5962-9159901HZX datasheet, PDF

5962-9159901HZX: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid,; CategoryPower/power management The power supply circuit; File Size493KB，12 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

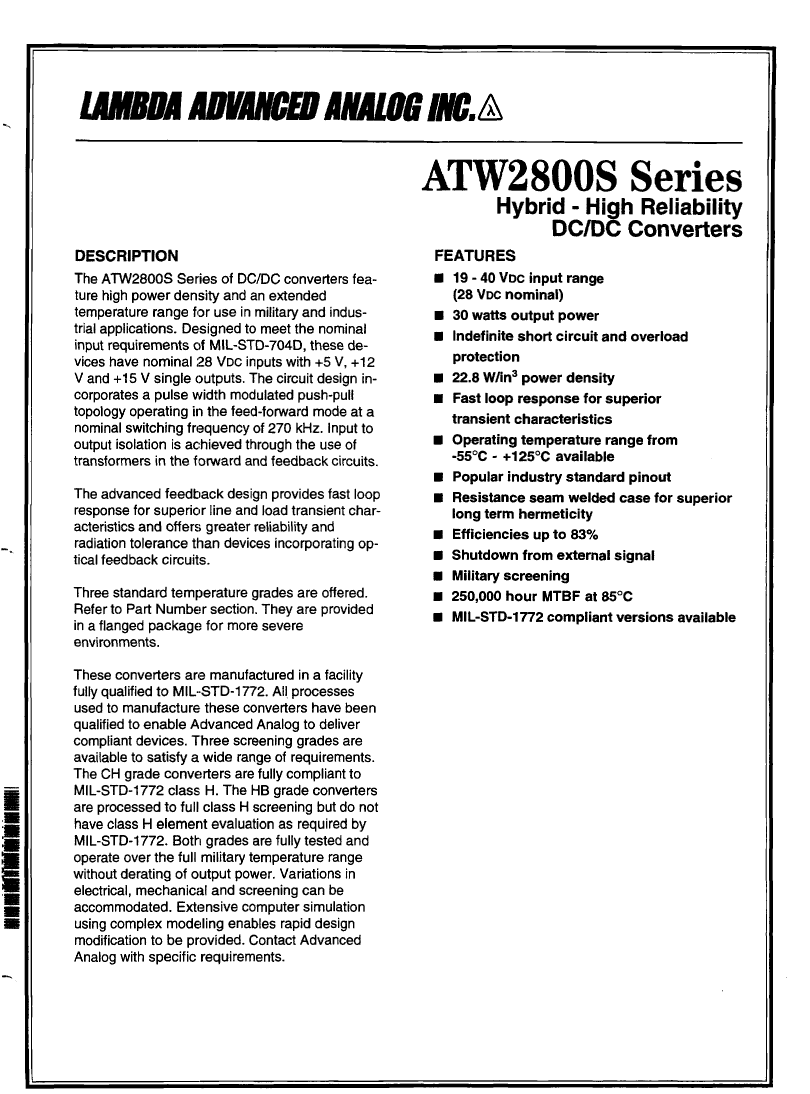

5962-9159901HZX Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid,

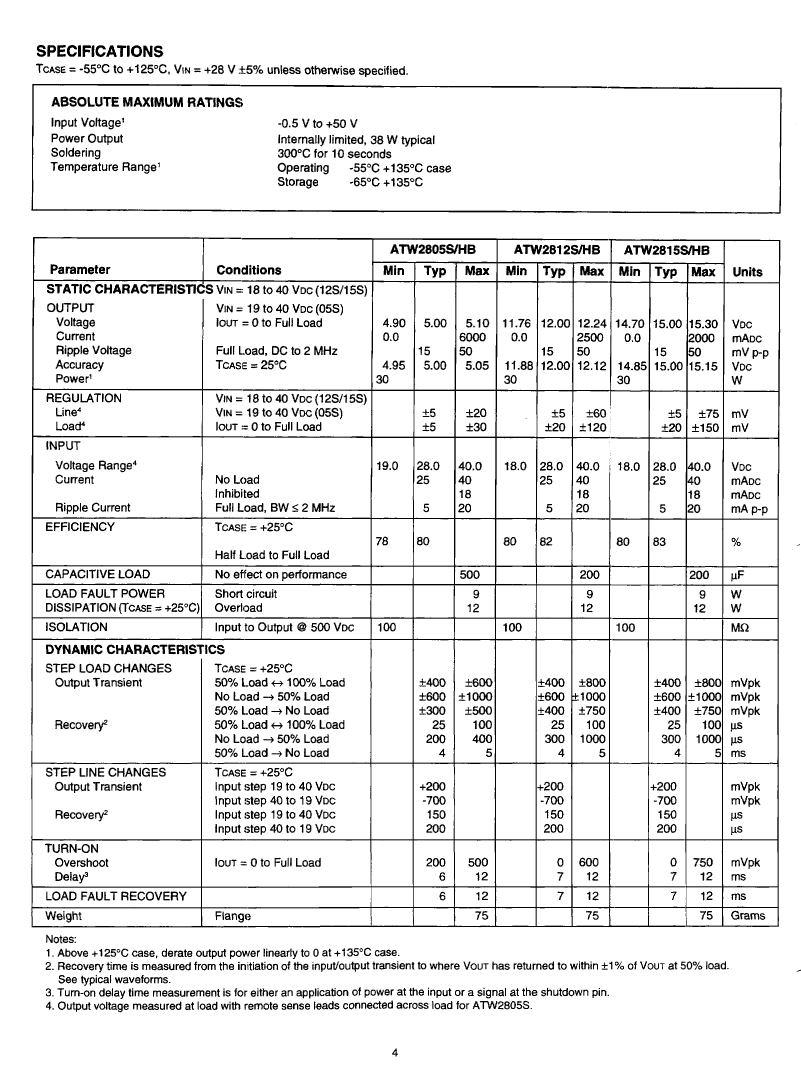

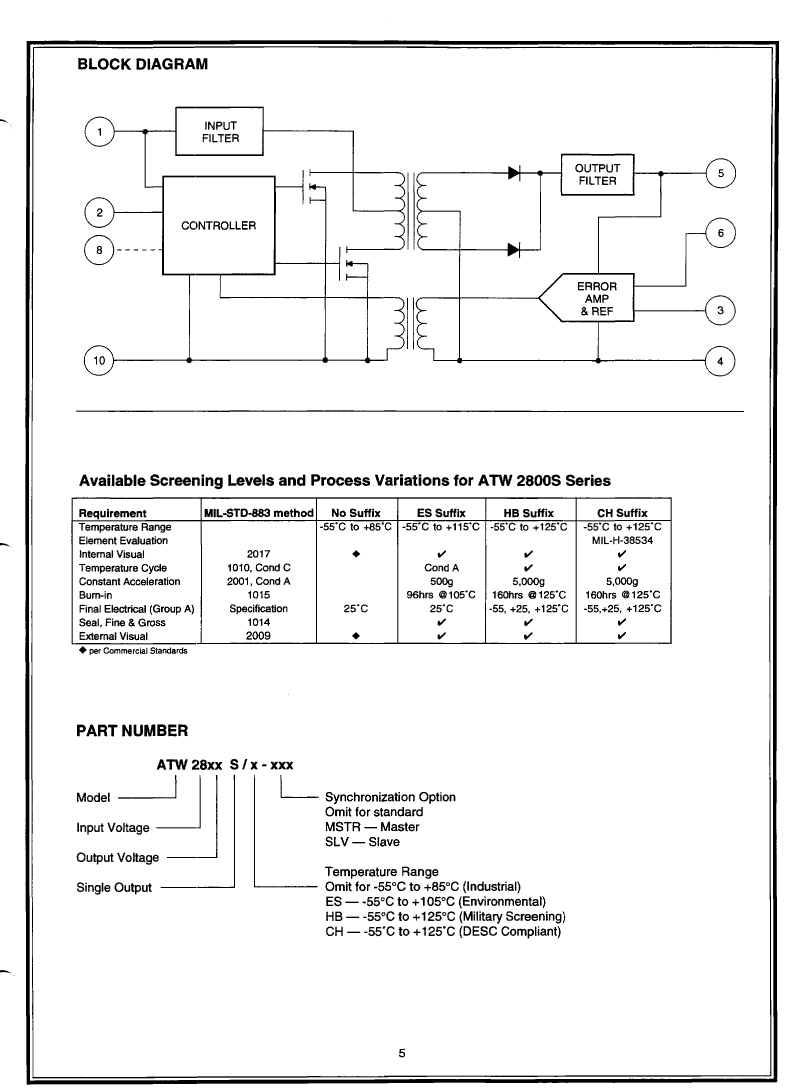

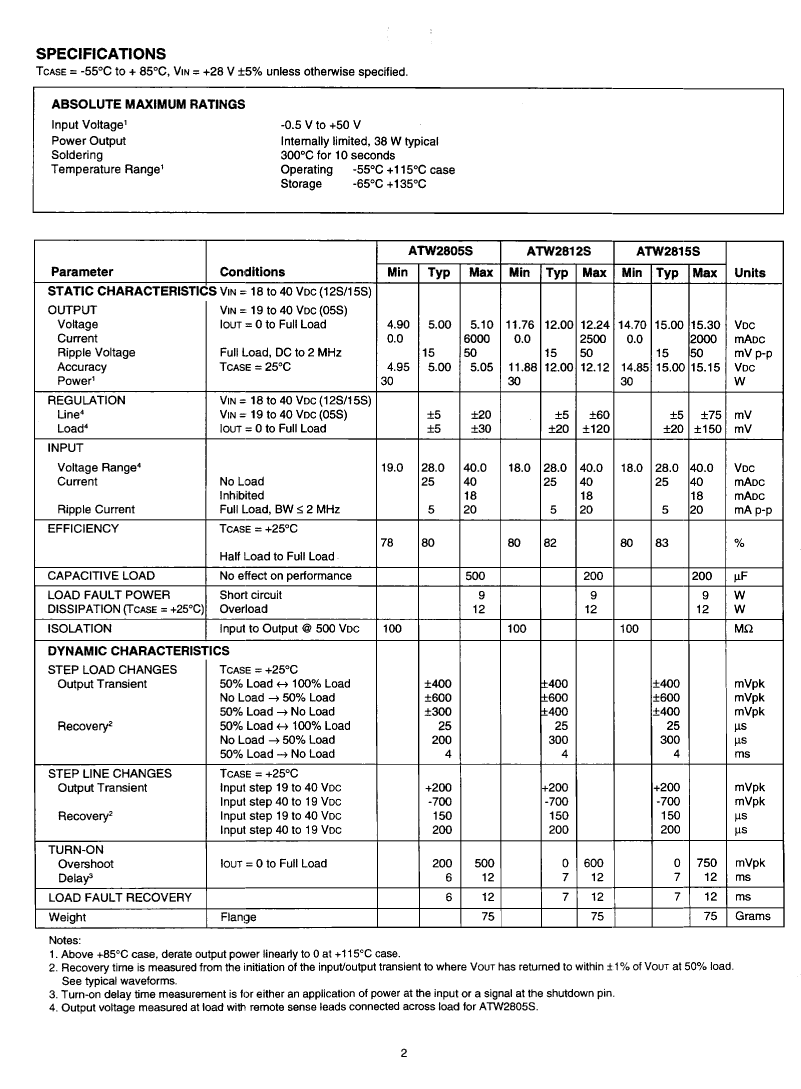

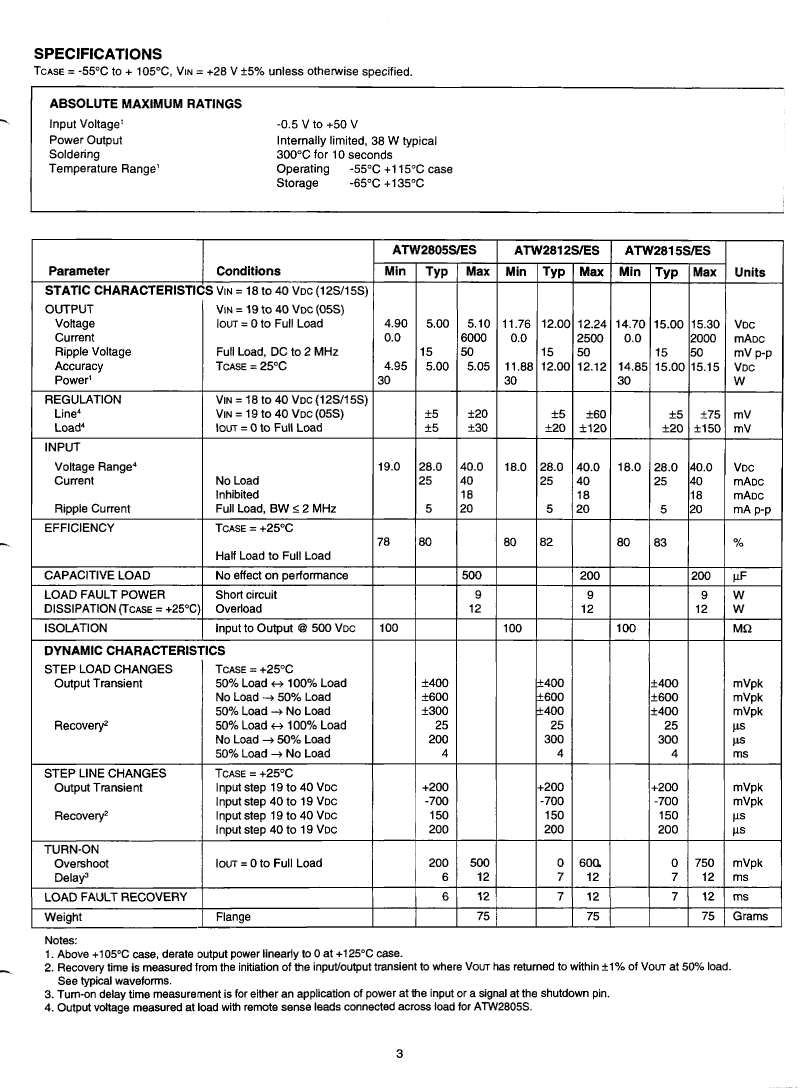

Parameter Name	Attribute value
Maker	Infineon
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	40 V
Minimum input voltage	18 V
Nominal input voltage	28 V
JESD-30 code	R-XDFM-P10
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	NO
Base Number Matches	1

	5962-9159901HZX	5962-9159902HZX	5962-9159903HZX
Description	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,
Maker	Infineon	Infineon	Infineon
Reach Compliance Code	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	40 V	40 V	40 V
Minimum input voltage	18 V	18 V	18 V
Nominal input voltage	28 V	28 V	28 V
JESD-30 code	R-XDFM-P10	R-XDFM-P10	R-XDFM-P10
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	10	10	10
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Nominal output voltage	15 V	15 V	15 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Qualified	Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO
Base Number Matches	1	1	1
