5962-9456201M2A

Description
Audio/Video Switch, 2 Func, 1 Channel, CQCC20
CategoryAnalog mixed-signal IC    The signal circuit
File Size49KB,1 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric Compare View All

5962-9456201M2A Overview

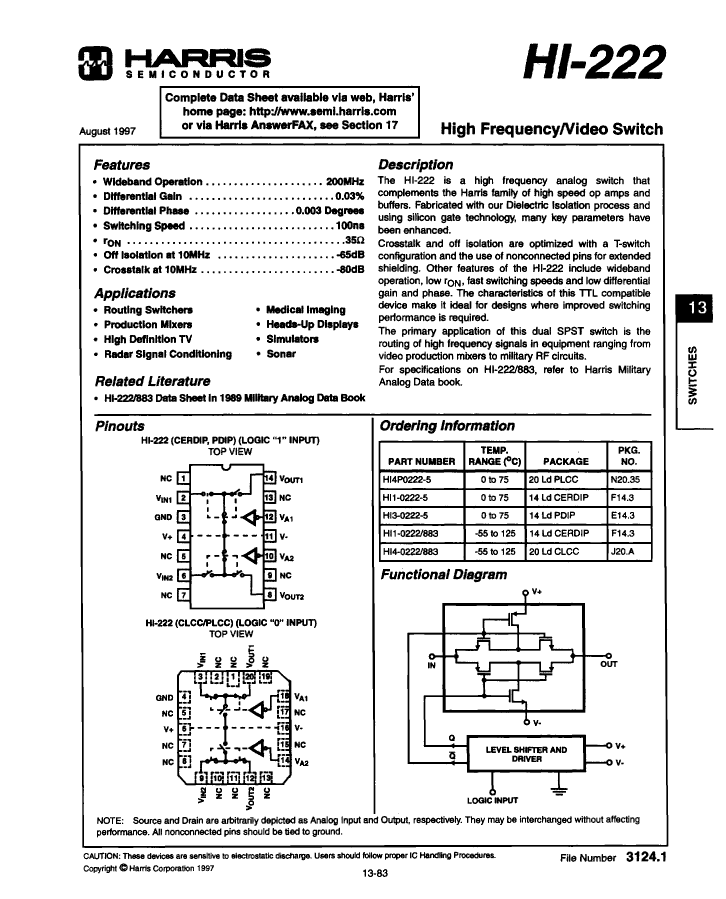

Audio/Video Switch, 2 Func, 1 Channel, CQCC20

5962-9456201M2A Parametric

Parameter NameAttribute value
MakerHarris
package instruction,
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesAUDIO/VIDEO SWITCH
JESD-30 codeS-CQCC-N20
JESD-609 codee0
Number of channels1
Number of functions2
Number of terminals20
Nominal off-state isolation65 dB
Maximum on-state resistance (Ron)35 Ω
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeSQUARE
Package formCHIP CARRIER
Certification statusNot Qualified
Filter levelMIL-STD-883
surface mountYES
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formNO LEAD
Terminal locationQUAD
Base Number Matches1

5962-9456201M2A Related Products

5962-9456201M2A HI4-0222/883 HI1-0222/883
Description Audio/Video Switch, 2 Func, 1 Channel, CQCC20 Audio/Video Switch, 2 Func, 1 Channel, CMOS, CQCC20 Audio/Video Switch, 2 Func, 1 Channel, CMOS, CDIP14
Maker Harris Harris Harris
package instruction , QCCN, LCC20,.35SQ DIP, DIP14,.3
Reach Compliance Code unknown unknown unknown
Analog Integrated Circuits - Other Types AUDIO/VIDEO SWITCH AUDIO/VIDEO SWITCH AUDIO/VIDEO SWITCH
JESD-30 code S-CQCC-N20 S-CQCC-N20 R-GDIP-T14
JESD-609 code e0 e0 e0
Number of channels 1 1 1
Number of functions 2 2 2
Number of terminals 20 20 14
Nominal off-state isolation 65 dB 65 dB 65 dB
Maximum on-state resistance (Ron) 35 Ω 75 Ω 75 Ω
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED
Package shape SQUARE SQUARE RECTANGULAR
Package form CHIP CARRIER CHIP CARRIER IN-LINE
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES NO
Temperature level MILITARY MILITARY MILITARY
Terminal surface TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD NO LEAD THROUGH-HOLE
Terminal location QUAD QUAD DUAL
Base Number Matches 1 1 -
Is it Rohs certified? - incompatible incompatible
Nominal Negative Supply Voltage (Vsup) - -15 V -15 V
normal position - NO/NC NO/NC
encapsulated code - QCCN DIP
Encapsulate equivalent code - LCC20,.35SQ DIP14,.3
power supply - +-15 V +-15 V
Nominal supply voltage (Vsup) - 15 V 15 V
Maximum connection time - 200 ns 200 ns
switch - MAKE-BEFORE-BREAK MAKE-BEFORE-BREAK
technology - CMOS CMOS
Terminal pitch - 1.27 mm 2.54 mm
