AM7996JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> AM7996JC

AM7996JC: DescriptionEthernet Transceiver, PQCC20, PLASTIC, LCC-20; CategoryWireless rf/communication Telecom circuit; File Size3MB，19 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AM7996JC Overview

Ethernet Transceiver, PQCC20, PLASTIC, LCC-20

AM7996JC Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCJ,
Reach Compliance Code	unknown
JESD-30 code	S-PQCC-J20
length	8.966 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum seat height	4.572 mm
surface mount	YES
Telecom integrated circuit types	ETHERNET TRANSCEIVER
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.966 mm
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

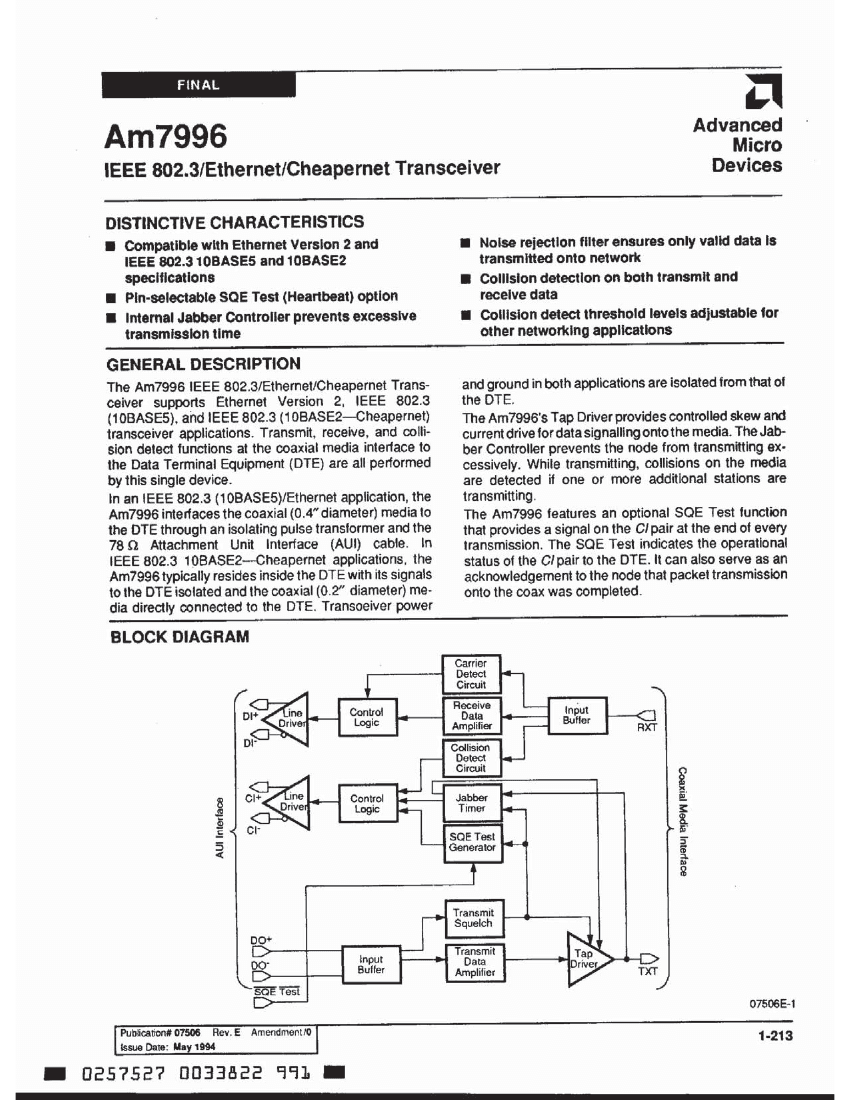

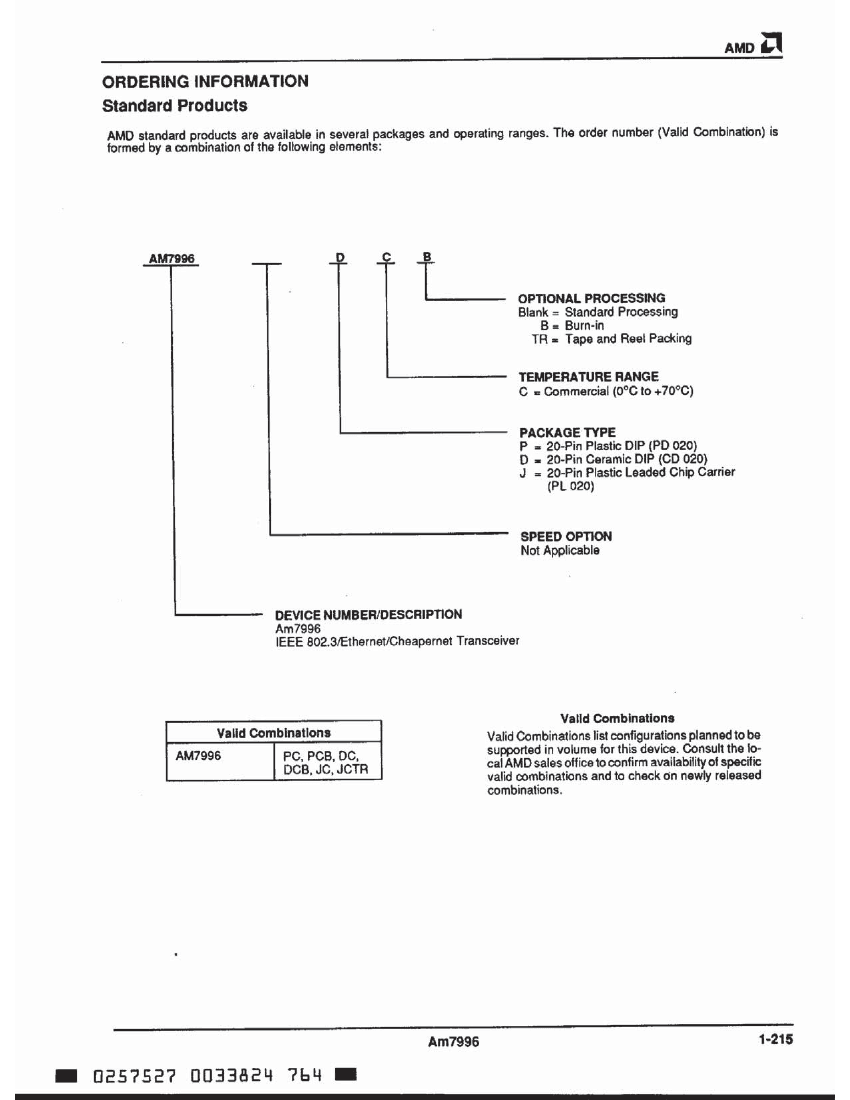

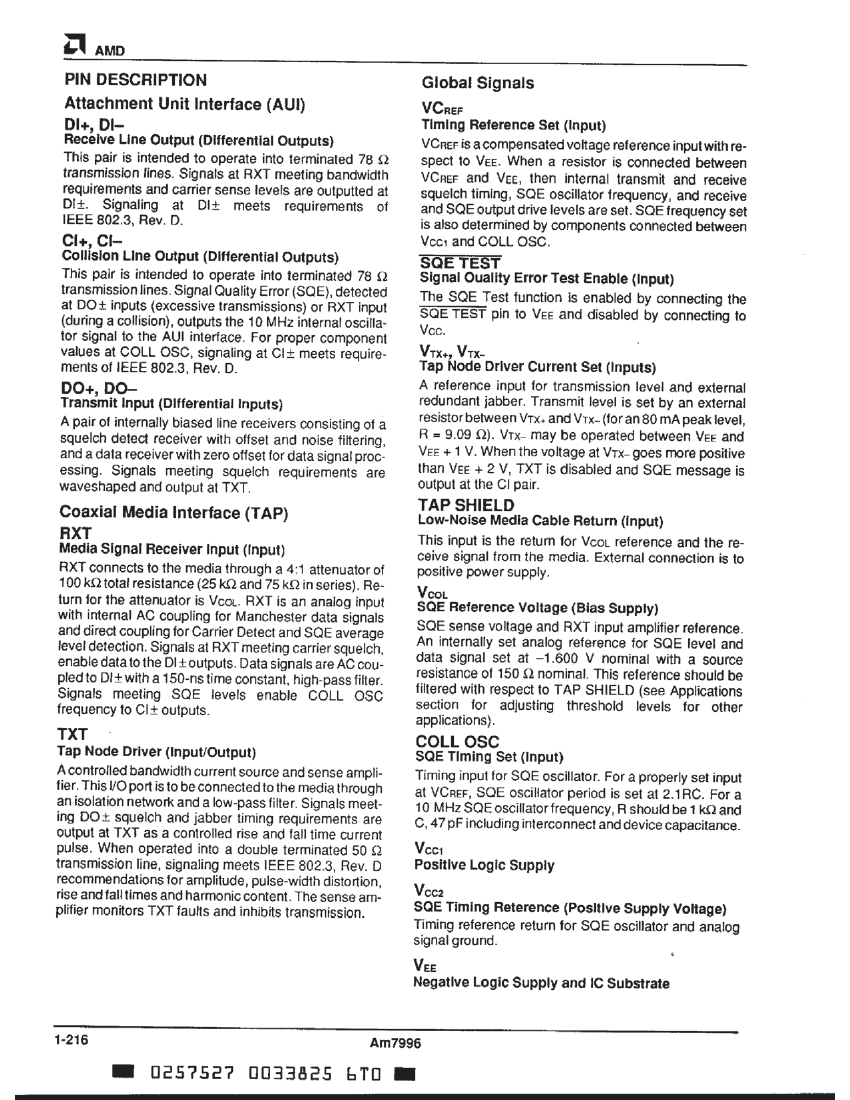

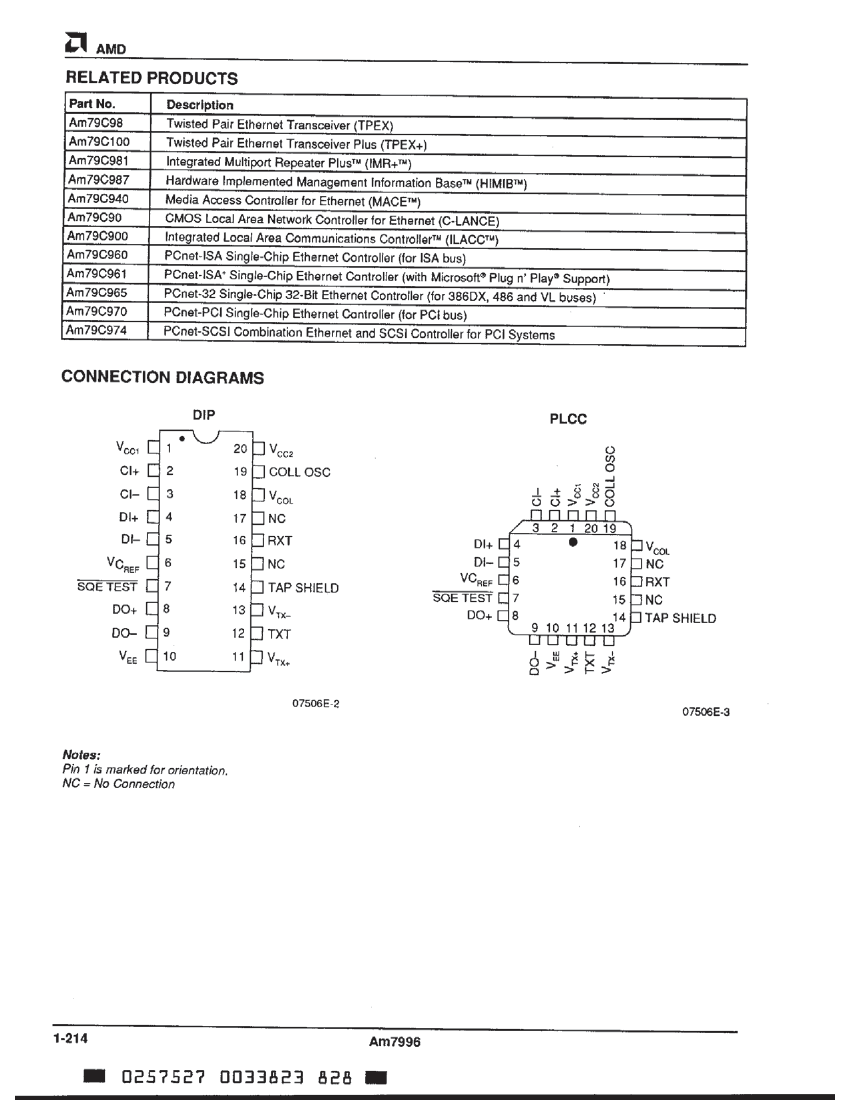

AM7996

IEEE 802.3/Ethernet/Cheapernet Transceiver

The AM7996 IEEE 802.3/Ethernet/Cheapernet Transceiver supports Ethernet Version 2, IEEE 802.3

(10BASE5), and IEEE 802.3 (10BASE2-Cheapernet) transceiver applications. Transmit, receive, and

collision detect functions at the coaxial media interface to the Data Terminal Equipment (DTE) are all

performed by this single device.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM7996JC Related Products

	AM7996JC	AM7996JCTR	AM7996DC	AM7996DCB	AM7996PC	AM7996PCB
Description	Ethernet Transceiver, PQCC20, PLASTIC, LCC-20	Ethernet Transceiver, PQCC20, PLASTIC, LCC-20	Ethernet Transceiver, CDIP20, CERAMIC, DIP-20	Ethernet Transceiver, CDIP20, CERAMIC, DIP-20	Ethernet Transceiver, PDIP20, PLASTIC, DIP-20	Ethernet Transceiver, PDIP20, PLASTIC, DIP-20
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	QCCJ,	QCCJ,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-PQCC-J20	S-PQCC-J20	R-CDIP-T20	R-CDIP-T20	R-PDIP-T20	R-PDIP-T20
length	8.966 mm	8.966 mm	24.257 mm	24.257 mm	26.035 mm	26.035 mm
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	DIP	DIP	DIP	DIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum seat height	4.572 mm	4.572 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
surface mount	YES	YES	NO	NO	NO	NO
Telecom integrated circuit types	ETHERNET TRANSCEIVER	ETHERNET TRANSCEIVER	ETHERNET TRANSCEIVER	ETHERNET TRANSCEIVER	ETHERNET TRANSCEIVER	ETHERNET TRANSCEIVER
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
width	8.966 mm	8.966 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1
