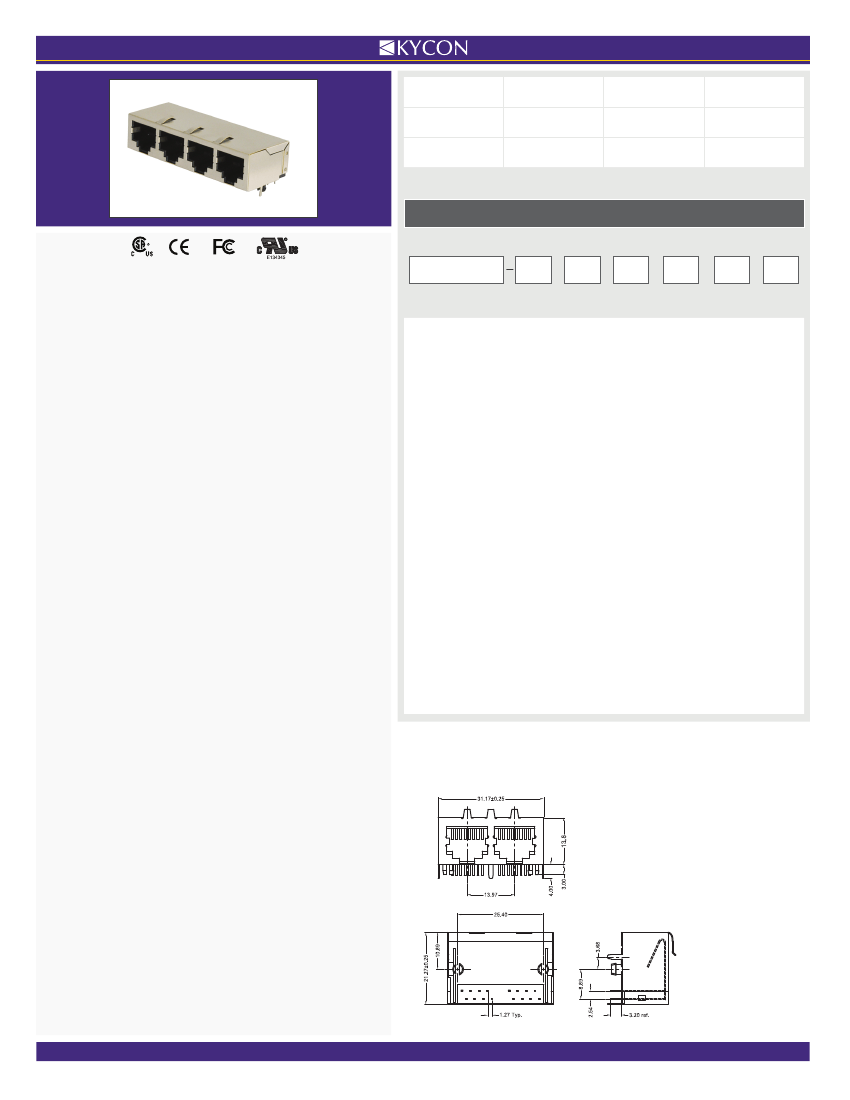

MODULAR JACKS AND PLUGS:
GSGX Series
(With Panel Grounding Tabs)
Right Angle Ganged Jack
Product Features
Available in up to 8 Ports Available
Fully Shielded for Category 5 Applications
High Temperature Reflow Compatible Through Hole Design
CSA/NRTL Certified File No. LR78160
UL File No. E134345
GSGX
Series
NS2
Shield
Option
2
No. of
Port
8
No. of
Positions
8
No. of
Contacts
368
Ground Pin
Spacing
Plating
Option
Series
GSGX
- Right Angle Ganged Jack
Shield Options
NS2
- Shielded with Top Only Ground Tabs
NS7
- Shielded with Top and Side Grounding Tabs
Number of Ports
2
- 2 Port
4
- 4 Port
5
- 5 Port
6
- 6 Port
8
- 8 Port
Number of Positions / Contacts
88
- 8 Positions / 8 Contacts
Ground Pin Spacing
368
- 3.68mm Ground Pin Spacing
457
- 4.57mm Ground Pin Spacing
Plating Option
Blank
- Standard
50
- 50µ" Gold Plating
Performance Specifications
Materials and Finish
Housing Material
PBT Thermoplastic, UL 94V-0 Rated, Black Color
Shield Material
Copper Alloy, Nickel Plated
Contact Material
Phosphor Bronze
Durability
500 Mating Cycles Min.
Electrical Characteristics
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V RMS, 60Hz
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
Voltage Rating
125V DC
Operating Temperature
-40°C to +85°C
Contact Kycon for Other Options
GSGX Series
Dimensions in mm
GSGX-NS2-288-368
