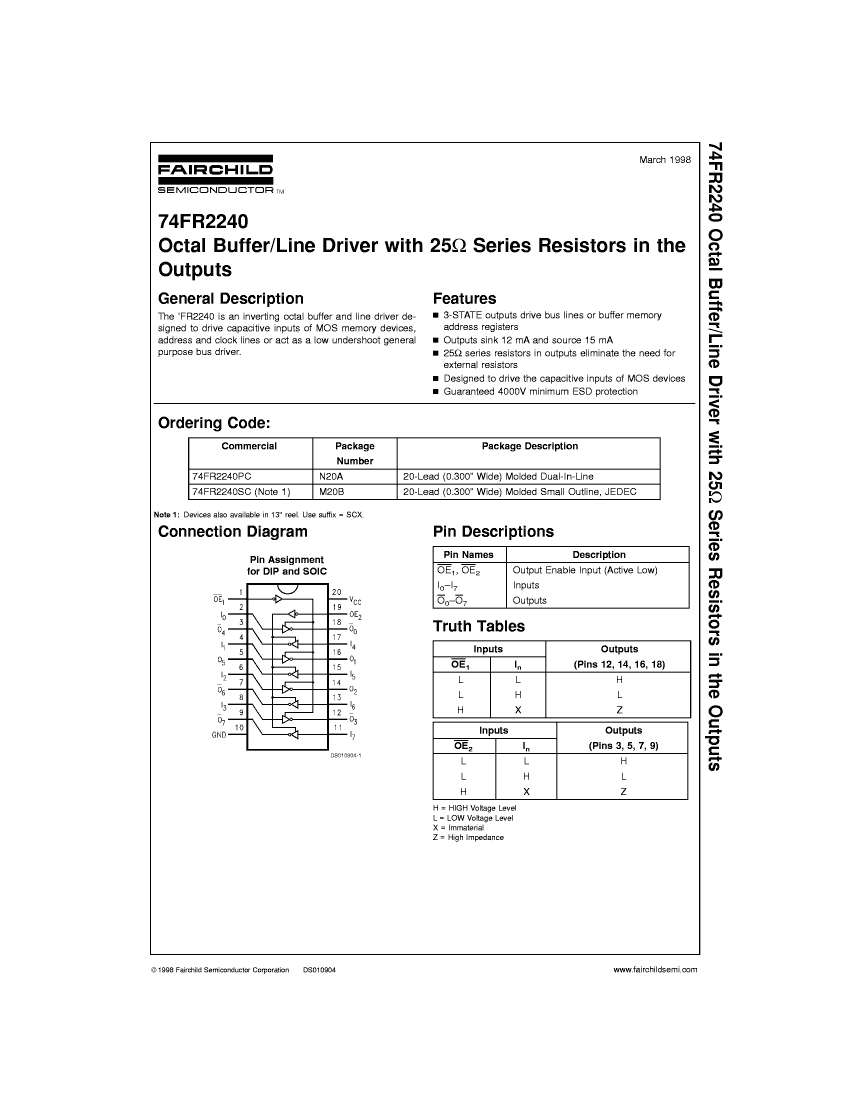

Bus Driver, FR/FASTR Series, 2-Func, 4-Bit, Inverted Output, PDIP20, 0.300 INCH, PLASTIC, MS-001, DIP-20
| Parameter Name | Attribute value |
| Maker | Rochester Electronics |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| series | FR/FASTR |
| JESD-30 code | R-PDIP-T20 |
| length | 26.075 mm |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 4 |
| Number of functions | 2 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE WITH SERIES RESISTOR |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |

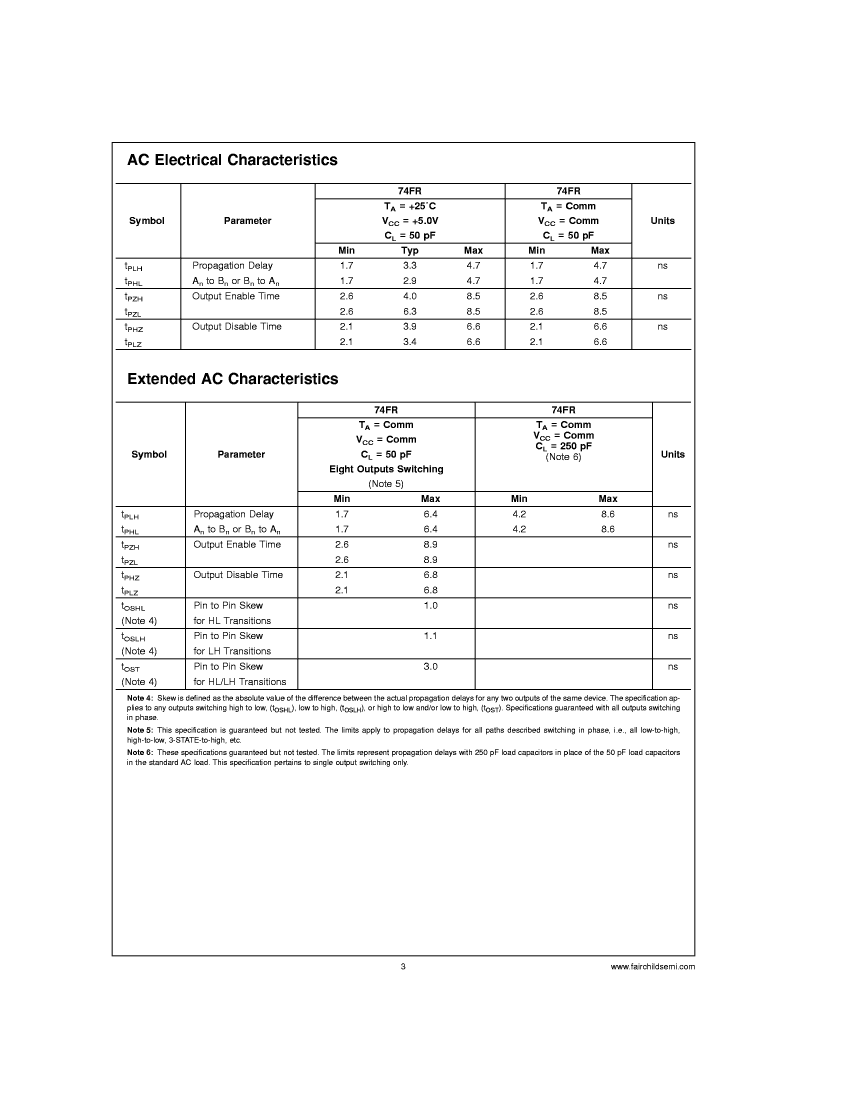

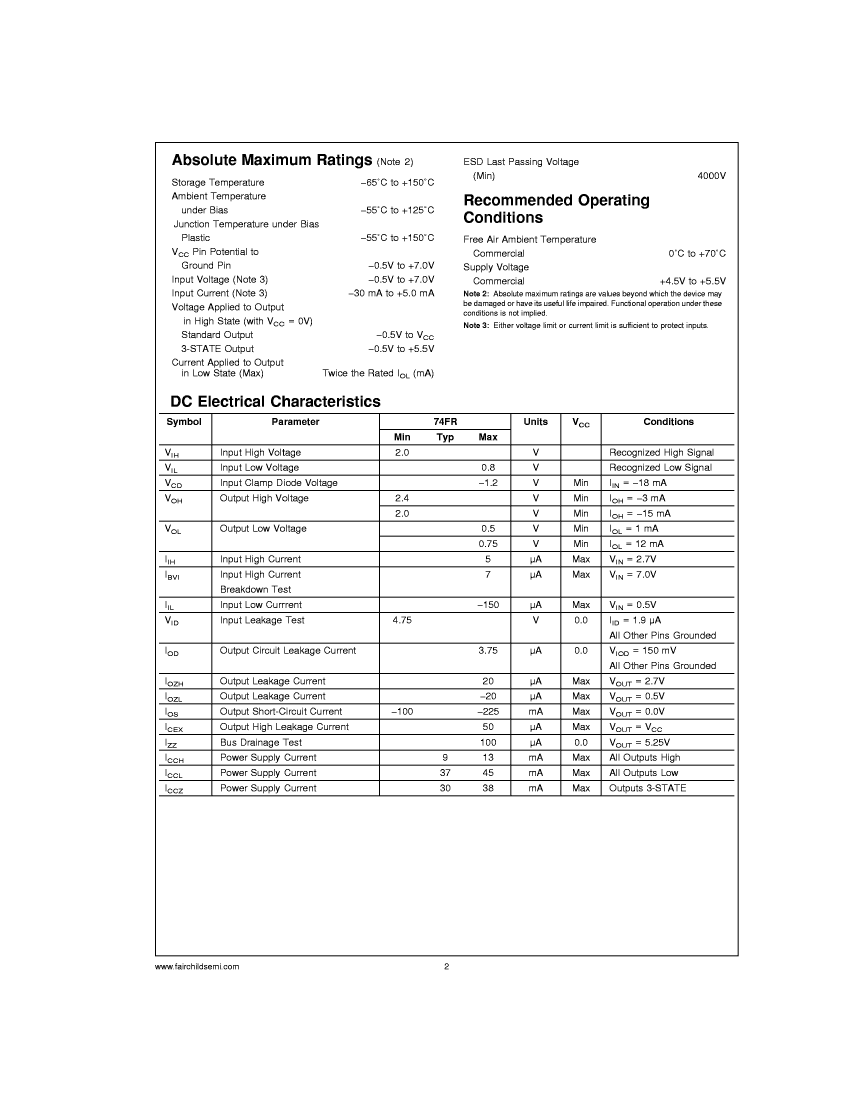

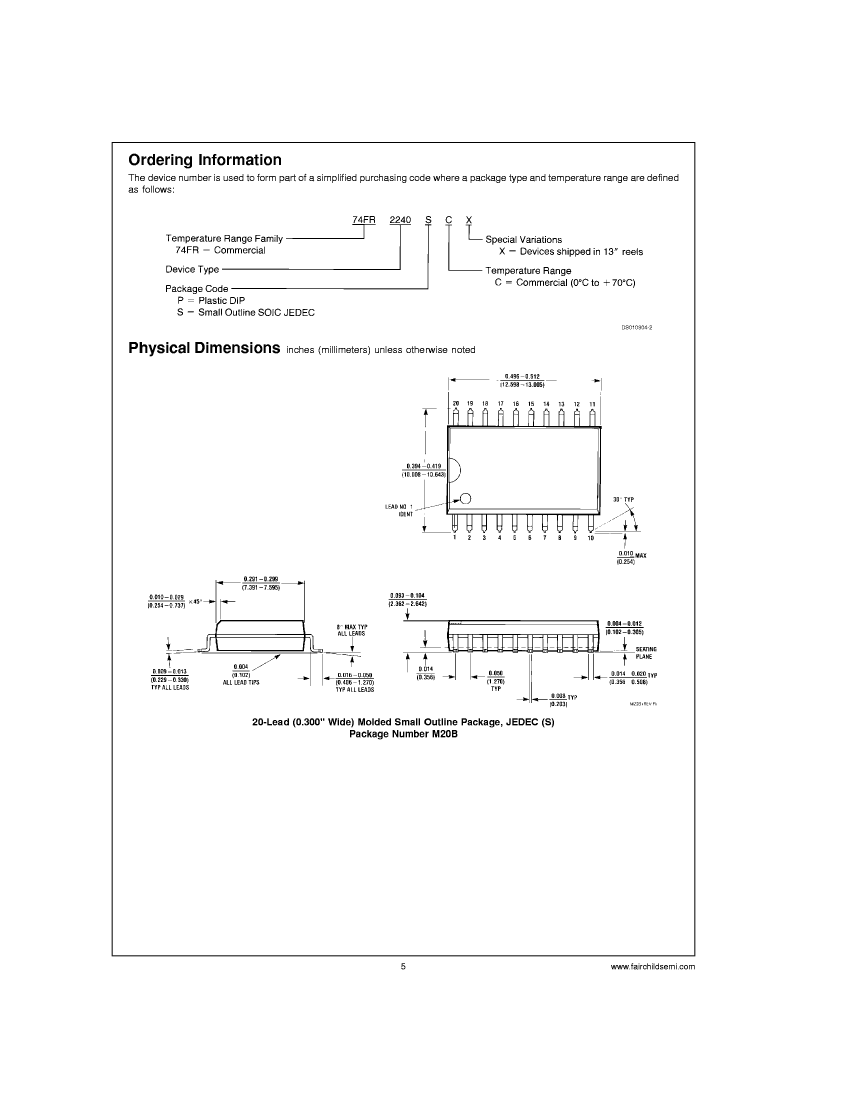

| propagation delay (tpd) | 8.6 ns |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 74FR2240PC | 74FR2240SC | 74FR2240SCX | |
|---|---|---|---|
| Description | Bus Driver, FR/FASTR Series, 2-Func, 4-Bit, Inverted Output, PDIP20, 0.300 INCH, PLASTIC, MS-001, DIP-20 | Bus Driver, FR/FASTR Series, 2-Func, 4-Bit, Inverted Output, PDSO20, 0.300 INCH, MS-013, SOIC-20 | Bus Driver, FR/FASTR Series, 2-Func, 4-Bit, Inverted Output, PDSO20, 0.300 INCH, MS-013, SOIC-20 |
| Maker | Rochester Electronics | Rochester Electronics | Rochester Electronics |
| package instruction | DIP, | SOP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown |
| series | FR/FASTR | FR/FASTR | FR/FASTR |
| JESD-30 code | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 26.075 mm | 12.8 mm | 12.8 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 4 | 4 | 4 |
| Number of functions | 2 | 2 | 2 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR |
| Output polarity | INVERTED | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 8.6 ns | 8.6 ns | 8.6 ns |
| Maximum seat height | 5.08 mm | 2.65 mm | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 7.62 mm | 7.5 mm | 7.5 mm |
| Base Number Matches | 1 | 1 | 1 |
