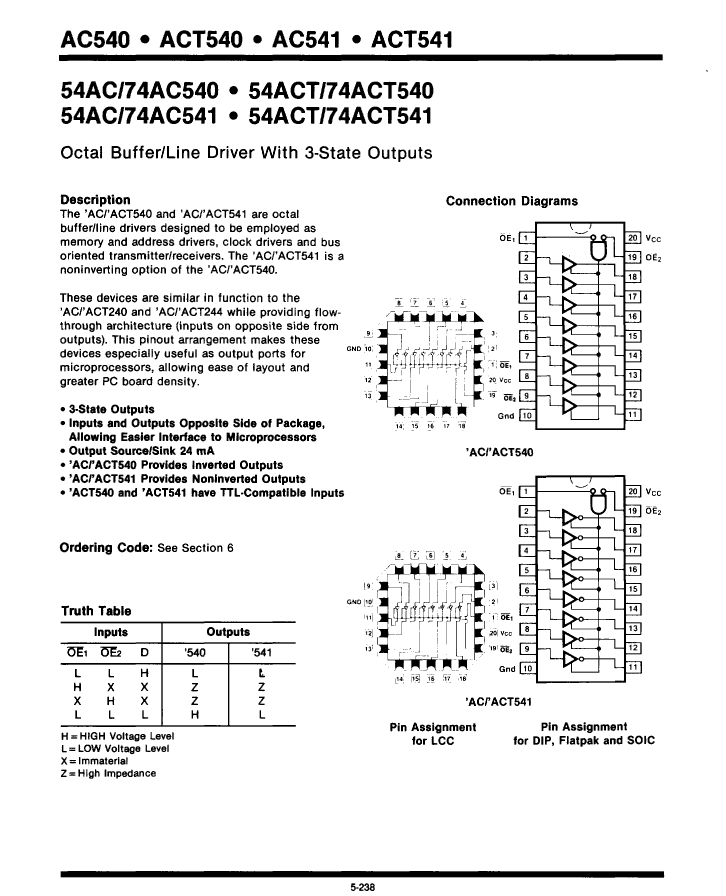

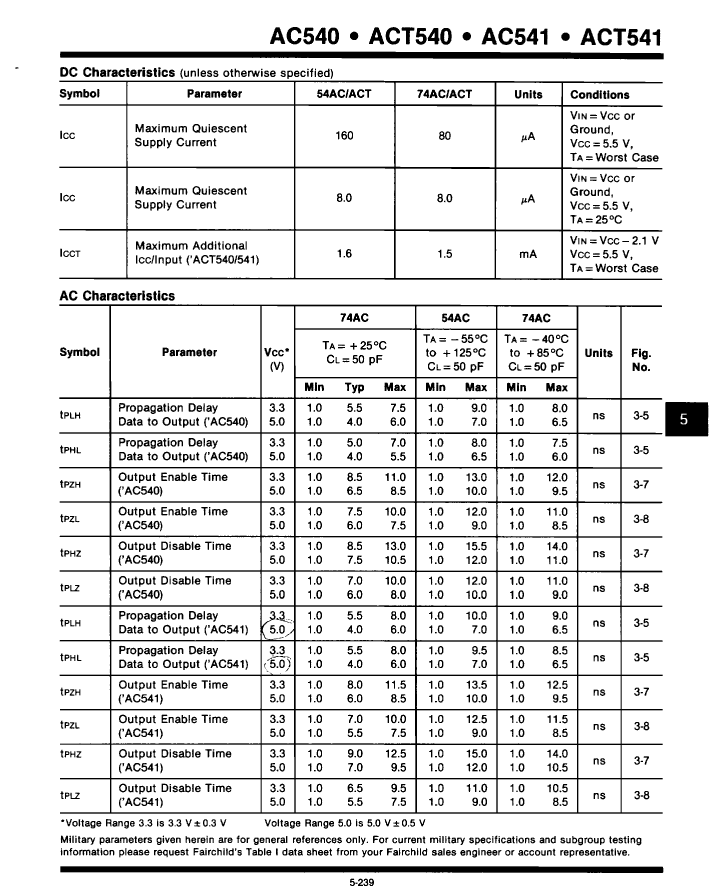

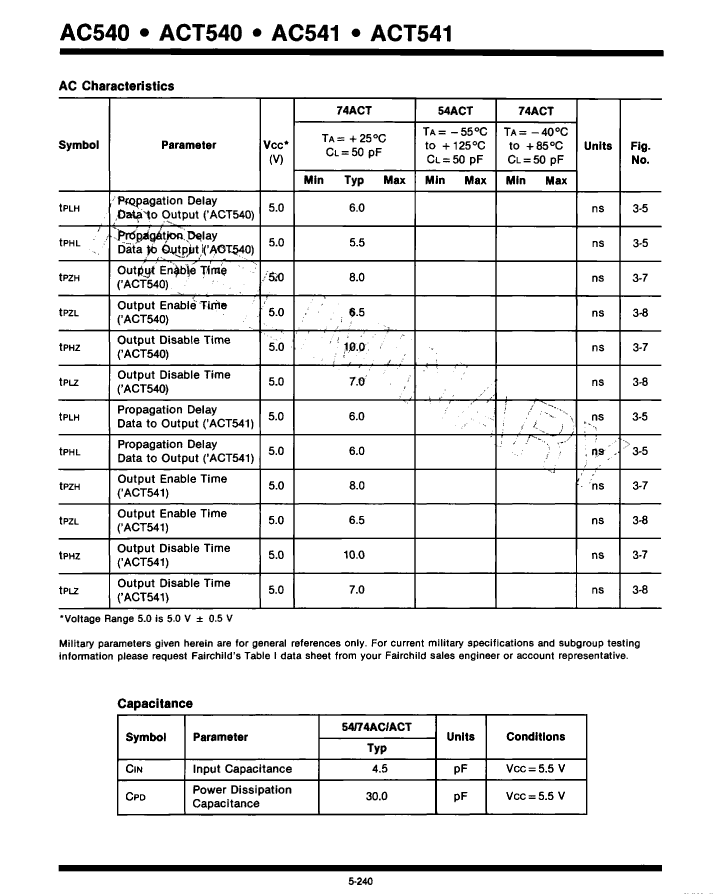

74AC541FC datasheet, PDF - EEWORLD Datasheet

74AC541FC: DescriptionBus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERAMIC, FP-20; Categorylogic logic; File Size99KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

74AC541FC Overview

Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERAMIC, FP-20

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DFP
package instruction	DFP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	AC
JESD-30 code	R-CDFP-F20
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Maximum seat height	2.337 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.9215 mm
Base Number Matches	1
