Datasheet> All Categories > logic> logic> 54279FMQB

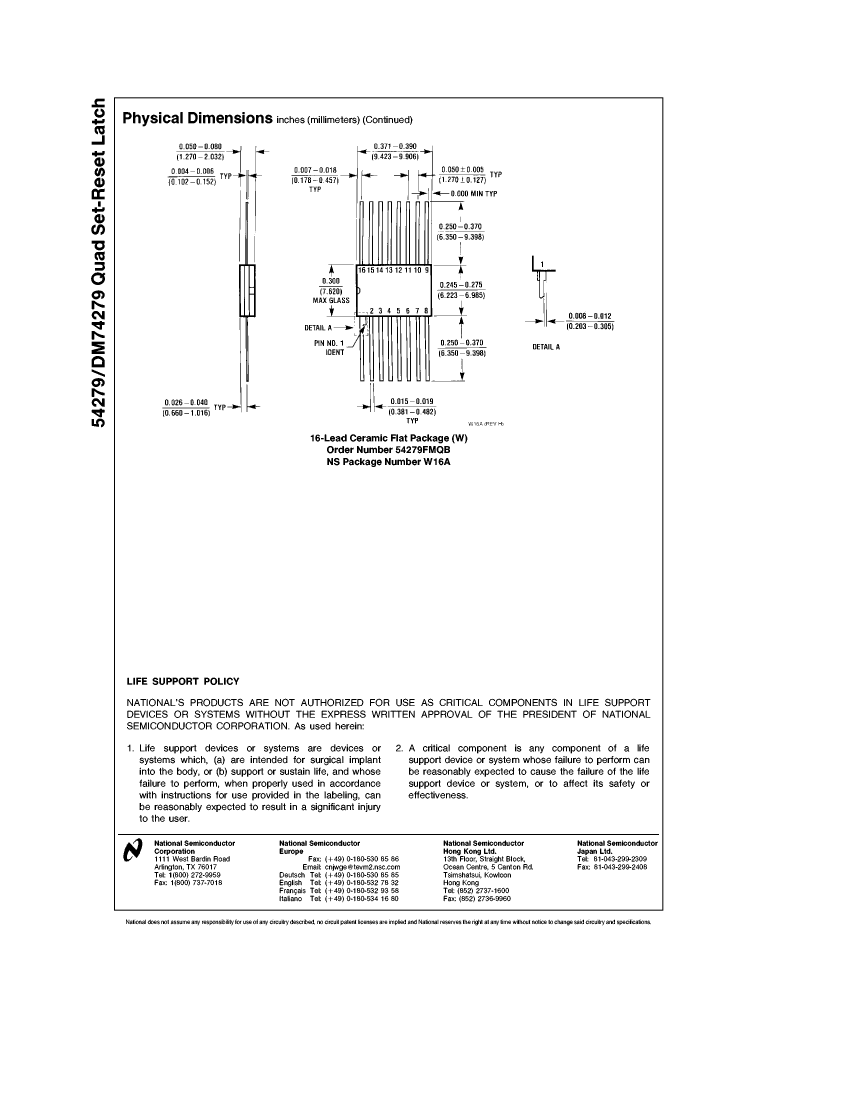

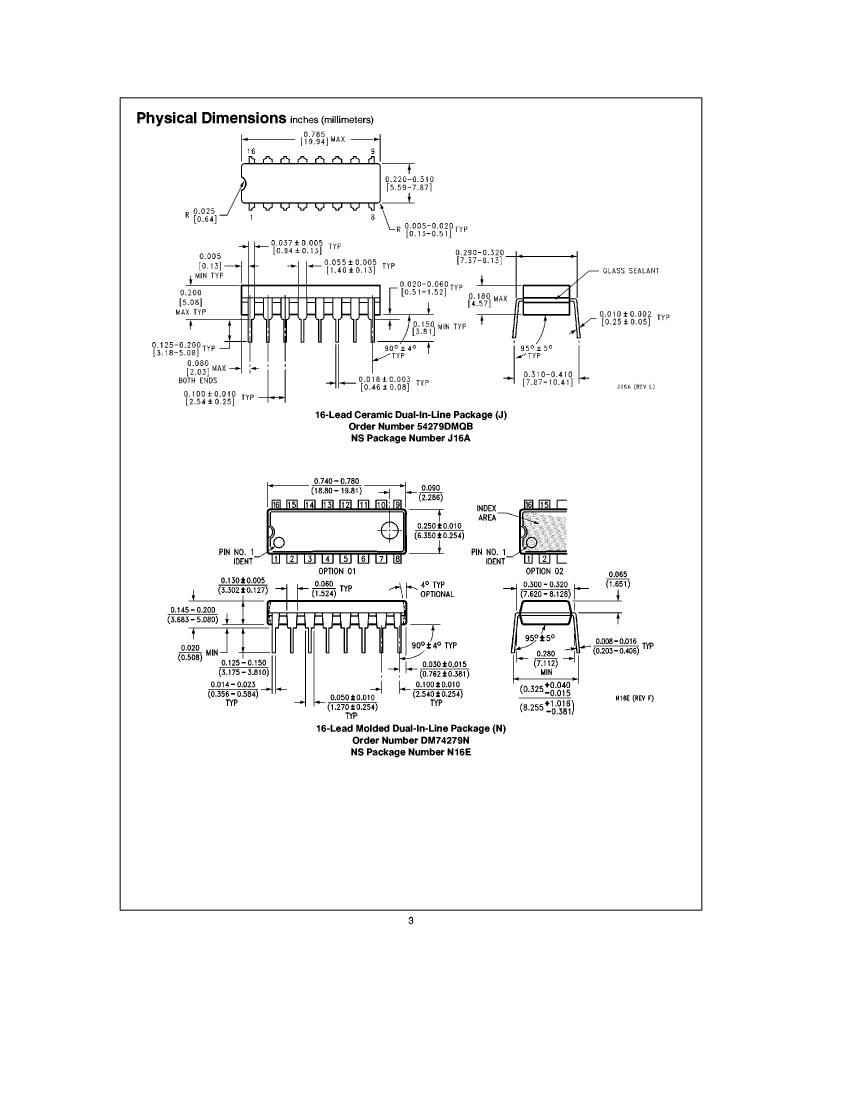

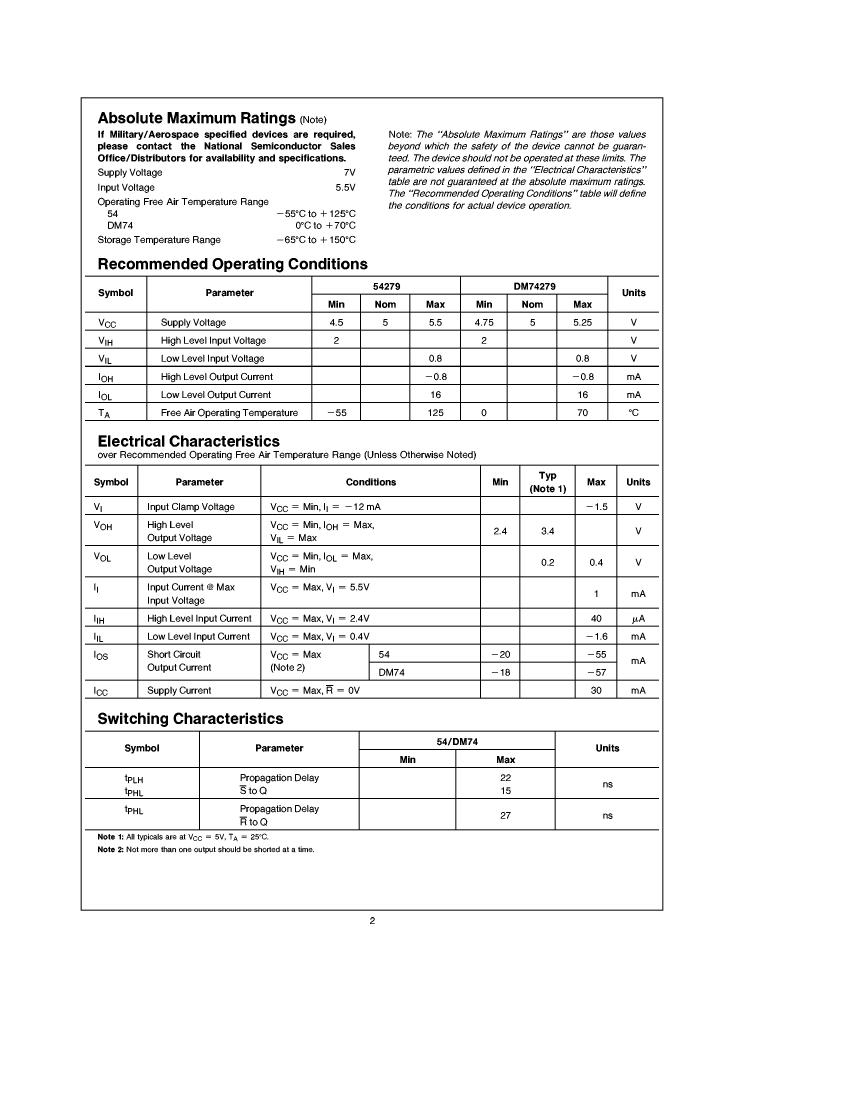

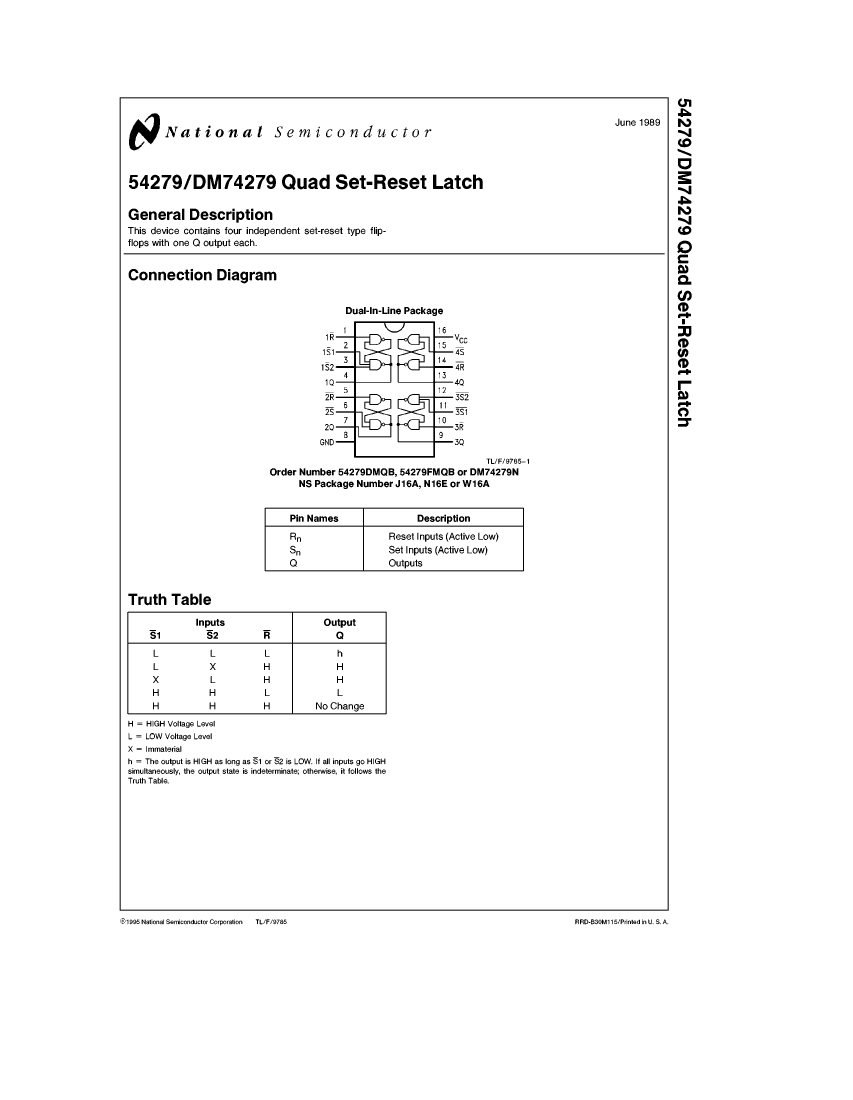

PDF
Preview

54279FMQB

Description
R-S Latch, 4-Func, 1-Bit, TTL, CDFP16,
Categorylogic    logic
File Size180KB，4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

54279FMQB Overview

R-S Latch, 4-Func, 1-Bit, TTL, CDFP16,

54279FMQB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
package instructionDFP, FL16,.3
Reach Compliance Codecompliant
JESD-30 codeR-XDFP-F16
JESD-609 codee0
Logic integrated circuit typeR-S LATCH
Number of digits1
Number of functions4
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL16,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1

Preview

Download Datasheet

54279FMQB Related Products

54279FMQB DM74279N 5962-01-176-9216 74279DCQM 74279DCQR 74279PCQR 74279PCQM 5962-01-104-8743 74279FCQM 74279FCQR
Description R-S Latch, 4-Func, 1-Bit, TTL, CDFP16, R-S Latch, 4-Func, 1-Bit, TTL, PDIP16, R-S Latch, 4-Func, 1-Bit, TTL, CDFP16, R-S Latch, 4-Func, 1-Bit, TTL, CDIP16, R-S Latch, 4-Func, 1-Bit, TTL, CDIP16, R-S Latch, 4-Func, 1-Bit, TTL, PDIP16, R-S Latch, 4-Func, 1-Bit, TTL, PDIP16, R-S Latch, 4-Func, 1-Bit, TTL, CDIP16, R-S Latch, 4-Func, 1-Bit, TTL, CDFP16, R-S Latch, 4-Func, 1-Bit, TTL, CDFP16,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
package instruction DFP, FL16,.3 DIP, DIP16,.3 DFP, FL16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DFP, FL16,.3 DFP, FL16,.3
Reach Compliance Code compliant unknown compliant compliant compliant unknown compliant compli compliant compliant
JESD-30 code R-XDFP-F16 R-PDIP-T16 R-XDFP-F16 R-XDIP-T16 R-XDIP-T16 R-PDIP-T16 R-PDIP-T16 R-XDIP-T16 R-XDFP-F16 R-XDFP-F16
Logic integrated circuit type R-S LATCH R-S LATCH R-S LATCH R-S LATCH R-S LATCH R-S LATCH R-S LATCH R-S LATCH R-S LATCH R-S LATCH
Number of digits 1 1 1 1 1 1 1 1 1 1
Number of functions 4 4 4 4 4 4 4 4 4 4
Number of terminals 16 16 16 16 16 16 16 16 16 16
Maximum operating temperature 125 °C 70 °C 125 °C 70 °C 70 °C 70 °C 70 °C 125 °C 70 °C 70 °C
Package body material CERAMIC PLASTIC/EPOXY CERAMIC CERAMIC CERAMIC PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC CERAMIC CERAMIC
encapsulated code DFP DIP DFP DIP DIP DIP DIP DIP DFP DFP
Encapsulate equivalent code FL16,.3 DIP16,.3 FL16,.3 DIP16,.3 DIP16,.3 DIP16,.3 DIP16,.3 DIP16,.3 FL16,.3 FL16,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK IN-LINE FLATPACK IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE FLATPACK FLATPACK
power supply 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount YES NO YES NO NO NO NO NO YES YES
technology TTL TTL TTL TTL TTL TTL TTL TTL TTL TTL
Temperature level MILITARY COMMERCIAL MILITARY COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL MILITARY COMMERCIAL COMMERCIAL
Terminal form FLAT THROUGH-HOLE FLAT THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE FLAT FLAT
Terminal pitch 1.27 mm 2.54 mm 1.27 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maker Fairchild Fairchild - Fairchild Fairchild Fairchild Fairchild Fairchild - -
JESD-609 code e0 e0 - e0 e0 e0 e0 - e0 e0
Certification status Not Qualified Not Qualified Not Qualified Not Qualified - - Not Qualified Not Qualified Not Qualified -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Is it lead-free? - - Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Humidity sensitivity level - - 2A 2A 2A 2A 2A 2A 2A 2A
Peak Reflow Temperature (Celsius) - - 250 250 250 250 250 250 250 250
Maximum time at peak reflow temperature - - 30 30 30 30 30 30 30 30
