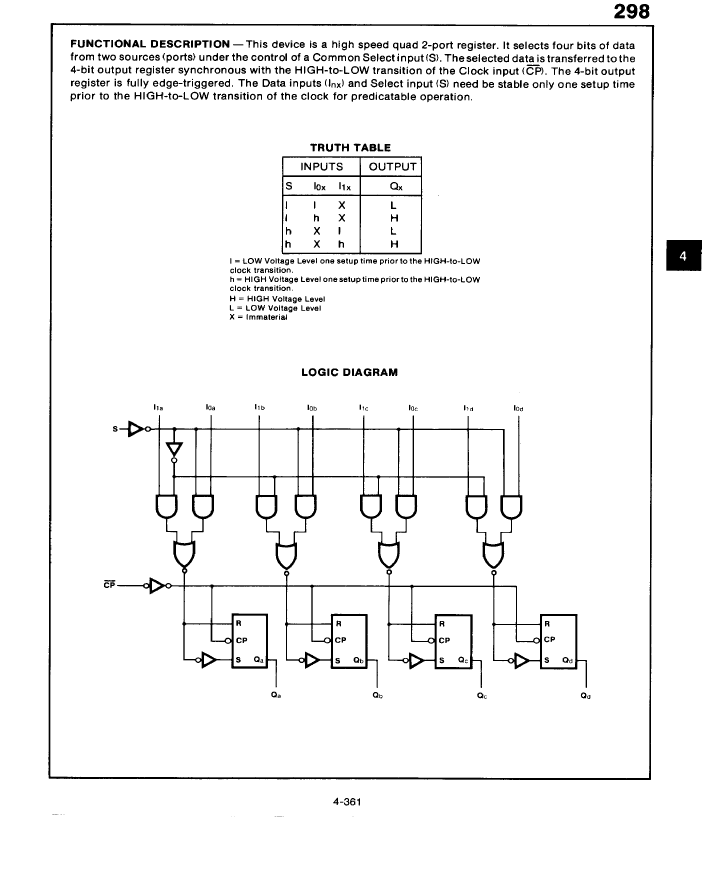

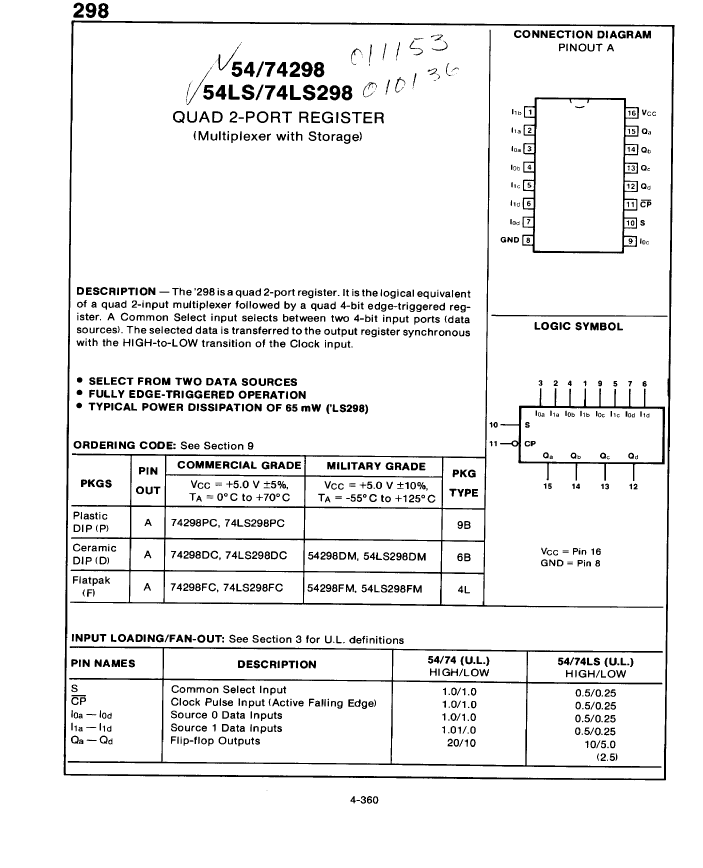

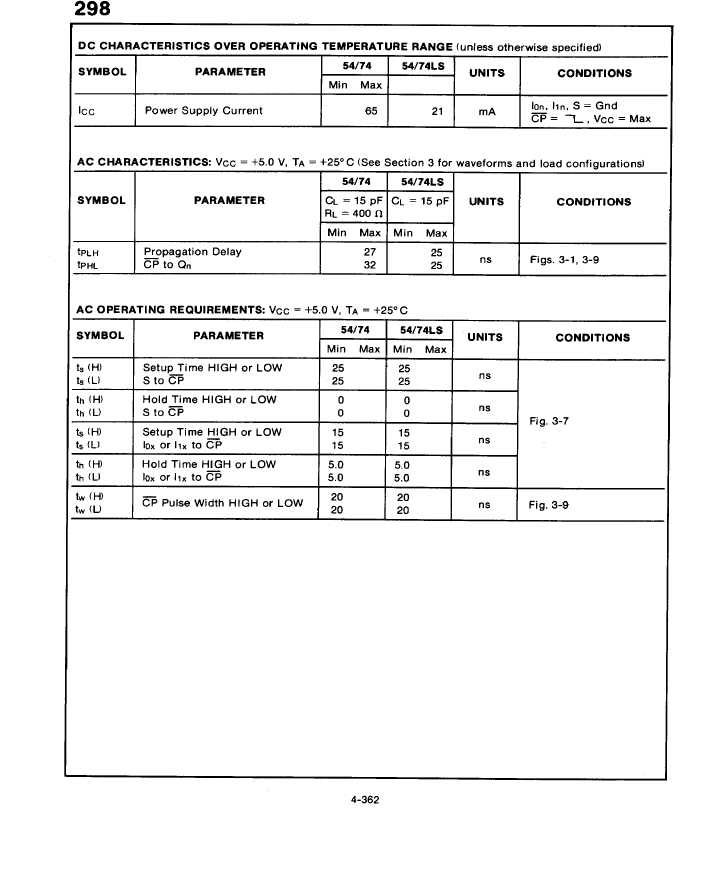

Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | compliant |
| JESD-30 code | R-XDIP-T16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| Humidity sensitivity level | 2A |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Base Number Matches | 1 |
| 54298DM | 54LS298FM | 54LS298DM | 74LS298DC | 74LS298PC | 74298DC | 74298FC | 74LS298FC | 74298PC | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16, | Multiplexer, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | compliant | compliant | unknown | compliant | compliant | compliant | compliant |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Is it lead-free? | Contains lead | - | - | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | - | - | Fairchild | Fairchild |
| package instruction | DIP, DIP16,.3 | - | - | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | , |
| JESD-30 code | R-XDIP-T16 | R-XDFP-F16 | R-XDIP-T16 | R-XDIP-T16 | R-PDIP-T16 | R-XDIP-T16 | R-XDFP-F16 | R-XDFP-F16 | - |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - |
| Number of entries | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | - |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | - |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | CERAMIC | CERAMIC | CERAMIC | - |
| encapsulated code | DIP | DFP | DIP | DIP | DIP | DIP | DFP | DFP | - |
| Encapsulate equivalent code | DIP16,.3 | FL16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | FL16,.3 | FL16,.3 | - |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Package form | IN-LINE | FLATPACK | IN-LINE | IN-LINE | IN-LINE | IN-LINE | FLATPACK | FLATPACK | - |
| Peak Reflow Temperature (Celsius) | 250 | - | - | NOT SPECIFIED | NOT SPECIFIED | 250 | 250 | NOT SPECIFIED | 250 |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | - |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | - |
| surface mount | NO | YES | NO | NO | NO | NO | YES | YES | - |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | - |
| Temperature level | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - |
| Terminal form | THROUGH-HOLE | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT | FLAT | - |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | - |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | - |
| Maximum time at peak reflow temperature | 30 | - | - | NOT SPECIFIED | NOT SPECIFIED | 30 | 30 | NOT SPECIFIED | 30 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
