74AC00D datasheet, PDF - EEWORLD Datasheet

74AC00D: DescriptionIC AC SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate; Categorylogic logic; File Size172KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

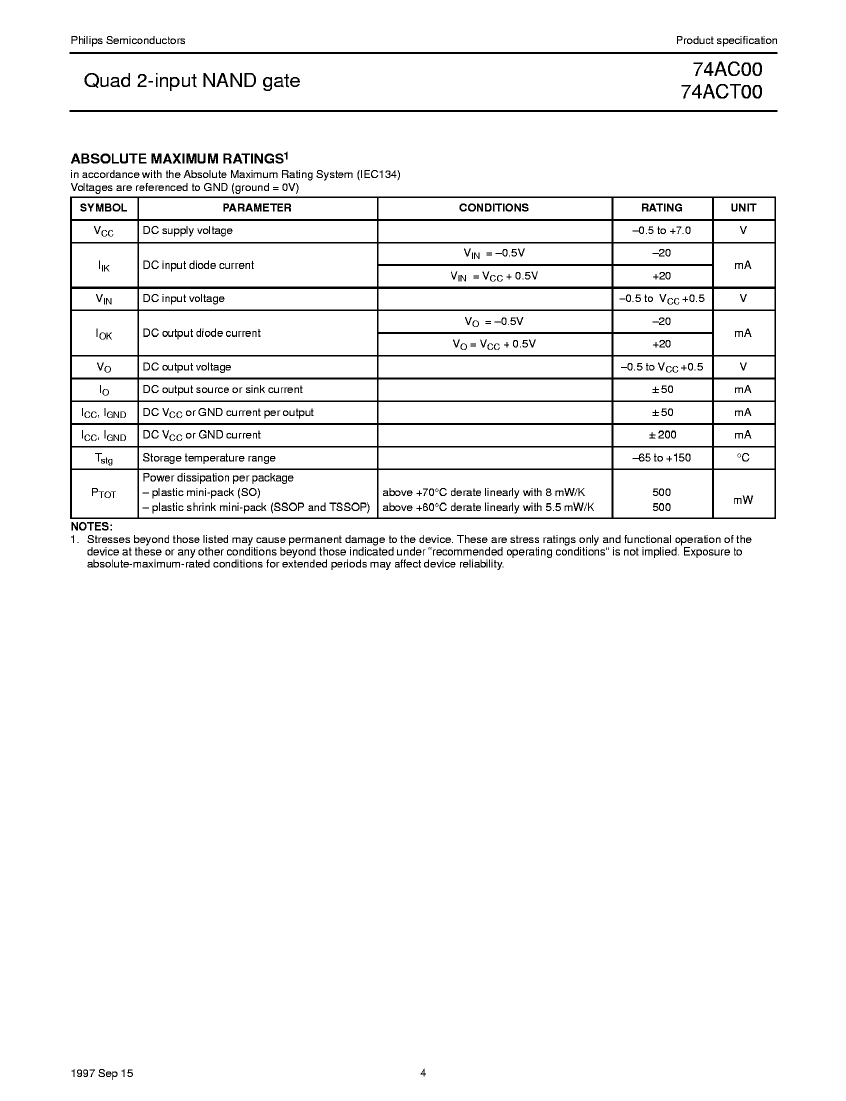

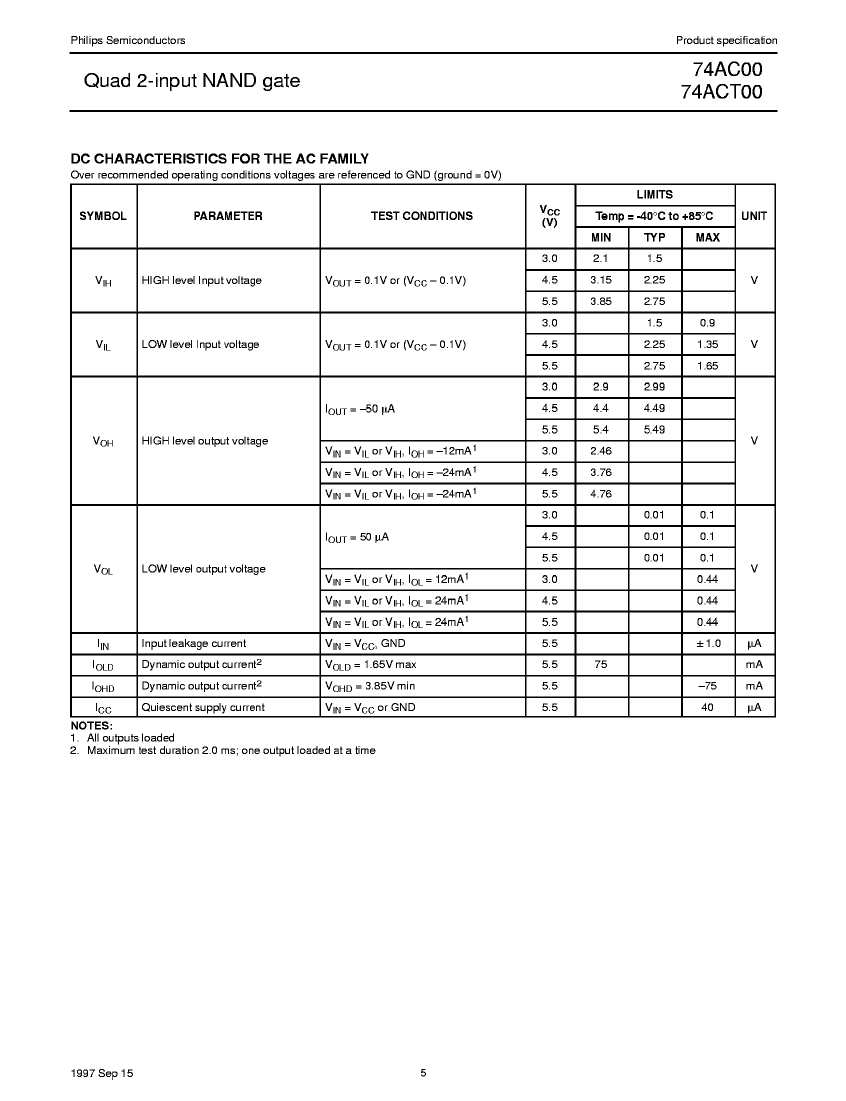

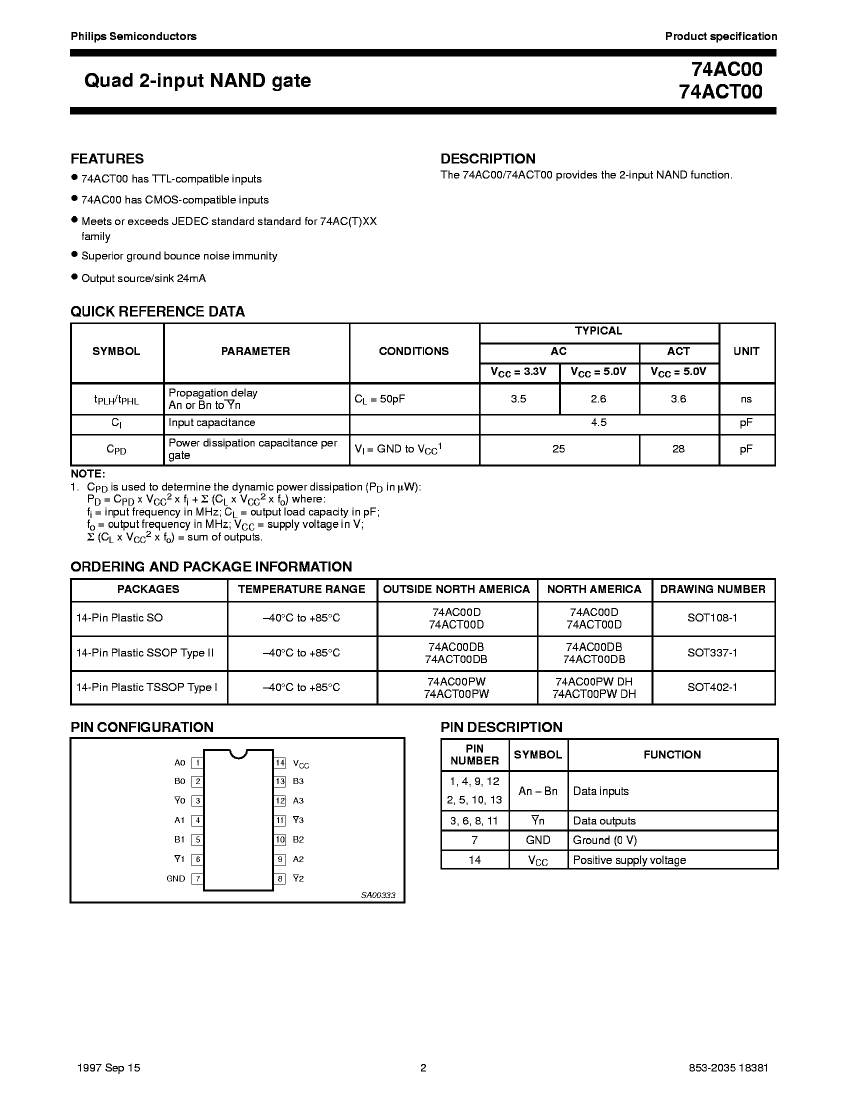

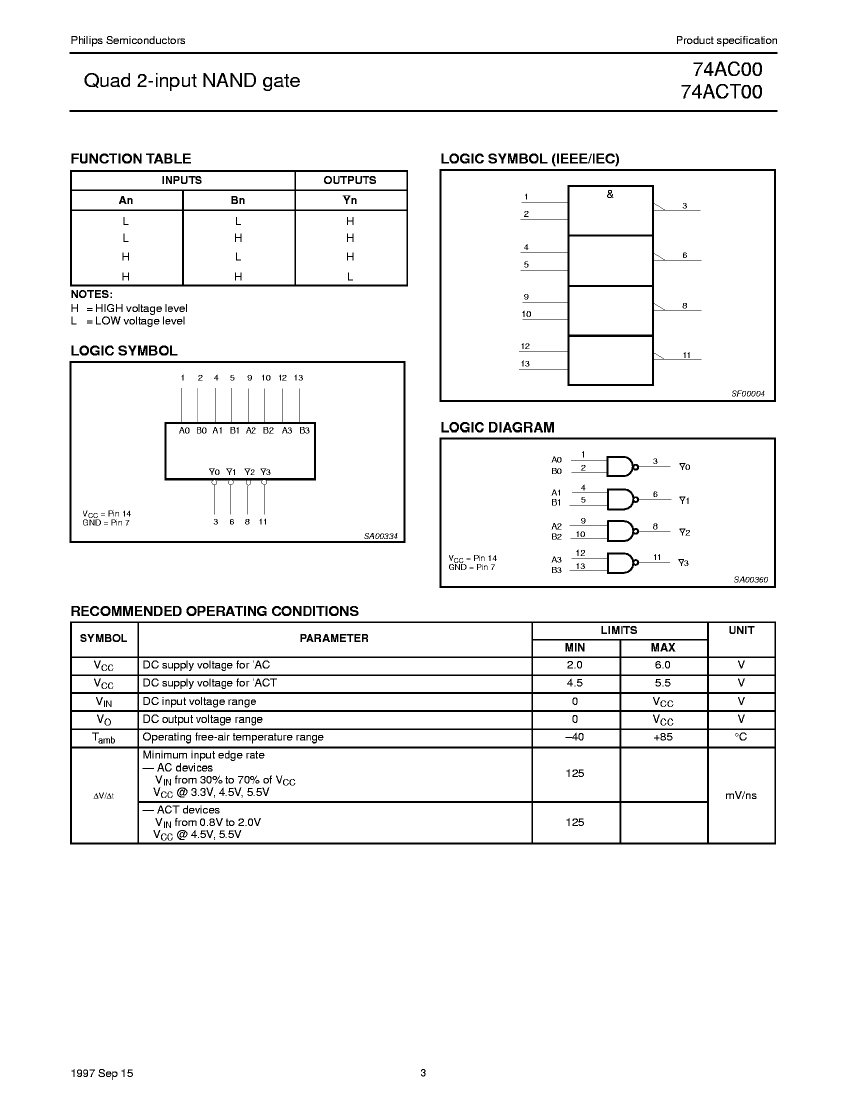

74AC00D Overview

IC AC SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1
