5962-8969204ZA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8969204ZA

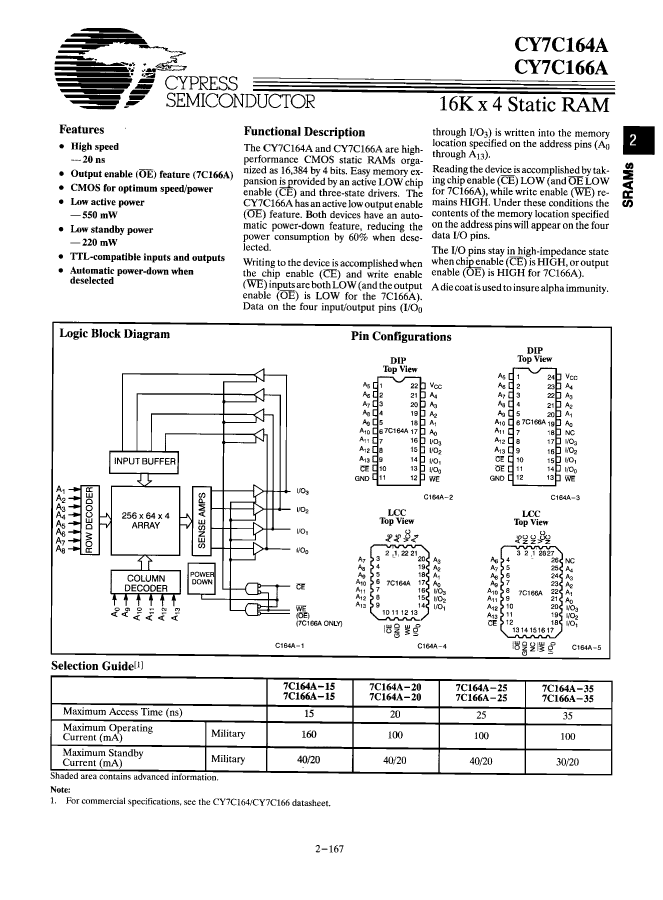

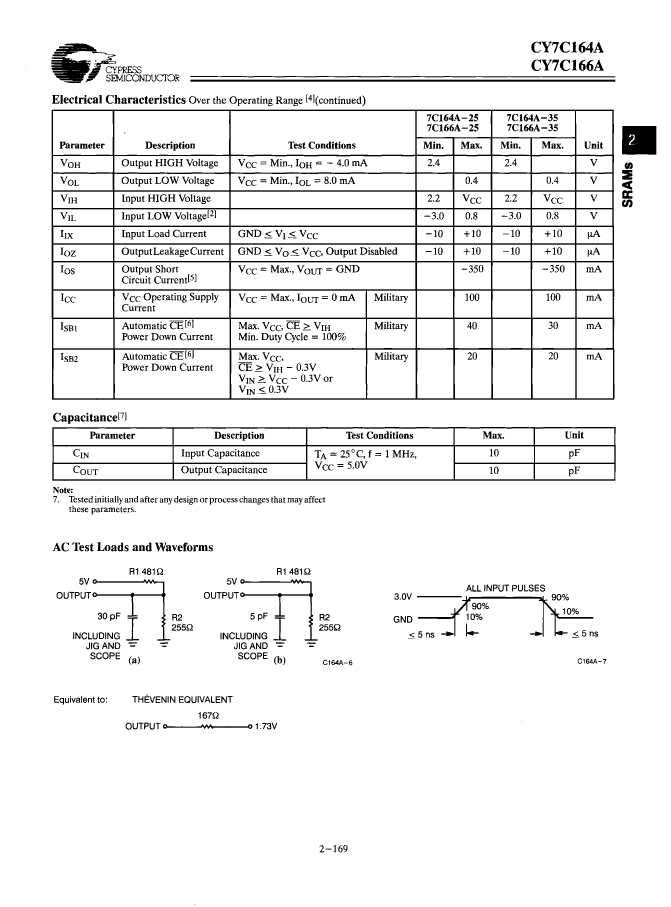

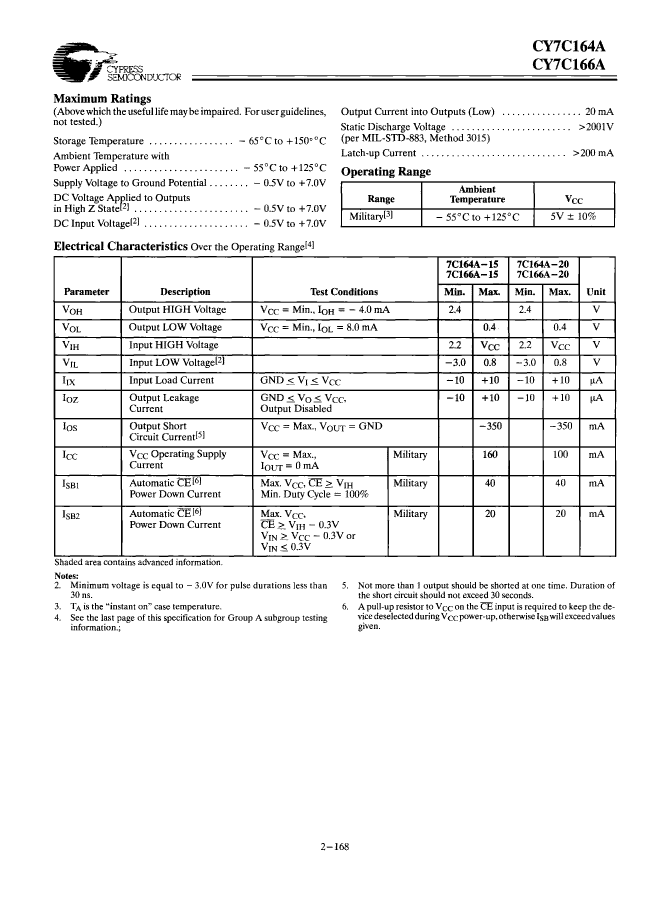

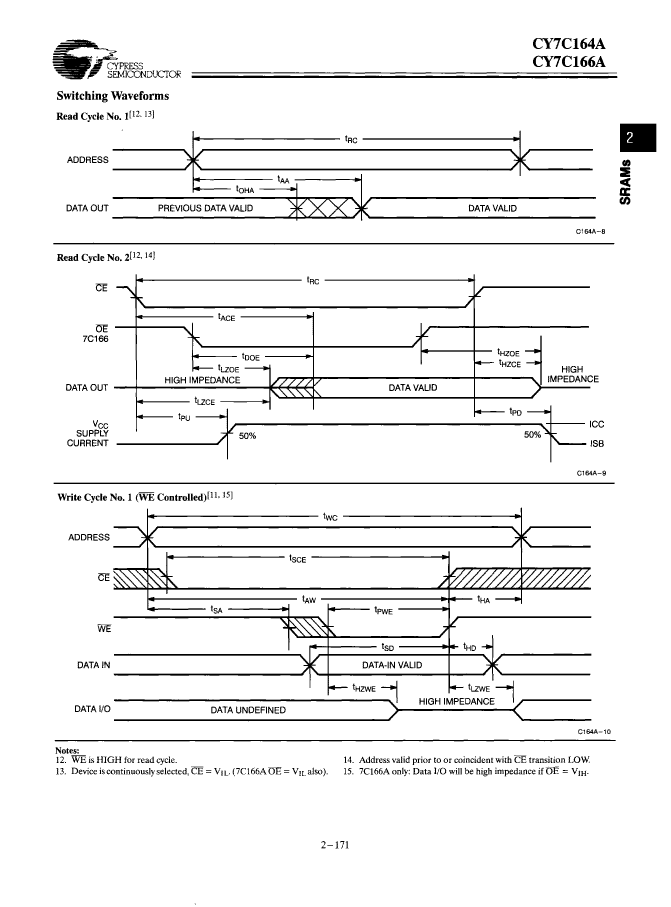

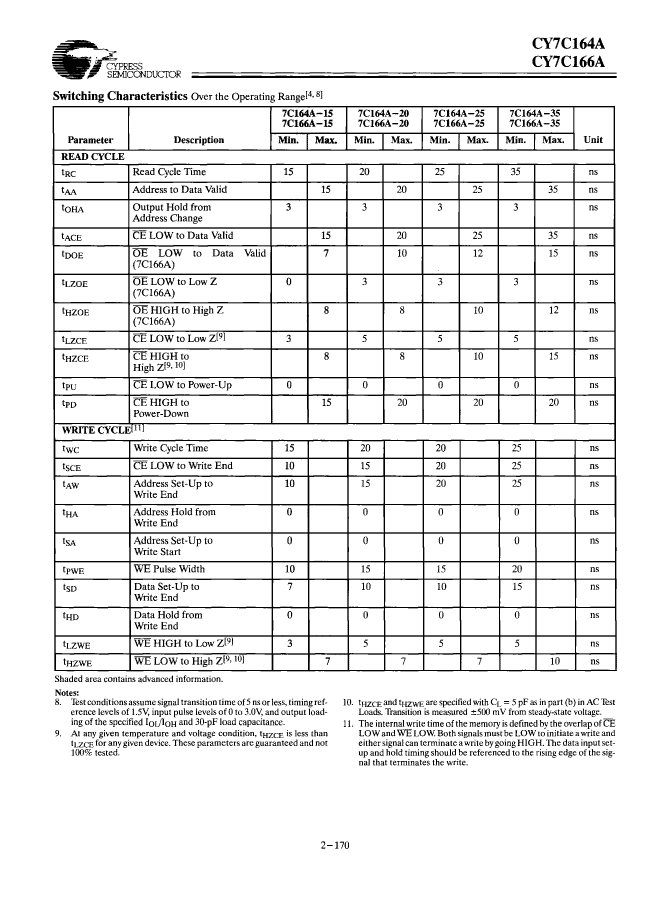

5962-8969204ZA: DescriptionStandard SRAM, 16KX4, 20ns, CMOS, CQCC22, CERAMIC, LCC-22; Categorystorage storage; File Size255KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8969204ZA Overview

Standard SRAM, 16KX4, 20ns, CMOS, CQCC22, CERAMIC, LCC-22

5962-8969204ZA Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	LCC
package instruction	QCCN,
Contacts	22
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	20 ns
Other features	AUTOMATIC POWER-DOWN
JESD-30 code	R-CQCC-N22
JESD-609 code	e0
length	12.446 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	22
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX4
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	7.366 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8969204ZA Related Products

	5962-8969204ZA	5962-8989204YA	5962-8685924ZA	5962-8969202ZA	5962-8989202YA	5962-8685918XA
Description	Standard SRAM, 16KX4, 20ns, CMOS, CQCC22, CERAMIC, LCC-22	Standard SRAM, 16KX4, 20ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 16KX4, 35ns, CMOS, CQCC22, CERAMIC, LCC-22	Standard SRAM, 16KX4, 25ns, CMOS, CQCC22, CERAMIC, LCC-22	Standard SRAM, 16KX4, 25ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 16KX4, 35ns, CMOS, CQCC28, CERAMIC, LCC-28
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	LCC	QLCC	LCC	LCC	QLCC	QLCC
package instruction	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,
Contacts	22	28	22	22	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	20 ns	20 ns	35 ns	25 ns	25 ns	35 ns
Other features	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN
JESD-30 code	R-CQCC-N22	R-CQCC-N28	R-CQCC-N22	R-CQCC-N22	R-CQCC-N28	R-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	12.446 mm	13.97 mm	12.446 mm	12.446 mm	13.97 mm	13.97 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	22	28	22	22	28	28
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	YES	NO	NO	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	7.366 mm	8.89 mm	7.366 mm	7.366 mm	8.89 mm	8.89 mm
Base Number Matches	1	1	1	1	1	-
