599-11-676-13-001442 datasheet, PDF

Datasheet> All Categories > The connector> socket> 599-11-676-13-001442

599-11-676-13-001442: DescriptionIC Socket, BGA676, 676 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size89KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

599-11-676-13-001442 Overview

IC Socket, BGA676, 676 Contact(s), ROHS COMPLIANT

599-11-676-13-001442 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BGA SOCKET
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	BGA676
Shell material	BRASS
JESD-609 code	e4
Number of contacts	676
Base Number Matches	1

Preview

Download Datasheet

View All

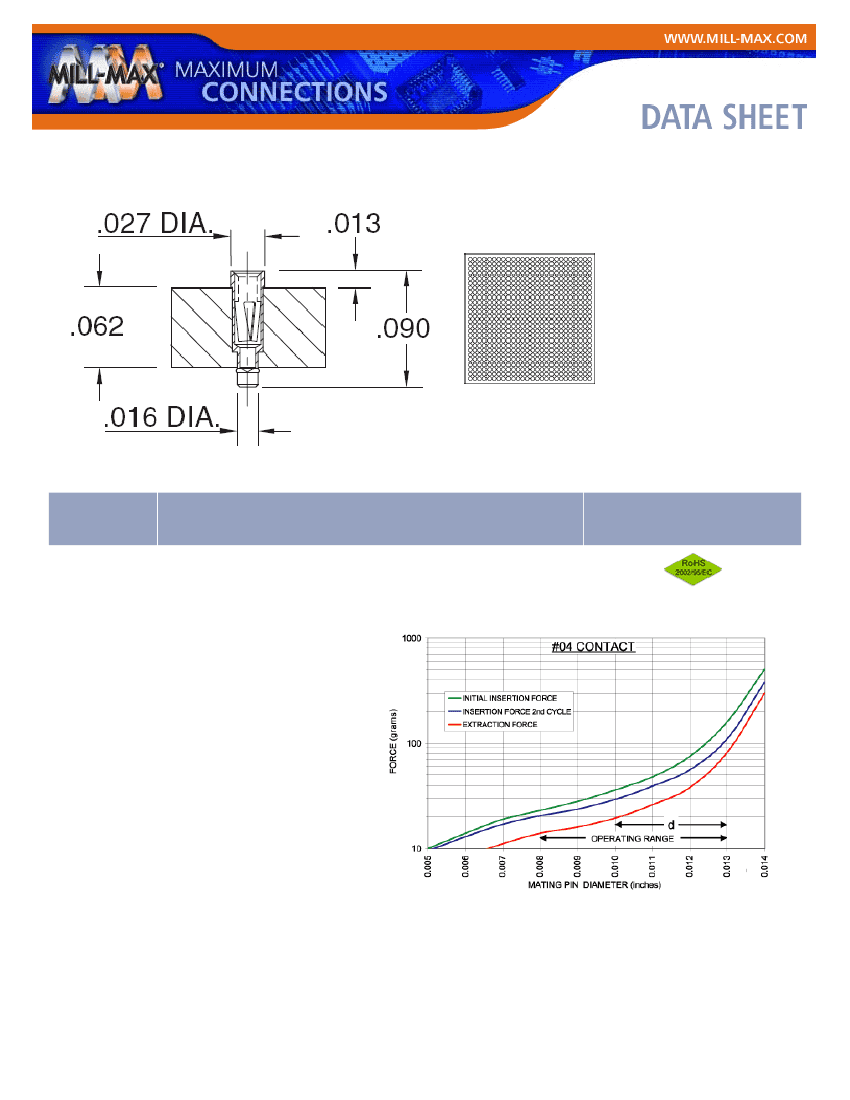

Product Number: 599-11-676-13-001442

Description:

BGA Socket

0.8mm Grid; BGA Socket

Surface Mount

Accepts .008-.013" Leads

Plating Code:

Shell Plating:

10 " Gold over 100 " Nickel

Inner Contact Plating:

10 " Gold over 50 " Nickel

676-13-001

26 X 26

Pins

676

Mill-Max

Part

Number

599-11-676-13-001442

RoHS

Compliant

CONTACT:

Contact Used: #04, Standard 3 Finger Contact

Current Rating =

2 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per

ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 100 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 ºC ; 70% of stress remains after 1,000 hours @ 200

ºC

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

Mill-Max Mfg. Corp. Datasheet – Last Modified 6/20/2008

Page 1 of 2
