RC442-076-383-4400 datasheet, PDF

Datasheet> All Categories > The connector> The connector> RC442-076-383-4400

RC442-076-383-4400: DescriptionBoard Stacking Connector, 76 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Socket,; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

RC442-076-383-4400 Overview

Board Stacking Connector, 76 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Socket,

RC442-076-383-4400 Parametric

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compliant
Other features	LOW PROFILE
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.91 mm
Termination type	PRESS FIT
Total number of contacts	76
Base Number Matches	1

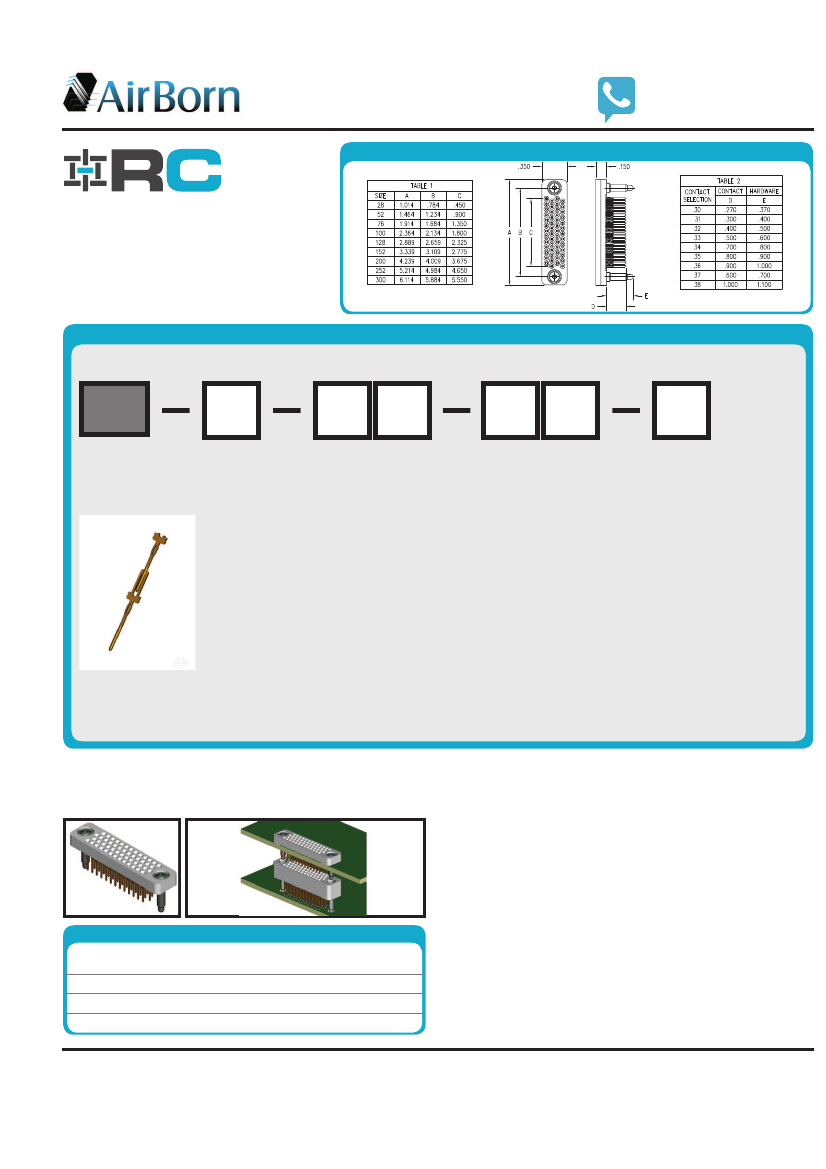

Preview

Download Datasheet

View All

CONTACT CUSTOMER SERVICE

CALL 512-863-5585

x6464

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

RC442

SERIES

Stackable

Compliant

4 Row

CONFIGURATION

1 - 50µin. Au

3 - 30µin. Au

5 - 10µin. Au

CONTACT

00 - None

HARDWARE

VARIATION

Blank - None

XXX - Consult Factory

the board the connector is mounted on to the top of connector below) can be

Contact:. . . . . . . .

Contact Finish: . .

Molded Insulator:

Hardware: . . . . . .

. . . . BeCu per ASTM-B768 (BeCu C17410 Brush Alloy 174)

. . . . . Gold per MIL-G-45204 over Nickel per IAW QQ-N-290

...

REQUIREMENTS

Diff. Insertion Loss

Diff. Return Loss

FEXT

ACTUAL

5.0 Ghz @ -3 dB

2.0 Ghz @ -8 dB

4.0 Ghz @ -25 dB

4.0 Ghz @ -35 dB

Contact Rating: . . . . . . . . . .

Operating Temperature: . . . .

Insulation Resistance: . . . . .

Durability: . . . . . . . . . . . . . . .

Contact Resistance: . . . . . . .

Contact Engagement Force: .

Contact Separation Force: . .

Compliant Insertion Force: . .

Compliant Removal Force: . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Amperes

. . . . . . . . . . . . . . . . . . . . . . .-65° C to +125° C

. . . . . 5,000 megaohms minimum @ 500 VDC

. . . . . . . . . . . . 500 connector mating cycles

3 to 5 milliohms (contact length dependent)

...

. . . . . . 22.5 lb. (10.21 Kg.) max. per contact

. . . . . . . . . 4.5 lb. (2.04 Kg.) min. per contact

www.AIRBORN.com

( 512 ) 863-5585
