Z100-1606-7131-Z: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size289KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z100-1606-7131-Z Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

Z100-1606-7131-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.169 inch
body length	0.416 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	Z100
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

<30 Milliohm Max

INSULATION RESISTANCE:

>5000 Megaohm Min

DIELECTRIC WITHSTANDING VOLTAGE:

600V (RMS) AC for 1 Minute

OPERATING TEMPERATURE: -40°C to +105°C

MATERIAL:

INSULATOR: Nylon 6T UL94V-0

CONTACT: Phosphor Bronze

MATERIAL:

DURABILITY: 50 Cycles

RETENTION FORCE: 300g Min

INSERTION FORCE: 56g

SOLDERABILITY: Per MIL-STD-202F Method 208D

MAX. PROCESSING TEMPERATURE: 260°C for 10 seconds

Rev

0

Issued

A

Revised for RoHS Compliance

SCALE

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

Specify “B” Dimension

When or Dering

2.4mm

3.0mm

Other Lengths Available

Please Contact SMP Technology

HOW TO ORDER:

Z

1

0

0 - X

X

0

6 - 7

1

X

1 - Z

PACKAGING

1 - In Tube

RoHS

COMPLIANT

NO OF POSITIONS

06-98

A0=100

TYPE

06 - Thru Hole/

No Polorization

MOUNTING POST

OPTIONS

1 - Without Post

CONTACT PLATING

Full Gold

Selective Gold

1 - Gold Flash 6 - Gold Flash

3 - 10u" Gold

7 - 10u" Gold

4 - 15u" Gold

8 - 15u" Gold

INSULATOR HEIGHT

5 - 30u" Gold

9 - 30u" Gold

7 - 4.3mm (Cantilever Beam)

Thru Hole

Drawn Checked Approved

MDH

S.M.

B.S.

S.M.

Date

09/29/04

9/19/07

SMP TECHNOLOGY, INC.

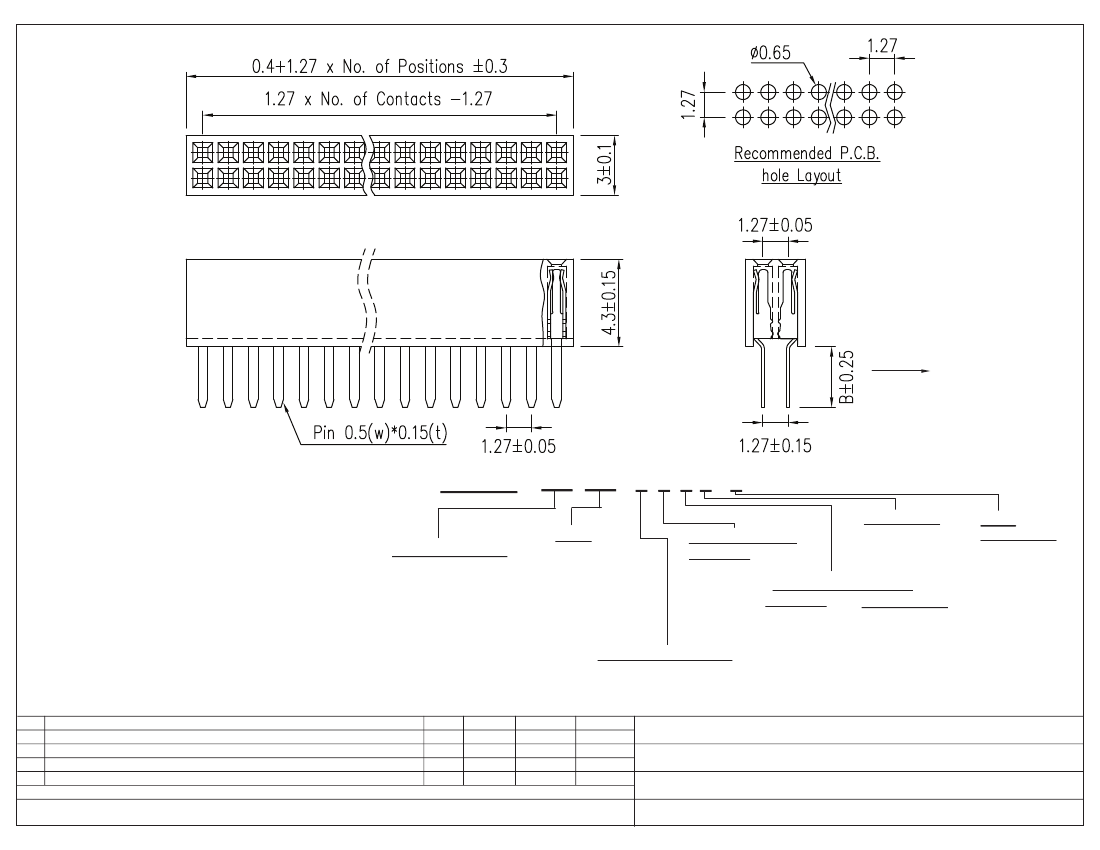

Receptacle Assembly; 1.27mm x 1.27mm; Top Entry; Thru Hole;

4.3mm Height

ANGLE +/-

5°

UNIT: mm

P/N: Z100-XX06-71X1-Z

Pg: 1
