B044-1843-018-Z: DescriptionCard Edge Connector, 184 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size601KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B044-1843-018-Z Overview

Card Edge Connector, 184 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle

B044-1843-018-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMLIANT
Board mount options	EDGE MOUNT
body width	0.35 inch
subject depth	0.55 inch
body length	5.415 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	800VAC V
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	WHITE
Manufacturer's serial number	B044
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	184
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRICAL:

CONTACT RESISTANCE:

20 milliohms MAX at 1 amp. DC.

INSULATION RESISTANCE:

5,000 megohms MIN at 500VDC.

DIELECTRIC WITHSTANDING VOLTAGE:

800VAC/RMS at 60Hz for one minute.

VOLTAGE RATING:

800VAC/RMS at 60Hz.

CURRENT RATING:

1.0 amps. per contact.

MECHANICAL:

INSERTION FORCE: 230 grams MAX. per contact pair.

WITHDRAWAL FORCE: 15 grams MAX. per contact pair.

CONTACT RETENTION: 680 grams MAX. per contact pair.

DURABILITY:

200 mating/unmating cycles MIN. at flash gold over 0.76 micrometers

MIN. of palladium/nickel

50 mating/unmating cycles MIN. at flash gold plating;

100 mating/unmating cycles MIN. at 0.38 micrometers MIN. gold plating;

200 mating/unmating cycles MIN. at 0.38 micrometers MIN. gold plating.

ENVIRONMENTAL:

OPERATING TEMPERATURE: -55°C to +105°C

HUMIDITY: per MIL-STD-1334A, method

1002.1, test condition B

THERMAL SHOCK: per MIL-STD-1334A, method 1003.1, test condition A

VIBRATION: per MIL-STD-1334A, method 2005.1, test condition II

MECHANICAL SHOCK: per MIL-STD-1334A, method 2004.1, test condition C

SALT SPRAY: 24 hours per MIL-STD-1334A, method 1001.1, test condition

MATERIAL:

INSULATOR:

glass-filled thermoplastic (PPS/NYLON-66/PBT),UL-94V-0 rated.

color-white, for PCI connector

CONTACT:

phosphor bronze, per ASTM-B103

Mating area - selective gold over 1.27 micrometers MIN. of nickel,

or flash gold over 0.76 micrometers MIN. of nickel

Termination area - 2.54 micrometers MIN. of tin/lead over

1.27 micrometers MIN. of nickel

HOW TO ORDER:

NUMBER OF CONTACTS:

184

PCB MOUNTING

3 - STRADDLE MOUNT

TYPE B

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

RoHS

COMPLIANT

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Rev

Issued

Revised for RoHS Compliance

Drawn

MDH

B.S.

Checked

S.M.

Approved

S.M.

10/04/04

07/07/08

Date

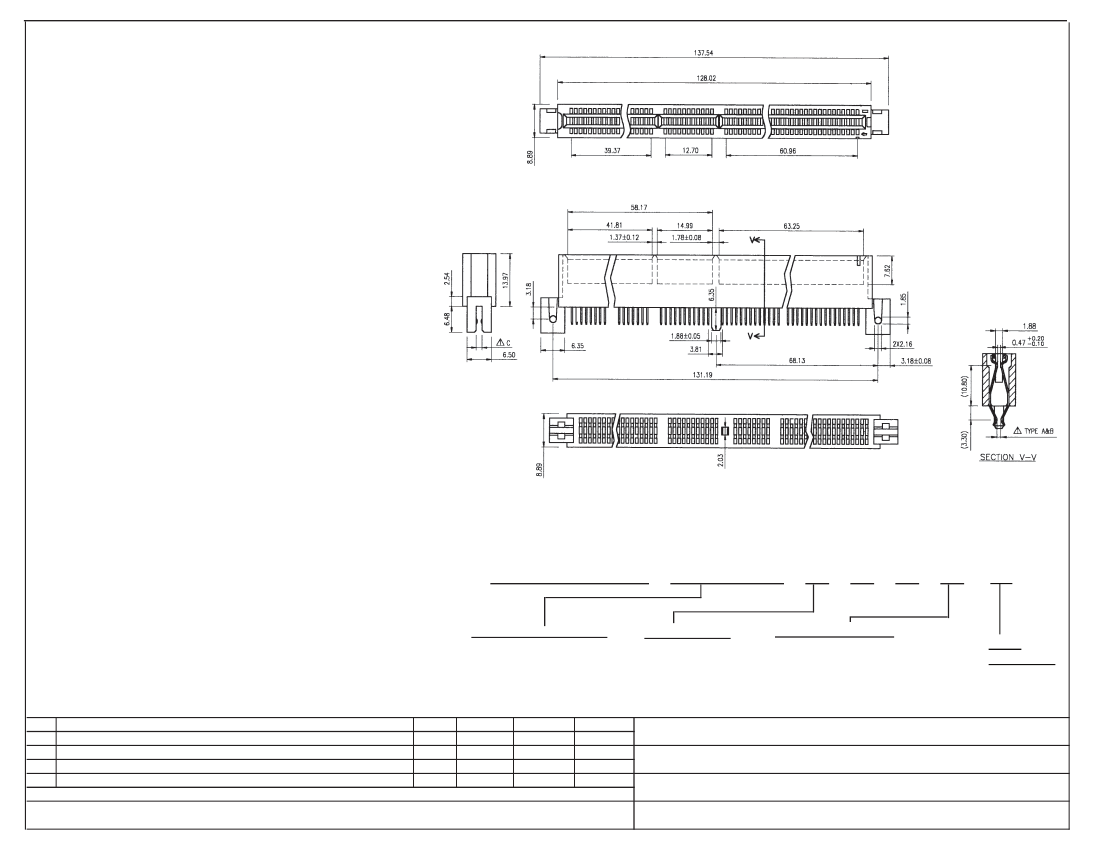

SMP TECHNOLOGY, INC.

Card Edge Connector, 184 Position, 1.27mm Pitch,

Straddle Mount, Type B

TOL. DEC.

.X +/- 0.25

.XX +/- 0.15

.XXX +/- 0.08

ANGLE +/- 0.50°

UNIT: mm

P/N: B044-1843-01X-Z

Pg: 1
