N74107A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74107A

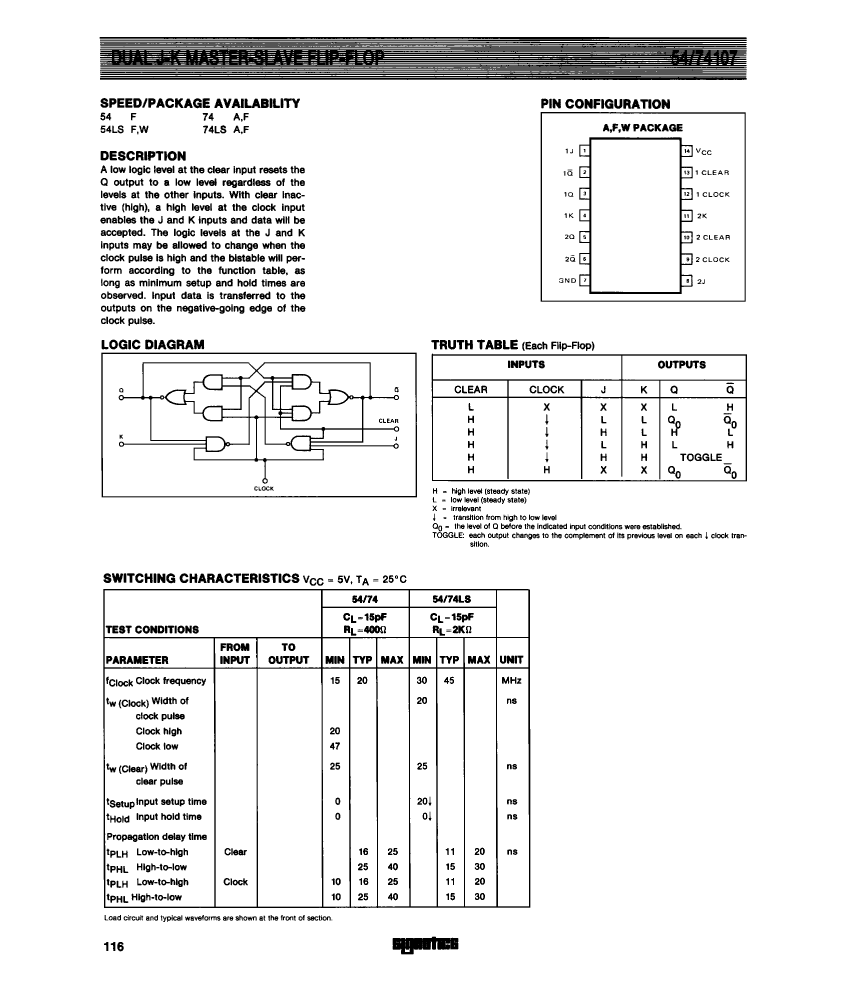

N74107A: DescriptionJ-K Flip-Flop, TTL/H/L Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP14; Categorylogic logic; File Size33KB，1 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

N74107A Overview

J-K Flip-Flop, TTL/H/L Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP14

N74107A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
series	TTL/H/L
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	15 pF
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	15000000 Hz
MaximumI(ol)	0.016 A
Number of digits	2
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	40 mA
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
minfmax	15 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

N74107A Related Products

	N74107A	74107A	N74107F
Description	J-K Flip-Flop, TTL/H/L Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP14	J-K Flip-Flop, TTL/H/L Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP14,	J-K Flip-Flop, TTL/H/L Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP14
Maker	Signetics	Signetics	Signetics
package instruction	DIP, DIP14,.3	,	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown
series	TTL/H/L	TTL/H/L	TTL/H/L
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-GDIP-T14
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Number of digits	2	2	2
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	40 mA	40 mA	40 mA
propagation delay (tpd)	40 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
minfmax	15 MHz	15 MHz	15 MHz
Base Number Matches	1	1	1
Is it Rohs certified?	incompatible	-	incompatible
JESD-609 code	e0	-	e0
Maximum Frequency@Nom-Sup	15000000 Hz	-	15000000 Hz
MaximumI(ol)	0.016 A	-	0.016 A
encapsulated code	DIP	-	DIP
Encapsulate equivalent code	DIP14,.3	-	DIP14,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	-	5 V
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	-	2.54 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
