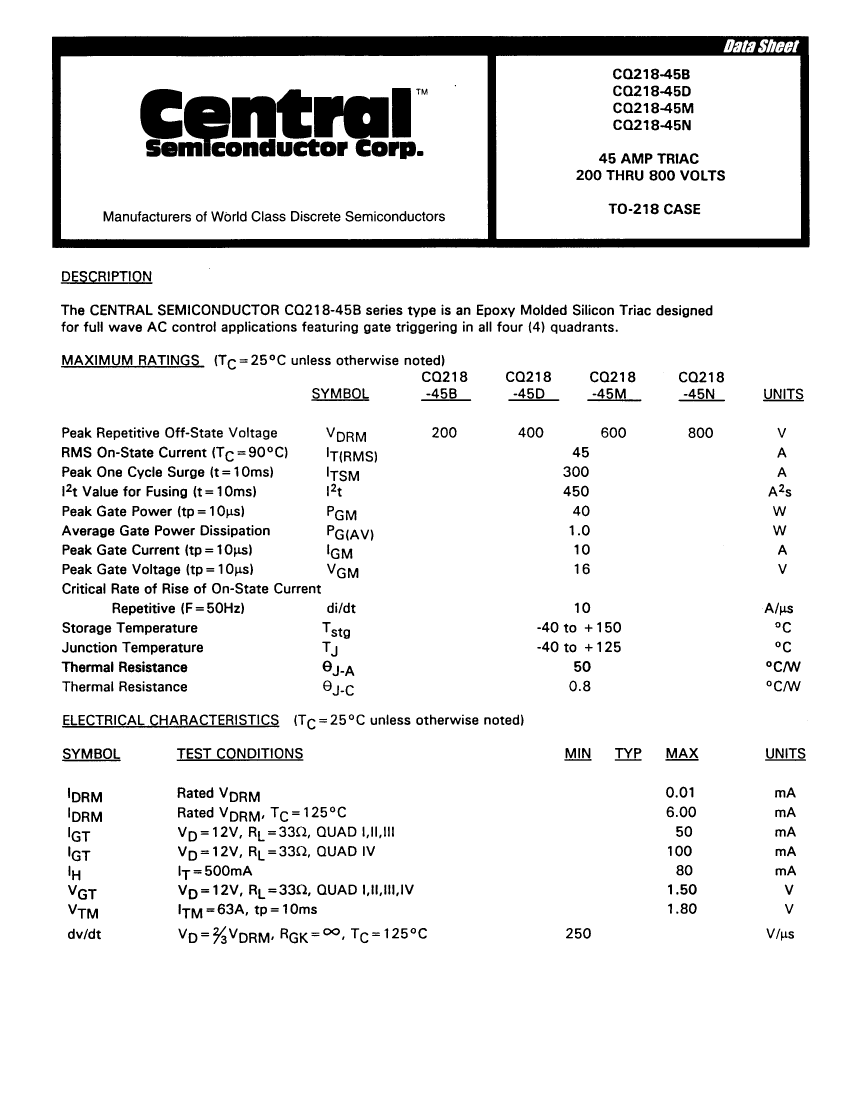

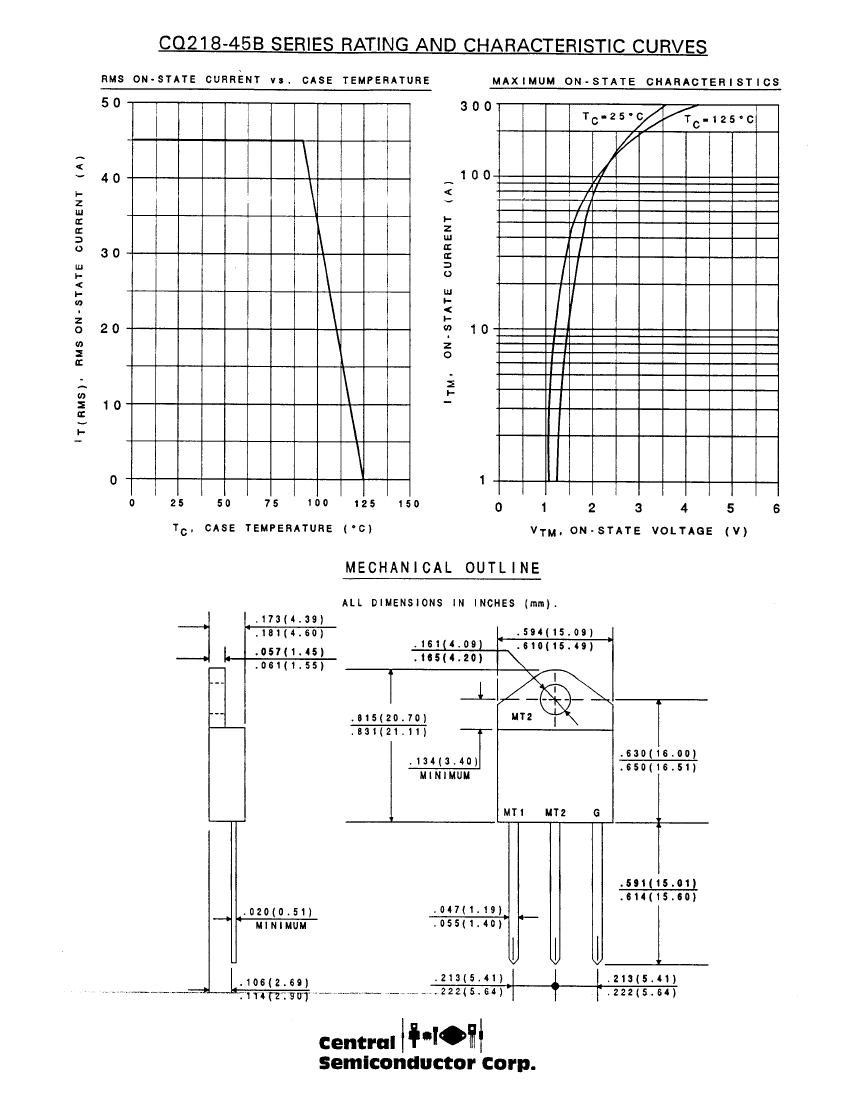

CQ218-45D: Description45 AMP TRIAC; CategoryAnalog mixed-signal IC Trigger device; File Size84KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CQ218-45D Overview

45 AMP TRIAC

CQ218-45D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Reach Compliance Code	unknow
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	80 mA
JEDEC-95 code	TO-218
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	45 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

CQ218-45D Related Products

	CQ218-45D	CQ218-45B	CQ218-45M	CQ218-45N
Description	45 AMP TRIAC	45 AMP TRIAC	45 AMP TRIAC	45 AMP TRIAC
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reach Compliance Code	unknow	unknow	unknow	unknow
Shell connection	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	50 mA	50 mA	50 mA	50 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	80 mA	80 mA	80 mA	80 mA
JEDEC-95 code	TO-218	TO-218	TO-218	TO-218
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	45 A	45 A	45 A	45 A
Off-state repetitive peak voltage	400 V	200 V	600 V	800 V
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
