54697-7002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54697-7002

54697-7002: DescriptionCard Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE; CategoryThe connector The connector; File Size246KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

54697-7002 Overview

Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE

54697-7002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
body length	2.854 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	54697
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.323 mm
Plating thickness	FLASH inch
polarization key	POLARIZED KEY
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
UL Flammability Code	94V-0
Base Number Matches	1

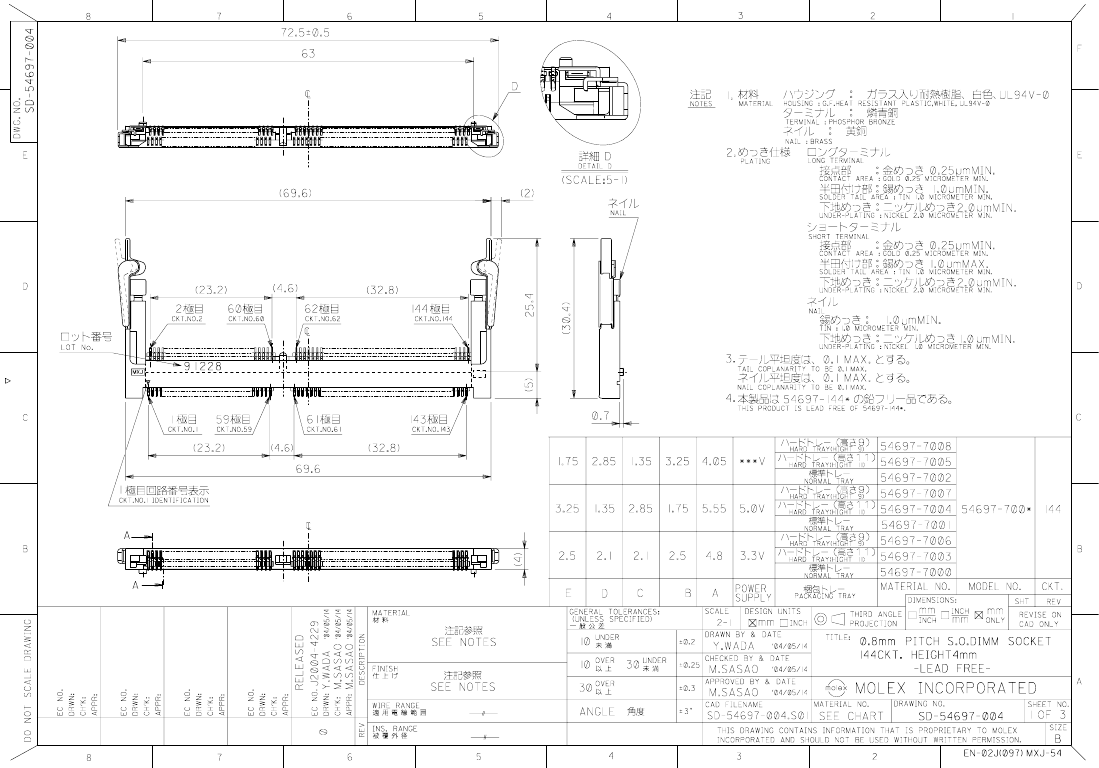

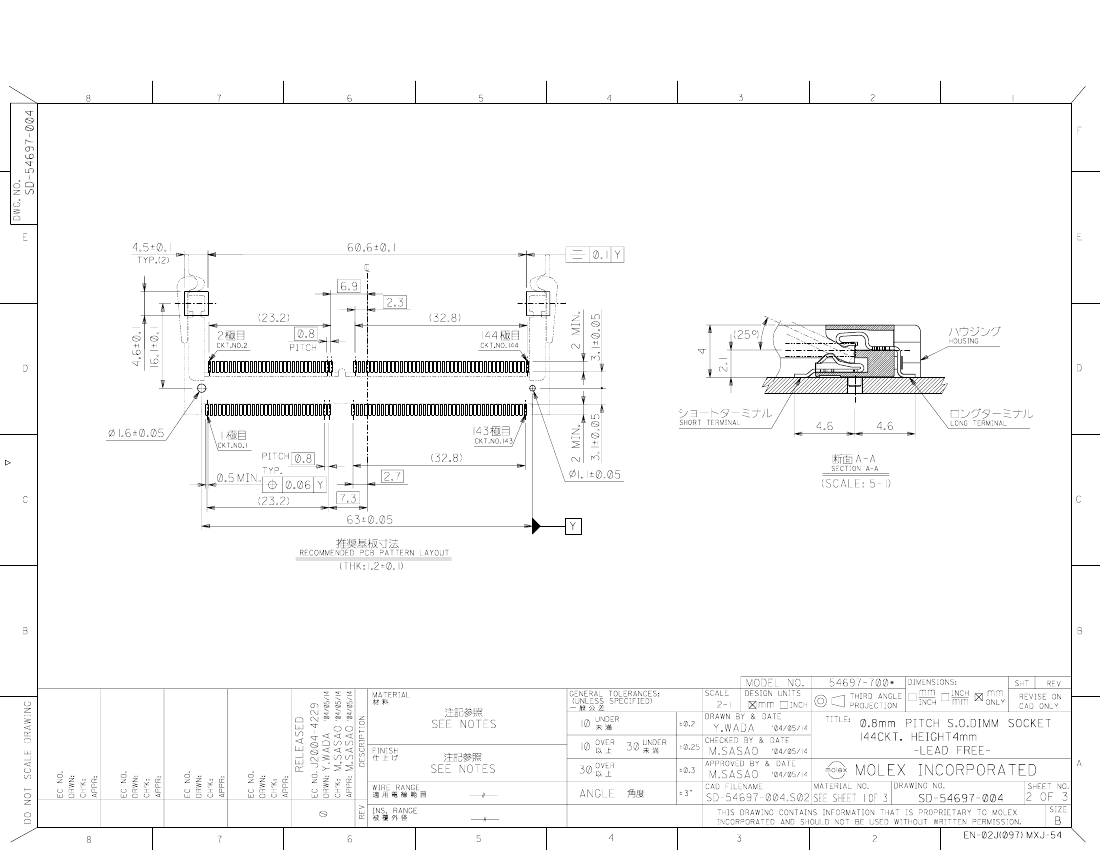

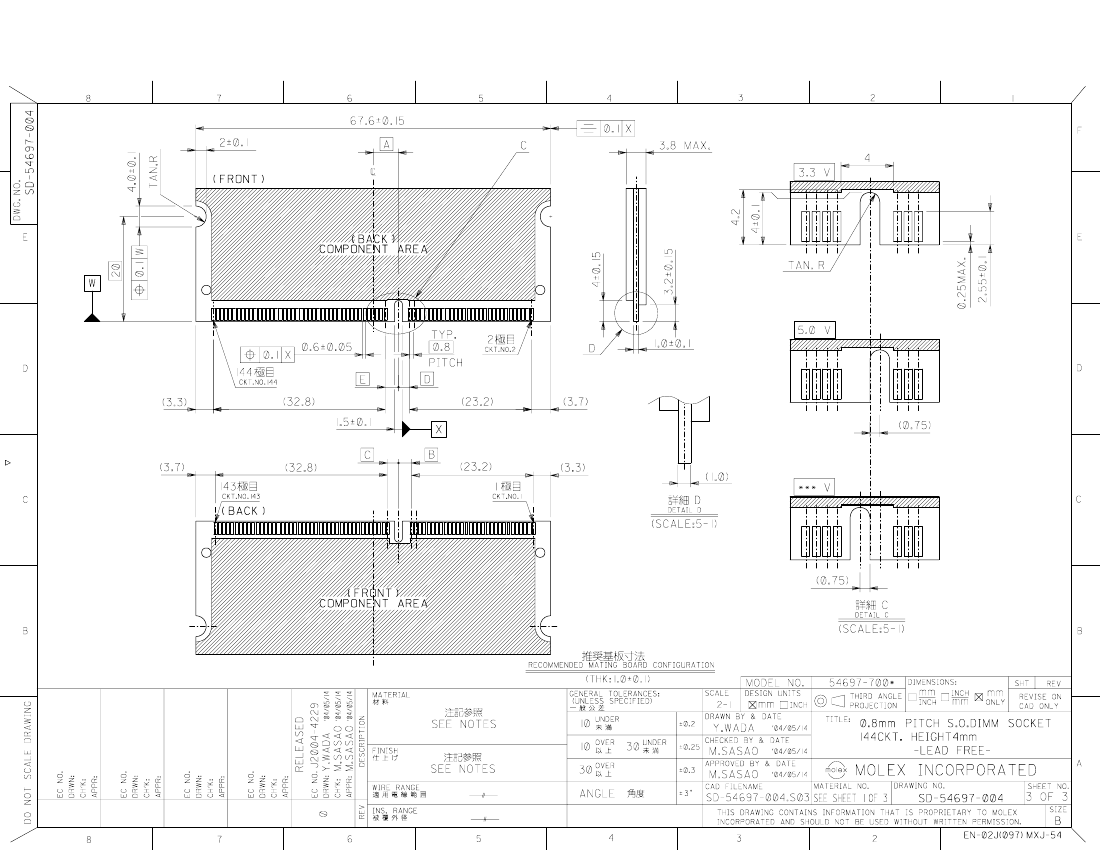

Preview

Download Datasheet

View All

54697-7002 Related Products

	54697-7002	54697-7007	54697-7004	54697-7005	54697-7008	54697-7006
Description	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, White Insulator, Socket, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
body length	2.854 inch	2.854 inch	2.854 inch	2.854 inch	2.854 inch	2.854 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	54697	54697	54697	54697	54697	54697
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.323 mm	0.323 mm	0.323 mm	0.323 mm	0.323 mm	0.323 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	144	144	144	144	144	144
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	-
