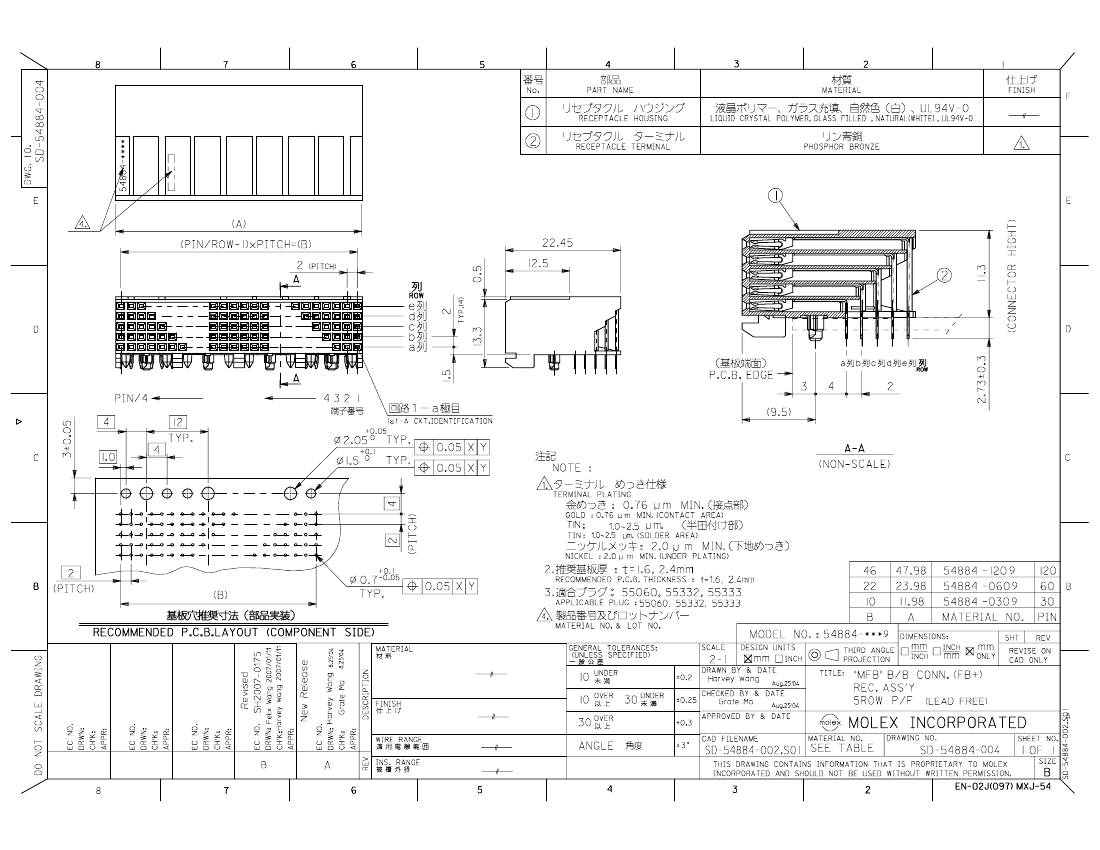

Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Board mount options | PEG |
| body width | 0.543 inch |
| subject depth | 0.884 inch |
| body length | 0.472 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 50 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1050VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.0008 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | NATURAL |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Manufacturer's serial number | 54884 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.107 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
| 54884-0309 | 700520.920.02 | 54884-0609 | |
|---|---|---|---|
| Description | Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE | Fixed Resistor, Wire Wound, 0.1W, 0.92ohm, 150V, 0.02% +/-Tol, -2,2ppm/Cel, | Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE |
| Is it Rohs certified? | conform to | incompatible | conform to |
| Reach Compliance Code | compliant | compliant | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Maximum operating temperature | 125 °C | 145 °C | 125 °C |
| Minimum operating temperature | -55 °C | -65 °C | -55 °C |
| Maker | Molex | - | Molex |
| package instruction | LEAD FREE | - | LEAD FREE |
| Board mount options | PEG | - | PEG |
| body width | 0.543 inch | - | 0.543 inch |
| subject depth | 0.884 inch | - | 0.884 inch |
| body length | 0.472 inch | - | 0.944 inch |
| Body/casing type | RECEPTACLE | - | RECEPTACLE |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | - | NOT SPECIFIED |
| Contact completed and terminated | TIN OVER NICKEL | - | TIN OVER NICKEL |
| Contact point gender | FEMALE | - | FEMALE |
| Contact material | NOT SPECIFIED | - | NOT SPECIFIED |
| contact mode | RECTANGULAR | - | RECTANGULAR |
| Contact resistance | 50 mΩ | - | 50 mΩ |
| Contact style | SQ PIN-SKT | - | SQ PIN-SKT |
| DIN compliance | NO | - | NO |
| Dielectric withstand voltage | 1050VAC V | - | 1050VAC V |
| Durability | 250 Cycles | - | 250 Cycles |
| Filter function | NO | - | NO |
| IEC compliance | NO | - | NO |
| maximum insertion force | 1.0008 N | - | 1.0008 N |
| Insulation resistance | 1000000000 Ω | - | 1000000000 Ω |
| Insulator color | NATURAL | - | NATURAL |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | - | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO | - | NO |
| Manufacturer's serial number | 54884 | - | 54884 |
| Plug contact pitch | 0.079 inch | - | 0.079 inch |
| Match contact row spacing | 0.079 inch | - | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | - | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | - | NO |
| Installation option 1 | LOCKING | - | LOCKING |
| Installation method | RIGHT ANGLE | - | RIGHT ANGLE |
| Installation type | BOARD | - | BOARD |
| Number of connectors | ONE | - | ONE |
| PCB row number | 5 | - | 5 |
| Number of rows loaded | 5 | - | 5 |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | - | 2.0066 mm |
| Plating thickness | 30u inch | - | 30u inch |
| polarization key | POLARIZED HOUSING | - | POLARIZED HOUSING |
| Rated current (signal) | 1 A | - | 1 A |
| Guideline | UL | - | UL |
| reliability | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.107 inch | - | 0.107 inch |
| Terminal pitch | 2 mm | - | 2 mm |
| Termination type | PRESS FIT | - | PRESS FIT |
| Total number of contacts | 30 | - | 60 |
| UL Flammability Code | 94V-0 | - | 94V-0 |
| Evacuation force-minimum value | .139 N | - | .139 N |
| Base Number Matches | 1 | - | 1 |
