5-530844-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-530844-4

5-530844-4: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,0.125 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size584KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-530844-4 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,0.125 PITCH,PC TAIL TERMINAL

5-530844-4 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	NONE
body width	0.368 inch
subject depth	0.61 inch
body length	5.785 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1500VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.125 inch
Match contact row spacing	0.25 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	6.35 mm
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.175 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.556 N
Base Number Matches	1

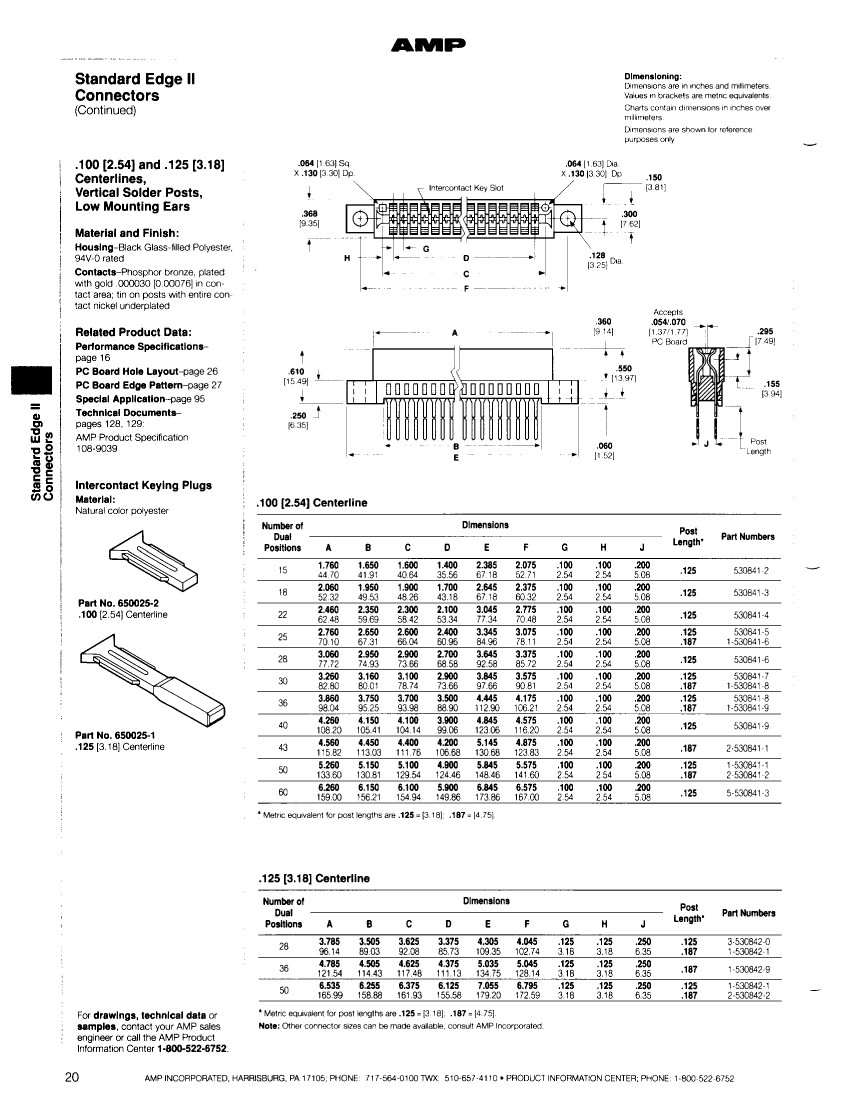

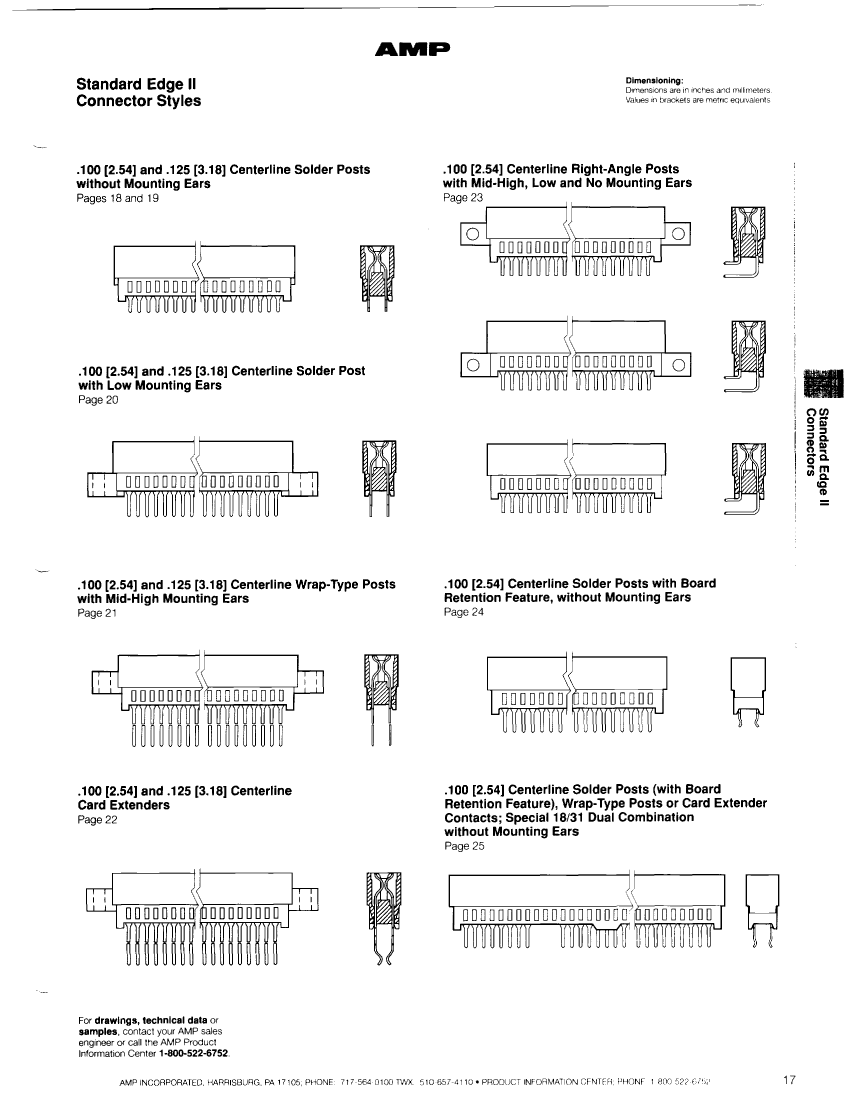

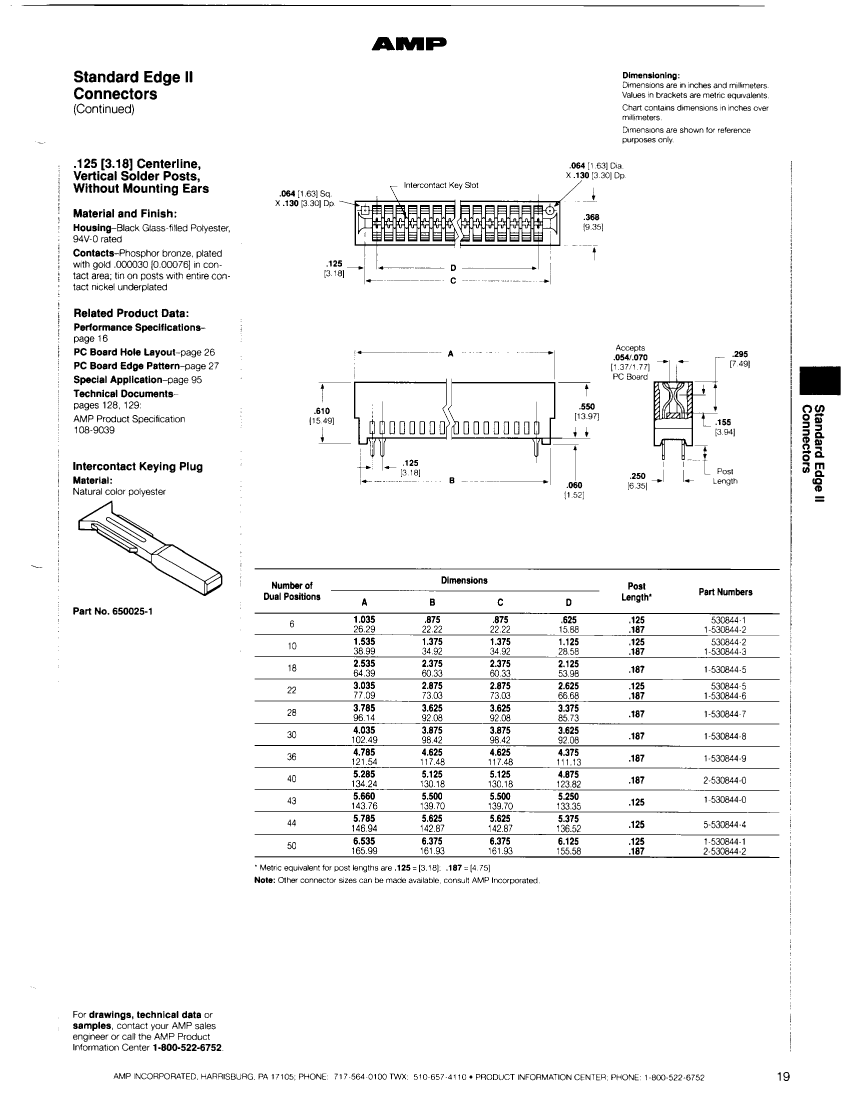

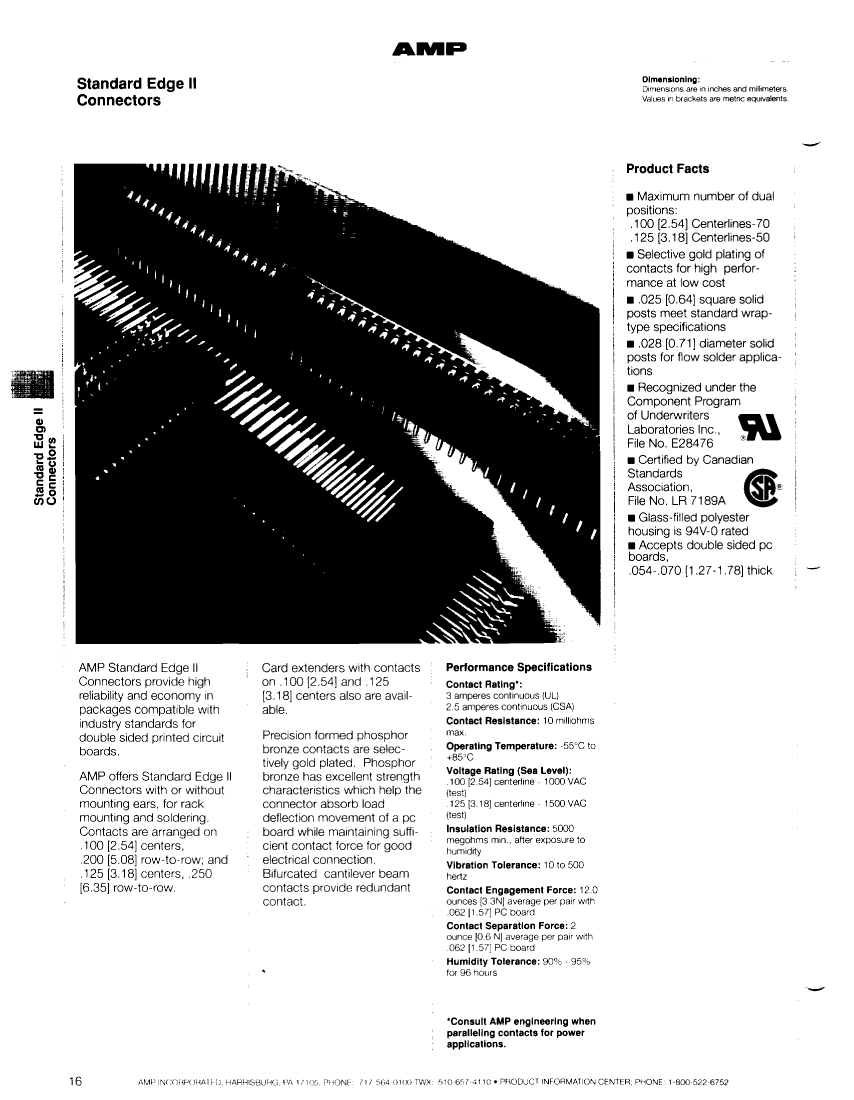

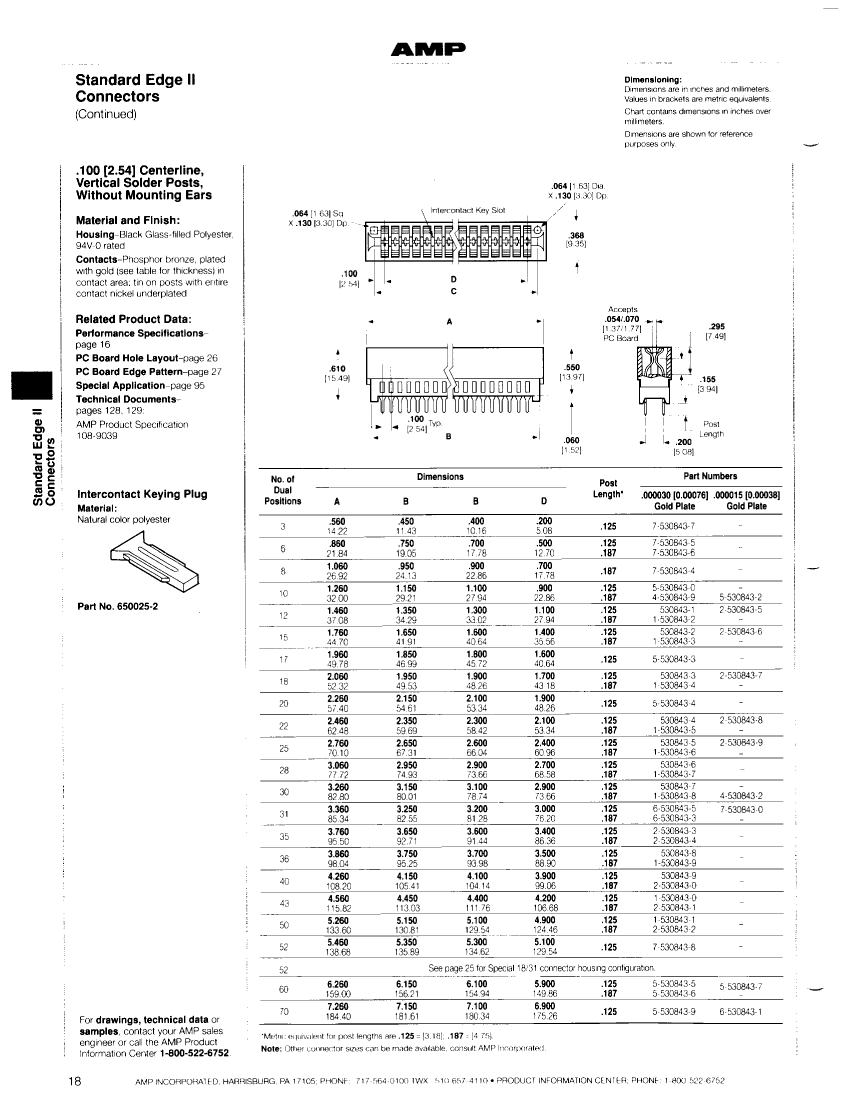

Preview

Download Datasheet

View All

5-530844-4 Related Products

	5-530844-4	4-530396-7	4-530396-8	4-530396-5	650615-1	650145-1	530844-5	650016-1
Description	EDGE CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,0.125 PITCH,PC TAIL TERMINAL	43 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	50 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	35 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	CONNECTOR, 104 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, WIRE WRAP	EDGE CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,0.1 PITCH,PC TAIL TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,0.125 PITCH,PC TAIL TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,62 CONTACTS,0.1 PITCH,WRAP POST TERMINAL
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Terminal pitch	3.175 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	3.175 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER	SOLDER	WIRE WRAP
Total number of contacts	6	43	50	35	104	20	6	62
Other features	NONE	NONE	NONE	NONE	-	NONE	NONE	NONE
body width	0.368 inch	0.368 inch	0.368 inch	0.368 inch	-	0.368 inch	0.368 inch	0.368 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch	-	0.76 inch	0.61 inch	0.61 inch
body length	5.785 inch	5.145 inch	5.845 inch	4.345 inch	-	2.845 inch	3.035 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
contact mode	STAGGERED	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	STAGGERED	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1500VAC V	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	1500VAC V	1000VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N	-	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.125 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.125 inch	0.1 inch
Match contact row spacing	0.25 inch	0.2 inch	0.2 inch	0.2 inch	-	0.2 inch	0.25 inch	0.2 inch
Number of connectors	ONE	ONE	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	2	2	-	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	STAGGERED	RECTANGULAR
PCB contact row spacing	6.35 mm	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm	6.35 mm	5.08 mm
Rated current (signal)	2.5 A	2.5 A	2.5 A	2.5 A	-	2.5 A	2.5 A	2.5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.57 inch	0.57 inch	0.57 inch	-	0.09 inch	0.125 inch	0.57 inch
Evacuation force-minimum value	.556 N	.556 N	.556 N	.556 N	-	.556 N	.556 N	.556 N
Base Number Matches	1	1	-	-	1	1	1	1
Board mount options	-	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	-	MOUNTING FLANGE	-	MOUNTING FLANGE
Plating thickness	-	30u inch	30u inch	30u inch	-	15u inch	-	30u inch
