* For Fibre Channel compliant assemblies, use one (1) piece each of pn 503487-Y and 503488-Y. (Dash refers to color - refer to customer drawing for details).
** Strain relief dash number indicates color - see page 46 for details.
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
45
Catalog 1307895
Revised 3-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 52-55-1106-0800
C. America: 57-1-254-4444
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341
Fiber Optic Products Catalog

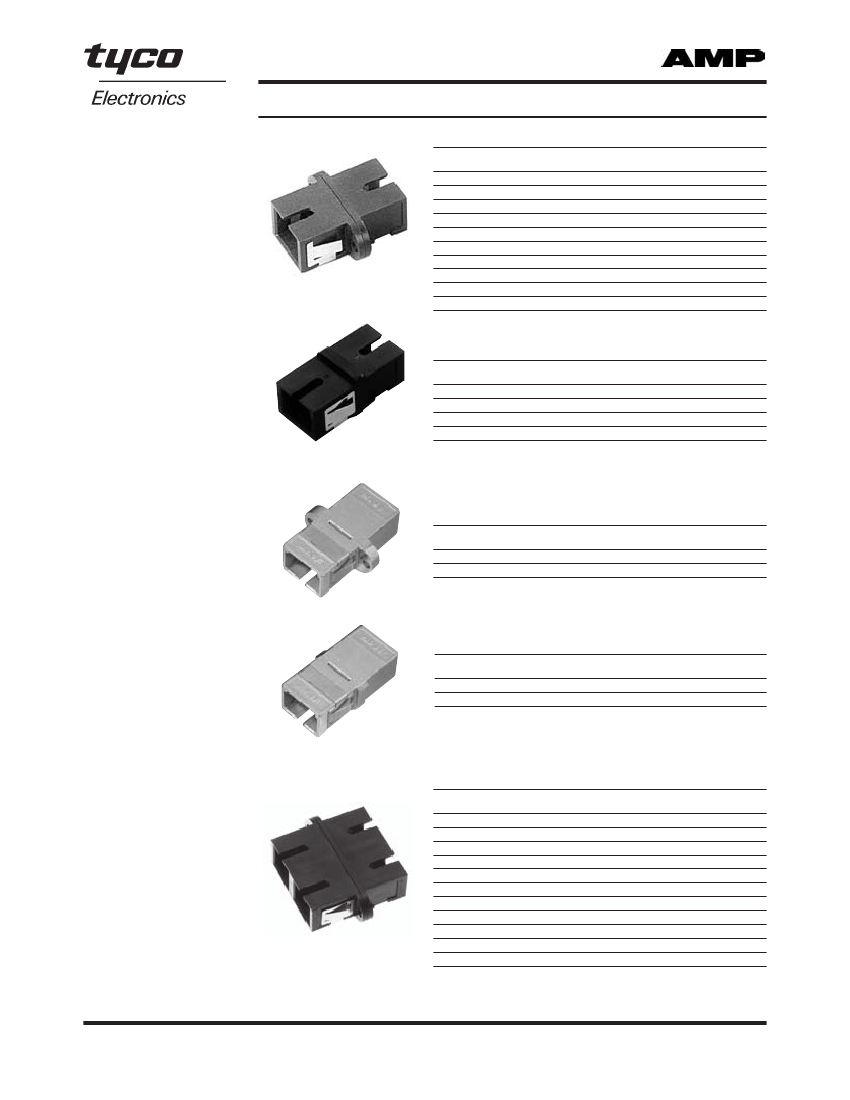

SC Connectors
(Continued)

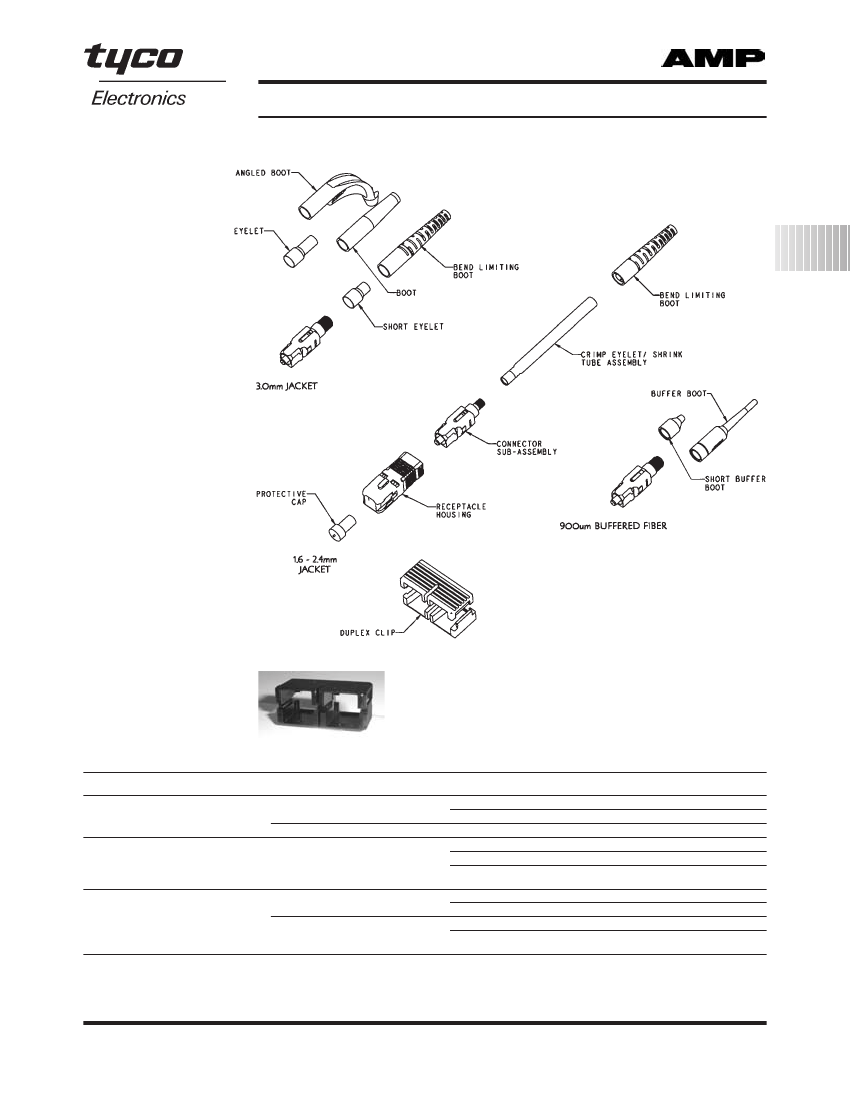

SC Strain Reliefs — Jacketed Cable
Description
3.0 mm
2.4 mm
3.0 mm
1.6 mm - 2.4 mm
2.0 mm
GR-326 Style
No
No
Yes
Yes
No
Black
1-5503971-0
1-5503971-2
—
1588153-3
2-5503971-3
Yellow
5503971-7
5503971-8
—
1588153-4
5503971-9
Part Number
Color
Red
1-5503971-1
1-5503971-3
—
—
2-5503971-7
3.0mm - GR-326 Style
Beige
5503971-1
5503971-3
1588491-5
1588153-5
5503971-5
Blue
5503971-2
5503971-4
1588491-2
1588153-2
5503971-6

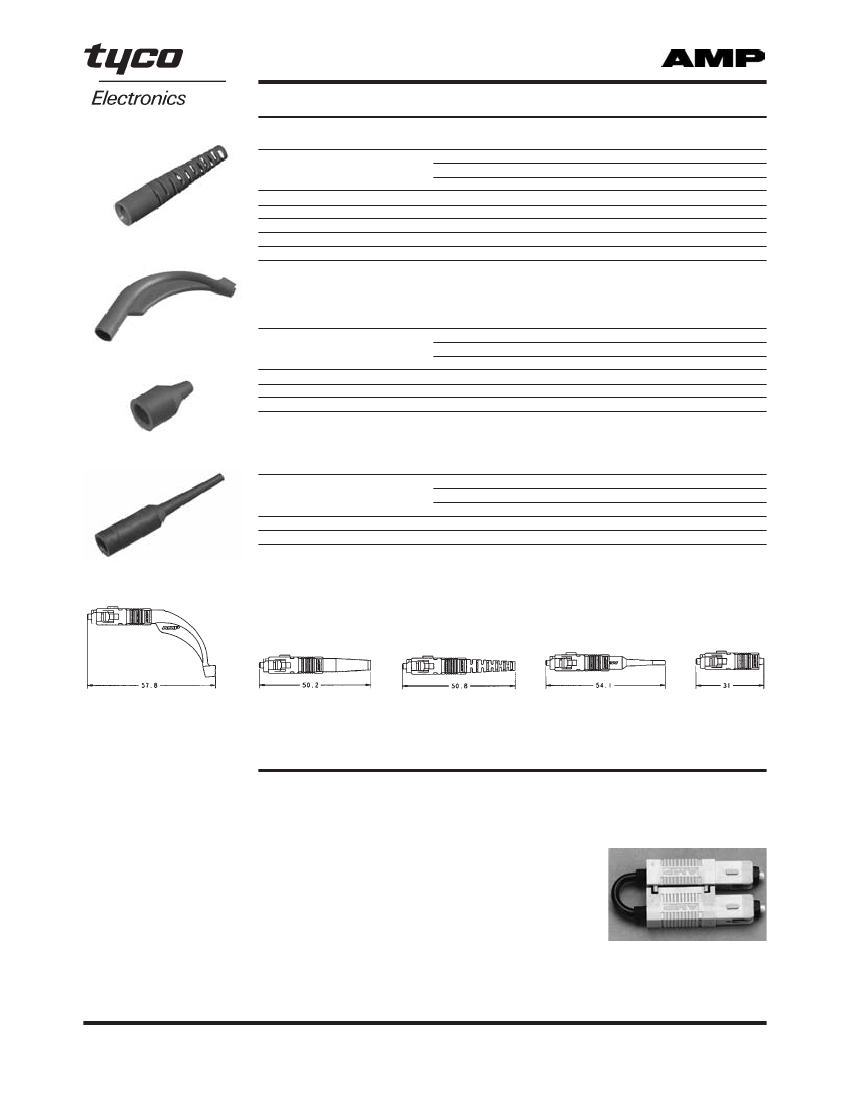

SC Strain Reliefs — Angled
3.0mm Angled
Description
3.0 mm
2.0 mm
2.0 mm
Simplex
Simplex
45° Simplex
Black
1278705-3
1374737-3
6457543-4
Part Number
Color
Red
Beige
1278705-4
1278705-2
1374737-4
1374737-2
6457543-3
6457543-1
Blue
1278705-1
1374737-1
6457543-2
900µm Short
SC Strain Reliefs — 900 micron
Description
Long (33mm) 900µm
Short (10 mm) 900µm
900µm
Black
6457493-3
6278309-1
Yellow
6457493-5
—
Part Number
Color
Red
6457493-4
6278309-3
Beige
6457493-9
—
Blue
6457493-1
6278309-2
SC Low Loss Loopback Connector
Part Number 5503141-1
Product Facts
■
■
■
■
Part Number 5503141-2
Product Facts
■
■
■
■
Part Number 5504883-1
Product Facts
■
■
■
■
62.5/125 Multimode
Use for Equipment Testing
0.6 dB Insertion Loss
0.5" Ferrule Centerline
50/125 Multimode
Use for Equipment Testing
0.8 dB Insertion Loss
0.5" Ferrule Centerline
Singlemode
Use for Equipment Testing
1.5 dB Insertion Loss
0.5" Ferrule Centerline
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
46
Catalog 1307895
Revised 3-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 52-55-1106-0800
C. America: 57-1-254-4444
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341
Fiber Optic Products Catalog
Connectors/Adapters/
Tooling & Accessories
SC Connectors
(Continued)

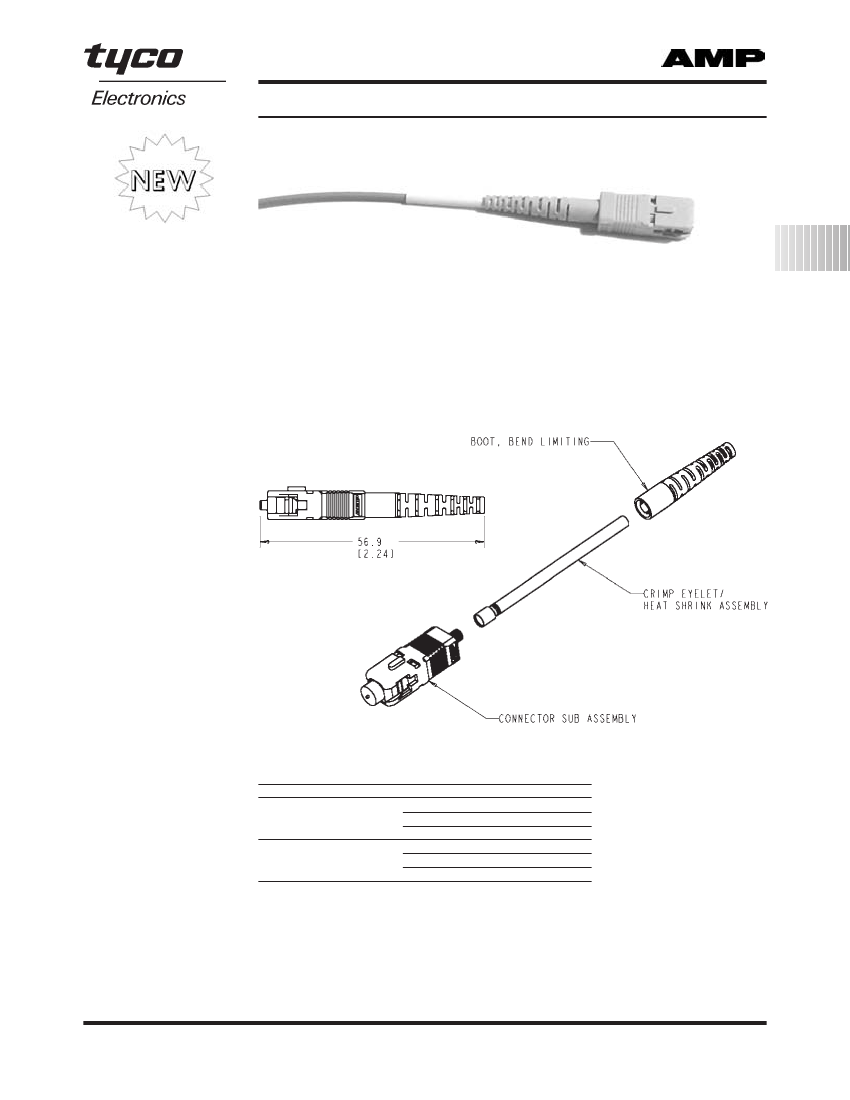

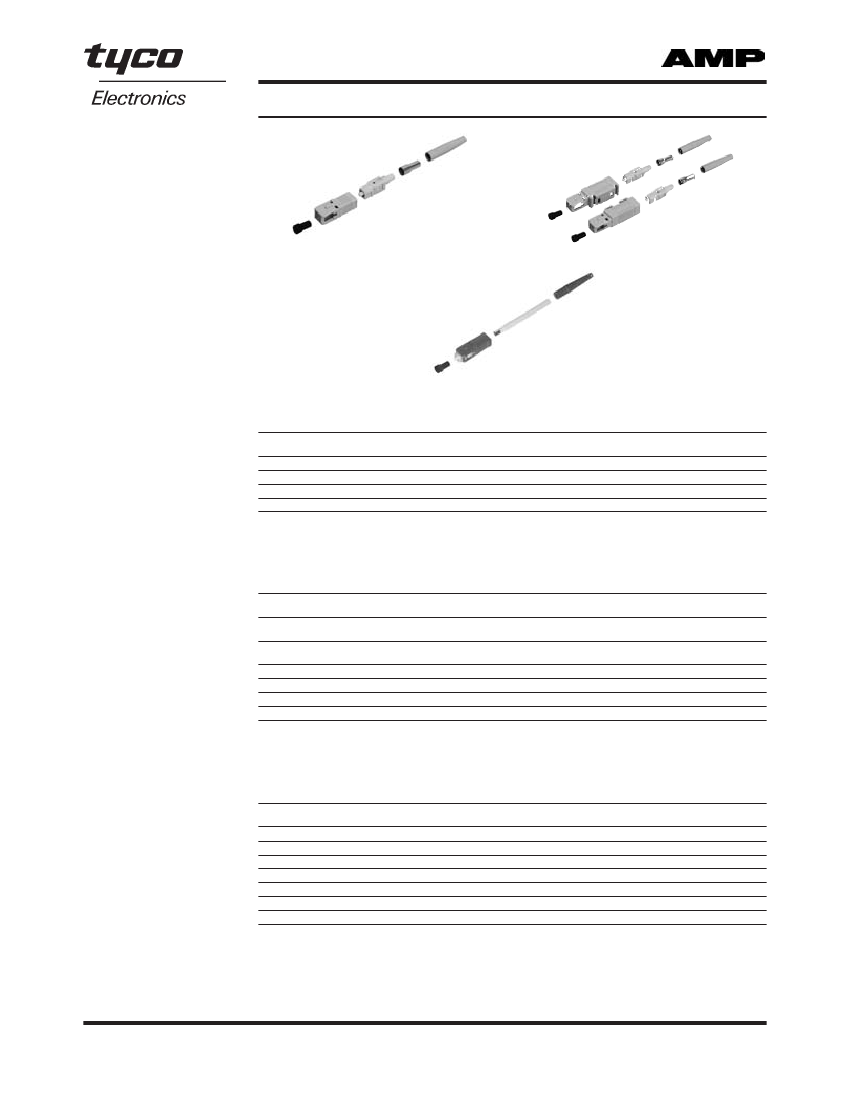

“NEW” Tight Jacketed SC
Connectors
Product Facts
■
■
■
1
The tight jacketed SC
Connectors are non pull-
proof versions of the stan-
dard connectors that are
designed for use with tight
construction cable. Unlike
standard connectors, this
design allows the jacket
and buffer to move
together, reducing the
chances of micro-bends
and fiber breakage.
Multimode or singlemode
Simplex or duplex
Tested using MIL-PRF-
85045/16 2.0mm cable
Application
■
■
■
In Flight Networks
Shipboard Applications
Aero Market
Tight Jacketed SC Connector Kits
Fiber Type
Singlemode
(blue body & straight boot)
Multimode
(beige body & straight boot)
Kit Part Number
6828100-X
1828573-X
1918227-1
6828099-X
1828574-X
1918154-X
Description
Simplex, 1.6–2.0mm
Duplex, 1.6–2.0mm
Simplex, 2.4mm
Simplex, 1.6–2.0mm
Duplex, 1.6–2.0mm
Simplex, 2.4mm
Note:
X = -1 for individual package, -2 for bulk package.
